Tuttnauer 3840 ELVG-D Manuale utente

TECHNICIAN

MANUAL

Laboratory Vertical Steam Sterilizers

Models: 3840, 3850, 3870

ELVPVG-D Standard Autoclave

ELVCPVG-D Including Fast Cooling System

Cat. No. MAN205-0461000EN Rev. B

Tuttnauer Europe b.v., Hoeksteen 11, 4815 PR, Breda, P.O. Box 7191, 4800 GD Breda, Netherlands. +31/76-5423510,

Fax: +31/76-5423540

Page 1 of 102 Pages

TABLE OF CONTENTS

PARAGRAPH PAGE NO.

1. INTRODUCTION 4

2. SYMBOL DESCRIPTION 4

3. INSTALLATION INSTRUCTIONS 5

3.1 Installation Site............................................................................................ 5

3.2 Connection of the pressure regulator........................................................... 5

4. TESTS 9

4.1 Installation Tests.......................................................................................... 9

4.2 Periodical Tests............................................................................................ 9

5. WATER QUALITY 10

5.1 Water for the Vacuum pump and drain cooling......................................... 10

5.2 Reverse Osmosis......................................................................................... 11

6. DESCRIPTION OF THE CONTROL SYSTEM. 12

6.1 Application system architecture ................................................................. 12

6.2 Description of the programmable component:........................................... 13

6.3 Software development plan:....................................................................... 15

7. CHECKING AND CHANGING PARAMETERS AND OTHER DATA 19

7.1 Directories and subdirectories.................................................................... 19

7.2 Entering the main menu ............................................................................ 21

7.3 Cycle Parameters (Custom 1)..................................................................... 22

7.4 Inputs/Outputs ........................................................................................... 29

7.5 Calibration ................................................................................................ 31

Current value31

7.6 History........................................................................................................ 33

7.7 Maintenance .............................................................................................. 35

7.8 Advanced Options ...................................................................................... 40

7.9 Version information................................................................................... 44

8. REPLACING ELEMENTS 47

8.1 Replacing the Circuit Breaker.................................................................... 47

8.2 Replacing the Safety Valve......................................................................... 48

8.3 Replacing the Door Gasket ........................................................................ 49

8.4 Replacing the door cover............................................................................ 50

8.5 Replacing the steam generator................................................................... 54

8.6 Replacing Heating elements....................................................................... 56

8.7 Cleaning and Replacing the Water Level Electrodes ................................. 56

1.1. Generator Side Gauge Glass Indicator Tube ............................................ 57

1.2. Draining the generator............................................................................... 58

8.8 Replacing the Printer................................................................................. 59

8.9 Replacing the Door Switch......................................................................... 61

8.10 Replacing the air filter............................................................................... 62

8.11 Replacing the locking motor ...................................................................... 63

Page 2 of 102 Pages

8.12 Replacing the Plunger or Coil of the BACCARA Solenoid Valve.............. 64

8.13 Replacing the Mechanic Pressostat............................................................ 65

8.14 Replacing the Pressostat 0.2 (NC).............................................................. 65

8.15 Replacing the power supplies, water level board and relays....................... 66

8.16 The Water Pump Replacement................................................................... 67

1.3. Adjusting the Generator's Pressure Switches............................................. 69

9. TROUBLESHOOTING 70

9.1 No response when turning on the autoclave.............................................. 76

9.2 Solenoid valve always open........................................................................ 77

9.3 Door is closed but the locking motor does not work................................... 78

9.4 9.4 Steam Generator Troubleshooting....................................................... 79

10. LIST OF SPARE PARTS 81

11. PRESSURE VS TEMPERATURE FOR SATURATED STEAM 85

12. VALVES NUMBERING 89

Page 3 of 102 Pages

TABLE OF CONTENT (Cont.)

DRAWINGS PAGE NO.

FRONT VIEW.....................................................................................................................7

WATER OUTLET STRAINER.........................................................................................84

PIPING DRAWING – MODEL 3840/3850/70 ELVPVG.................................................. 91

ELECTRICAL WIRING DIAGRAM FOR AUTOCLAVE WITH 380V – PAGE 1 OF 8. 92

ELECTRICAL WIRING DIAGRAM FOR AUTOCLAVE WITH 380V – PAGE 2 of 8...93

ELECTRICAL WIRING DIAGRAM FOR AUTOCLAVE WITH 380V – PAGE 3 of 8...94

ELECTRICAL WIRING DIAGRAM FOR AUTOCLAVE WITH 380V – PAGE 4 of 8...95

ELECTRICAL WIRING DIAGRAM FOR AUTOCLAVE WITH 380V – PAGE 5 of 8...96

ELECTRICAL WIRING DIAGRAM FOR AUTOCLAVE WITH 380V – PAGE 6 of 8...97

ELECTRICAL WIRING DIAGRAM FOR AUTOCLAVE WITH 380V – PAGE 7 of 8...98

ELECTRICAL WIRING DIAGRAM FOR AUTOCLAVE WITH 380V – PAGE 8 of 8...99

ELECTRICAL WIRING DIAGRAM FOR THE GENERATOR.................................... 100

SWITCH BOX WIRING DIAGRAM .............................................................................. 100

OPEN SWITCH BOX...................................................................................................... 101

CLOSED SWITCH BOX................................................................................................. 102

Page 4 of 102 Pages

1. INTRODUCTION

This manual, together with the operator’s manual, forms the complete edition of the

Operation and Maintenance instructions. This manual is intended for the use of the

technician. It is forbidden for unqualified and unauthorized personnel to service the

autoclave in accordance with the instructions in this manual. Any unauthorized

service may result in the invalidation of the manufacturer’s guarantee.

The qualified technician shall be an authorized electrician with the right

qualifications in electronics and shall be familiar with the local technical/electrical

regulations.

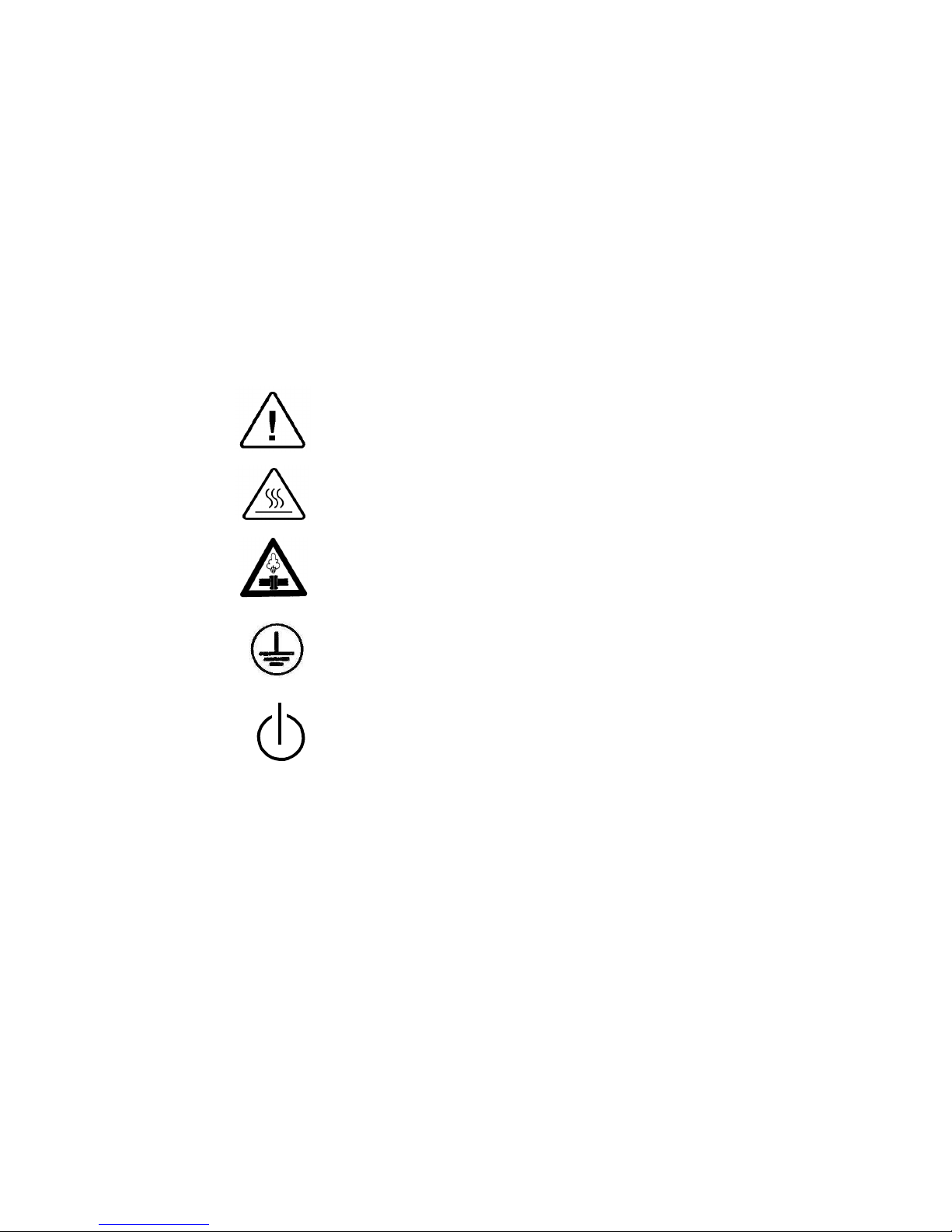

2. SYMBOL DESCRIPTION

Caution! Consult accompanying documents

Caution! Hot surface.

Caution! Hot steam.

Protective earth (Ground)

Stand by

Page 5 of 102 Pages

3. INSTALLATION INSTRUCTIONS

The following utilities have to be connected (Refer to the drawing below ‘Rear View’

of the autoclave).

Power outlet, as detailed in the table below:

Power 3 Ph, 400V/50/60Hz

Recommended Circuit Breaker 20A

If the 3 phase autoclave has to be connected to a one phase power network, 1 x

230V, 50/60Hz., connect the 1ph 230V power source to the supplied switch box

that has a 1 phase input (from the power source) and a 3 phase output (to the

autoclave). See details at the end of this manual.

The power network must be protected by a current leakage relay.

Mineral-free water having a conductibility lower than 15µs (microsiemens),

through a 1/2” flexible hose.

To obtain water quality meeting requirements a deionization column or reverse

osmosis apparatus can be installed. The water must be delivered at a pressure of 2-

3bar. A pressure reducer shall be installed at the water source outlet as instructed

below.

For fast cooling (if this option is provided):

Feed water from the water network, pressure 2-3bars, connected through a 1/2”

pipe. A pressure reducer shall be installed at the water source outlet as instructed

below.

Compressed air, from a mobile compressor or compressed air network at pressure

3-4 bars, will be set at 1.6-2bars at the autoclave inlet is to be connected by a

flexible conduit of 3/16”.

The air must be of instrumental quality filtered at 5µ and free of humidity and oil

drops.

Drain connected by 1/2” pipe, located at the rear of the unit. The chamber exhaust

and coolant water is evacuated to an open waste funnel. The drainage piping must

be heat resistant, to 80ºC, non-continuous flow.

Attention:

Connection of water system to the autoclave must be performed through "BACK

FLOW PREVENTION SYSTEM" installation as per EN 1717.

3.1 Installation Site

1. Install the autoclave according to the following guidelines:

2. Place the autoclave on the floor. Verify that the surface is leveled.

3. All utility supplies must be prepared in accordance with requirements,

before autoclave installation e.g. mineral-free and tap water, compressed

air, one or three-phase power network, connection to the drain of the

building.

4. Leave the space free around the autoclave for maintenance and service

requirements.

3.2 Connection of the pressure regulator

This paragraph refers to the pressure regulator of the feed water and to the

pressure regulator of the mineral free water.

1. Attach the pressure regulator to the facility's water outlet.

Page 6 of 102 Pages

FLOW DIRECTION

2. Connect the supplied flexible hose to the pressure regulator's assembly

outlet and to the autoclave's water inlet.

3. Verify that the pressure regulator is in right direction. The flow direction

is indicated by an arrow stamped on the pressure regulator.

4. Verify that water flows freely in the feed water and in the mineral free

water lines.

No. Description Cat No.

1 Side of water supply source N/A

2Reducer, Female 3/4" BSP to Male

1/2" BSP, Brass FIT100-0424

3Reducer, Female 1/2" BSP to Male

1/4" BSP, Brass FIT100-0425

Pres

sure Regulator, Water, In

Line,

with Strainer, 1/4 x 1.5 bar GAU029-0059

5Fitting, Adaptor, M 1/2" BSP x M 1/4"

BSP, Brass Ni plated PNE100-0042

6 Side of flexible hose (to autoclave N/A

Page 7 of 102 Pages

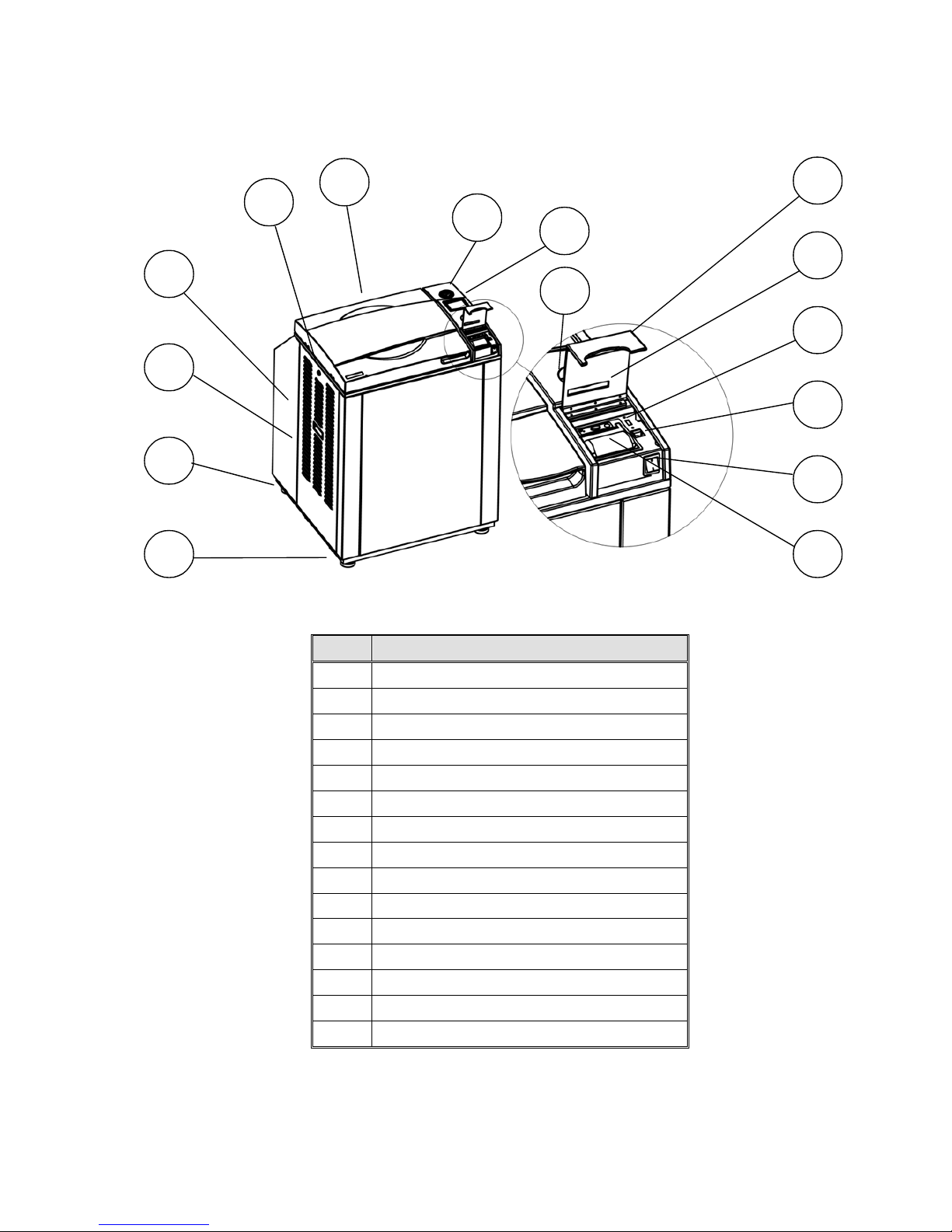

FRONT VIEW

No. Description

1 Front leg

2 Rear leg

3 Left service door

4 Left service door grip

5 Left service door lock

6 Door cover

7 Pressure gauge

8 Display

9 Keyboard

10 Printer cover

11 Paper slot and paper cutter

12 USB socket

13 RJ45 connector

14 Main switch

15 Printer

Page 8 of 102 Pages

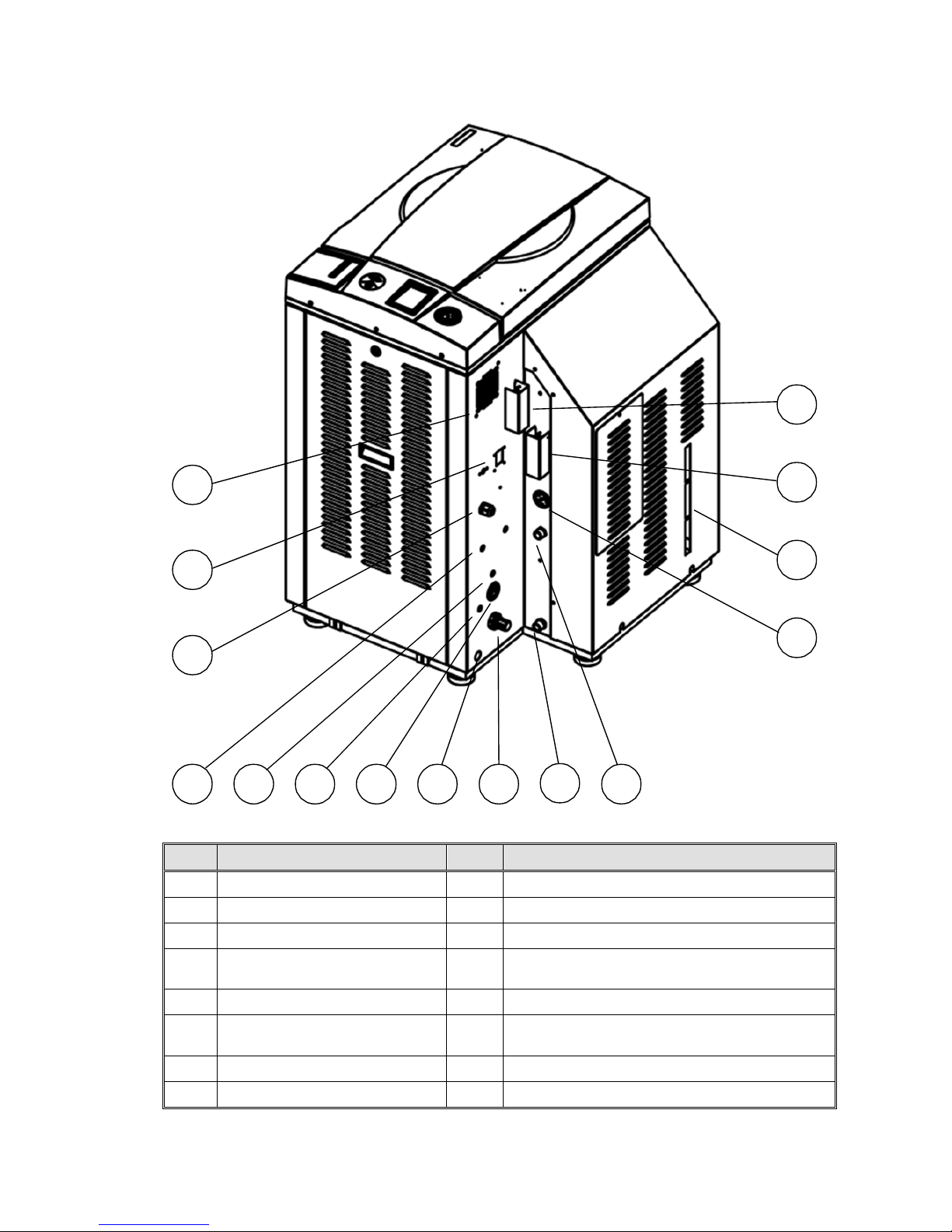

REAR VIEW

No. Description No. Description

1 fan grill 9 air pressure regulator

2 circuit breaker 10 generator drain outlet

3 electrical cord 11 Generator mineral free water inlet

4Vacuum pump city (tap)

water inlet

12 generator pressure gauge

5 compressed air inlet 13 side gage glass indicator tube

6Tap water inlet for cooling

coil and drain

14 generator safety relief valve

7 autoclave air pressure gauge 15 chamber safety relief valve

8 autoclave drain outlet
