U-Line H-2557 Manuale utente

PAGE 1 OF 2 0115 IH-2557

πH-2557

Foaming Soap

puSH DiSpenSer

1-800-295-5510

uline.com

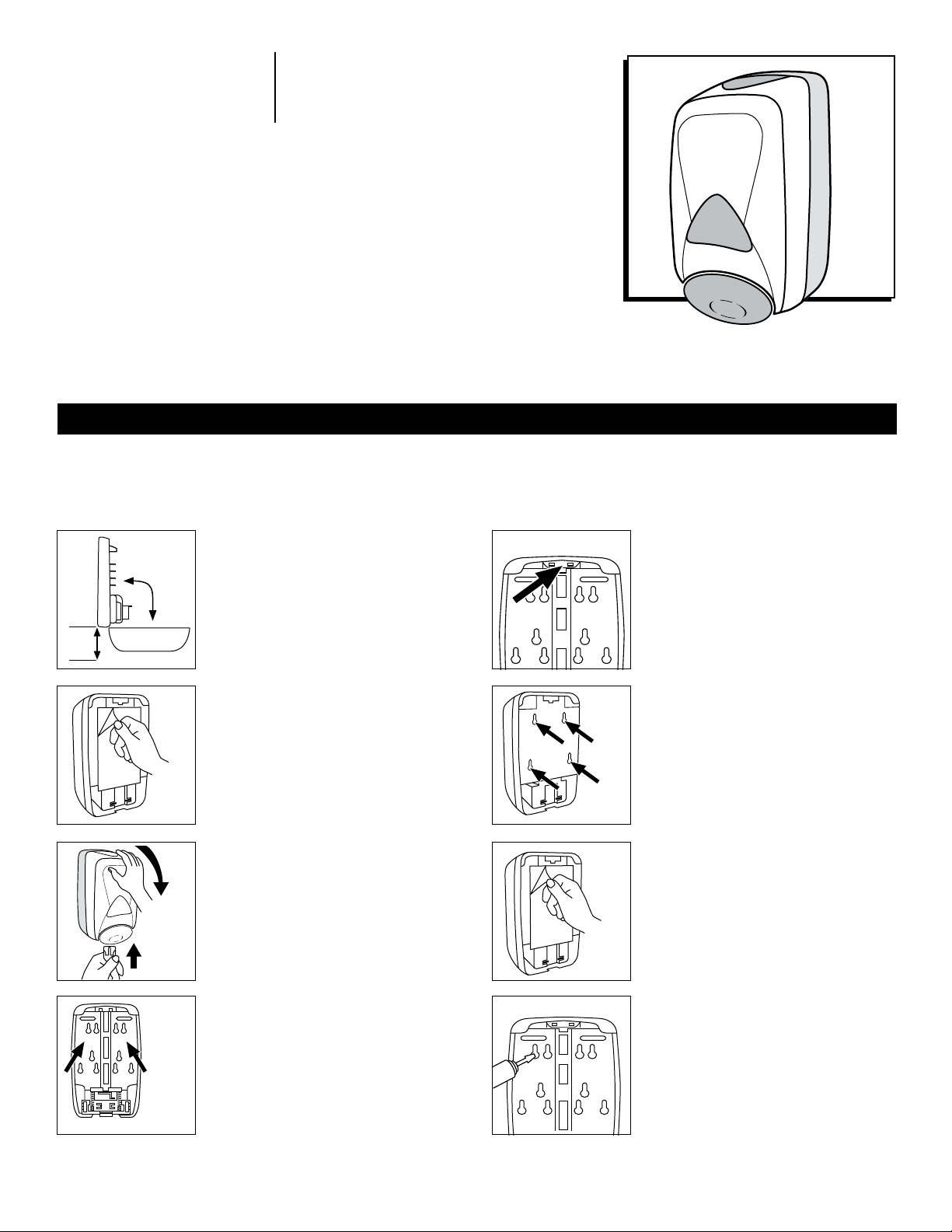

TAPE INSTALLATION

Use only on smooth, dry surfaces

1. Install the dispenser at least 10"

(25.4 cm) above counter top.

(See Figure 1)

2. Clean installation surface

with supplied prep pad. Allow

surface to dry for 60 seconds.

3. Peel paper off of installation

tape and press dispenser firmly

into position. (See Figure 2)

4. Open dispenser by inserting key

into key access holes and push

up until front cover opens. (See

Figure 3)

5. Press firmly on back plate for 30

seconds. For maximum adhesion,

do not load refill for 24 hours.

(See Figure 4)

FASTENER INSTALLATION

Use on rough or smooth surfaces

1. Open dispenser by pushing on

cover latch until it releases. (See

Figure 1)

2. Using back plate as template,

mark and drill center holes using

1/4" (6.3 mm) spiral masonry drill

or 1/4" wood drill.

3. Install #10 x 1" (2.54 cm)

fasteners into 4 installation holes

in back plate and through

installation tape. (See Figure 2)

4. Peel paper off installation tape,

line up fasteners with anchors,

and press dispenser firmly into

position. (See Figure 3)

5. Tighten fasteners securely. Be

careful not to over-tighten. (See

Figure 4)

INSTALLATION

Figure 1

Figure 3

Figure 4

Figure 2

Figure 3

Figure 1

10 in.

Figure 2

Figure 4

PAGE 2 OF 2 0115 IH-2557

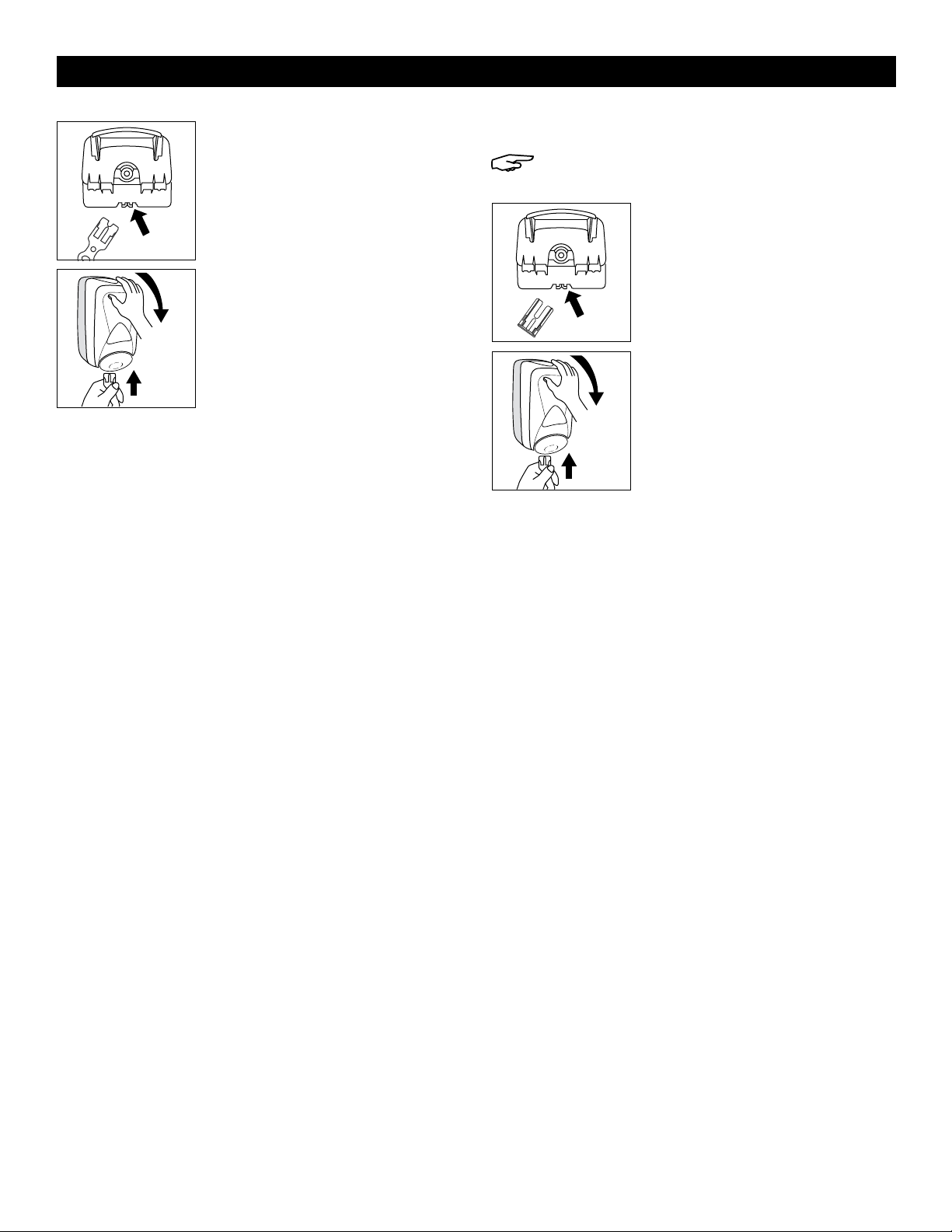

STANDARD KEY

1. Insert standard key into key

access hole underneath the

cabinet. (See Figure 1)

2. Push up until front cover opens.

(See Figure 2)

LOCK BYPASS OPTION

This option is permanently affixed once it has

been inserted into the dispenser.

1. Snap insert into key access hole.

Make sure it snaps in place.

(See Figure 1)

2. After assembled, push up until

front cover opens. (See Figure 2)

LOCK OPTIONS

Figure 1

Figure 2

Figure 1
