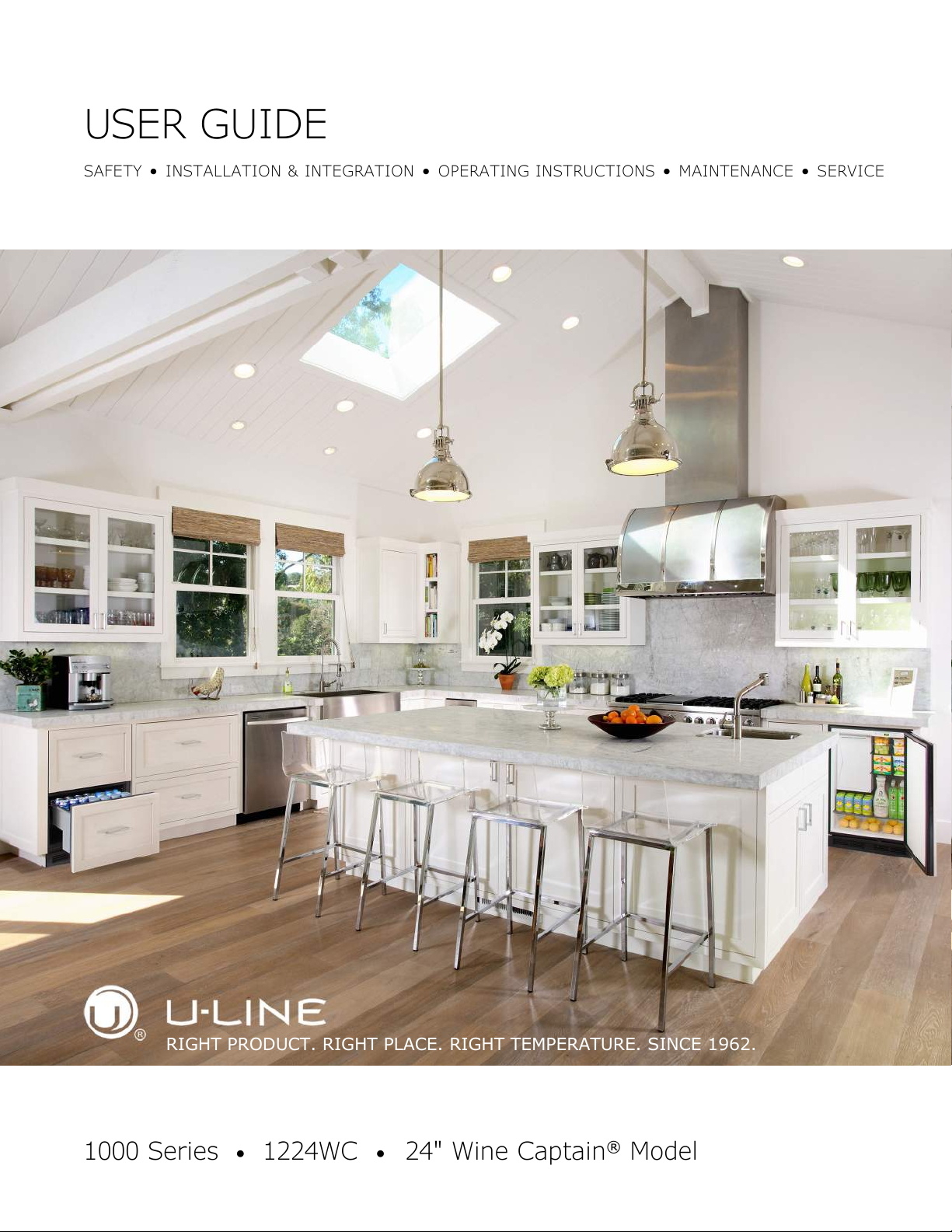

U-Line 1000 SERIES Manuale utente

USER GUIDE

SAFETY •INSTALLATION & INTEGRATION •OPERATING INSTRUCTIONS •MAINTENANCE •SERVICE

1000 Series •1224WC •24" Wine Captain®Model

RIGHT PRODUCT. RIGHT PLACE. RIGHT TEMPERATURE. SINCE 1962.

USER GUIDE

Environmental Requirements 1

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Environmental Requirements

This model is intended for indoor/interior applications only

and is not to be used in installations that are open/

exposed to natural elements.

This unit is designed to operate between 50°F (10°C) and

100°F (38°C). Higher ambient temperatures may reduce

the unit’s ability to reach low temperatures and/or reduce

ice production on applicable models.

For best performance, keep the unit out of direct sunlight

and away from heat generating equipment.

In climates where high humidity and dew points are

present, condensation may appear on outside surfaces.

This is considered normal. The condensation will

evaporate when the humidity drops.

CAUTION

Damages caused by ambient temperatures of

40°F (4°C) or below are not covered by the

warranty.

USER GUIDE

Electrical 1

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

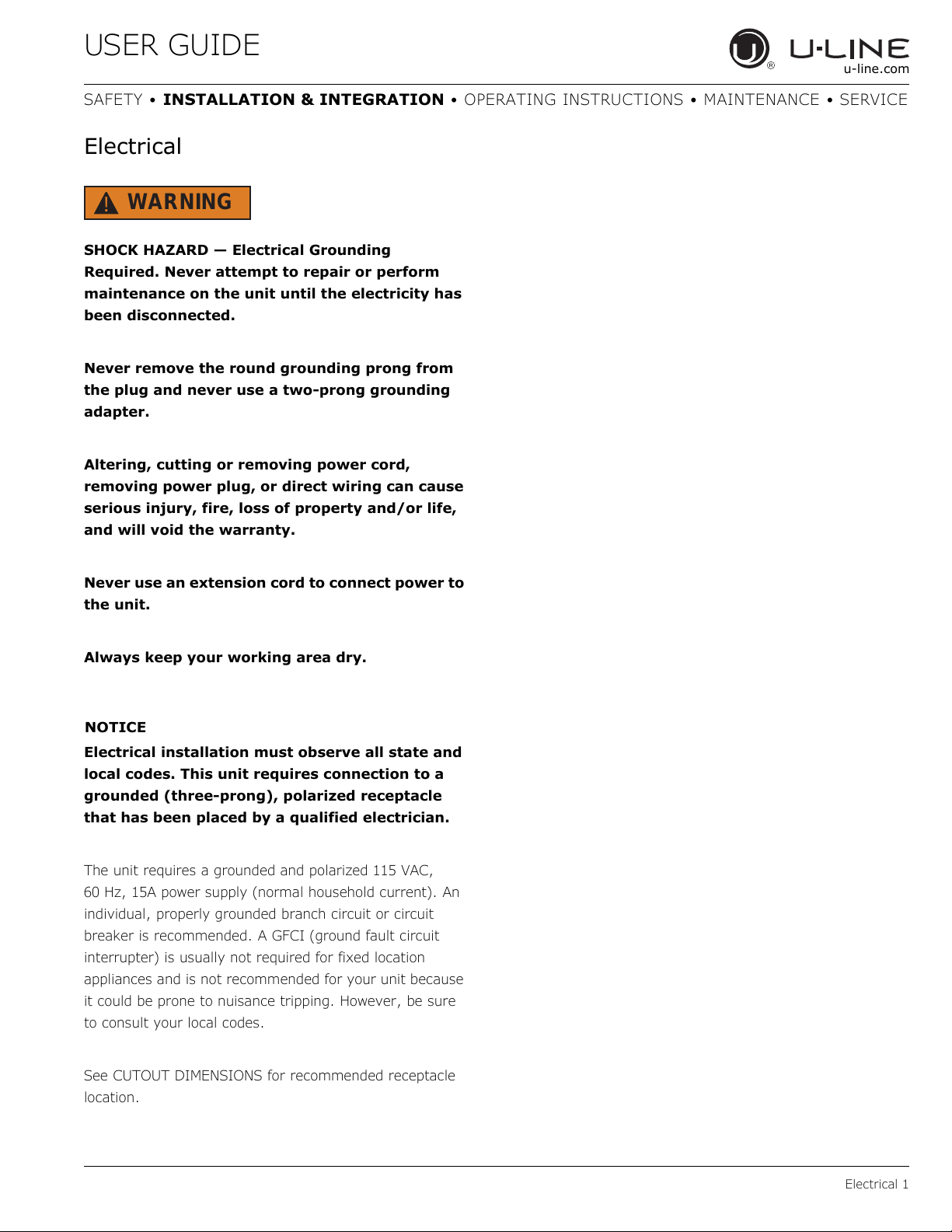

Electrical

WARNING

SHOCK HAZARD — Electrical Grounding

Required. Never attempt to repair or perform

maintenance on the unit until the electricity has

been disconnected.

Never remove the round grounding prong from

the plug and never use a two-prong grounding

adapter.

Altering, cutting or removing power cord,

removing power plug, or direct wiring can cause

serious injury, fire, loss of property and/or life,

and will void the warranty.

Never use an extension cord to connect power to

the unit.

Always keep your working area dry.

NOTICE

Electrical installation must observe all state and

local codes. This unit requires connection to a

grounded (three-prong), polarized receptacle

that has been placed by a qualified electrician.

The unit requires a grounded and polarized 115 VAC,

60 Hz, 15A power supply (normal household current). An

individual, properly grounded branch circuit or circuit

breaker is recommended. A GFCI (ground fault circuit

interrupter) is usually not required for fixed location

appliances and is not recommended for your unit because

it could be prone to nuisance tripping. However, be sure

to consult your local codes.

See CUTOUT DIMENSIONS for recommended receptacle

location.

USER GUIDE

Cutout Dimensions 1

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

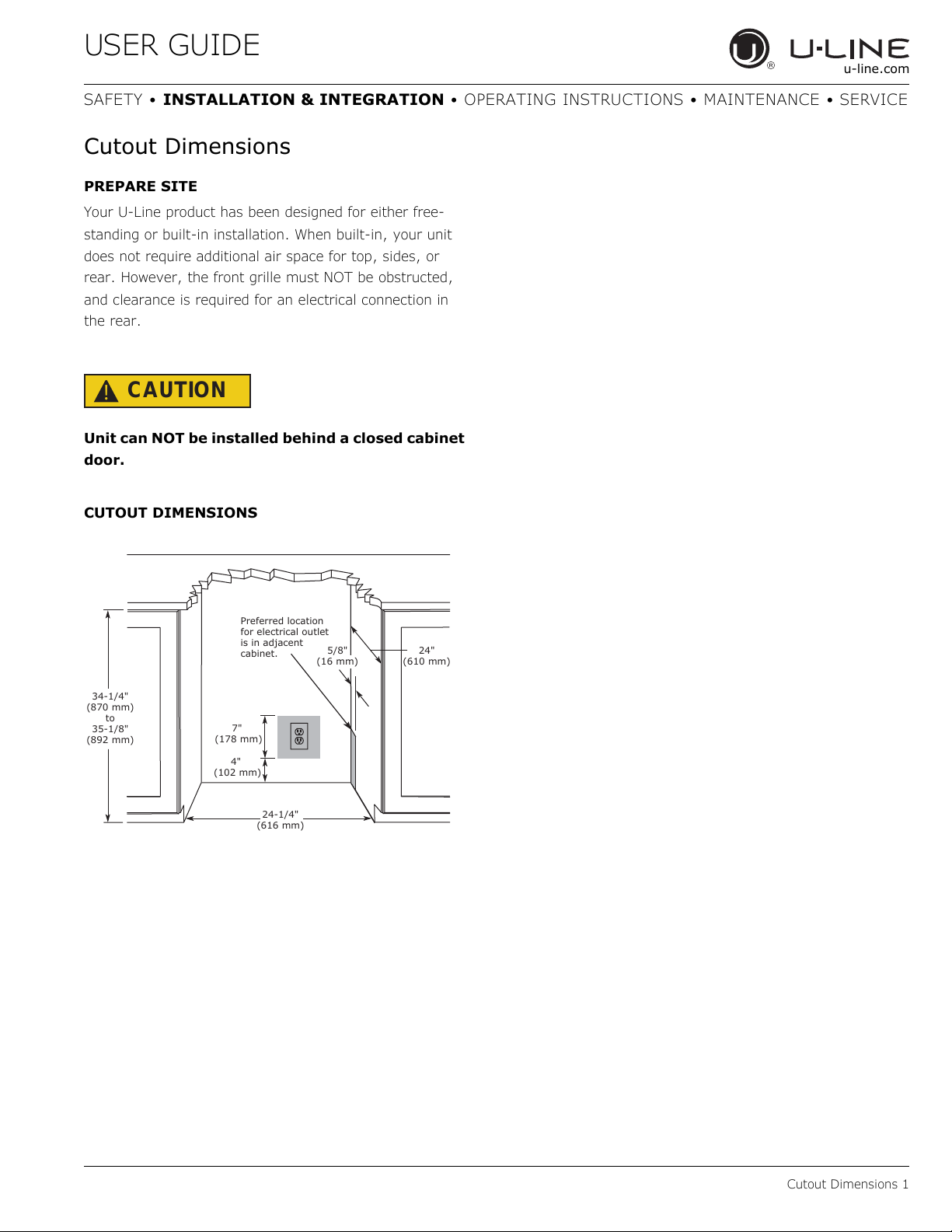

Cutout Dimensions

PREPARE SITE

Your U-Line product has been designed for either free-

standing or built-in installation. When built-in, your unit

does not require additional air space for top, sides, or

rear. However, the front grille must NOT be obstructed,

and clearance is required for an electrical connection in

the rear.

CAUTION

Unit can NOT be installed behind a closed cabinet

door.

CUTOUT DIMENSIONS

(102 mm)

(178 mm)

24"

(610 mm)

24-1/4"

(616 mm)

34-1/4"

(870 mm)

35-1/8"

(892 mm)

Preferred location

for electrical outlet

is in adjacent

cabinet. 5/8"

(16 mm)

USER GUIDE

Product Dimensions 1

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

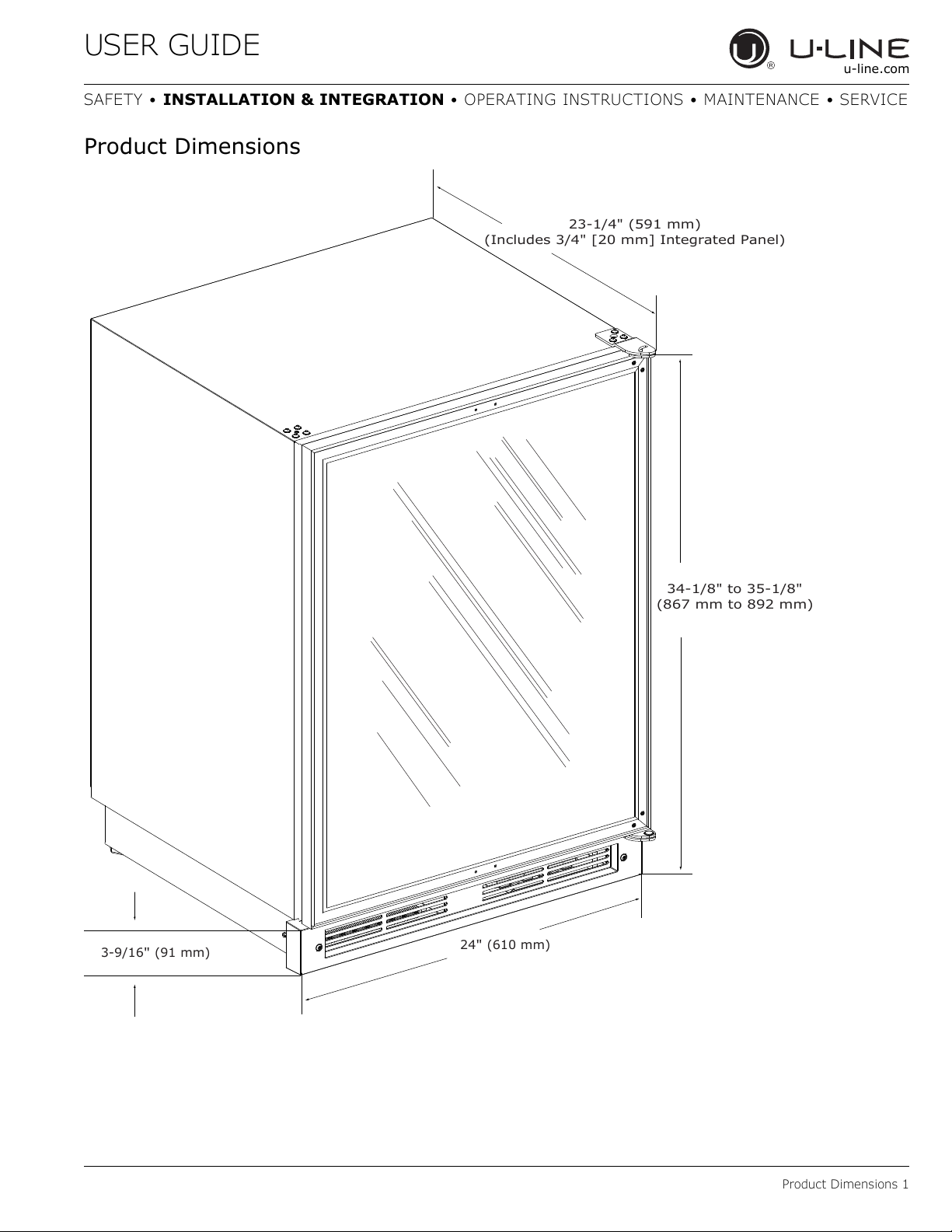

Product Dimensions

3-9/16

(91 mm)

34-1/8" to 35-1/8"

(867 mm to 892 mm)

23-1/4

" (591 mm)

(Includes

3/4

" [20 mm] Integrated Panel)

(610 mm)

USER GUIDE

Side-by-Side Installation 1

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Side-by-Side Installation

Two units may be installed side-by-side.

Cutout width for a side-by-side installation is the cutout

dimension of a single unit times two.

No trim kit is required. However, 1/4" (6 mm) of space

needs to be maintained between the units to ensure

unobstructed door swing.

Units must operate from separate, properly grounded

electrical receptacles placed according to each unit’s

electrical specifications requirements.

Side-by-Side Installation with Bracket

1. Slide both units out so screws on top of units are easily

accessible.

2. Remove screws as shown below.

3. Place bracket over holes and attach to unit with two

screws removed in step 2 using a T-25 Torx driver.

Tighten screws fully.

4. Gently push units into position. Be careful not to

entangle the electrical cord or water line, if applicable.

5. Re-check the leveling, from front to back and side to

side. Make any necessary adjustments. The unit’s top

surface should be approximately 1/8" (3 mm) below

the countertop.

USER GUIDE

Anti-Tip Bracket 1

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Anti-Tip Bracket

1. Slide unit out so screws on top of unit are easily

accessible.

2. Remove the two screws from the opposite side of the

hinge assembly using a T-25 Torx driver (see below).

NOTE: 1224 models shown with four screws. 1215 models

only have three screws, but same screws are used in both

applications.

3. Place bracket (part #14154) over holes and attach to

unit with two screws removed in step 2 using a T-25

Torx driver. Tighten screws fully.

4. Gently push unit into position. Be careful not to

entangle the electrical cord or water line, if applicable.

5. Check to be sure the unit is level from front to back

and side to side. Make any necessary adjustments.

The unit’s top surface should be approximately 1/8"

(3 mm) below the countertop.

6. Secure bracket into adjoining surface.

FLOOR MOUNTED ANTI-TIP INSTALLATION

1. Locate two anti-tip brackets included in the kit.

2. Place the unit into the area where it will be installed.

Check the door, sides, and top for a proper fit. Also

test to make sure the door opens and closes freely.

3. Remove grille and place a mark on the floor at the

front of the unit. Also place a mark on the floor in the

center of the unit.

USER GUIDE

Anti-Tip Bracket 2

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

4. Remove the unit. Using a square, extend center line

“B” (see chart below). This line serves as the back

edge for the anti-tip brackets. From the center line,

measure “A” to the left and right. This line is the outer

edge of each bracket.

5. Place the anti-tip brackets on the floor against the line

drawn for the outer edge. Mark spots for the screw

holes.

6. Use a 1/8" drill to make two starter holes and fasten

the anti-tip brackets to the floor using the screws

provided.

7. Place the unit back into position, making sure the feet

engage the anti-tip brackets properly. Check the

alignment of the lines made on the floor in step 3 with

the position of the front feet to ensure proper

positioning.

Back wall

Back of unit

Front of unit

Surrounding

area (Top view)

1024/1224 WC 1215 WC

A11-1/16" (281 mm) 6-9/16" (167 mm)

B20-1/4" (514 mm) 20-1/4" (514 mm)

Surrounding

area (Top view)

Drill holes and

mount anti-tip

brackets to ﬂoor Back wall

Front

unit

Back

unit

1024/1224 WC 1215 WC

A11-1/16" (281 mm) 6-9/16" (167 mm)

B20-1/4" (514 mm) 20-1/4" (514 mm)

USER GUIDE

General Installation 1

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

General Installation

LEVELING INFORMATION

1. Use a level to

confirm the unit is

level. Level should

be placed along top

edge and side edge

as shown.

2. If the unit is not level, adjust the legs on the corners of

the unit as necessary.

3. Confirm the unit is level after each adjustment and

repeat the previous steps until the unit is level.

INSTALLATION TIP

If the room floor is higher than the floor in the cutout

opening, adjust the rear legs to achieve a total unit rear

height of 1/8" (3 mm) less than the opening’s rear height.

Shorten the unit height in the front by adjusting the front

legs. This allows the unit to be gently tipped into the

opening. Readjust the front legs to level the unit after it is

correctly positioned in the opening.

INSTALLATION

1. Plug in the power/electrical cord.

2. Gently push the unit into position. Be careful not to

entangle the cord.

3. Re-check the leveling, from front to back and side to

side. Make any necessary adjustments. The unit’s top

surface should be approximately 1/8" (3 mm) below

the countertop.

4. Remove the interior packing material and wipe out the

inside of the unit with a clean, water-dampened cloth.

Turn to Adjust

USER GUIDE

Integrated Panel Dimensions 1

u-line.com

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Integrated Panel Dimensions

INTEGRATED PANEL

NOTICE

Due to differences in surrounding cabinetry the

panel may not perfectly align with door. The

procedure below is designed to provide a

finished integrated panel that seamlessly

integrates with surrounding cabinetry.

The door panel must not weigh more than 20 lbs

(10 kg).

It is important to ensure that all drilled holes are

drilled to the correct depth in order to avoid

splits in the wood when hardware is installed.

When applying an integrated panel to a unit,

ensure that both sides are finished in order to

prevent warping. In some panel installations,

the panel may be visible through the glass while

the door is open.

A full integrated door panel completely covers the door

frame and provides a built-in appearance.

Integrated Panel Preparation

1. Cut the panels to the dimensions listed in the diagram

below.

2. Optional: Stain or Finish panel to desired stain or color.

Be sure to closely follow the instructions provided by

the manufacturer.

3. Optional: Install handles and hardware.

Integrated Panel Dimensions

BACK SURFACE MUST HAVE AMPLE FLAT SURFACE

TO MOUNT OVERLAY PANEL FLAT AND WITHOUT

INTERFERENCE

23-3/4"

(603 mm)

3/4"

(20 mm)

Integrated Panel

30-1/4"

(708 mm)

Altri manuali per 1000 SERIES

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali U-Line Frigorifero

U-Line

U-Line U-2224R Manuale di installazione

U-Line

U-Line U-1224RGL Manuale di installazione

U-Line

U-Line Echelon 2175RS Manuale utente

U-Line

U-Line Echelon 2275DWRROL Manuale

U-Line

U-Line U-1215RINT-00B Manuale di installazione

U-Line

U-Line UCBR552-SG01A Manuale di installazione

U-Line

U-Line Echelon Combo C2275DWR Guida alla configurazione

U-Line

U-Line U-29RW-00A Manuale di installazione

U-Line

U-Line 2000 SERIES Manuale utente

U-Line

U-Line 3018RGL Manuale utente

U-Line

U-Line U-1224ROD Manuale di installazione

U-Line

U-Line UHRE115-BS01A Manuale di installazione

U-Line

U-Line U-2260DCINT-60B Manuale di installazione

U-Line

U-Line Echelon 2075R Manuale utente

U-Line

U-Line Echelon 2015WC Wine Captain Manuale utente

U-Line

U-Line U-1224RGLS-00A Manuale di installazione

U-Line

U-Line WINE CAPTAIN U-1075WCS-00 Manuale utente

U-Line

U-Line CO1175 Guida alla configurazione

U-Line

U-Line ADA24RINT00A Manuale di installazione

U-Line

U-Line 2224RGL Manuale di installazione

U-Line

U-Line UHWC524SG41AU Manuale di installazione

U-Line

U-Line U-3060RDCINT-00B Manuale di installazione

U-Line

U-Line U-3018WCS-00B Manuale utente

U-Line

U-Line Combo CO29 Manuale utente

Manuali Frigorifero popolari di altre marche

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuale utente

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuale utente

Sharp

Sharp SJ-BA31IEXW2-EU Manuale utente

CORBERO

CORBERO CC2300MCW Manuale utente

KitchenAid

KitchenAid 2205264 Manuale utente

Stengel

Stengel KU 1101 A++ Manuale utente

NEFF

NEFF KI181 Series Manuale utente

Hoshizaki

Hoshizaki Reach-In Manuale utente

Amana

Amana ASD2524VES00 Manuale utente

BOMANN

BOMANN KGC 213 Manuale utente

Danby

Danby DAR044A1SLDD Istruzioni per il montaggio

Samsung

Samsung RF323TE Manuale utente

Beko

Beko CSA31022 Manuale utente

IKEA

IKEA FROSTIG C 185 E Manuale utente

Electrolux

Electrolux ER 6821 D Manuale utente

True

True TS-28 Manuale utente

Frigidaire

Frigidaire FSC23R5DW9 Manuale utente

Beko

Beko LSP4579W Manuale utente
