U-Line Echelon 2075DWRRSS Manuale utente
INTRODUCTION
Congratulations on your purchase of your U-Line drawer unit. A pioneer in
the field for more than 40 years, U-Line is the world’s number one man-
ufacturer of built-in, under-counter ice making and specialty refrigeration
products. U-Line dedicates 100% of its research and development to
these products. The result: U-Line technology leads the market with inno-
vation, design, depth of product line and performance.
U-Line also backs customers with a strong dealer network.
U-Line’s commitment to quality even extends to environmentally safe
packaging. U-Line products are making life more convenient in homes,
businesses, and hotels around the world.
PLEASE READ all instructions completely before attempting
to install or operate the unit.
The icons 2075DWRR refrigerator unit, CO2075DWR
refrigerator/ice maker combination and 2075DWRWC Wine
Captain
®
drawer units are used throughout this manual to help you identify the
specifics to your U-Line product. Once you have your unit installed, we suggest
you keep this manual in a safe place for future reference. Should any prob-
lems occur, refer to the TROUBLESHOOTING section of this manual. This
information will help you quickly identify a problem and get it remedied. In the
event you require assistance, please contact the dealer where you purchased
your unit.
1
PLEASE RECORD YOUR MODEL’S INFORMATION
Whenever you call to request information or service, you will need to
know your model number and serial number. You can find this informa-
tion on the serial plate located on the inside wall of your unit and on the
product registration card.
PRODUCT REGISTRATION CARD
The package containing this manual also includes your product registra-
tion information. Warranty coverage begins at the time your unit was
purchased.
NOTE
Complete and mail the Product Registration Card as soon as
possible to validate the registration date. You may also reg-
ister the product online at www.U-LineService.com.
If you do not return your Product Registration Card, U-Line will use the
date of sale to the U-Line distributor as the first date of
warranty for your unit. Please also record the purchase date of your U-
Line unit and your dealer’s name, address and telephone number.
Model Number: ______________________________________
Serial Number: ______________________________________
Purchase Date: ______________________________________
Dealer Name: ______________________________________
Dealer Address: ______________________________________
Dealer Telephone: ______________________________________
Keep this manual and the sales receipt together in a safe place for further
reference.
User’s Manual
2
TABLE OF CONTENTS
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
SAFETY PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
LEVELING THE UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
CONNECTING THE WATER SUPPLY . . . . . . . . . . . . . . . . . . . . . .11
BUILT-IN INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
CUSTOM DRAWER PANELS . . . . . . . . . . . . . . . . . . . . . . . . . .14
INITIAL START-UP AND ADJUSTING THE
TEMPERATURE CONTROL . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
TEMPERATURE CONTROLLER . . . . . . . . . . . . . . . . . . . . .23
TEMPERATURE CONTROLLER . . . . . . . . . . . . . . . . . . . . .24
TEMPERATURE CONTROLLER . . . . . . . . . . . . . . . . . . . . .26
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
ICE MAKER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
CLEANING & MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . .38
STAINLESS STEEL MODELS . . . . . . . . . . . . . . . . . . . . . . . . .38
STORAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . .43
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . .44
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . .45
IF SERVICE IS REQUIRED . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
3
User’s Manual
SAFETY PRECAUTIONS
Do not attempt to install or operate your unit until you have read the safe-
ty precautions in this manual. Safety items throughout this manual are
labeled with a Danger, Warning or Caution based on the risk type.
DEFINITIONS
This is the safety alert symbol. It is used to alert you to poten-
tial personal injury hazards. Obey all safety messages that fol-
low this symbol to avoid possible injury or death.
DANGER indicates an imminently hazardous situation which,
if not avoided, will result in death or serious injury.
WARNING indicates a potentially hazardous situation which,
if not avoided, could result in death or serious injury.
CAUTION indicates a potentially hazardous situation which, if
not avoided, may result in minor or moderate injury.
CAUTION
CAUTION used without the safety alert symbol indicates a
potentially hazardous situation which, if not avoided, may
result in property damage.
Indicates installation, operation or mainenance information
which is important but not hazard related.
CAUTION
!
!WARNING
DANGER
! !
!
4
GENERAL PRECAUTIONS
RISK OF CHILD ENTRAPMENT. Before you throw away your
old refrigerator or freezer, take off the doors and leave
shelves in place so that children may not easily climb inside.
•Never attempt to repair or perform maintenance on the
unit until the electricity has been disconnected.
•Altering, cutting of power cord, removal of power cord,
removal of power plug, or direct wiring can cause serious
injury, fire and/or loss of property and/or life and will void
the warranty.
•The anti-tip kit must be installed on this unit before it is
used. Never use the drawers as steps or a shelf to sup-
port more than the drawers’ content.
CAUTION
•Do not lift unit by drawer’s handle.
•Use care when moving the unit. Some edges are sharp and
may cause personal injury. Wear gloves when moving or
repositioning the unit.
•Allow unit temperature to stabilize for 24 hours before use.
•Failure to clean the condenser every three months can
cause the unit to malfunction. This could void the warranty.
•Never install the unit behind closed doors. Be sure front
grille is free of obstruction. Obstructing free air flow can
cause the unit to malfunction, and may void the warranty.
CAUTION
•Use only genuine U-Line replacement parts. Imitation parts
can damage the unit, and may void the warranty.
!WARNING
DANGER
! !
5
User’s Manual
INSTALLATION
SITE PREPARATION
Your U-Line drawer unit must be installed under a counter or in a wall.
These units are designed so they can be installed next to a wall. The
crisper in the and the caddy in the can be accessed from
either side.
1. Position the unit on a flat, level surface, capable of supporting the
entire weight of the unit. Remember the unit will be significantly
heavier once it is fully loaded.
2. This unit requires grounded and polarized 115 VAC, 60Hz, 15A cir-
cuit (normal household current).
ELECTROCUTION HAZARD!
Electrical Grounding Required. This appliance
is equipped with a three prong (grounding)
polarized plug for your protection against pos-
sible shock hazards.
•NEVER remove the round grounding prong from the plug.
•NEVER use a two-prong grounding adapter.
•NEVER use an extension cord to connect power to the
unit.
Where a two-prong wall receptacle is encountered or a
longer power cord is required, contact a qualified electrician
to have it replaced in accordance with applicable electrical
codes.
DANGER
! !
66
Your U-Line Drawer unit is designed so it can be installed next to the wall
on either side (Figures 1, 2).

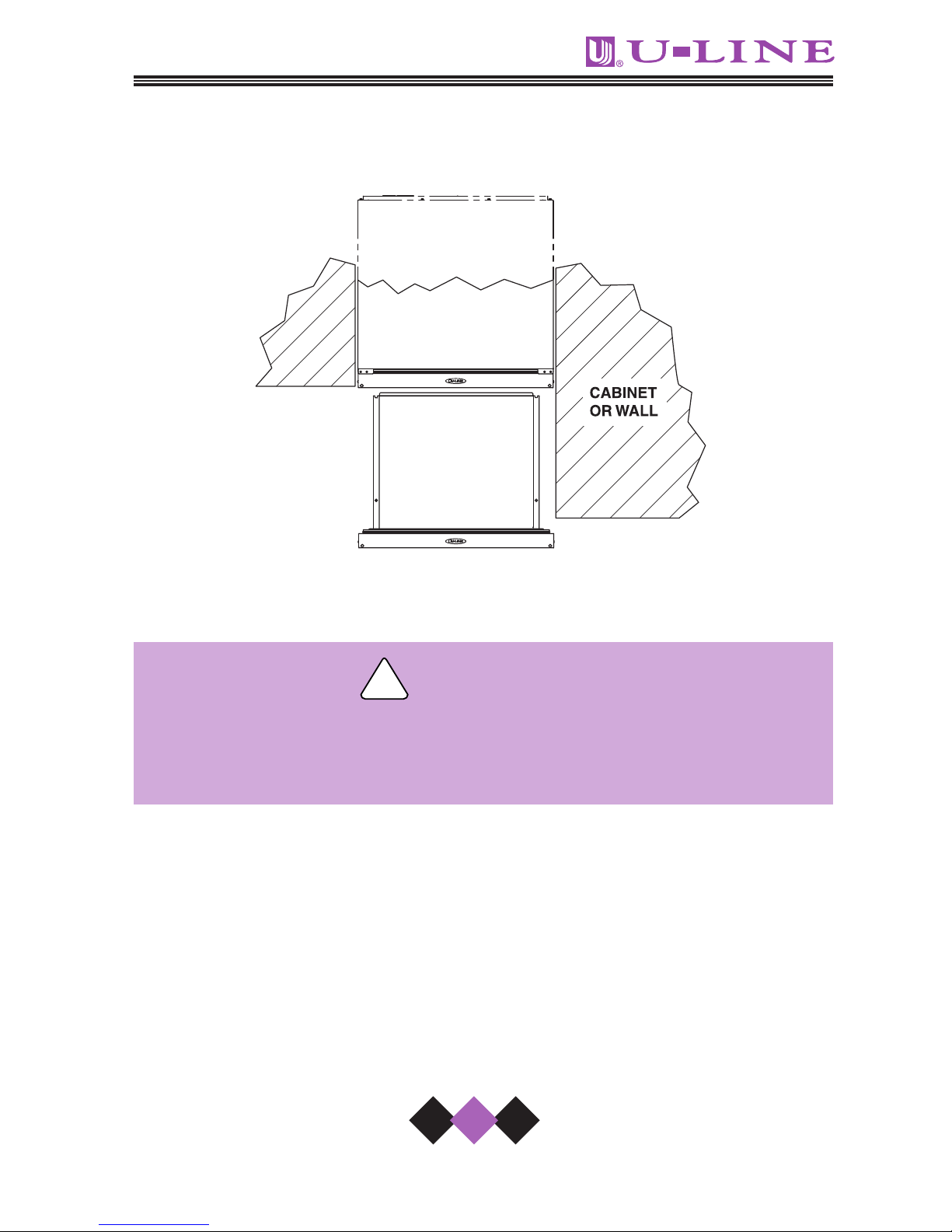

Figure 1 – Right wall installation
The anti-tip kit must be installed on this unit before it is used.
Never use the drawers as steps or a shelf to support more
than the drawers’ content.
3. These units must be installed in a wall or under a counter top to
allow for the installation of the anti-tip kit. The drawer unit can be
installed with an appliance or fixture located in front of it, as long as
there is adequate clearance for the drawer to be opened and
removed when servicing (Figure 3).
U-Line recommends you consider additional clearance in front of the
open drawer for convenience.
!WARNING
DWR001A
7
8
User’s Manual

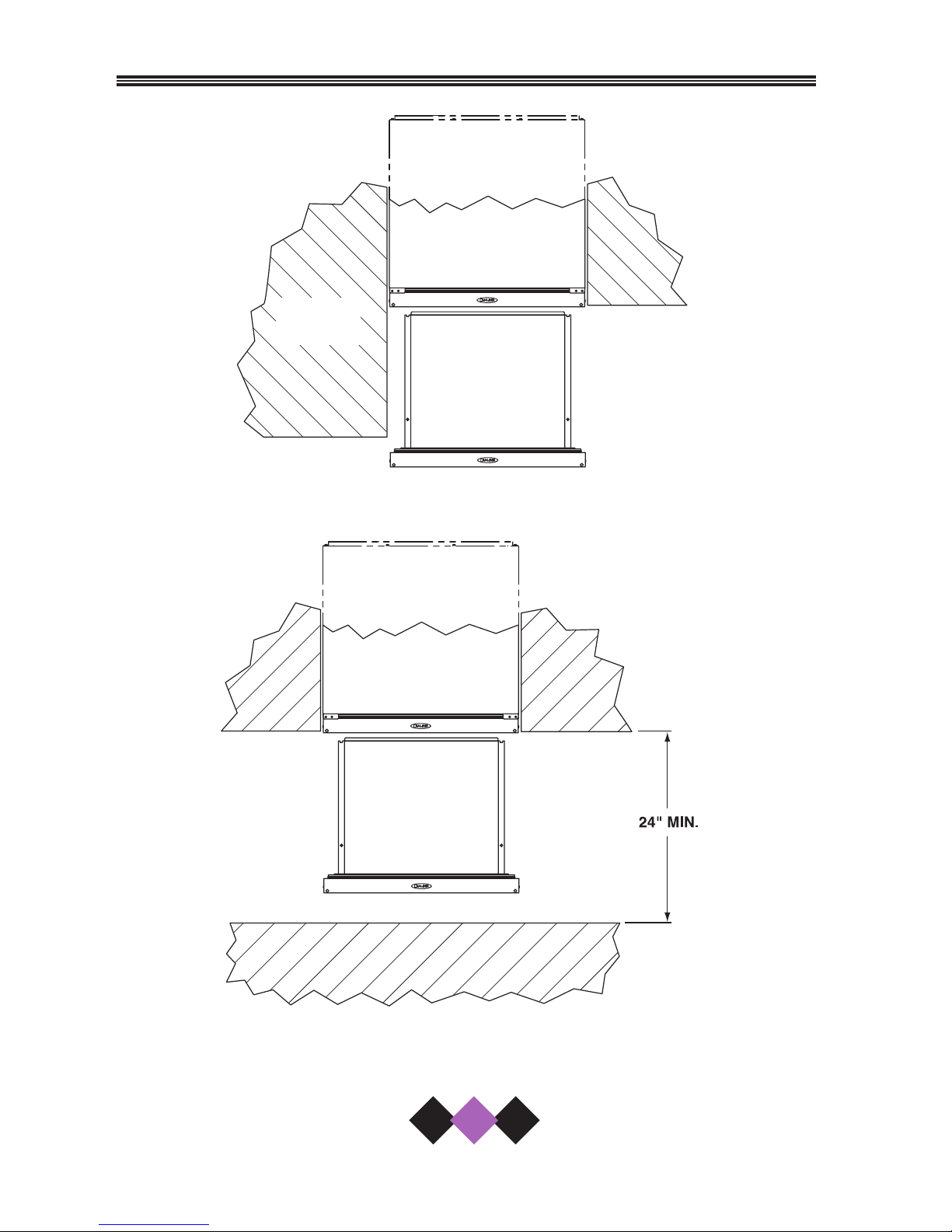

Figure 2 – Left wall installation
Figure 3 – Front Clearance
DWR003A
CAB
I
N
ET
O
R
W
A
LL
DWR002A
4. – Connect the water supply line. See CONNECTING THE
WATER SUPPLY for installation requirements.

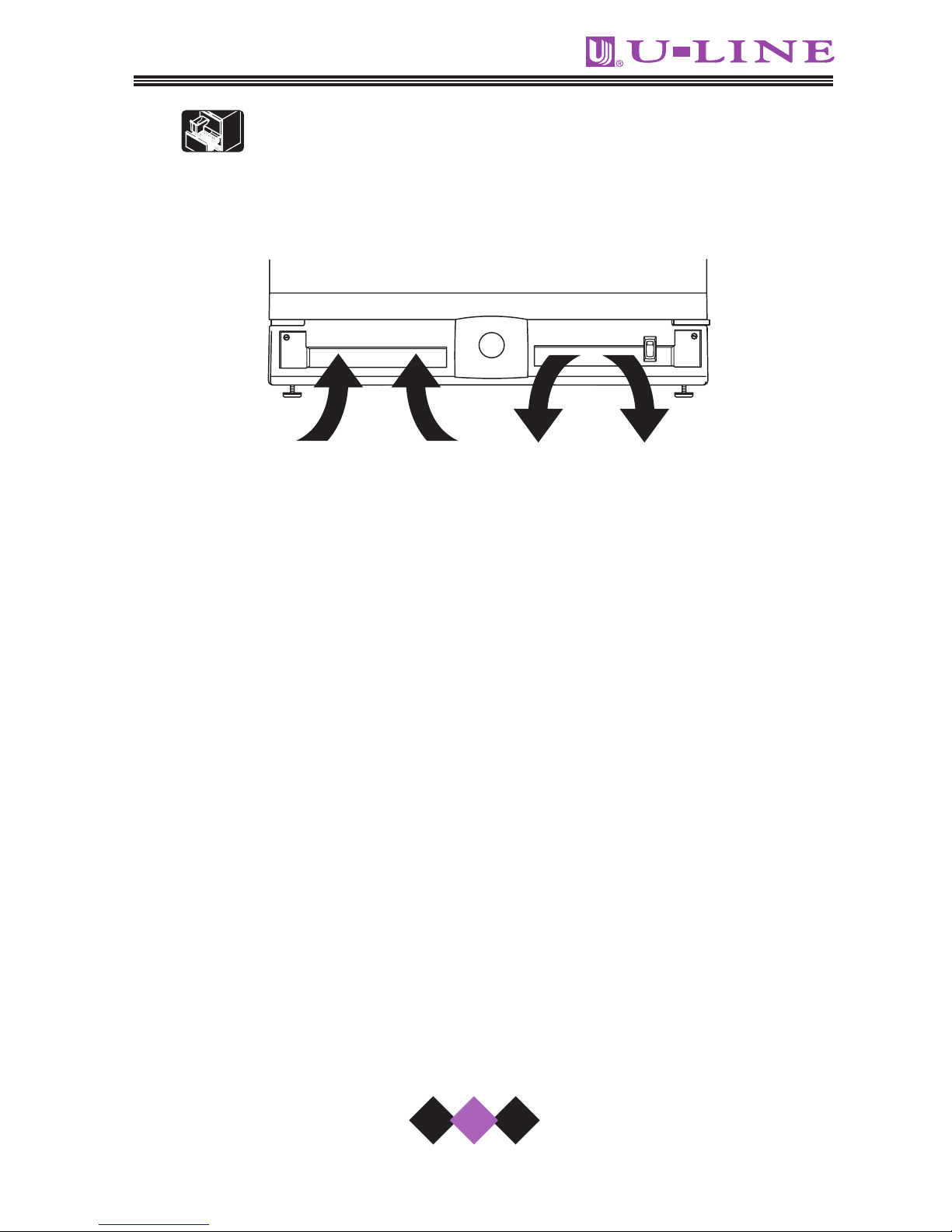

5. Position the unit to allow free air flow through the front grille
(Figure 4).
Figure 4
6. Wipe inside of unit and all inside drawer components with a clean,
water dampened cloth only.
LEVELING THE UNIT

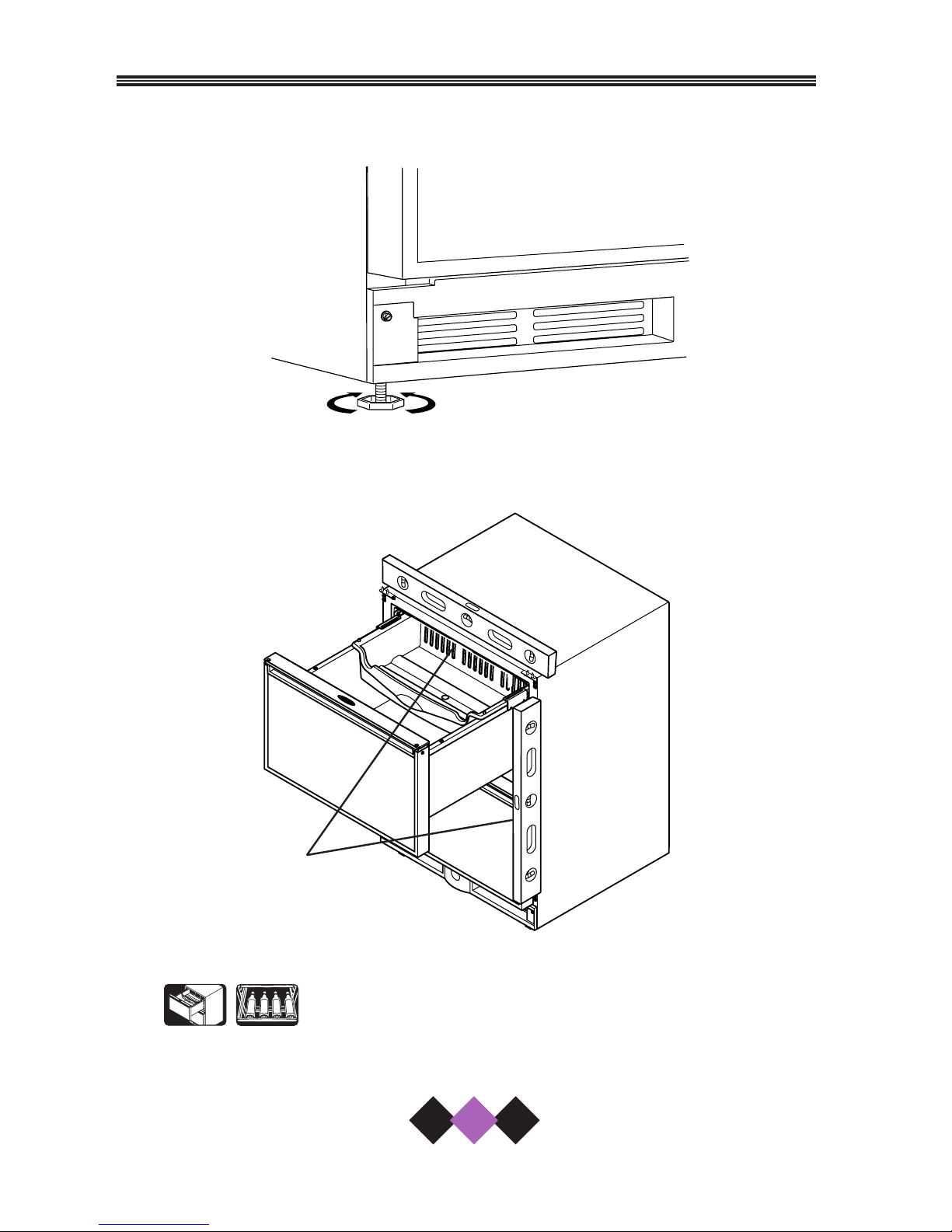

It is important that the unit is level. All Échelon™ Series units are
equipped with adjustable feet for leveling and height adjustment
(Figure 5).
To level the unit:
1. Adjust all four leveling feet evenly so that the top of the cabinet is at
the desired installation height.
2. Using a level of at least two feet in length, measure the level of the
floor where the unit is to be installed. Measure back-to-front and
side-to-side and note the measurements.
3. With the unit on a level surface, adjust the feet, as appropriate, to
compensate for the floor level measurements noted in Step 2.
OFF
ON
DWR004
INTAKE EXHAUST
9
10
User’s Manual
4. Place the unit in position where it is to be installed. Re-check cabi-
net height and levelness (Figure 6) and adjust if necessary.
Figure 5
Figure 6
5. - Gently push unit into position to prepare for built-in
installation.
DWR021
LEVEL
TWO PLACES
DWR005
RAISE LOWER
10
