QUICK START GUIDE

30679 Rev_C

1 Class ●115V ●21” Refrigerator Ice

QUICK START GUIDE u-line.com

USER GUIDE u-line.com

Introduction

WELCOME TO U-LINE

Congratulations on your U-Line purchase. Your product comes from a company with over ve decades of premium modular ice

making, refrigeration, and wine preservation experience. U-Line creates products focused on functionality, style, and inspired

innovations — paying close attention to even the smallest details. Applications include residential, outdoor, ADA height

compliant, marine, and commercial. Complete product categories include Beverage Centers, Wine Refrigerators, Ice Machines,

Refrigerators, Freezers, and Dispensers.

Our advanced refrigeration systems, large and exible capacities, and Built-In to Stand Out®clean integrated look allow you

to preserve the right product, in the right place, at the right temperature. Since 2014, U-Line has been part of the Middleby

family of brands. All products are designed, engineered, and assembled in Milwaukee, Wisconsin, USA, and select products

are available worldwide.

PRODUCT INFORMATION

Looking for additional information on your product? User Guides, Spec Sheets, CAD Drawings, Compliance Documentation,

and Product Warranty information are all available for reference and download at u-line.com.

PROPERTY DAMAGE / INJURY CONCERNS

In the unlikely event property damage or personal injury is suspected related to a U-Line product, please take the following

steps:

1. U-Line Customer Care must be contacted immediately at +1.414.354.0300.

2. Service or repairs performed on the unit without prior written approval from U-Line is not permitted. If the unit ha been

altered or repaired in the eld without prior written approval from U-Line, claims will not be eligible.

GENERAL INQUIRIES

U-Line Corporation

8900 N. 55th Street

Milwaukee, Wisconsin 53223 USA

Monday - Friday 8:00 am to 4:30 pm CST

T: +1.414.354.0300

Email: sales@u-line.com

u-line.com

CONNECT WITH US

SERVICE & PARTS ASSISTANCE

Monday - Friday 8:00 am to 4:30 pm CST

T: +1.414.354.0300

Service Email: onlineservice@u-line.com

Parts Email: onlineparts@u-line.com

Designed, engineered and assembled in WI, USA

QUICK START GUIDE u-line.com

This Quick Start Guide covers the basics of installation and general use of your product.

For more details, see the complete User Guide & Service Manual on u-line.com.

This product is eligible for an additional one-year warranty at no charge when you register your product on u-line.com.

See complete warranty for details.

CONTENTS

Safety and Warning 4

Environmental Requirements 5

Electrical 5

Water Hookup 6

Door Swing 7

Door Adjustments 8

General Installation 10

Control Operation 11

First Use 11

Airow & Product Loading 12

Interior Adjustments 13

Ice 14

Cleaning 16

Warranty 18

1 year + 1 with registration*

QUICK START GUIDE u-line.com

Safety and Warning

NOTICE

Please read all instructions before installing,

operating, or servicing the appliance.

Use this appliance for its intended purpose only and follow

these general precautions with those listed throughout this

guide:

SAFETY ALERT DEFINITIONS

Throughout this guide are safety items labeled with a

Danger, Warning, or Caution based on the risk type:

Danger means that failure to follow this safety

statement will result in severe personal injury or

death.

Warning means that failure to follow this safety

statement could result in serious personal injury

or death.

Caution means that failure to follow this safety

statement may result in minor or moderate

personal injury, property, or equipment damage.

This unit contains R600a (Isobutane) which is a

ammable hydrocarbon. It is safe for regular

use. Do not use sharp objects to expedite

defrosting. Do not service without consulting the

“R600a specications” section included in the

User Guide. Do not damage the refrigerant

circuit.

Service must be done by factory authorized

service personnel. Any parts shall be replaced

with like components. Failure to comply could

increase the risk of possible ignition due to

incorrect parts or improper service.

CALIFORNIA PROPOSITION 65

This product contains chemicals known to the

state of California to cause cancer and birth

defects or other reproductive harm.

www.P65warnings.CA.gov

This equipment is to be installed with adequate

backow protection to comply with applicable

federal, state and local codes.

This equipment is intended for the storage and

display of packaged products only.

If this refrigerator has a glass door, it is a display

refrigerator. Please see caution statement below:

This display refrigerator is not for the display of

potentially hazardous foods.

DANGER

WARNING

CAUTION

DANGER

CAUTION

WARNING

QUICK START GUIDE u-line.com

USER GUIDE

Environmental Requirements

u-line.com

Environmental Requirements

This model is intended for indoor/interior applications only

and is not to be used in installations that are open/

exposed to natural elements.

This unit is designed to operate between 50°F (10°C) and

100°F (38°C). Higher ambient temperatures may reduce

the unit’s ability to reach low temperatures and/or reduce

ice production on applicable models.

For best performance, keep the unit out of direct sunlight

and away from heat generating equipment.

In climates where high humidity and dew points are

present, condensation may appear on outside surfaces.

This is considered normal. The condensation will

evaporate when the humidity drops.

CAUTION

Damages caused by ambient temperatures of

40°F (4°C) or below are not covered by the

warranty.

USER GUIDE

Electrical

u-line.com

Electrical

WARNING

SHOCK HAZARD — Electrical Grounding

Required. Never attempt to repair or perform

maintenance on the unit until the electricity has

been disconnected.

Never remove the round grounding prong from

the plug and never use a two-prong grounding

adapter.

Altering, cutting or removing power cord,

removing power plug, or direct wiring can cause

serious injury, fire, loss of property and/or life,

and will void the warranty.

Never use an extension cord to connect power to

the unit.

Always keep your working area dry.

NOTICE

Electrical installation must observe all state and

local codes. This unit requires connection to a

grounded (three-prong), polarized receptacle

that has been placed by a qualified electrician.

The unit requires a grounded and polarized 115 VAC,

60 Hz, 15A power supply (normal household current). An

individual, properly grounded branch circuit or circuit

breaker is recommended. A GFCI (ground fault circuit

interrupter) is usually not required for fixed location

appliances and is not recommended for your unit because

it could be prone to nuisance tripping. However, be sure

to consult your local codes.

See CUTOUT & PRODUCT DIMENSIONS for recommended

receptacle location.

QUICK START GUIDE u-line.com

(Ice maker models only)

USER GUIDE

Water Hookup

u-line.com

Water Hookup

PREPARE PLUMBING

The water valve uses a standard 1/4" (6.35 mm)

compression fitting. U-Line recommends using accessory

water hook up kit – part # 80-54674-00. The kit includes a

10' (3 m) braided flexible water supply line and a brass

hose fitting.

CAUTION

Plumbing installation must observe all state and

local codes. All water and drain connections

MUST BE made by a licensed/qualified plumbing

contractor. Failure to follow recommendations

and instructions may result in damage and/or

harm.

Water Supply Connection

When connecting the water supply, please note the

following:

• Before installing the unit and connecting to the cold

water supply, review the local plumbing codes.

• The water pressure should be between 20 and 120 psi

(138 and 827 kPa).

• The water line MUST have a shut-off valve in the

supply line.

• The water line should be looped into 2 coils. This will

allow the unit to be removed for cleaning and servicing.

Make certain that the tubing is not pinched or damaged

during installation.

WARNING

Connect to potable water supply only.

CAUTION

Do not use any plastic water supply line. The line

is under pressure at all times. Plastic may crack

or rupture with age and cause damage to your

home.

Do not use tape or joint compound when

attaching a braided flexible water supply line

that includes a rubber gasket. The gasket

provides an adequate seal – other materials

could cause blockage of the valve.

Failure to follow recommendations and

instructions may result in damage and/or harm,

flooding or void the product warranty.

Use new hose set. Do not reuse old hose set.

CAUTION

Turn off water supply and disconnect electrical

supply to unit prior to installation.

Use caution when handling back panel. The

edges could be sharp.

1. Turn off water supply and disconnect electrical supply

to product prior to attempting installation.

2. Remove the back panel.

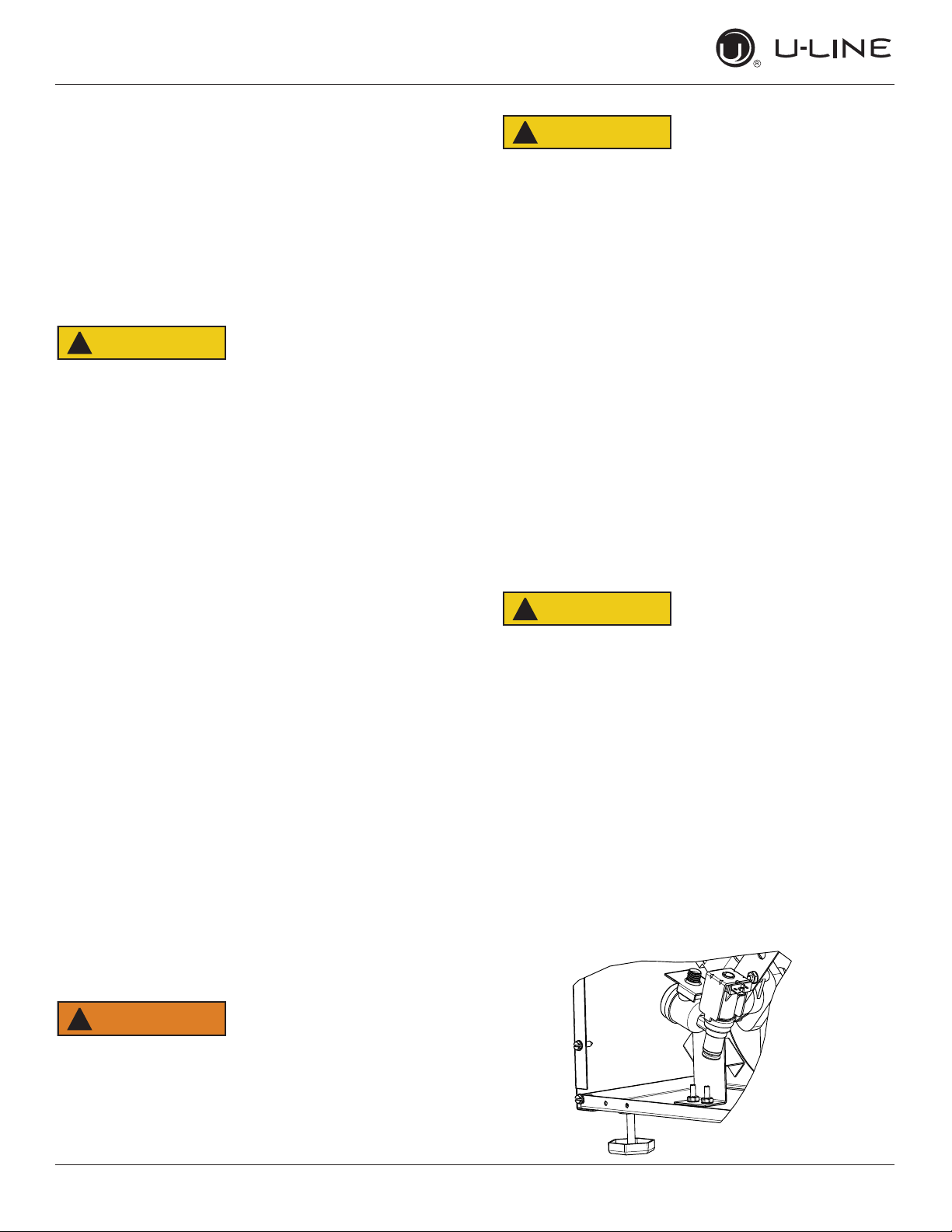

3. Locate water valve inlet.

QUICK START GUIDE u-line.com

USER GUIDE

Water Hookup

u-line.com

4. Break away filler feature

in bushing with flat

screwdriver.

5. Thread water line

through back panel hole

(with bushing).

6. Locate water valve inlet

and connect to valve.

7. Turn on water supply

and check for leaks.

8. Reinstall back panel.

9. Install retaining clip.

Remove

ZLWKɠDW

screwdriver

USER GUIDE

Door Swing

u-line.com

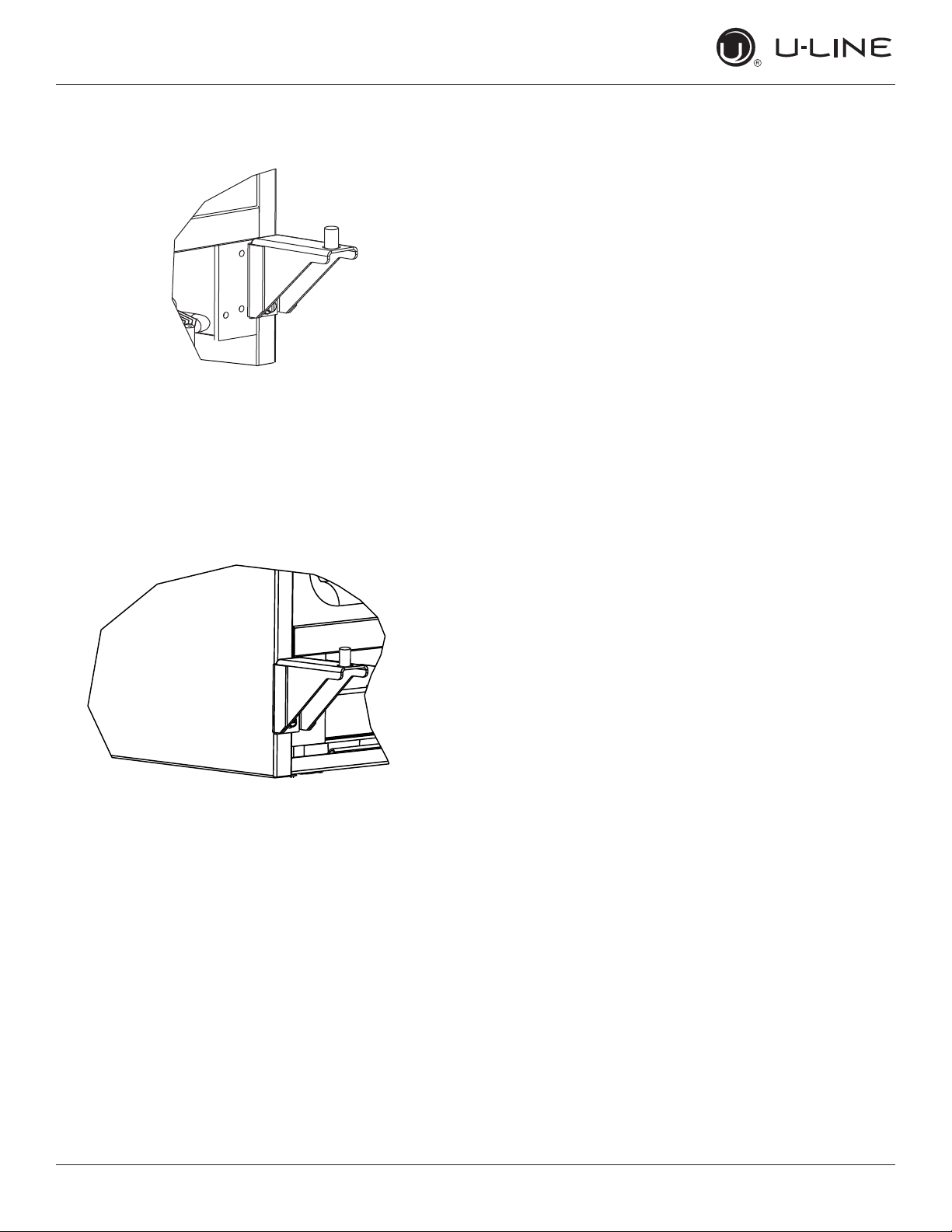

Door Swing

Units have a zero clearance for the door to open 90°,

when installed adjacent to cabinets.

Stainless Steel models require 2-1/8" (54 mm) door

clearance to accommodate the handle if installed next to a

wall.

Wall

90°

Door Swing

2-1/8" Min.

(54 mm)

QUICK START GUIDE u-line.com

USER GUIDE u-line.com

Door Adjustments

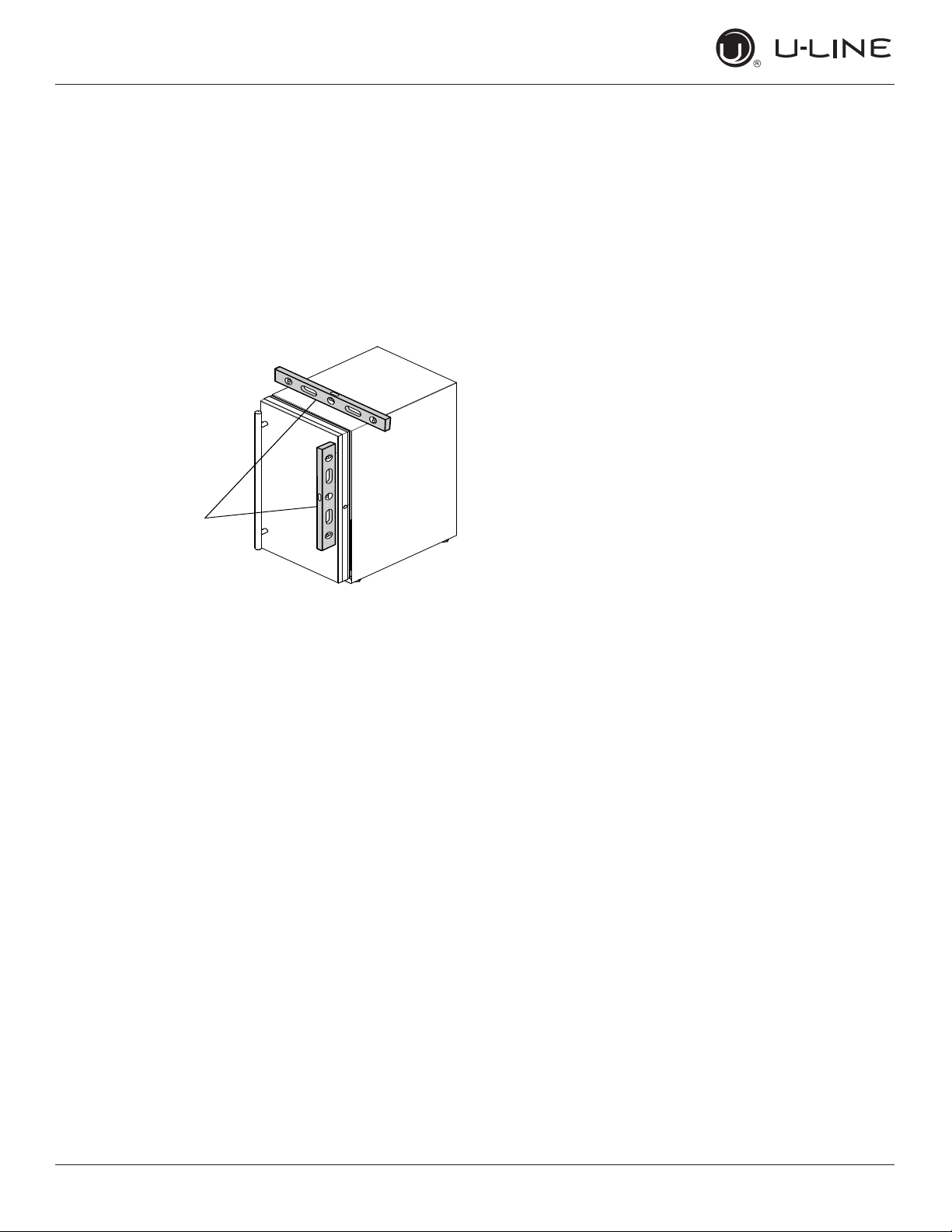

DOOR ALIGNMENT AND ADJUSTMENT

Align and adjust the door if it is not level or is not sealing

properly. If the door is not sealed, the unit may not cool

properly, or excessive frost may form in the interior.

NOTICE

Properly aligned, the door’s gasket should be

rmly in contact with the cabinet all the way

around the door (no gaps). Carefully examine the

door’s gasket to ensure that it is rmly in contact

with the cabinet. Also make sure the door gasket

is not pinched on the hinge side of the door.

To align and adjust the door:

1. Loosen (do not remove) top and bottom hinge screws

using a Philips screwdriver on the top and a 1/4”

socket on the bottom.

2. Align door squarely with cabinet.

3. Make sure gasket is rmly in contact with cabinet all

the way around the door (no gaps).

4. Tighten bottom hinge screws.

5. Tighten top hinge screws.

REVERSING THE DOOR

Location of the unit may make it desirable to mount the

door on the opposite side of the cabinet.

The hinge hardware will be removed and reinstalled on the

opposite side of the cabinet.

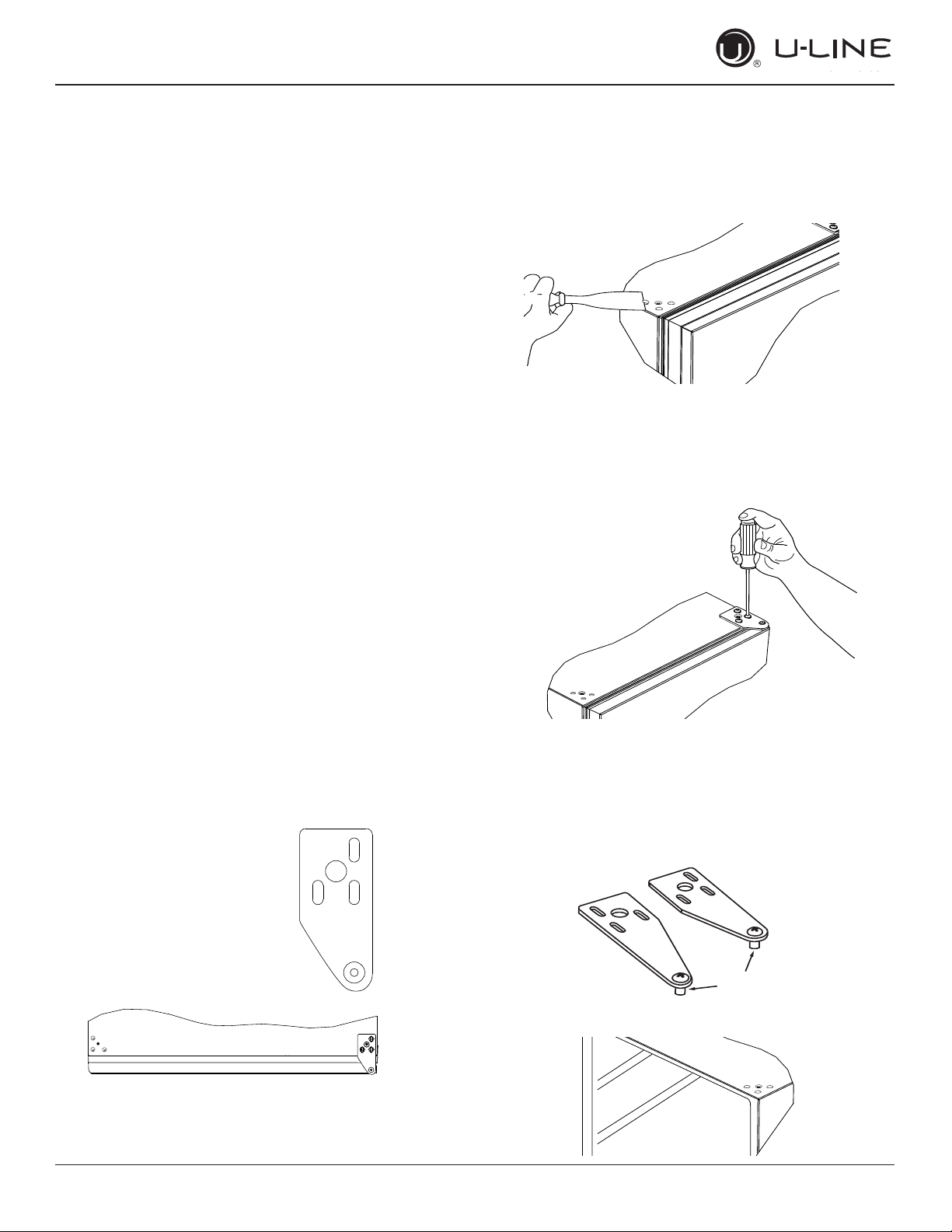

TO REVERSE THE DOOR

Remove grille:

Remove the grille (see GRILLE INSTALLATION section of

this guide).

Remove arrow clips:

1. With a puddy knife or other at tool, gently pry each

arrow clip from hinge mounting holes.

2. Set aside arrow clips to be reused on the opposite

side.

Remove top hinge and door:

1. Hold door to keep it from falling.

2. Remove top hinge from cabinet using a Philips

screwdriver to remove three screws.

3. Remove door by tilting forward and lifting door o

bottom hinge. Retain shoulder washers; they will be

reused.

4. Use a Philips screwdriver to remove pivot screw and

reinstall on the opposite surface of the hinge.

5. Install arrow clips in holes.

Top Hinge

Right Side

Top Hinge

Left Side

Pivot

Screw

QUICK START GUIDE u-line.com

USER GUIDE u-line.com

Door Adjustments

Remove bottom hinge:

1. Remove bottom hinge from cabinet using a 1/4”

socket.

2. Remove corresponding screws on opposite side of

cabinet. On some models there may be a nut behind

one or both screws on either side.

Install bottom hinge:

Install two or three screws, depending on model. Replace

nuts if used.

Install top hinge and door:

1. Rotate door 180o and lift the door on to the bottom

hinge.

2. Install hinge that was used on the opposite side of the

unit.

3. Align edge of the hinge with the outer edge of the unit

while inserting hinge pin into top of door.

4. Tighten three screws.

Align and adjust the door:

Align and adjust the door (see DOOR ALIGNMENT AND

ADJUSTMENT)

Install grille

QUICK START GUIDE u-line.com

USER GUIDE u-line.com

General Installation

LEVELING INFORMATION

NOTICE

Because these units do not have leveling legs,

it is extremely important that they sit on a level

surface. If they are not level, the ice mold will not

ll evenly.

Use a level to

conrm the unit is

level. Level should

be placed along top

edge and side edge

as shown.

INSTALLATION

1. Plug in the power/electrical cord.

2. Gently push the unit into position. Be careful not to

entangle the cord or water line.

3. Re-check the leveling, from front to back and side to

side. Make any necessary adjustments.

4. Remove interior packing material and wipe out the

inside of the unit with a clean, water-dampened cloth.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali U-Line Frigorifero

U-Line

U-Line U-2224RGLS-15B Manuale di installazione

U-Line

U-Line BI2115SOD Guida alla configurazione

U-Line

U-Line Echelon Wine Captain 2275ZWCOL Manuale utente

U-Line

U-Line 3036RR Manuale utente

U-Line

U-Line U-2224RS-00A Manuale di installazione

U-Line

U-Line 1000 SERIES Manuale utente

U-Line

U-Line UCBR592-SS01A Manuale di installazione

U-Line

U-Line UCRE524 Manuale di installazione

U-Line

U-Line 2175R Manuale del proprietario

U-Line

U-Line 2115RSOD Manuale utente

U-Line

U-Line UCBR592-SG01A Manuale di installazione

U-Line

U-Line UHRE124-BS81A Manuale di installazione

U-Line

U-Line Outdoor Series Manuale di installazione

U-Line

U-Line 1000 SERIES Manuale utente

U-Line

U-Line 1224DWRSOD Manuale di installazione

U-Line

U-Line UHRE524-IS81A Manuale di installazione

U-Line

U-Line ECHELON 2075 Series Manuale utente

U-Line

U-Line Wine Captain UHWD524IS01A Manuale di installazione

U-Line

U-Line U-29RW-00A Manuale di installazione

U-Line

U-Line U-2245RINT-00B Manuale di installazione

U-Line

U-Line Echelon Combo C2275DWR Guida alla configurazione

U-Line

U-Line U1224RS00B Manuale di installazione

U-Line

U-Line U-ADA24RINT-00A Manuale di installazione

U-Line

U-Line UHRE524 Manuale di installazione

Manuali Frigorifero popolari di altre marche

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuale utente

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuale utente

Sharp

Sharp SJ-BA31IEXW2-EU Manuale utente

CORBERO

CORBERO CC2300MCW Manuale utente

KitchenAid

KitchenAid 2205264 Manuale utente

Stengel

Stengel KU 1101 A++ Manuale utente

NEFF

NEFF KI181 Series Manuale utente

Hoshizaki

Hoshizaki Reach-In Manuale utente

Amana

Amana ASD2524VES00 Manuale utente

BOMANN

BOMANN KGC 213 Manuale utente

Danby

Danby DAR044A1SLDD Istruzioni per il montaggio

Samsung

Samsung RF323TE Manuale utente

Beko

Beko CSA31022 Manuale utente

IKEA

IKEA FROSTIG C 185 E Manuale utente

Electrolux

Electrolux ER 6821 D Manuale utente

True

True TS-28 Manuale utente

Frigidaire

Frigidaire FSC23R5DW9 Manuale utente

Beko

Beko LSP4579W Manuale utente
