U-Line UHRF124WS01A Manuale di installazione

USER GUIDE & SERVICE MANUAL

Model: UHRF124-WS01A

USER GUIDE & SERVICE MANUAL

Table of Contents

Click on any section below to jump directly there

Intro

Safety

Safety and Warning

Disposal And Recycling

Installation

Environmental Requirements

Electrical

Cutout & Product Dimensions

Side by Side Installation

Anti-Tip Bracket

General Installation

Grille Installation

Door Swing

Door Adjust

Interior Adjustments

Maintenance

Free Standing Kit

Cleaning

Cleaning Condenser

Extended Non-Use

Operating Instructions

First Use

Control Operation

Airflow and Product Loading

Service

Troubleshooting

Wire Diagram

Product Liability

Warranty Claims

Parts

Ordering Replacement Parts

R600a Specifications

System Diagnosis Guide

Compressor Specifications

Control Operation - Service

Warranty

USER GUIDE

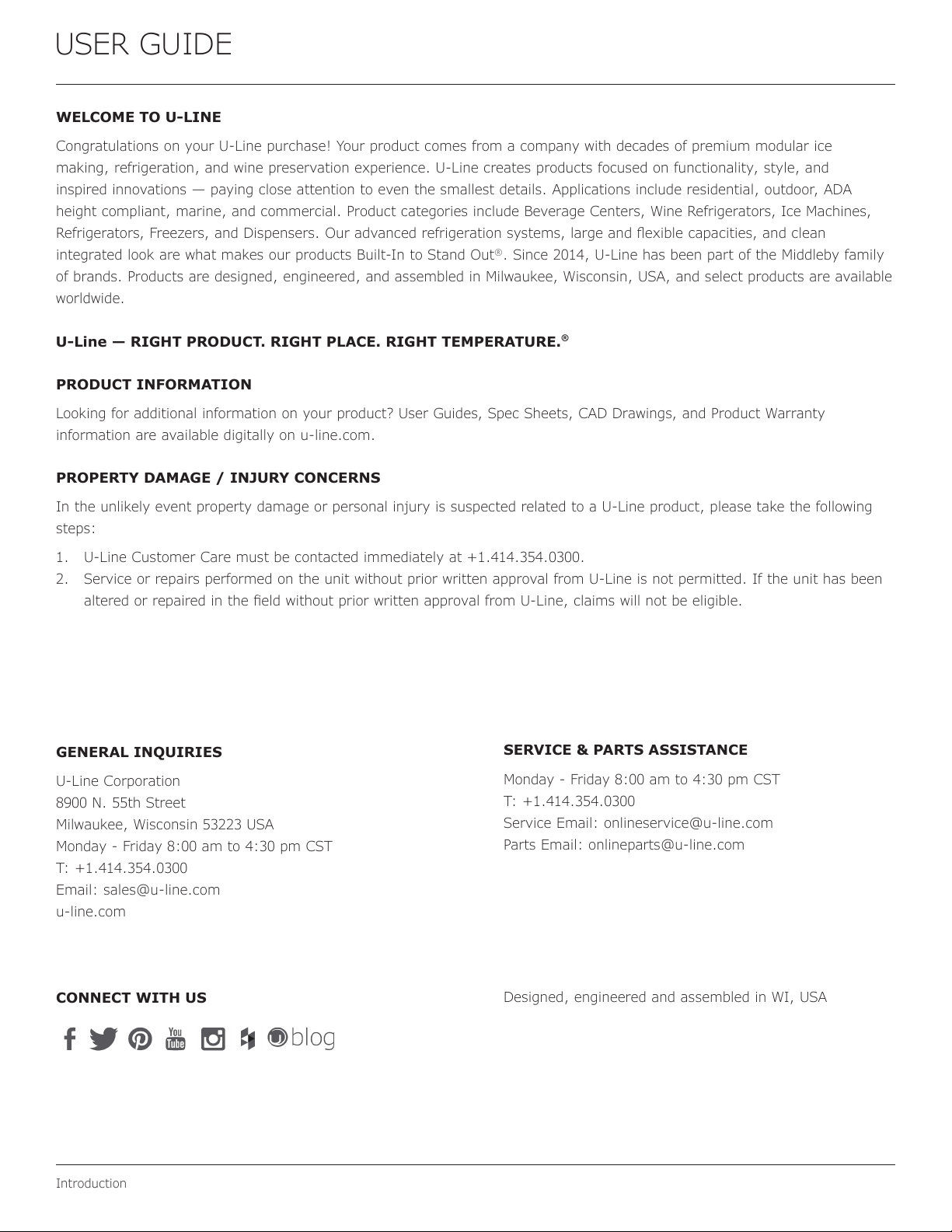

Introduction

WELCOME TO U-LINE

Congratulations on your U-Line purchase! Your product comes from a company with decades of premium modular ice

making, refrigeration, and wine preservation experience. U-Line creates products focused on functionality, style, and

inspired innovations — paying close attention to even the smallest details. Applications include residential, outdoor, ADA

height compliant, marine, and commercial. Product categories include Beverage Centers, Wine Refrigerators, Ice Machines,

Refrigerators, Freezers, and Dispensers. Our advanced refrigeration systems, large and exible capacities, and clean

integrated look are what makes our products Built-In to Stand Out®. Since 2014, U-Line has been part of the Middleby family

of brands. Products are designed, engineered, and assembled in Milwaukee, Wisconsin, USA, and select products are available

worldwide.

U-Line — RIGHT PRODUCT. RIGHT PLACE. RIGHT TEMPERATURE.®

PRODUCT INFORMATION

Looking for additional information on your product? User Guides, Spec Sheets, CAD Drawings, and Product Warranty

information are available digitally on u-line.com.

PROPERTY DAMAGE / INJURY CONCERNS

In the unlikely event property damage or personal injury is suspected related to a U-Line product, please take the following

steps:

1. U-Line Customer Care must be contacted immediately at +1.414.354.0300.

2. Service or repairs performed on the unit without prior written approval from U-Line is not permitted. If the unit has been

altered or repaired in the eld without prior written approval from U-Line, claims will not be eligible.

GENERAL INQUIRIES

U-Line Corporation

8900 N. 55th Street

Milwaukee, Wisconsin 53223 USA

Monday - Friday 8:00 am to 4:30 pm CST

T: +1.414.354.0300

Email: sales@u-line.com

u-line.com

CONNECT WITH US

SERVICE & PARTS ASSISTANCE

Monday - Friday 8:00 am to 4:30 pm CST

T: +1.414.354.0300

Service Email: onlineservice@u-line.com

Parts Email: onlineparts@u-line.com

Designed, engineered and assembled in WI, USA

USER GUIDE

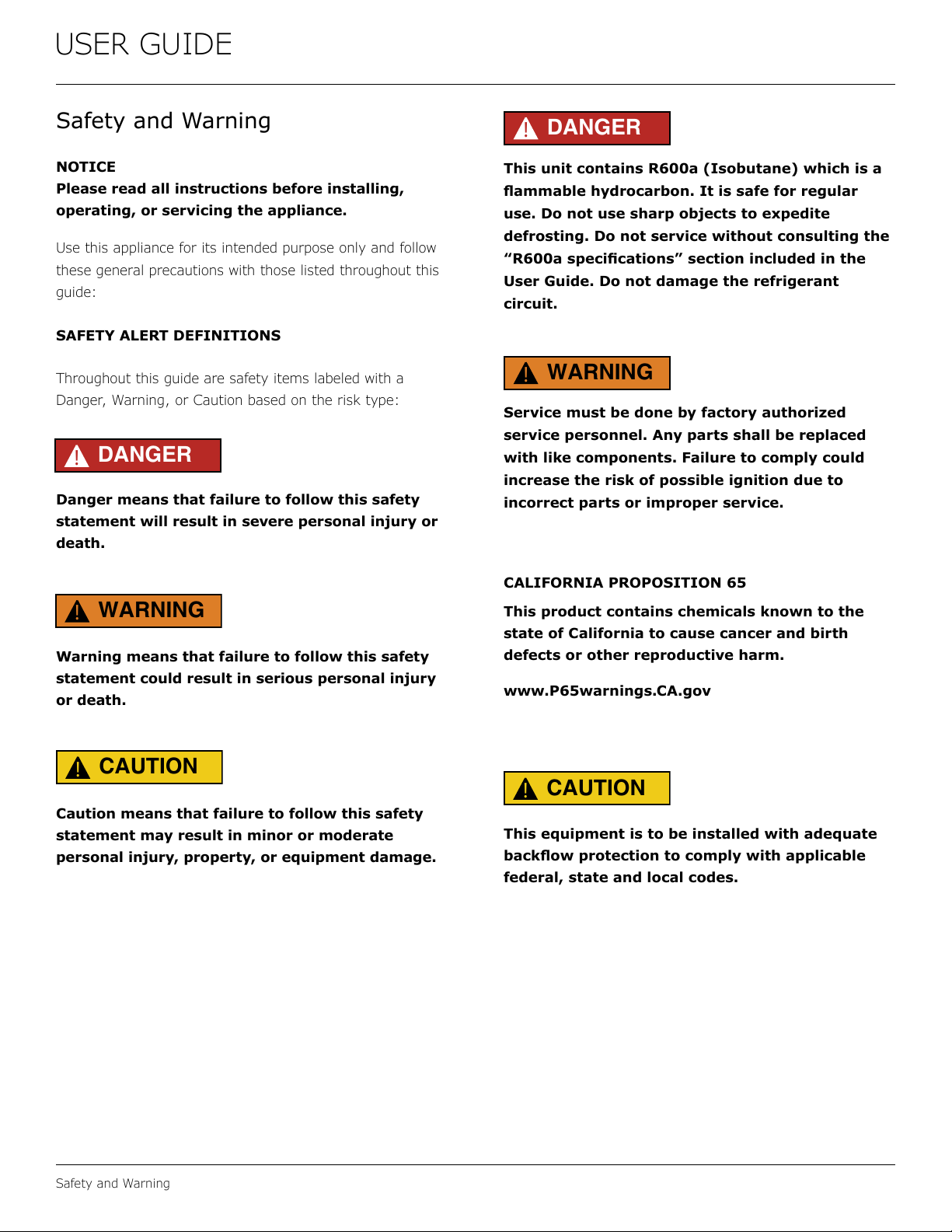

Safety and Warning

NOTICE

Please read all instructions before installing,

operating, or servicing the appliance.

Use this appliance for its intended purpose only and follow

these general precautions with those listed throughout this

guide:

SAFETY ALERT DEFINITIONS

Throughout this guide are safety items labeled with a

Danger, Warning, or Caution based on the risk type:

Danger means that failure to follow this safety

statement will result in severe personal injury or

death.

Warning means that failure to follow this safety

statement could result in serious personal injury

or death.

Caution means that failure to follow this safety

statement may result in minor or moderate

personal injury, property, or equipment damage.

This unit contains R600a (Isobutane) which is a

ammable hydrocarbon. It is safe for regular

use. Do not use sharp objects to expedite

defrosting. Do not service without consulting the

“R600a specications” section included in the

User Guide. Do not damage the refrigerant

circuit.

Service must be done by factory authorized

service personnel. Any parts shall be replaced

with like components. Failure to comply could

increase the risk of possible ignition due to

incorrect parts or improper service.

CALIFORNIA PROPOSITION 65

This product contains chemicals known to the

state of California to cause cancer and birth

defects or other reproductive harm.

www.P65warnings.CA.gov

This equipment is to be installed with adequate

backow protection to comply with applicable

federal, state and local codes.

DANGER

WARNING

CAUTION

WARNING

USER GUIDE

Disposal and Recycling

RISK OF CHILD ENTRAPMENT. Before you throw

away your old refrigerator or freezer, take o

the doors and leave shelves in place so children

may not easily climb inside.

If the unit is being removed from service for disposal,

check and obey all federal, state, and local regulations

regarding the disposal and recycling of refrigeration

appliances, and follow these steps completely:

1. Remove all consumable contents from the unit.

2. Unplug the electrical cord from its socket.

3. Remove the door(s)/drawer(s).

DANGER

USER GUIDE

Environmental Requirements

This model is intended for indoor/interior applications only

and is not to be used in installations that are open/

exposed to natural elements.

This unit is designed to operate between 50°F (10°C) and

100°F (38°C). Higher ambient temperatures may reduce

the unit’s ability to reach low temperatures and/or reduce

ice production on applicable models.

For best performance, keep the unit out of direct sunlight

and away from heat generating equipment.

In climates where high humidity and dew points are

present, condensation may appear on outside surfaces.

This is considered normal. The condensation will

evaporate when the humidity drops.

CAUTION

Damages caused by ambient temperatures of

40°F (4°C) or below are not covered by the

warranty.

USER GUIDE

Electrical

WARNING

SHOCK HAZARD — Electrical Grounding

Required. Never attempt to repair or perform

maintenance on the unit until the electricity has

been disconnected.

Never remove the round grounding prong from

the plug and never use a two-prong grounding

adapter.

Altering, cutting or removing power cord,

removing power plug, or direct wiring can cause

serious injury, fire, loss of property and/or life,

and will void the warranty.

Never use an extension cord to connect power to

the unit.

Always keep your working area dry.

NOTICE

Electrical installation must observe all state and

local codes. This unit requires connection to a

grounded (three-prong), polarized receptacle

that has been placed by a qualified electrician.

The unit requires a grounded and polarized 115 VAC,

60 Hz, 15A power supply (normal household current). An

individual, properly grounded branch circuit or circuit

breaker is recommended. A GFCI (ground fault circuit

interrupter) is usually not required for fixed location

appliances and is not recommended for your unit because

it could be prone to nuisance tripping. However, be sure

to consult your local codes.

See CUTOUT & PRODUCT DIMENSIONS for recommended

receptacle location.

USER GUIDE

Cutout & Product Dimensions

PREPARE SITE

Your U-Line product has been designed for either free-

standing or built-in installation. When built-in, your unit

does not require additional air space for top, sides, or

rear. However, the front grille must NOT be obstructed, and

clearance is required for an electrical connection in the rear.

CAUTION

Unit can NOT be installed behind a closed cabinet

door.

CUTOUT DIMENSIONS

PRODUCT DIMENSIONS

REAR

FRONT

TOP

SIDE

13 ⁄”

(333 mm)

18 ⁄”

(467 mm)

22 ⁄”

(562 mm)

”

(267 mm)

14 ⁄”

(359 mm)

26 ¾”

(680 mm)

22 ½”

(572 mm)

24 ⁄”

(613 mm)

”

(25 mm)

FREEZER

(102 mm)

(178 mm)

24"

(610 mm)

24 1⁄4"

(616 mm)

34 1⁄4"

(870 mm)

35 1⁄8"

(892 mm)

Preferred location

for electrical outlet

is in adjacent

cabinet.

5/8"

(16 mm)

Power Cord

6 ft (183 cm)

8 ¼”

(210 mm)

23 ⁄”

(608 mm)

3 ⁄”

(91 mm)

34 ⁄” to 35 ⁄”

(867 mm to

892 mm)

28”

(711 mm)

1 ⁄”

(48mm)

20 ⁄”

(529 mm)

8 ⁄”

(213 mm)

24 ½”

(622mm)

20 ⁄”

(530 mm)

FREEZER

USER GUIDE

Side-by-Side Installation

Two units may be installed side-by-side.

Cutout width for a side-by-side installation is the cutout

dimension of a single unit times two.

No trim kit is required. However, 1/4" (6 mm) of space

needs to be maintained between the units to ensure

unobstructed door swing.

Units must operate from separate, properly grounded

electrical receptacles placed according to each unit’s

electrical specifications requirements.

Side-by-Side Installation with Bracket

1. Slide both units out so screws on top of units are easily

accessible.

2. Remove screws as shown below.

3. Place bracket over holes and attach to unit with two

screws removed in step 2 using a T-25 Torx driver.

Tighten screws fully.

4. Gently push units into position. Be careful not to

entangle the electrical cord or water line, if applicable.

5. Re-check the leveling, from front to back and side to

side. Make any necessary adjustments. The unit’s top

surface should be approximately 1/8" (3 mm) below

the countertop.

USER GUIDE

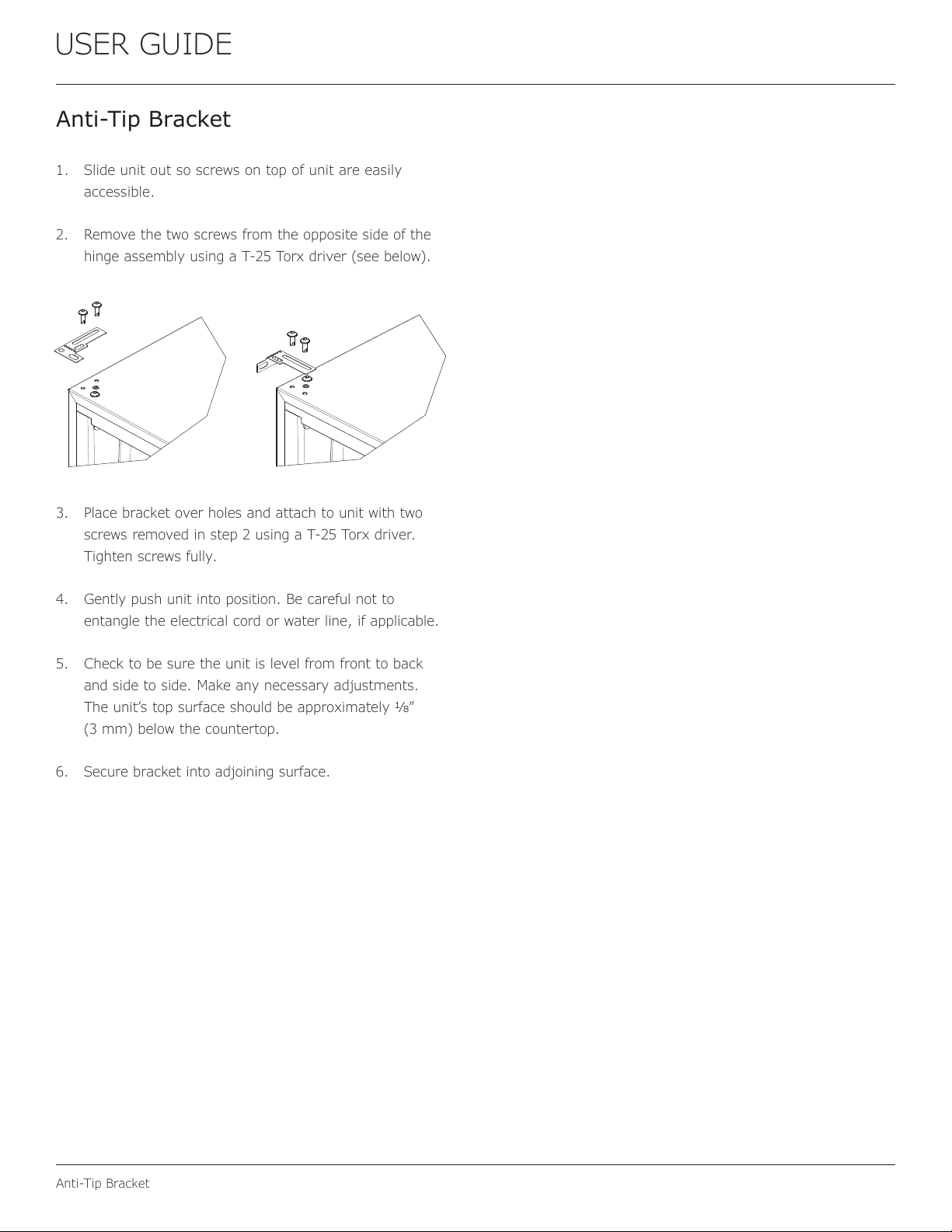

Anti-Tip Bracket

1. Slide unit out so screws on top of unit are easily

accessible.

2. Remove the two screws from the opposite side of the

hinge assembly using a T-25 Torx driver (see below).

3. Place bracket over holes and attach to unit with two

screws removed in step 2 using a T-25 Torx driver.

Tighten screws fully.

4. Gently push unit into position. Be careful not to

entangle the electrical cord or water line, if applicable.

5. Check to be sure the unit is level from front to back

and side to side. Make any necessary adjustments.

The unit’s top surface should be approximately 1⁄8”

(3 mm) below the countertop.

6. Secure bracket into adjoining surface.

Altri manuali per UHRF124WS01A

Altri manuali U-Line Frigorifero

U-Line

U-Line Echelon CLRCO2175S41 Manuale utente

U-Line

U-Line 2175RSOD Manuale utente

U-Line

U-Line U-1224RFS-00B Manuale di installazione

U-Line

U-Line U-1224FZRINT-00A Manuale di installazione

U-Line

U-Line UHDR124SS61A Manuale di installazione

U-Line

U-Line CLRCO2075 Manuale del proprietario

U-Line

U-Line UHRE524-SS81A Manuale di installazione

U-Line

U-Line Echelon CO2175FF Manuale utente

U-Line

U-Line U-1024WCS-00B Manuale di installazione

U-Line

U-Line Echelon 2075RF Manuale utente

U-Line

U-Line 1224R Manuale utente

U-Line

U-Line UMRI121-WS02A Manuale utente

U-Line

U-Line U-2224RGLS-00B Manuale di installazione

U-Line

U-Line U-1215RS-00B Manuale di installazione

U-Line

U-Line 2000 SERIES Manuale utente

U-Line

U-Line U2218RINT00B Manuale di installazione

U-Line

U-Line Echelon 2175RS Manuale utente

U-Line

U-Line WINE CAPTAIN U-1115WCB-00 Manuale utente

U-Line

U-Line 2175R Manuale del proprietario

U-Line

U-Line U-1224FZRINT-00A Manuale di installazione

U-Line

U-Line 1000 SERIES Manuale utente

U-Line

U-Line WINE CAPTAIN 2115R Manuale utente

U-Line

U-Line 1 Class UHRF124 Manuale di installazione

U-Line

U-Line U-ADA24R13B Manuale di installazione

Manuali Frigorifero popolari di altre marche

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuale utente

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuale utente

Sharp

Sharp SJ-BA31IEXW2-EU Manuale utente

CORBERO

CORBERO CC2300MCW Manuale utente

KitchenAid

KitchenAid 2205264 Manuale utente

Stengel

Stengel KU 1101 A++ Manuale utente

NEFF

NEFF KI181 Series Manuale utente

Hoshizaki

Hoshizaki Reach-In Manuale utente

Amana

Amana ASD2524VES00 Manuale utente

BOMANN

BOMANN KGC 213 Manuale utente

Danby

Danby DAR044A1SLDD Istruzioni per il montaggio

Samsung

Samsung RF323TE Manuale utente

Beko

Beko CSA31022 Manuale utente

IKEA

IKEA FROSTIG C 185 E Manuale utente

Electrolux

Electrolux ER 6821 D Manuale utente

True

True TS-28 Manuale utente

Frigidaire

Frigidaire FSC23R5DW9 Manuale utente

Beko

Beko LSP4579W Manuale utente
