U-Reach TP Series Manuale utente

TP Series SATA Hard Disk

Eraser-TP400G

User Manual

V3.0

Index

Preparation Tips before You Start ........................................................................ 2

Notice Symbols .................................................................................................... 2

Function Table ..................................................................................................... 3

Product Overview ................................................................................................ 5

Product Features.................................................................................................. 5

Package Content .................................................................................................. 6

Hardware Overview ............................................................................................. 6

Appliance Diagram............................................................................................... 7

Data Sanitization.................................................................................................. 7

Setting of Erase Function ..................................................................................... 8

Quick Erase .................................................................................................. 8

Full Erase (Entire HDD Area)......................................................................... 8

DoD Erase (DoD5220.22 M) ......................................................................... 9

DoD Erase & Compare (DoD5220.22 M) ...................................................... 9

Secure Erase (NIST800-88) ..........................................................................10

Seven Pass Erase“DoD 5220.22-M(ECE)” ....................................................10

Utility Function ...................................................................................................12

1.Copy.........................................................................................................12

2-Compare ..................................................................................................16

3-Copy+Compare ........................................................................................16

System Info .................................................................................................16

Change the first Start-up Menu...................................................................16

Restore factory default................................................................................17

System Update............................................................................................17

Troubleshooting When Duplication Fails.....................................................18

How to Use Log Report .......................................................................................19

Specification Table ..............................................................................................24

Product Disclaimer

U-Reach is not accountable for any incidental or consequential damages, which includes, but

not constrained to property harm, loss of time or data from use of a U-Reach product, or any

other damages attributable to product malfunction or failure of (including without limitation,

those attributable to: (1) reliance at the materials provided, (2) costs of product replacement,

(3) loss of use, data or profits, (4) delays or business interruptions, (5) and any principle of

legal responsibility, arising out of or in reference to the use or overall performance (or from

delays in servicing or lack of ability to render service on any) U-Reach product). U-Reach

makes every effort to ensure proper operation of all products. However, the customer is

responsible to affirm that out of the U-Reach product meets the customer’s quality

requirement. The customer further acknowledges that fallacious operation of U-Reach

product and/or software program, or hardware issues, can cause loss of data, defective

formatting, or data loading. U-Reach will make efforts to resolve or repair any issues

recognized by customer either within the warranty period or on a time and materials basis.

Specifications and features subject to change without notice or obligation.

Warranty

U-Reach provides a basic one-year parts and labor warranty for all of its products (excluding

cables, adapters, and other consumable items). An optional extended warranty is also

available for an added cost. Telephone and email support is available for the life of the

product as defined by U-Reach.

All warranties will be restricted and defined by the market region that customers purchased

from.

Piracy Statement

U-Reach accepts no responsibility for copyright infringement or misuse of any U-Reach

equipment. Copying all forms of data: audio, video, or software without the permission of

the copyright holder is illegal. It is the sole responsibility of the user to ensure that the legal

copyrights of the copyright owners are respected.

Preparation Tips before You Start

Make sure to use stable power supply.

Please use in a clean & dry environment.

Please keep the environment well ventilated.

When the eraser operates, it is normal for the machine to heat up.

Please do not move the eraser during operation to ensure better operation.

Please do not remove HDDs during operation to avoid damage.

Please use power supply of its original manufacturer to ensure working safety.

Static electricity may cause erasing error. Please pay attention to the eraser environment

and operators’ equipment. It is recommended to purchase static electricity elimination

equipment to avoid static electricity shock when in high static electricity environment.

Notice Symbols

Special items, procedures, or notes should be noticed by users before operation.

Note:

Note

Refers to related operations on the eraser, special details, tips to know,

suggestions or more effective operation.

Caution:

Caution

Refers to operations that need to be followed or to be cautious to avoid

mistakes.

Function Table

Function

Description

1.Quick Erase

Erase the INDEX of HDD, and take very short time.

2.Full Erase

Erase the whole HDD, including empty space.

3.DoD Erase

Erase HDDs thrice, complying with US Department of Defense's erase

standard DoD 5220.22-M(E).

4.DoD

EraseComp

Erase HDD thrice and compare once, complying with US Department

of Defense's erase standard DoD 5220.22-M(E).

5.Secure Erase

Erase whole HDD, even HPA/DOC or other area which are not

loadable, the international authorized high standard Secure Erase.

6.7 Pass Erase

Erase and overwrite whole HDDs for 7 times, complying with US

Department of Defense's erase standard DoD 5220.22-M(ECE).

7.Utility

7.1 Copy

Copy data from source to targets.

7.2 Compare

Compare bit-by-bit between source and targets to make sure

accuracy.

7.3 Copy+Compare

Copy and Compare source to targets and immediately compare after

7.4 Show Disk Info.

Show the information of connected HDDs, such as brand name, total

capacity, and etc.

7.5 Show System Info.

Show the information of the duplicator, such as controller model

number, software version, and etc.

7.6 System Update

Update the system firmware

8. Setup

8.1 Start-up Menu

Select which function is shown first when the system is turned on.

8.2 Copy Area

Setup copy mode.

8.2.1 System and Files

Set to copy source HDD's data area only to

save.

8.2.2 All Partitions

Set to copy source HDD's partition areas,

skipping any non-partition, empty areas.

8.2.3 Whole HDD

Set to copy the whole source HDD, including

empty space.

8.2.4 Percentage(%)

Set up percentage range of HDD for copy.

Enter Start and End percentage.

8.3 Skip Error

Set to ignore error of HDDs while copying. Set up parameter from 0

to 65535 or unlimited.

8.4 Restore Default

Back to original manufacturer setting.

9. Log Manager

9.1 Out Today Report

Output today’s log data

9.2 Out Recent Report

Output recent log data (from today to recent 28 days)

9.3 Out Period Report

Output a period time of log data

9.4 Advanced

Function (default

password 123456 )

9.4.1 Clear All Log

Clean out the log records after entering

password.

9.4.2 Setup Password

Set up the password for cleaning log records.

9.4.3 Adjust Clock

Adjust system time clock on LCD screen.

*Above functions and features subject to change without notice.

Product Overview

Using data overwrite in erase mode has been proven safe and effective method to prevent

the risk of data retrieval by others. The HDD is cleaned and can safety be discarded or

recycled. TP series eraser allows all business and recycling work. There are 5 types of erase

mode that can provide various application levels, from general, corporate, banking and

military usage.

The TP400 SATA Eraser has ultra high speed up to 9.0GB/min, designed for data erasing

consumers. TP400 HDD Eraser also supports hard disk function of duplication and

comparison.

Product Features

Five professional erase methods:

Quick Erase, Full Erase, DoD Erase, Secure Erase, 7 Pass Erase

Fast shortcut key <GO> can perform asynchronous HDD erase of each port.

Display HDD info of each port clearly:

After erasing, press▲▼up/down keys to check HDD status of each port, such as serial

number, model or capacity, etc.

Support hard disk copy and compare function.

Support multi-interface

Support directly 2.5”/3.5” SATA HDD and SSD. Support IDE HDD via IDE-SATA adapter.

Ultra high speed efficiency up to 9.0GB/min.

Log report management

Professional log report management records all tasks and details for correct erasing.

Connect a printer to printout real-time passed record of each HDD

Auto power control system

Protect hard disk from damage during hot removal from the eraser.

Bad-sector counting

Support auto detection and display number of bad-sector

Package Content

TP400G Power Adapter Power Cord SATA Cable x 2 User Manual

Hardware Overview

RS232 serial port: To connect printer, printout real-time log report of each socket.

USB port: To connect USB drive, export out log of each port as txt file

HDD socket#1: Copy source, erase port

HDD socket#2/#3/#4: Copy targets, erase ports

LED light: Red(error), Green(pass), Green blinking(working), Yellow(Power on, do not

remove HDD)

HDD port#1

Shortcut key

Printer port

USB port

Power switch

Power supply

LCD display

HDD port#4

HDD port#2

HDD port#3

Down

OK/Enter

ESC/Exit

LED light

Appliance Diagram

Connect a printer to printout log report after erasing tasks. Please contact the original

manufacturer of eraser for this printer model.

Export log report to USB drive and also update firmware via USB drive.

Data Sanitization

Caution

It will erase the data in HDD, please make sure you have backup all

important data before using this function.

To cancel operation of any erasing mode, press <ESC> key and hold

continuously for 3 seconds to exit any erasing tasks.

The user is responsible to verify the targets’ quality. Please pick a few

completed targets for testing in a mass production environment for QC.

Step 1: Prepare HDDs

Prepare HDDs for disposal.

Step 2: Place HDDs

Insert HDDs for disposal into target ports.

Note

Any port can erase data immediately.

Some modes will take much longer time than quick erase. Users can

press <ESC> to cancel, but original HDD format and data might not

recover.

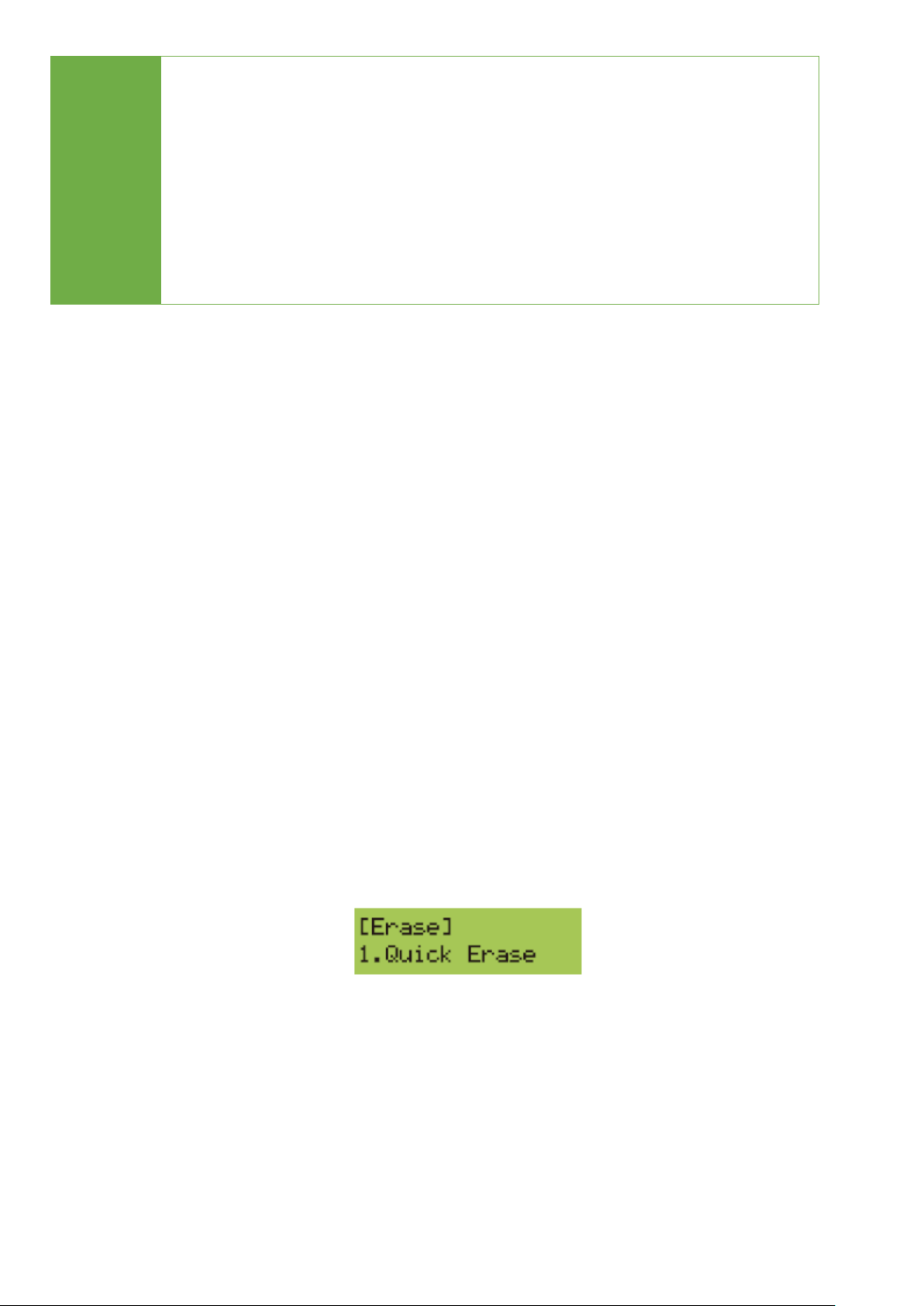

Step 3: Enter function "1.Quick Erase"

Use ▲▼to select the mode of erasing method, and then press "OK". Data Erase will

proceed.

Note

Each port could do erase function asynchronously.

When tasks finished erasing HDD in any of the port, just swap to the

next HDD. After inserting the new HDD, press <GO> to continue

erasing task.

Each time pressing <OK> key to start, if no HDD is connected, the

TP400 will keep searching HDD ports for 15~18 seconds. LED light of

this port will stop flashing when no HDD is connected to this port.

Press <OK> or <GO> to start erasing tasks after plugging HDDs into

ports well.

Step 4: Completion!

Quantity of erasing OK/Fail and task time would show on LCD after the task completed.

Press ▲▼ keys to check the information of each port.

During process of erasing, press <Go> to check real-time status of each port.

Setting of Erase Function

There are 5 professional erase methods:

Quick Erase, Full Erase, DoD Erase, Secure Erase, 7 Full Erase.

Quick Erase

Prepare disposal HDDs. Insert disposal HDD to any port. Enter function “1.Quick Erase”.

Press <OK> or <GO> to start erasing.

Quick erase will only erase the index of the HDD. It is the quickest way to erase HDD. It will

damage the data in HDD. Please make sure you have backup all important data before using

this function. Use ▲▼ keys to the status of each port or erasing related information.

Full Erase (Entire HDD Area)

Prepare disposal HDDs. Insert disposal HDD to any port. Enter function “2.Full Erase”.

Press <OK> or <GO> to start erasing.

Full erase will erase the whole sectors on the target HDD. It will take longer time than quick

erase. Complies with NIST800-88 standards. Users can press <ESC> to cancel, but original

format and data might not be recoverable.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali U-Reach Duplicatore di dischi

U-Reach

U-Reach SATA DOM Duplicator Manuale utente

U-Reach

U-Reach PRO218 Manuale utente

U-Reach

U-Reach SAS Series Manuale utente

U-Reach

U-Reach Carry Flash Series Manuale utente

U-Reach

U-Reach Mini SAS Series Manuale utente

U-Reach

U-Reach SuperB USB3.1 Manuale utente

U-Reach

U-Reach PRO198 Manuale utente

U-Reach

U-Reach V5.30 Manuale utente

U-Reach

U-Reach CopyBox Pro Manuale utente

U-Reach

U-Reach UB800 Manuale utente

U-Reach

U-Reach SAS-MS118 Manuale utente

U-Reach

U-Reach Carry Flash UB600 Manuale utente

U-Reach

U-Reach Carry Series Manuale utente

U-Reach

U-Reach PRO368 Manuale utente

U-Reach

U-Reach Carry HDD PRO118 Manuale utente

U-Reach

U-Reach PE-H Series Manuale utente

U-Reach

U-Reach MD801 Manuale utente

U-Reach

U-Reach Intelligent U3 Manuale utente

U-Reach

U-Reach NVS200 Manuale utente

U-Reach

U-Reach Legend Series Manuale utente

U-Reach

U-Reach Intelligent 9 Manuale utente

U-Reach

U-Reach UB300 Manuale utente

U-Reach

U-Reach Silver Fox PRO Manuale utente

U-Reach

U-Reach Carry Series Manuale utente

Manuali Duplicatore di dischi popolari di altre marche

Riso

Riso CV Series Manuale

MicroBoards Technology

MicroBoards Technology GX-2 Manuale utente

Addonics Technologies

Addonics Technologies HDUS325DX Manuale utente

Carry

Carry Pro118 Manuale utente

CopyPro

CopyPro PowerPro II Manuale utente

Primera

Primera Max Manuale utente

Logicube

Logicube EchoPlus-NG Manuale utente

Silca

Silca Delta 2000 SA Manuale utente

Reflex7

Reflex7 Daisy Chain Series Manuale utente

Vinpower Digital

Vinpower Digital SharkCopier DC Manuale utente

Codonics

Codonics Virtua E Manuale utente

Octave

Octave Copy Master II Manuale utente

Kanguru

Kanguru U2-DVDDUPE-S Manuale utente

StarTech.com

StarTech.com 8STSATDUP11 Manuale utente

DUPLO SEIKO CORPORATION

DUPLO SEIKO CORPORATION Duprinter DP-460 Manuale utente

Addonics Technologies

Addonics Technologies UDFH7 Manuale utente

Vinpower Digital

Vinpower Digital MiniLoader VDX-1 Manuale utente

Addonics Technologies

Addonics Technologies CFASTD5 Manuale utente
