Ubiquiti PowerBeam AC Gen 2 Manuale utente

5 GHz High‑Performance

airMAX®ac Bridge

Model: PBE‑5AC‑Gen2

Introduction

Thank you for purchasing the Ubiquiti Networks®

PowerBeam®AC Gen 2. This Quick Start Guide is designed to

guide you through installation and includes warranty terms.

Package Contents

Dish Reflector Antenna Feed Rear Housing Adjustment

Bracket

Mounting

Bracket

Hex Bolts with

Washers (Qty. 4)

Pole

Clamp

Long Carriage

Bolts (Qty. 2)

5GHz High‑Performance

airMAX®acBridge

Model:PBE‑5AC‑Gen2

Flange Nuts

(Qty. 2)

Gigabit PoE

(24V, 0.5A) with

Mounting Bracket

Power Cord Quick Start

Guide

cable and earth grounding must be used as conditions of product warranty. TOUGHCable™is

designed for outdoor installations. It is the customer’s responsibility to follow local country

regulations, including operation within legal frequency channels, output power, and Dynamic

Frequency Selection (DFS) requirements.

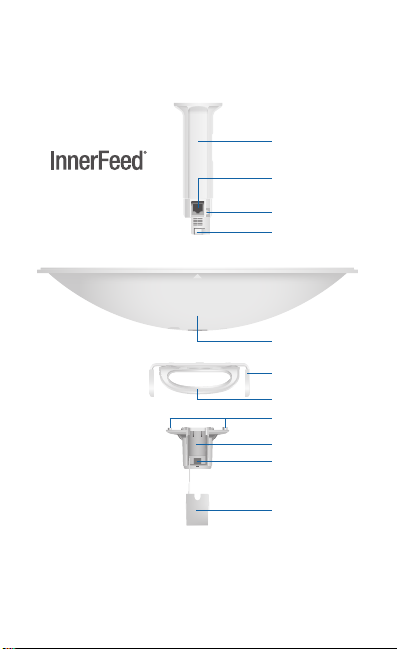

Hardware Overview

Bottom View

Technology

Cable Door

Rear Housing

Antenna Feed

Ethernet Port

Release Button Slot

Adjustment Bracket

Release Button

Dish Reflector

Alignment Pins

Reset Button

Carrying Handle/

Lifting Loop

Reset Button To reset to factory defaults, press and hold the

Reset button for more than 10 seconds while the PowerBeam

is already poweredon. Alternatively, the PowerBeam may be

reset remotely via a Reset button located on the bottom of the

Gigabit PoE Adapter.

Release Button After you assemble the PowerBeam, check

the Release button; it should be fully engaged in the Release

Button Slot of the Rear Housing. This ensures that the Antenna

Feed is locked into place. If you need to remove the Antenna

Feed, you must depress the Release button first.

LEDs

Power The Power LED will light blue when the

device is connected to a power source.

Ethernet The Ethernet LED will light steady blue

when an active Ethernet connection is made and

flash when there is activity.

Signal In airOS®, you can modify the threshold

value for the wireless signal strength LEDs on the

Wireless tab under Signal LED Thresholds. Each LED

will light when the wireless signal strength is equal

to or greater than the LED’s threshold value. The

default threshold values for these LEDs are shown

below:

-65 dBm -73 dBm -80 dBm -94 dBm

Application Examples

The PowerBeam mounted outdoors with the Dish Reflector

installed provides directional outdoor coverage (gain is

reflector‑dependent).

The PowerBeam mounted outdoors without the Dish Reflector

installed provides outdoor‑to‑indoor coverage using the 3 dBi

Antenna Feed only.

Installation Requirements

• 13 mm wrench

• Shielded Category 5 (or above) cabling should be used for

all wired Ethernet connections and should be grounded

through the AC ground of the PoE.

We recommend that you protect your networks from

harmful outdoor environments and destructive ESD events

with industrial‑grade, shielded Ethernet cable from Ubiquiti

Networks. For more details, visit www.ubnt.com/toughcable

Installation

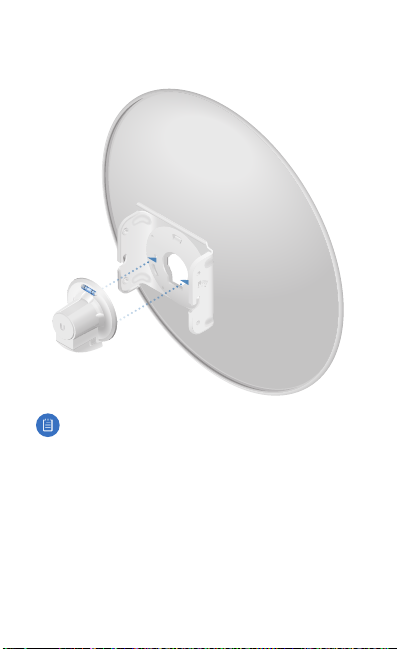

1. Align and insert the tabs of the Adjustment Bracket into the

slots of the Dish Reflector. Rotate the Adjustment Bracket

counterclockwise until the alignment holes in the dish and

bracket align with each other.

2. Line up the Alignment Pins of the Rear Housing with the

alignment holes of the Adjustment Bracket. Push the Rear

Housing into the Adjustment Bracket.

Note: In high‑wind environments, you can add support

with additional hardware (not included):

1. Using the four holes in the Adjustment Bracket as a

template, drill four holes into the Dish Reflector with a

4.4 mm or 11/64" drill bit.

2. Secure the Dish Reflector to the Adjustment Bracket

using M4 screws, washers, and nuts (not included).

*640-00272-04*

640-00272-04

3. View the Dish Reflector from the front. Ensure that the

three hooks (indicated below) of the Rear Housing are

fully engaged with the inner wall of the Dish Reflector and

locked into place.

IMPORTANT: Before proceeding, lightly pull the Rear

Housing to confirm that it is locked into place.

4. Push in the sides of the Cable Door and detach it from the

Rear Housing.

5. Attach the Antenna Feed.

a. Insert the Antenna Feed into the Rear Housing, and push

until it locks into place with a click.

b. Lightly pull the Antenna Feed to ensure that it is locked

into place and the Release Button is fully engaged.

Release

Button

Bottom View

6. Connect an Ethernet cable to the Ethernet Port of the

Antenna Feed. Then re‑attach the Cable Door to the

RearHousing.
