Ubiquiti USW-48-POE Manuale utente

System Requirements

Package content

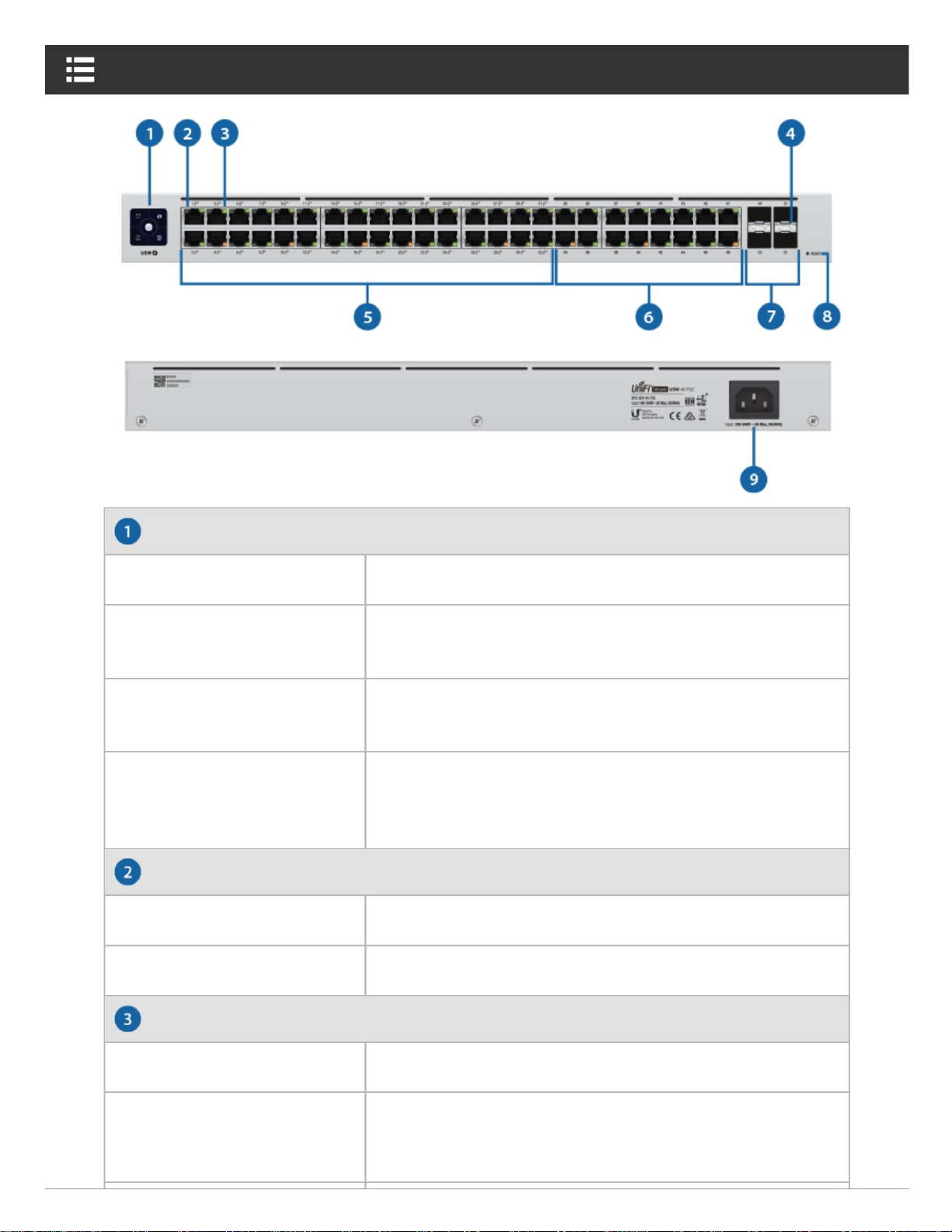

Device Overview

Screw Clamps (8)

Clamping screws (4)

Rack mount brackets

(qty: 2)

Power cord

Cage Nuts (Qty: 4)

UniFi Switch

USW-48-POE Quick Start Guide

UniFi Controller Software v5.12.x or later, available at:

ui.com/download/unifi

IMPORTANT: We strongly recommend using power regulation and

supporting an uninterruptible power supply to prevent equipment damage

due to local AC power stability issues.

Linux, Mac OS X or Microsoft Windows

7/8/10 Java Runtime Environment 1.6 (1.8 or later is recommended)

Web browser: Google Chrome (other browsers may have limited functionality).

USW-48-POE Quick Start Guide

Luces LED

Amber

Starting.

Sin PoE

Amber

Factory defaults, pending approval.

Network approval successful and correct operation.

RJ45 Speed/Link/Activity LED (Ports 1 - 48)

PoE 802.3af/at

fixed white light

steady blue light

location animation

disabled

This indicates you have clicked Locate in the UniFi

controller software. The software will also show the

location of the device on the map.

RJ45 PoE LEDs (ports 1 - 32)

Touch screen

not connected

Link established at 10/100 Mbps

Blinking indicates activity

startup animation

disabled

SFP Speed/Link/Activity LED (Ports 49 - 52)

RJ45 ports support 10/100/1000 Ethernet connections.

SFP (ports 49 - 52)

disabled

Phillips screwdriver

Standard size, 19" wide rack with a minimum 1U height

not connected

The SFP ports are hot-swappable and support 1 Gbps connections.

Reset button

Link established at 1 Gbps

Green

For indoor applications, use Category 5 (or higher) UTP cabling certified for indoor use.

For outdoor applications, Category 5 (or higher) shielded cabling must be used for all Ethernet

connections and must be connected to the AC ground of the power supply.

Blinking indicates activity

Link established at 1000 Mbps

RJ45 (ports 1 - 32)

This button has two functions on the UniFi Switch:

Green

RJ45 ports support 10/100/1000 Ethernet connections and an 802.3af/at PoE output.

Reset – Quickly press and release the Reset button.

power port

Restore Factory Default Settings: Press and hold the Reset button for more than five seconds.

Connect the included power cord to the power port.

Blinking indicates activity

RJ45 (ports 33 - 48)

USW-48-POE Quick Start Guide

installation requirements

We recommend that you protect your networks from harmful outdoor

environments and USW-48-POE Quick Start Guide

electrostatic discharge phenomena with Ubiquiti's industrial-grade shielded Ethernet

cable. For more details, visit: ui.com/toughcable

Note: Although the wiring can be run outside, the UniFi Switch must be

stored inside a protective case.

Device installation

USW-48-POE Quick Start Guide

Power connection

USW-48-POE Quick Start Guide

ethernet connection

USW-48-POE Quick Start Guide

Note: If you are connecting PoE devices, look at the display to determine the available

PoE wattage.

SFP connection

Download and install the latest version of the UniFi driver software at ui.com/download/

unifi and follow the instructions on the screen.

For more information on compatible fiber SFP modules, visit: ubnt.link/

UniFi_SFP_DAC_Compatibility

2. USW-48-POE Quick Start Guide

Software installation

Note: If you already have UniFi Controller version 5.12.x or later installed, go

to the USW-48-POE Quick Start Guide to the "UniFi Switch

Deployment" section.

For information on setting up and using the UniFi Controller software, see the user

guide located on our website: ui.com/download/unifi

To deploy the UniFi Switch, go to "UniFi Switch Deployment".

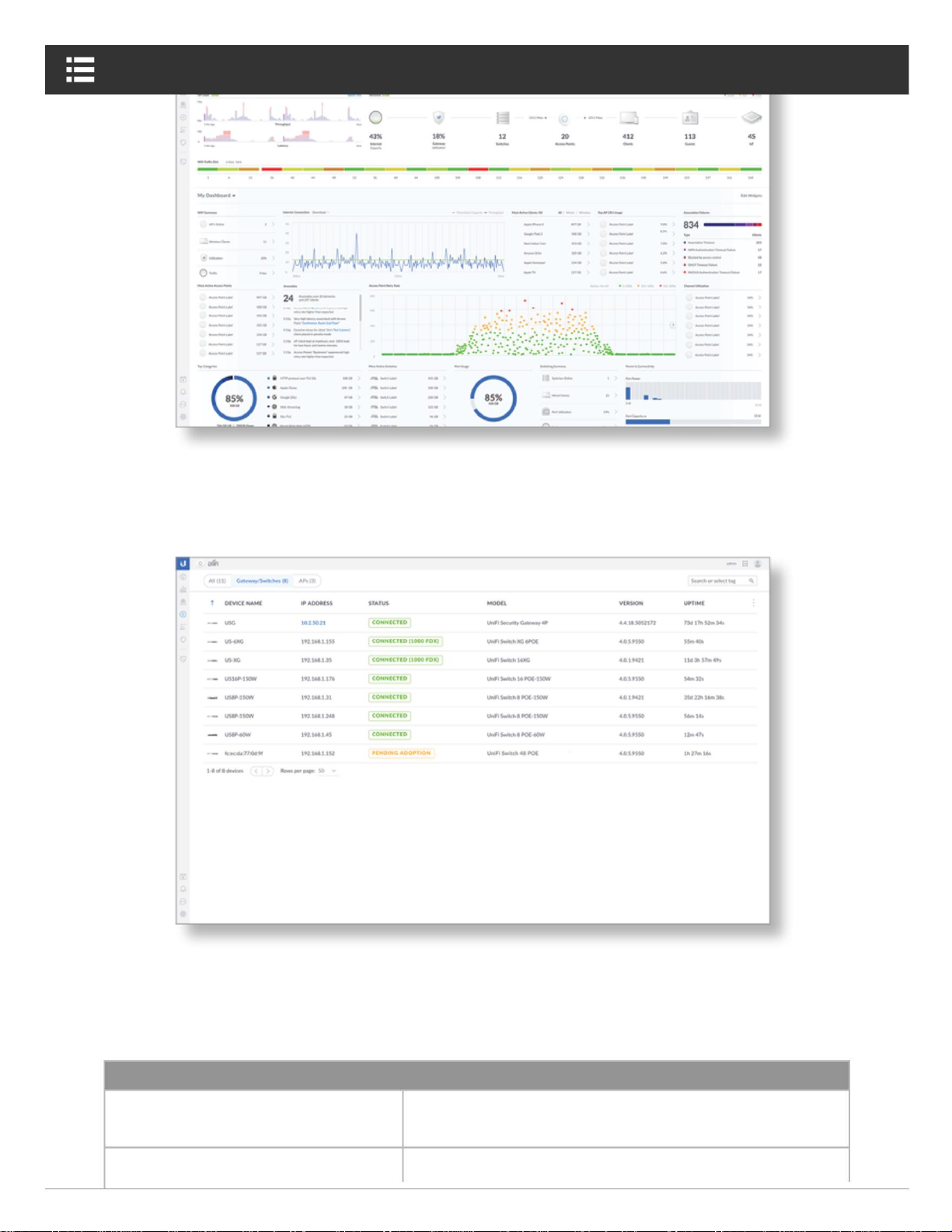

Once you have installed the software and run the UniFi Setup Wizard, a login screen

for the UniFi Controller management interface will appear. Enter the administrator

name and password you created and click Sign In.

1. From the UniFi controller panel, click Devices on the left menu bar.

You can manage your wireless network and view network statistics through the

UniFi Controller's management interface.

Implementation of the UniFi switch

devices in the Model column. To approve the UniFi Switch, click Adopt.

2. On the Devices screen, locate the UniFi Switch in the list of

3. The screen will turn blue to confirm successful deployment.

442,4 x 285 x 43,7 mm

(17,42 x 11,22 x 1,72")

USW-48-POE

4,52 kg (9,97 lb)

Weight

Dimensions

USW-48-POE Quick Start Guide

specs
