High-Performance

airMAX®Omni

Model: PBE-M5-Omni

Introduction

Thank you for purchasing the Ubiquiti Networks®

PowerBeam™Omni. This Quick Start Guide is designed to guide

you through installation and also includes warrantyterms.

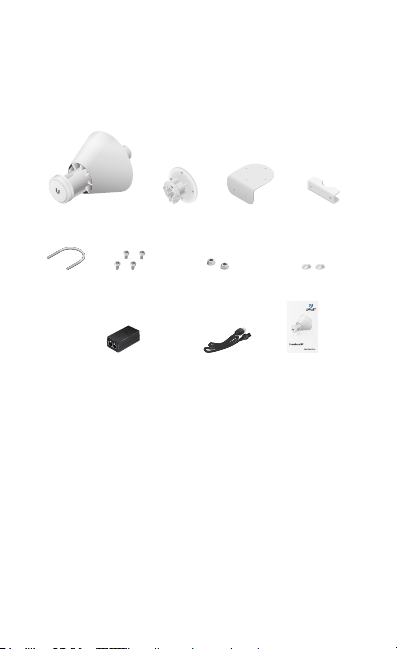

Package Contents

Antenna

Feed with Omni

Rear

Housing

Mounting

Bracket

Pole Clamp

U-Bolt Bolts (Qty. 4) Flange Nuts (Qty. 2) Washers (Qty. 2)

High-Performance

airMAX®Omni

Model:PBE-M5-Omni

Gigabit PoE Adapter with

Mounting Bracket

Power

Cord

Quick Start

Guide

Installation Requirements

• Phillips screwdriver

• 10 mm wrench

• Shielded Category 5 (or above) cabling should be used for

all wired Ethernet connections and should be grounded

through the AC ground of the PoE.

We recommend that you protect your networks from the

most brutal environments and devastating ESD attacks

with industrial-grade shielded Ethernet cable from Ubiquiti

Networks. For more details, visit www.ubnt.com/toughcable

cable and earth grounding must be used as conditions of product warranty. TOUGHCable™

is designed for outdoor installations. It is the customer’s responsibility to follow local country

regulations, including operation within legal frequency channels, output power, and Dynamic

Frequency Selection (DFS) requirements.

Hardware Overview

Bottom View

Reset Button

Release Button

Ethernet Port

Reset Button To reset to factory defaults, press and hold the

Reset button for more than 10 seconds while the PowerBeam

is already poweredon. Alternatively, the PowerBeam may be

reset remotely via a Reset button located on the bottom of the

Gigabit PoE Adapter.

Release Button After you assemble the PowerBeam, check

the Release button; it should be fully engaged in the Release

Button Slot of the Rear Housing. This ensures that the Antenna

Feed is locked into place. If you need to remove the Antenna

Feed, you must depress the Release button first.

LEDs

Signal The default values (from left to right) are

shown below:

LED will light blue when the wireless signal

strength is equal to or above -65 dBm.

LED will light blue when the wireless signal

strength is equal to or above -73 dBm.

LED will light blue when the wireless signal

strength is equal to or above -80 dBm.

LED will light blue when the wireless signal

strength is equal to or above -94 dBm.

Ethernet The Ethernet LED will light steady blue

when an active Ethernet connection is made and

flash when there is activity.

Power The Power LED will light blue when the

device is connected to a power source.

Installation

1. Push in the sides of the Cable Door and detach it from the

Rear Housing.

2. Insert the Antenna Feed with Omni into the Rear Housing,

and push until it locks into place with a click.

3. Connect an Ethernet cable to the Ethernet Port of the

Antenna Feed, and re-attach the Cable Door to the Rear

Housing.

*640-543231-01*

640-543231-01

4. Attach the Rear Housing to the Mounting Bracket with

fourBolts.

5. Insert the U-Bolt into the Pole Clamp and Mounting

Bracket.Secure each end of the U-Bolt with a Washer and

a FlangeNut.

Note: The mounting assembly can accommodate a

Ø 32 - 56 mm pole.

6. Connect the other end of the Ethernet cable from the

PowerBeam to the Ethernet port labeled POE on the

Gigabit PoEAdapter.

7. Connect an Ethernet cable from your LAN or computer to

the Ethernet port labeled LAN on the adapter.

8. Connect the Power Cord to the power port on the adapter.

Connect the other end of the Power Cord to a power outlet.

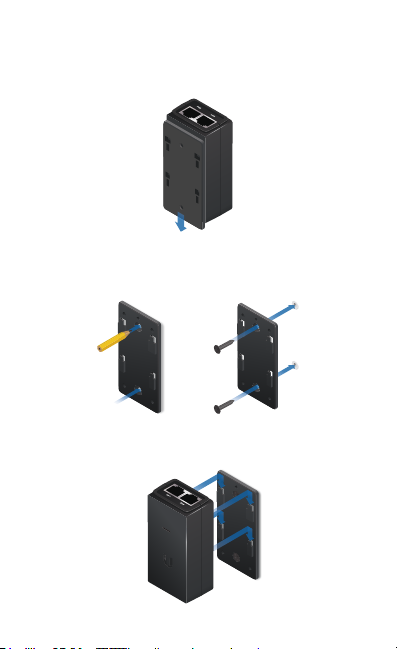

Mounting the PoE Adapter (Optional)

1. Slide the PoE Mounting Bracket down to remove it from the

Gigabit PoE Adapter.

2. Place the PoE Mounting Bracket at the desired location and

mark the two holes. Pre-drill the holes if necessary, and

then secure the bracket using two fasteners (not included).

3. Align the slots of the Gigabit PoE Adapter with the tabs of

the PoE Mounting Bracket, and then slide the adapterdown.
