Ubiquiti EdgeRouter X ER-X Manuale utente

Advanced Gigabit

Ethernet Router

Model: ER-X

Introduction

Thank you for purchasing the Ubiquiti Networks®

EdgeRouter™X. This Quick Start Guide is designed to guide

you through installation and also includes warranty terms.

Package Contents

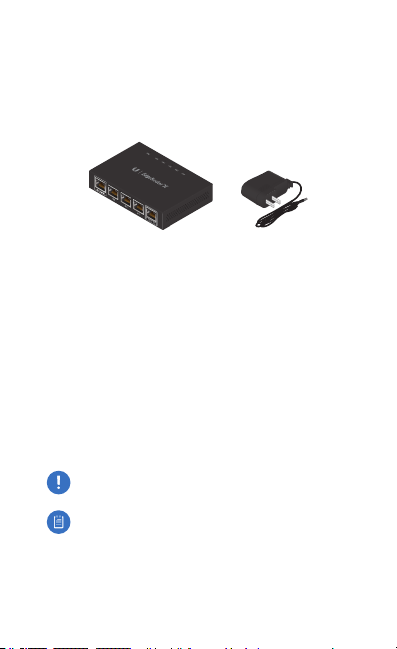

EdgeRouter X Power Adapter

(12V, 0.5A)

Installation Requirements

• For indoor applications, use Category 5 (or above) UTP

cabling approved for indoor use.

• For outdoor applications, shielded Category 5 (or above)

cabling should be used for all wired Ethernet connections.

To enhance ESD protection, attach a ground wire (not

included) to the back panel of the EdgeRouter.

We recommend that you protect your networks

from harmful outdoor environments and destructive

ESD events with industrial‑grade, shielded Ethernet

cable from Ubiquiti Networks. For more details, visit:

www.ubnt.com/toughcable

WARNING: To reduce the risk of fire or electric shock, do

not expose the EdgeRouter to rain or moisture.

Note: Although the cabling can be located outdoors,

the EdgeRouter itself should be housed inside a

protective enclosure.

installer’s responsibility to follow local country regulations, including operation within legal

frequency channels, output power, indoor cabling requirements, and Dynamic Frequency

Selection (DFS) requirements.

Hardware Overview

Top Panel

Power Ethernet (eth0-eth4)

LED State Status

Power

Off Power Off

Green Power On

eth0‑eth4

Off No Link

Green Link Established at 10/100/1000Mbps

Flashing Indicates Activity

Front Panel

Ethernet (eth0/PoE In) Ethernet (eth1-eth3) Ethernet (eth4/PoE Out)

Port Description

eth0/PoE In

RJ45 port accepts 24V passive PoE

and supports a 10/100/1000 Ethernet

connection.

eth1‑3 RJ45 ports support 10/100/1000 Ethernet

connections.

eth4/PoE Out RJ45 port supports passive PoE passthrough

and a 10/100/1000 Ethernet connection.

Passive PoE Passthrough

The EdgeRouter can be powered by either method:

• Power adapter

• 24V passive PoE on the eth0/PoE Inport

Passive PoE output on port eth4/PoE Out works as a

passthrough and depends on the input power source.

If the included Power Adapter (12V, 0.5A) is used, there may not

be sufficient passthrough to power another device because

the EdgeRouter can consume up to 5 watts on its own.

We recommend using a more powerful input power source

(not included); here are a few examples of viable power input

options for passive PoE passthrough:

Power Input Passive PoE Passthrough

24V passive PoE (on eth0/PoE In)* ≈23V, 5W

12V, 1A

(ERLite‑3 Power Adapter) ≈11V, 5W

24V, 2.5A

(ERPoe‑5 Power Adapter) ≈23V, 11W

* Not compatible with 24V, 1A Gigabit PoE Adapter.

Back Panel

PowerGround

Reset

Button Description

Reset

There are two methods to reset the

EdgeRouter to factory defaults:

• Runtime reset (recommended) The

EdgeRouter should be running after

bootup is complete. Press and hold the

Reset button for about 10 seconds until

the eth4 LED starts flashing and then

becomes solidly lit. After a few seconds, the

LED will turn off, and the EdgeRouter will

automatically reboot.

• Power-on reset Disconnect power from

the EdgeRouter. Press and hold the Reset

button while connecting power to the

EdgeRouter. The port LEDs will light up in

sequential order. Keep holding the Reset

button until the LED on the last port starts

flashing, and then release the button.

Detail Description

Ground

ESD grounding for enhanced ESD protection.

The ground wire and screw with washer

are not included (recommended screw size:

M3‑0.5 x 4 mm).

Power Connect the Power Adapter.

Hardware Installation

Place the EdgeRouter on a flat, horizontal surface or mount it

on a wall (mounting screws not included).

WARNING: FAILURE TO PROVIDE PROPER VENTILATION

MAY CAUSE FIRE HAZARD. KEEP AT LEAST 20 MM OF

CLEARANCE NEXT TO THE VENTILATION HOLES FOR

ADEQUATE AIRFLOW.

Connecting Power

Follow the appropriate instructions for your installation:

Connecting Power Using the Power Adapter

Connect the Power Adapter to the Power port of the

EdgeRouter. Then plug the Power Adapter into a poweroutlet.

Connecting Power Using PoE

Connect the PoE cable of a PoE switch or adapter to the

eth0/PoE In port of the EdgeRouter.

Accessing the EdgeOS Configuration Interface

The EdgeOS® configuration interface can be accessed via

DHCP or static IP address assignment. By default, eth1 is set

up as a DHCP client, while eth0 is assigned a static IP address

of 192.168.1.1. To configure the EdgeRouter, proceed to the

appropriate section: DHCP or “Static IP Address”.

DHCP

1. Connect an Ethernet cable from eth1 on the EdgeRouter to

a LAN segment that has an existing DHCP server.

2. To check the IP address of the EdgeRouter, use one of the

following methods:

• Set up the DHCP server to provide a specific IP address

to the EdgeRouter based on its MAC address (on the

label).

• Let the EdgeRouter obtain an IP address and then check

the DHCP server to see which IP address was assigned.

3. Launch your web browser. Enter the appropriate IP address

in the address field. Press enter (PC) or return (Mac).

4. The login screen will appear. Enter ubnt in the Username

and Password fields. Read the Ubiquiti License Agreement,

and check the box next to I agree to the terms of this License

Agreement to accept it. Click Login.

The EdgeOS Configuration Interface will appear, allowing you

to customize your settings as needed. For more information,

refer to the EdgeOS User Guide, which is available at

www.ubnt.com/download/edgemax

You can also manage your device using the Ubiquiti® Network

Management System. UNMS™lets you configure, monitor,

upgrade, and back up your devices using a single application.

Get started at www.unms.com

Static IP Address

1. Connect an Ethernet cable from the Ethernet port on

your computer to the port labeled eth0/PoE In on the

EdgeRouter. If you are using PoE, then connect your

computer to the PoE switch or adapter.

2. Configure the Ethernet adapter on your host system with a

static IP address on the 192.168.1.x subnet.

3. Launch your web browser. Type https://192.168.1.1 in the

address field, and press enter (PC) or return (Mac).

4. The login screen will appear. Enter ubnt in the Username

and Password fields. Read the Ubiquiti License Agreement,

and check the box next to I agree to the terms of this License

Agreement to accept it. Click Login.

The EdgeOS Configuration Interface will appear, allowing you

to customize your settings as needed. For more information,

refer to the EdgeOS User Guide, which is available at

www.ubnt.com/download/edgemax

You can also manage your device using the Ubiquiti Network

Management System. UNMS lets you configure, monitor,

upgrade, and back up your devices using a single application.

Get started at www.unms.com

Specifications

EdgeRouter X

Dimensions 110 x 75 x 22 mm (4.33 x 2.95 x 0.87")

Weight 175g (6.17 oz)

Max. Power Consumption 5W

Power Input

12VDC, 0.5A Power Adapter (Included)

24V Passive PoE

Power Supply External AC/DC Adapter

Supported Voltage Range 9 to 30VDC

Button Reset

LED Power, Ethernet 0‑4

Processor Dual‑Core 880 MHz, MIPS1004Kc

System Memory 256 MB DDR3 RAM

Code Storage 256 MB NAND

Wall‑Mount Yes

Networking Interfaces

Data/PoE Input Port

Data Ports

Data/PoE Passthrough Port

(1) 10/100/1000 RJ45 Port

(3) 10/100/1000 RJ45 Ports

(1) 10/100/1000 RJ45 Port

Operating Temperature ‑10 to 45° C (14 to 113° F)

Operating Humidity 10 to 90% Noncondensing

Certications CE, FCC, IC
