Ubiquiti EdgeSwitch 12 Fiber Manuale utente
Managed Gigabit Fiber Switch
Model: ES-12F
Introduction
Thank you for purchasing the Ubiquiti Networks® EdgeSwitch®
Fiber. This Quick Start Guide is designed to guide you through
installation and also includes warranty terms.

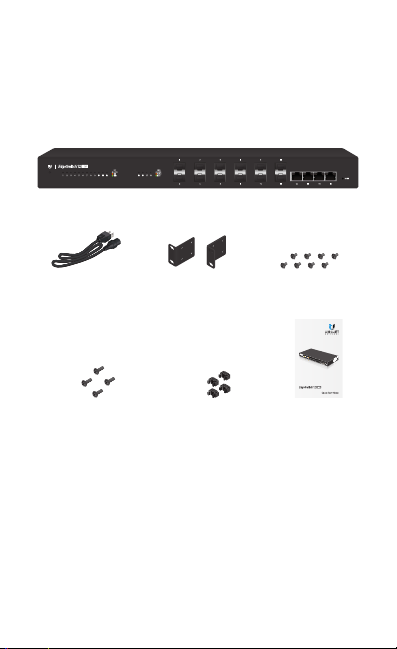

Package Contents
EdgeSwitch Fiber
Power Cord Rack-Mount Brackets
(Qty. 2)
Bracket Screws
(M4, Qty. 8)
ManagedGigabit Fiber Switch
Model:ES-12F
Mounting Screws
(Qty. 4)
Cage Nuts
(Qty. 4)
Quick Start
Guide
TERMS OF USE: All Ethernet cabling runs must use CAT5 (or above). It is the professional
installer’s responsibility to follow local country regulations, including operation within legal
frequency channels, output power, indoor cabling requirements, and Dynamic Frequency
Selection (DFS) requirements.
Installation Requirements
• Phillips screwdriver (for rack- or wall-mounting)
• Standard-sized, 19" wide rack with a minimum of 1U height
available (for rack-mounting)
• Use compatible fiber SFP modules with the appropriate fiber
optic cabling. For information about compatible fiber SFP
modules, visit: community.ubnt.com/edgemax
• For indoor applications, use Category 5 (or above) UTP
cabling approved for indoor use.
• For outdoor applications, shielded Category 5 (or above)
cabling should be used for all wired Ethernet connections
and should be grounded through the AC ground of the
power supply.
We recommend that you protect your networks from
harmful outdoor environments and destructive ESD events
with industrial-grade, shielded Ethernet cable from Ubiquiti
Networks. For more details, visit:
www.ubnt.com/toughcable
WARNING: To reduce the risk of fire or electric shock, do
not expose the EdgeSwitch Fiber to rain or moisture.
Note: Although the cabling can be located outdoors,
the EdgeSwitch Fiber itself should be housed inside a
protective enclosure.
Hardware Overview
Front Panel Ports
SFP 1-12 RJ45 13-16
Port Description
SFP 1-12 Hot-swappable SFP ports support 1 Gbps
connections. Ports 1-8 also support 100 Mbps.
RJ45 13-16 RJ45 ports support 10/100/1000 Ethernet
connections.
Front Panel LEDs
System
System LED
Note: The System LED functionality has been updated
with firmware v1.8.0. We recommend that you update
the EdgeSwitch to the latest firmware.
State Status
Flashing White Bootup in progress.
White Ready for use, not connected to Ubiquiti®
Network Management System (UNMS™).
Blue Ready for use, connected to UNMS.
Steady Blue
with Occasional
Flashing
Ready for use, unable to connect to
UNMS, check connection to UNMSserver.
Quickly Flashing
Blue Used to locate a device in UNMS.
Alternating
Blue/White Firmware upgrade in progress.
You can use the EdgeSwitch Configuration Interface or UNMS
to manage your device. UNMS lets you configure, monitor,
upgrade, and back up your devices using a singleapplication.
Get started at www.unms.com
SFP: Speed/Link/Act RJ45: Speed/Link/Act
SFP LEDs
LED State Status
Speed/
Link/
Activity
Off No Link
Amber Link Established at 100 Mbps
Amber
Flashing Link Activity at 100 Mbps
Green Link Established at 1000 Mbps (1 Gbps)
Green
Flashing Link Activity at 1000 Mbps (1Gbps)
RJ45 LEDs
LED State Status
Speed/
Link/
Activity
Off No Link
Amber Link Established at 10/100 Mbps
Amber
Flashing Link Activity at 10/100 Mbps
Green Link Established at 1000 Mbps (1 Gbps)
Green
Flashing Link Activity at 1000 Mbps (1Gbps)
Front Panel Button
Reset
Button Description
Reset
There are two methods to reset the
EdgeSwitch Fiber to factory defaults:
Runtime Reset (Recommended)
The EdgeSwitch Fiber should be running
after bootup is complete, and the System
LED is white. Press and hold the Reset
button. The EdgeSwitch Fiber will reboot,
and the System LED becomesblue after
three seconds. Continue to hold the Reset
button for about 15seconds until the
System LED flashes blue for two seconds.
This indicates that the EdgeSwitch Fiber has
reset to its factorydefaults.
Power-on Reset
1. Disconnect the Power Cord from the
EdgeSwitch Fiber.
2. While connecting the Power Cord to the
EdgeSwitch Fiber, hold the Reset button
for about 15seconds until the System
LED flashes blue for two seconds. This
indicates that the EdgeSwitch Fiber has
reset to its factory defaults.
Back Panel Console Port
Console
Port Description
Console
RJ45 serial console port for Command
Line Interface (CLI) management. Use an
RJ45-to-DB9, serial console cable, also
known as a rollover cable, to connect
the Console port to your computer. Then
configure the following settings as needed:
• Baud rate 115200
• Data bits 8
• Parity NONE
• Stop bits 1
• Flow control NONE
Back Panel Power
Power
DC Input
DC Input The 25VDC input can connect a redundant or
stand-alone DC power source (not included) with minimum
power: 56W, 25 to 16V, and 2.5 mm DC power inline connector.
Note: You can use the redundant DC power source as a
hot spare; if the internal AC/DC power supply no longer
provides power, then the EdgeSwitch Fiber will switch to
the DC power source without interrupting its operation.
Power Connect the included Power Cord to the Power port.
Side Panel
Ventilation
Holes
Bracket Mounting
Holes
Hardware Installation
The EdgeSwitch Fiber can be placed on a horizontal surface,
mounted on a wall, or mounted in a rack.
WARNING: FAILURE TO PROVIDE PROPER VENTILATION
MAY CAUSE FIRE HAZARD. KEEP AT LEAST 20 MM OF
CLEARANCE NEXT TO THE VENTILATION HOLES FOR
ADEQUATE AIRFLOW.

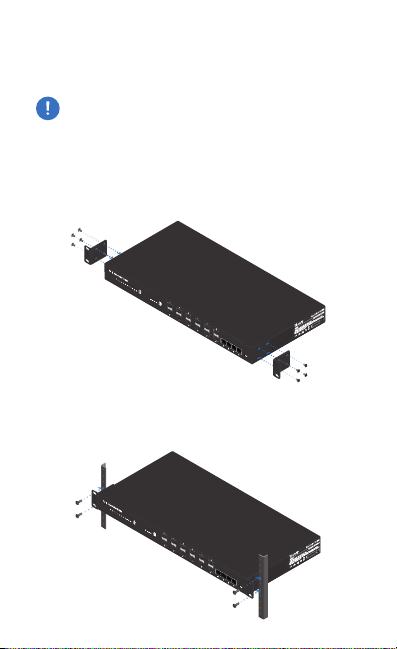

Mounting in a Rack (Optional)
1. Attach the Rack-Mount Brackets to the EdgeSwitch Fiber
using the eight Bracket Screws.
2. Attach the EdgeSwitch Fiber to the rack or wall using the
four Mounting Screws. (If the rack has square slots, then use
the Cage Nuts with the Mounting Screws.)
Connecting Power
1. Connect the Power Cord to the Power port of the
EdgeSwitch Fiber.
2. Connect the other end of the Power Cord to a power outlet.
