Ubiquiti LiteBeam LBE-5AC-LR Manuale utente

5/4/2021 LBE-5AC-LR Quick Start Guide

https://dl.ubnt.com/qsg/LBE-5AC-LR/LBE-5AC-LR_EN.html 1/23

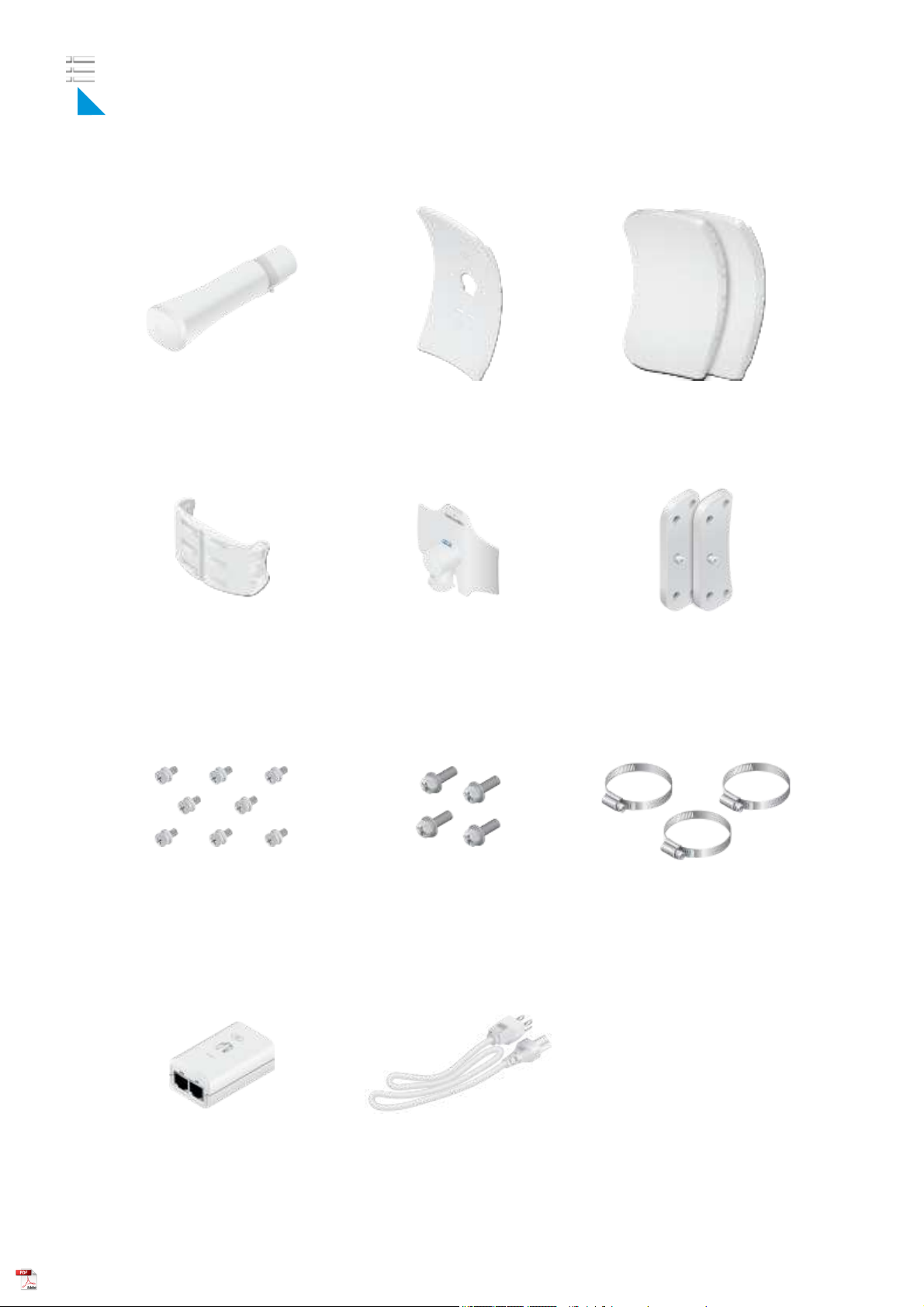

Antenna Feed Center Reflector Panel Side Reflector Panels (Qty.

Mounting Bracket Feed Receiver Pivot Panels (Qty. 2)

M4 SEM Screws (Qty. 8) M8 SEM Screws (Qty. 4) Metal Straps (Qty. 3)

Gigabit PoE (24V, 0.3A) with

Mounting Bracket

Power Cord

Package Contents

LBE-5AC-LR Quick Start Guide

Click for

Table of Contents

5/4/2021 LBE-5AC-LR Quick Start Guide

https://dl.ubnt.com/qsg/LBE-5AC-LR/LBE-5AC-LR_EN.html 2/23

Installation Requirements

Phillips screwdriver

13 mm wrench

7 mm socket wrench or screwdriver

Shielded Category 5 (or above) cabling with drain wire should be used for all

wired Ethernet connections and should be grounded through the AC ground of

the PoE.

We recommend that you protect your networks from harmful outdoor

environments and destructive ESD events with industrial-grade, shielded

Ethernet cable from Ubiquiti. For more details, visit ui.com/toughcable

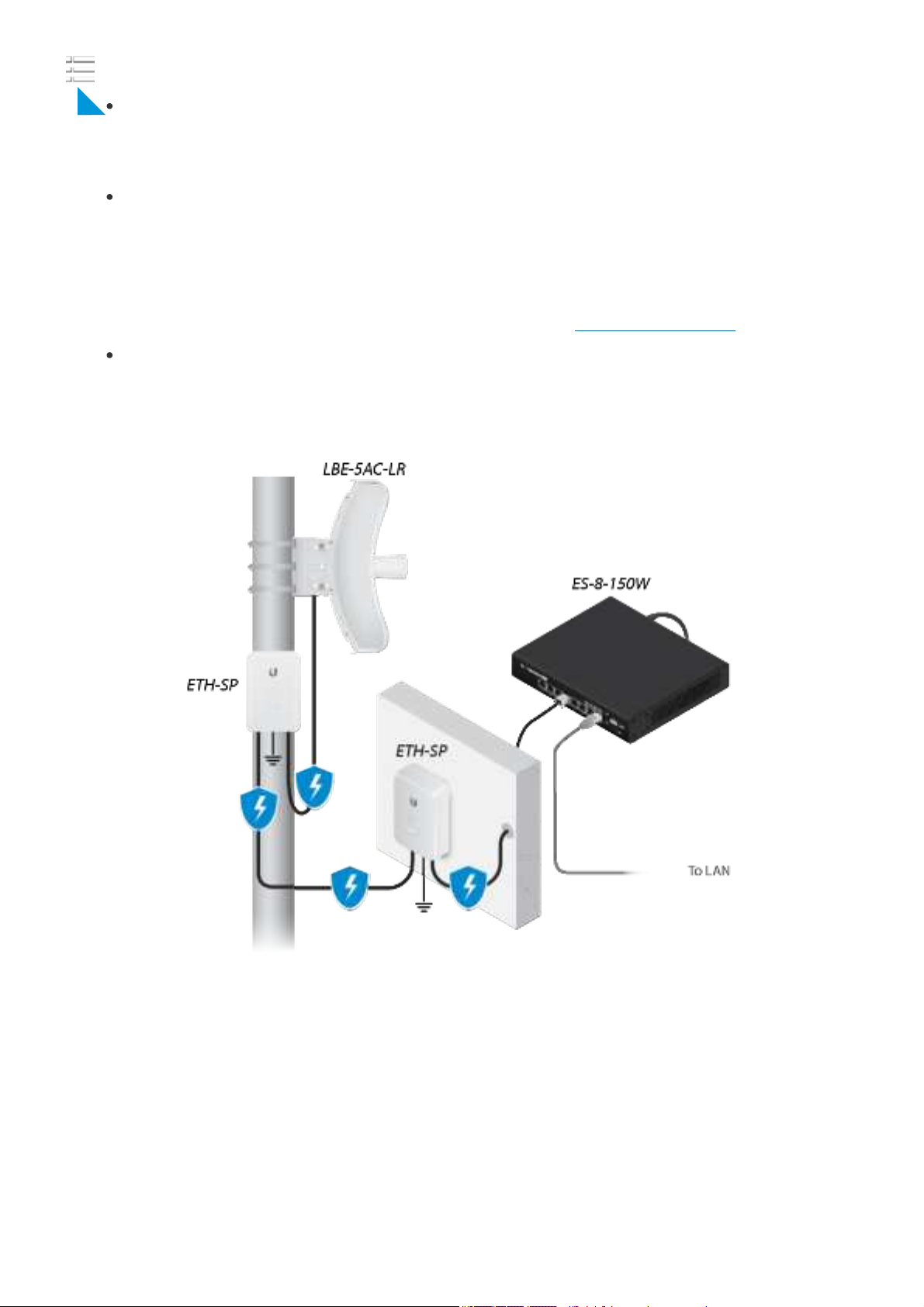

Surge protection should be used for all outdoor installations. We recommend

that you use two Ethernet Surge Protectors, model ETH-SP, one near the

LiteBeam and the other at the entry point to the building. The ETH-SP will

absorb power surges and safely discharge them into the ground.

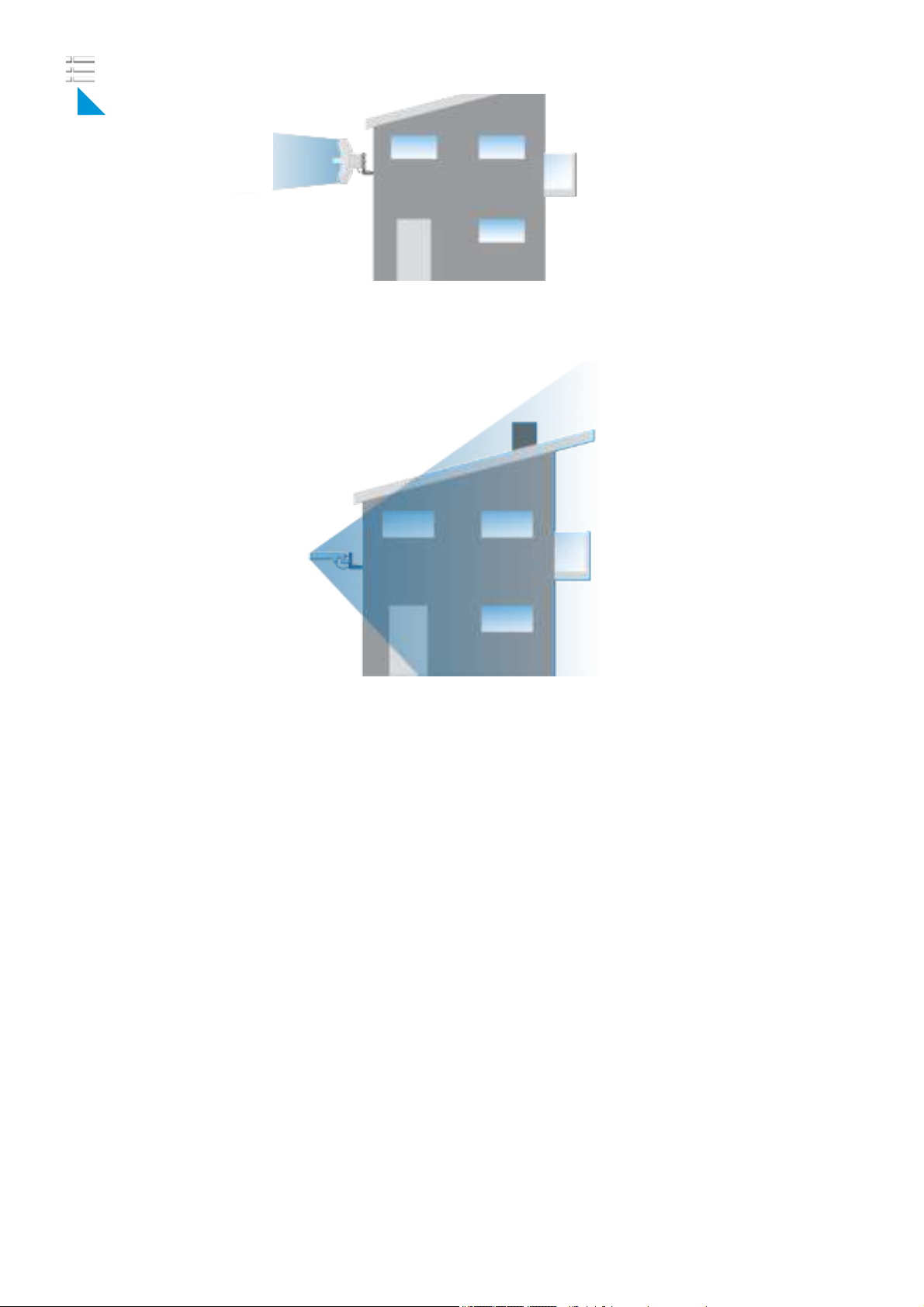

Application Examples

The LiteBeam AC mounted outdoors with the reflector installed provides

directional outdoor coverage (gain reflector-dependent).

LBE-5AC-LR Quick Start Guide

Click for

Table of Contents

5/4/2021 LBE-5AC-LR Quick Start Guide

https://dl.ubnt.com/qsg/LBE-5AC-LR/LBE-5AC-LR_EN.html 3/23

The LiteBeam AC mounted outdoors without the reflector installed provides

outdoor-to-indoor coverage using the 3 dBi Antenna Feed only.

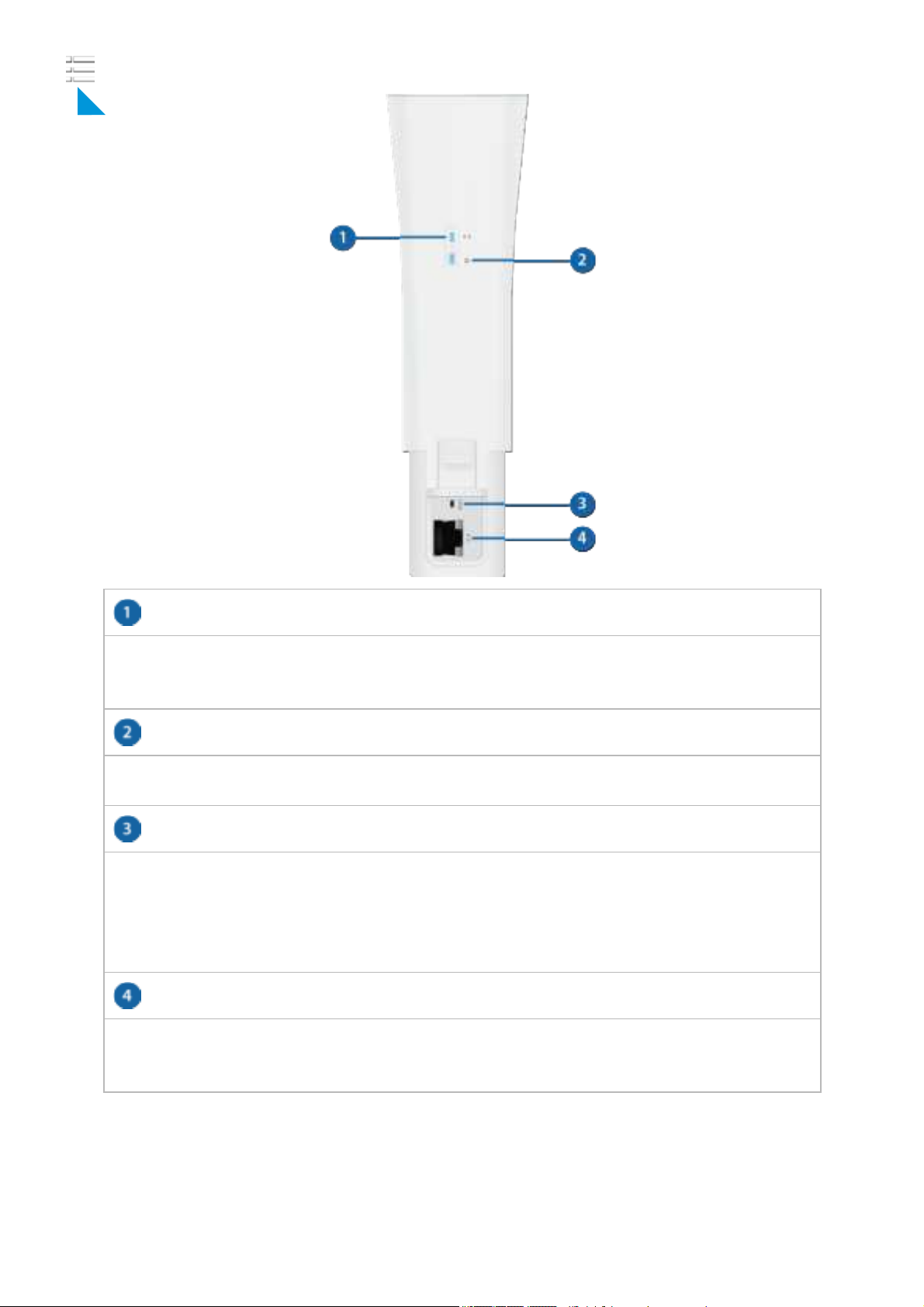

Hardware Overview

LBE-5AC-LR Quick Start Guide

Click for

Table of Contents

5/4/2021 LBE-5AC-LR Quick Start Guide

https://dl.ubnt.com/qsg/LBE-5AC-LR/LBE-5AC-LR_EN.html 4/23

Ethernet LED

Power LED

Reset Button

Ethernet Port

The LED will light steady blue when an active Ethernet connection is made and

flash when there is activity.

The LED will light blue when the device is connected to a power source.

To reset to factory defaults, press and hold the Reset button for more than 10

seconds while the LiteBeam AC is powered on. The LiteBeam AC may also be

reset remotely using the auxiliary Reset button located on the bottom of the

Gigabit PoE adapter.

Supports 10/100/1000 connections and passive PoE. This port should be

connected to the LAN and DHCP server.

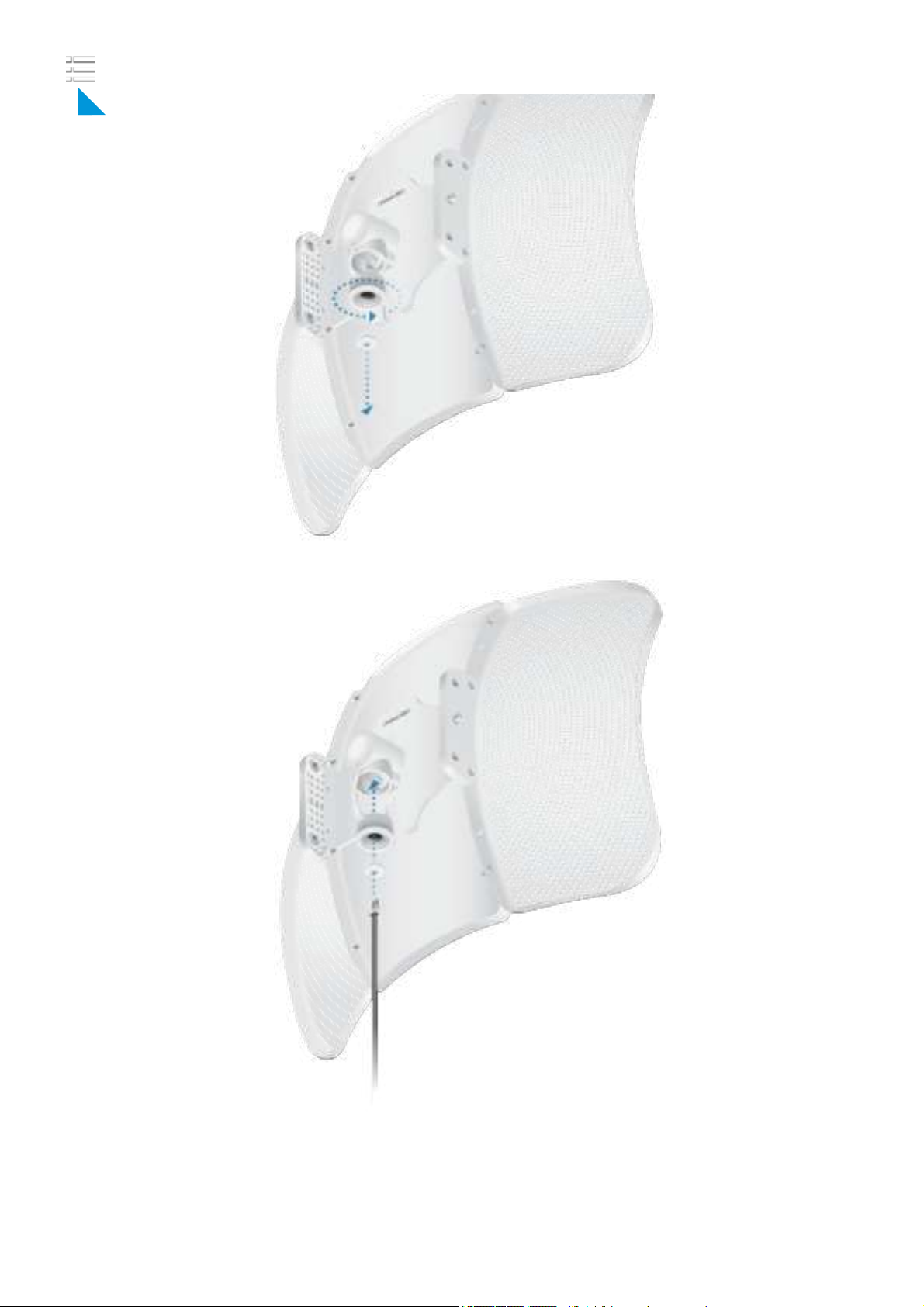

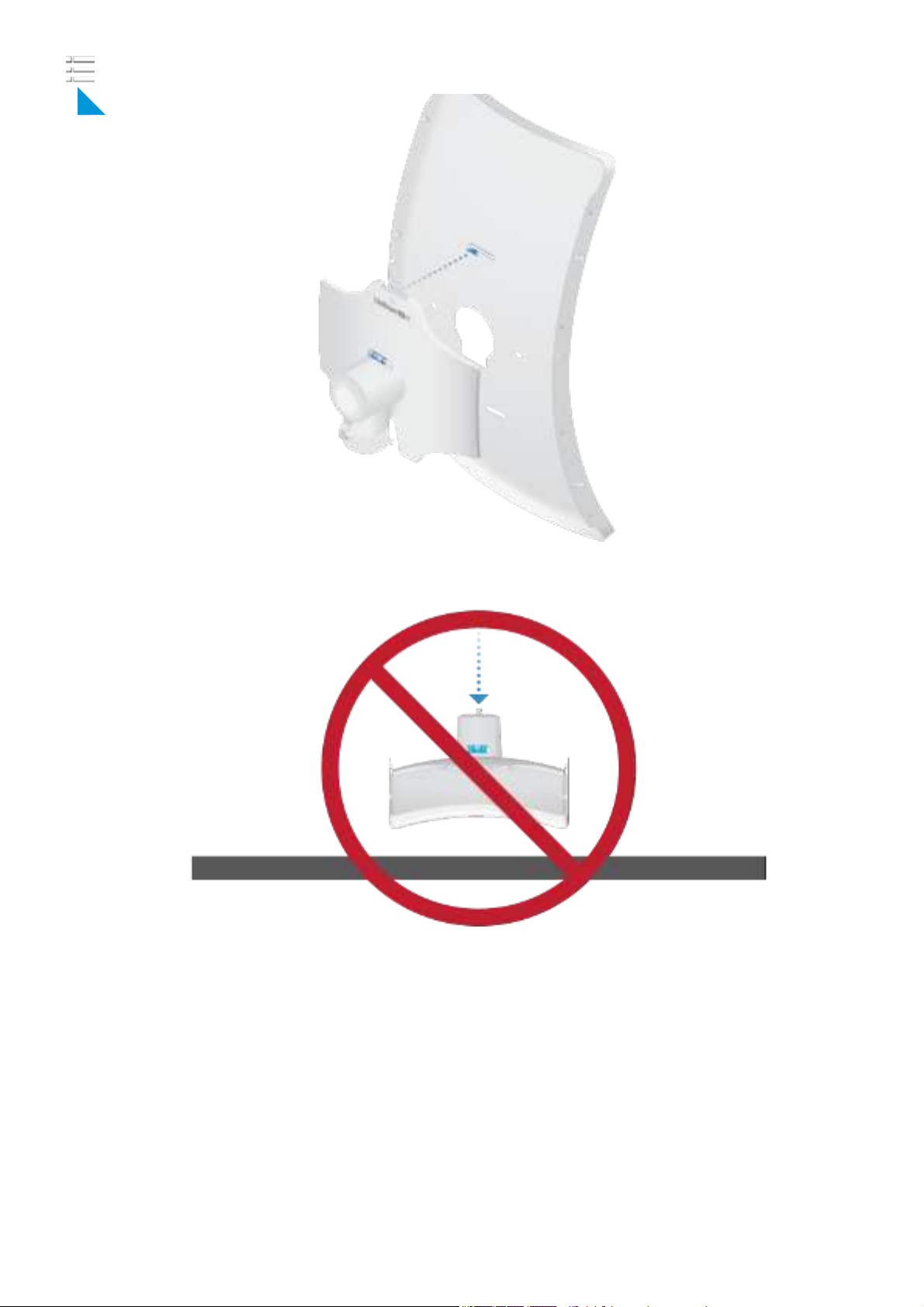

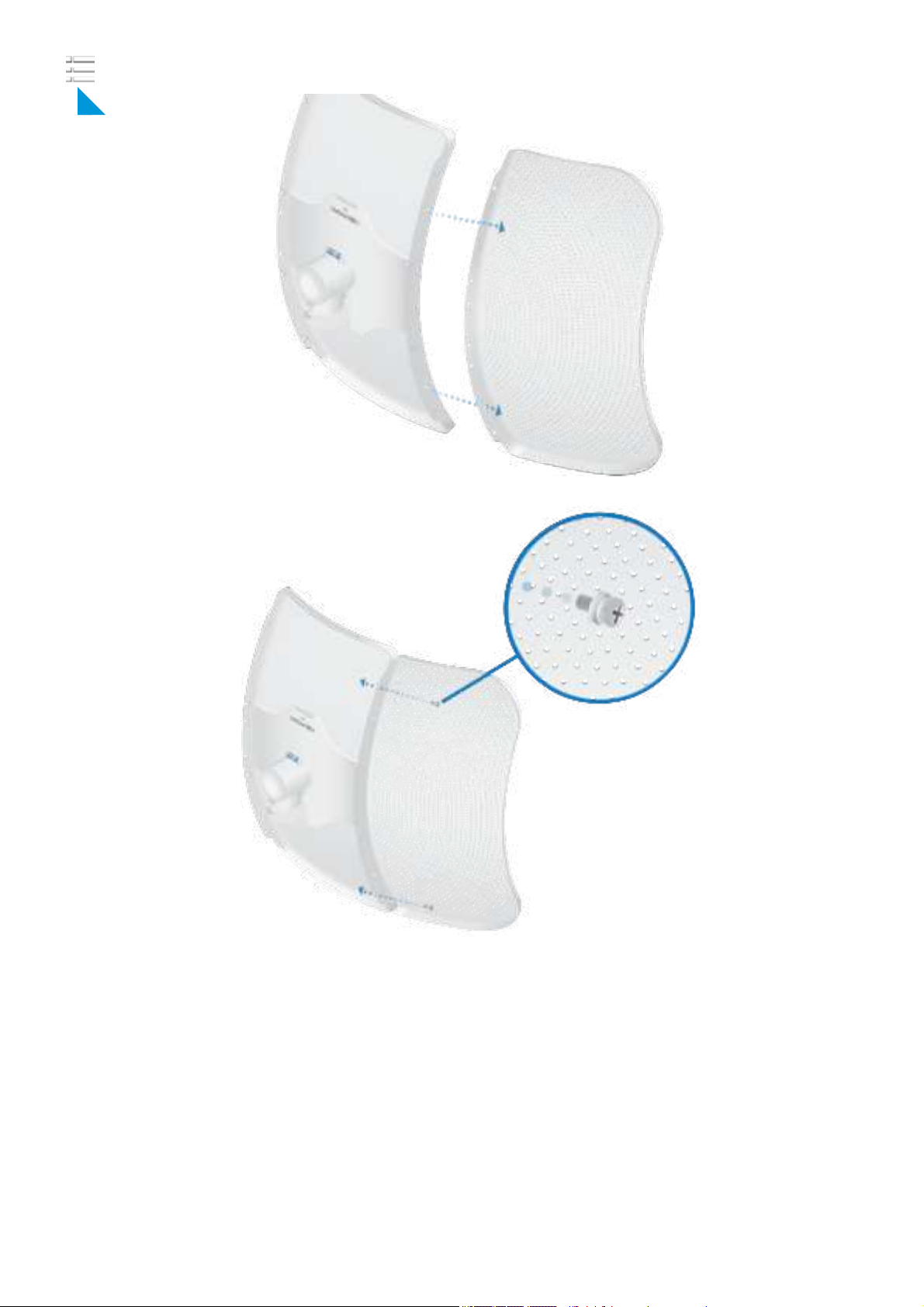

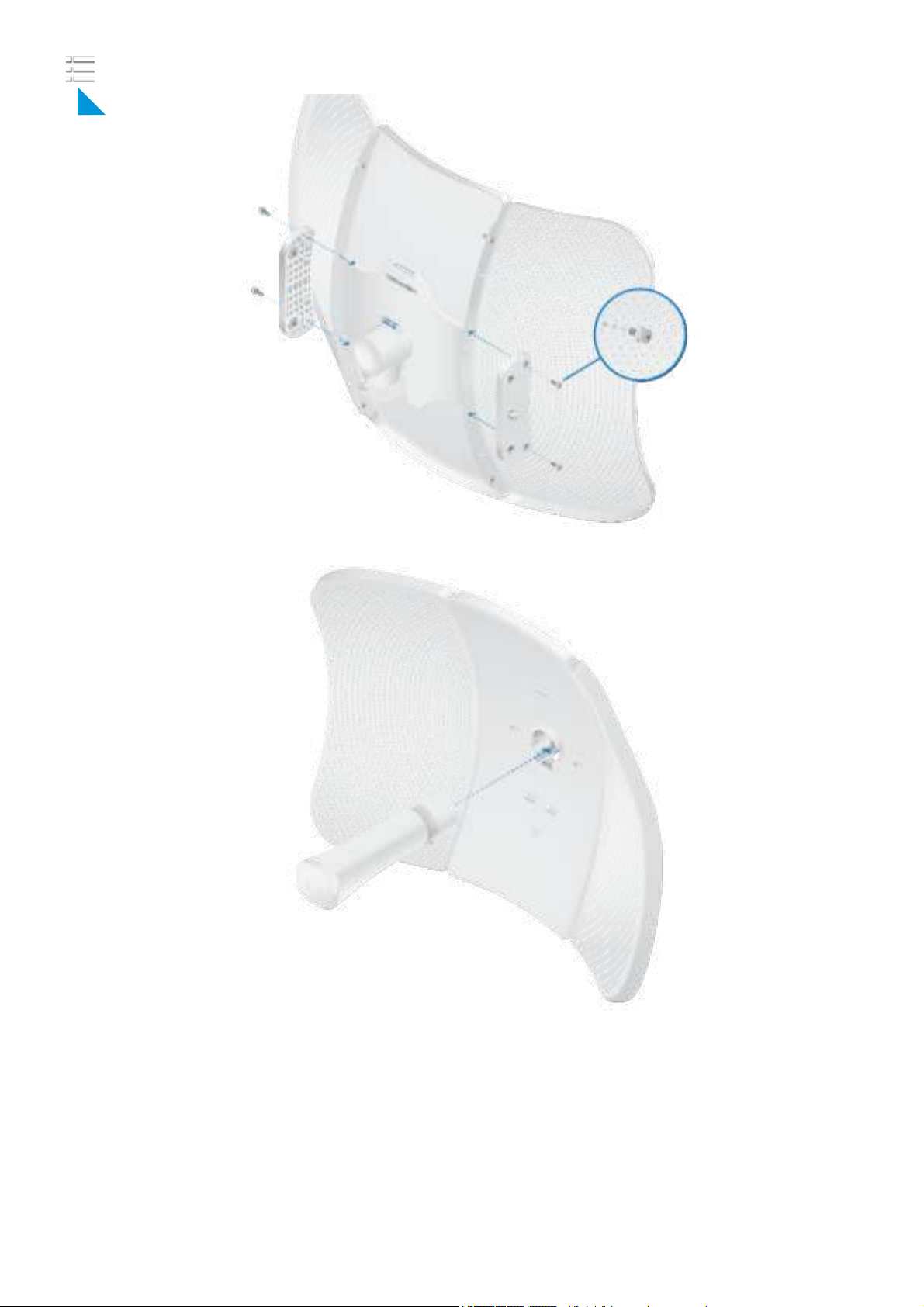

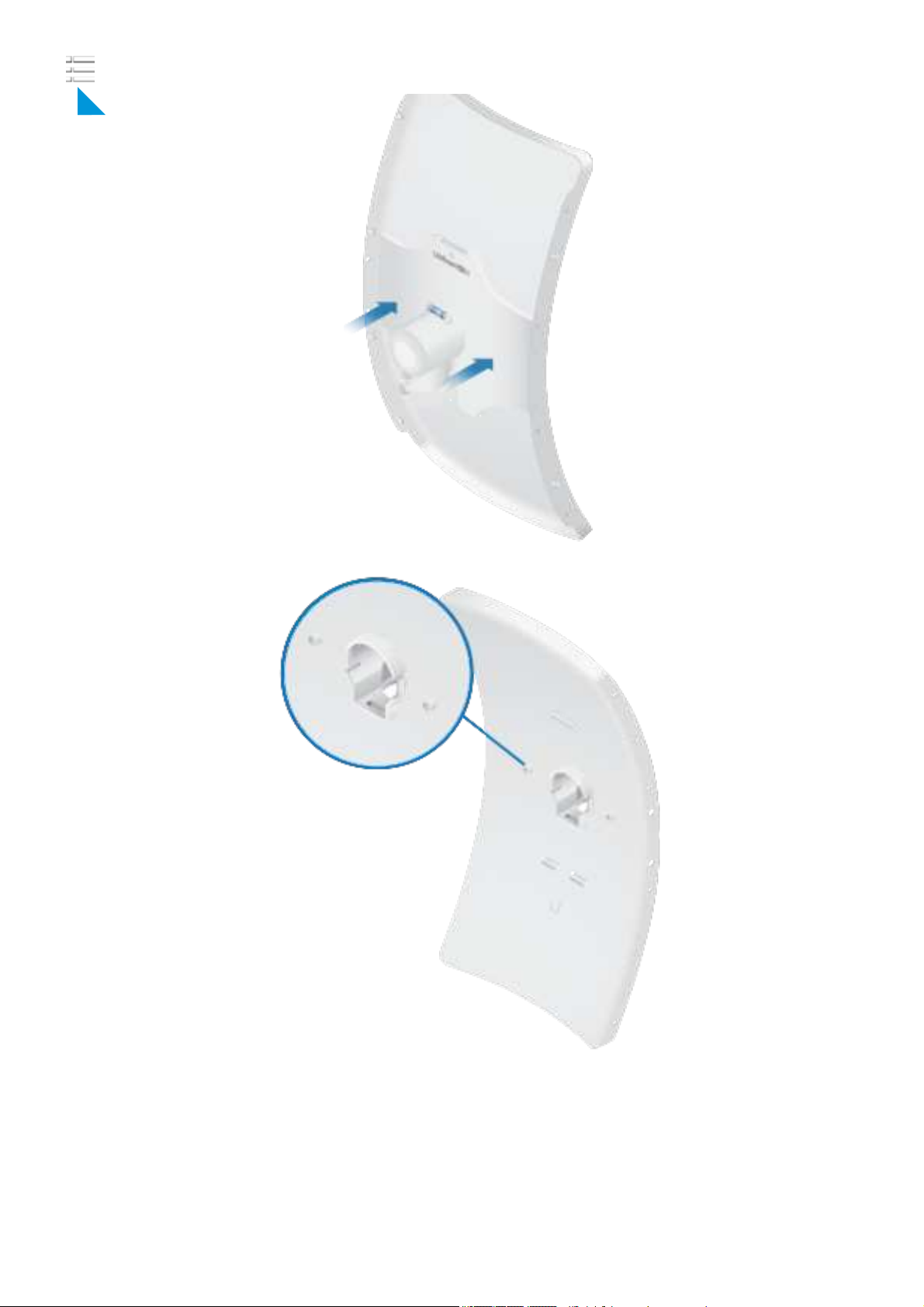

Hardware Installation

LBE-5AC-LR Quick Start Guide

Click for

Table of Contents

5/4/2021 LBE-5AC-LR Quick Start Guide

https://dl.ubnt.com/qsg/LBE-5AC-LR/LBE-5AC-LR_EN.html 5/23

LBE-5AC-LR Quick Start Guide

Click for

Table of Contents

5/4/2021 LBE-5AC-LR Quick Start Guide

https://dl.ubnt.com/qsg/LBE-5AC-LR/LBE-5AC-LR_EN.html 6/23

LBE-5AC-LR Quick Start Guide

Click for

Table of Contents

5/4/2021 LBE-5AC-LR Quick Start Guide

https://dl.ubnt.com/qsg/LBE-5AC-LR/LBE-5AC-LR_EN.html 7/23

LBE-5AC-LR Quick Start Guide

Click for

Table of Contents

5/4/2021 LBE-5AC-LR Quick Start Guide

https://dl.ubnt.com/qsg/LBE-5AC-LR/LBE-5AC-LR_EN.html 8/23

LBE-5AC-LR Quick Start Guide

Click for

Table of Contents

5/4/2021 LBE-5AC-LR Quick Start Guide

https://dl.ubnt.com/qsg/LBE-5AC-LR/LBE-5AC-LR_EN.html 9/23

LBE-5AC-LR Quick Start Guide

Click for

Table of Contents

5/4/2021 LBE-5AC-LR Quick Start Guide

https://dl.ubnt.com/qsg/LBE-5AC-LR/LBE-5AC-LR_EN.html 10/23

10.

LBE-5AC-LR Quick Start Guide

Click for

Table of Contents
