Ubiquiti Rocket M Series Manuale utente

Carrier Class

airMAX®BaseStation

Models: M900/M2/M3/M365/M5/M6

Introduction

Thank you for purchasing the Ubiquiti Networks® Rocket®.

This Quick Start Guide is designed to guide you through

installation and also includes warranty terms.

Package Contents

Rocket Metal Strap PoE Adapter

(24V, 1A)

CarrierClass

airMAX®BaseStation

Models:M900/M2/M3/M365/M5/M6

Power Cord Quick Start Guide

Installation Requirements

Shielded Category 5 (or above) cabling should be used for all

wired Ethernet connections and should be grounded through

the AC ground of the PoE.

We recommend that you protect your networks from

harmful outdoor environments and destructive ESD events

with industrial‑grade, shielded Ethernet cable from Ubiquiti

Networks. For more details, visit www.ubnt.com/toughcable

cable and earth grounding must be used as conditions of product warranty. TOUGHCable™is

designed for outdoor installations. It is the customer’s responsibility to follow local country

regulations, including operation within legal frequency channels, output power, and Dynamic

Frequency Selection (DFS) requirements.

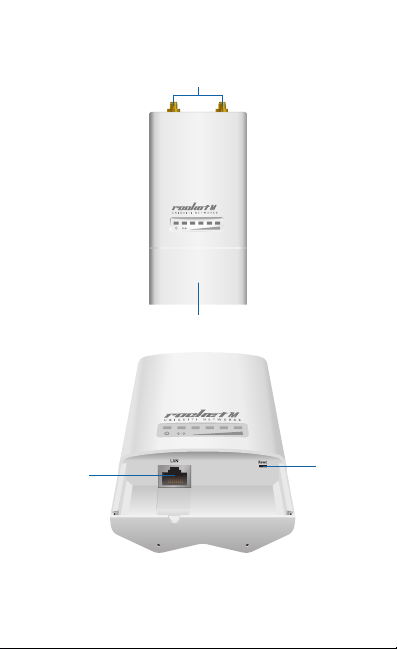

Hardware Overview

Antenna

Connectors

Port Cover

LAN

Ethernet

Port

Reset

Button

Reset Button To reset to factory defaults, press and hold the

Reset button for more than 10 seconds while the Rocket is

already poweredon.

LEDs

Power The Power LED will light green when the

device is connected to a power source.

Ethernet The Ethernet LED will light steady

green when an active Ethernet connection is

made and flash when there is activity.

Signal In airOS, you can modify the wireless

signal strength threshold values for each LED on

the Advanced tab under Signal LED Thresholds.

The default values are shown below:

LED will light red when the wireless signal

strength is above ‑94 dBm.

LED will light amber when the wireless

signal strength is above ‑80 dBm.

LED will light green when the wireless

signal strength is above ‑73 dBm.

LED will light green when the wireless

signal strength is above ‑65 dBm.

Hardware Installation

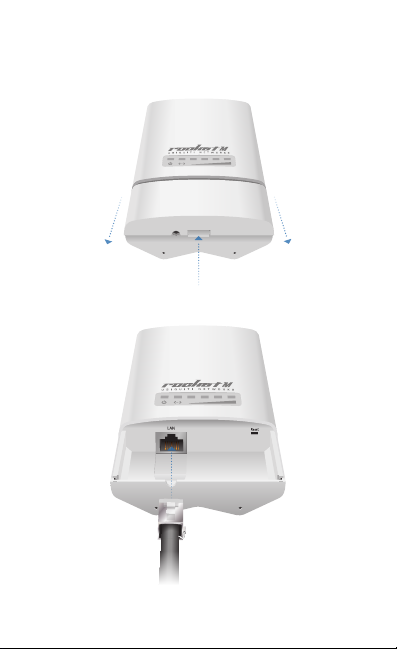

1. Remove the Port Cover by lifting the release latch on the

bottom of the Rocket and sliding the Port Cover off.

2. Connect an Ethernet cable to the LAN port.

3. Replace the Port Cover.

*640-00055-03*

640-00055-03

4. Attach the RF cables to the connectors labeled Chain 0 and

Chain 1 on the Rocket.

5. Attach the Rocket to an antenna. Align the mounting tabs

on the Rocket with the mounting slots on the antenna.

Slide the Rocket down until it locks into place. (For

pole‑mounting, refer to the Pole‑Mounting section.)

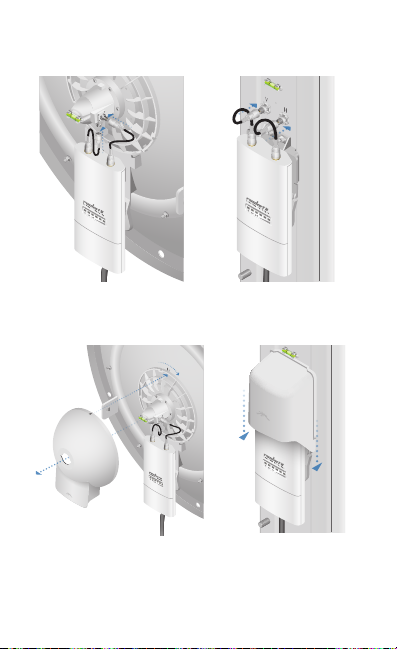

Mounting on a Dish Antenna Mounting on a Sector Antenna

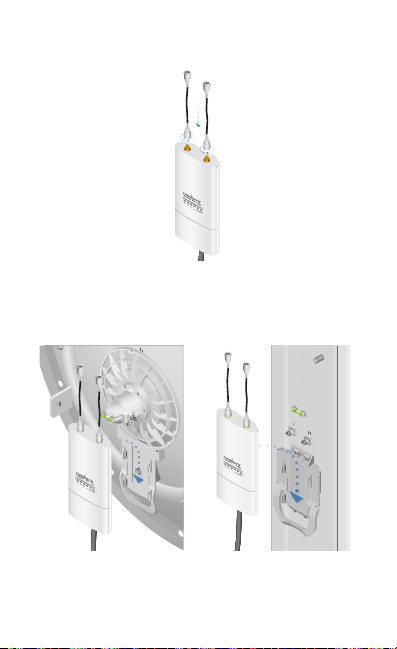

6. Attach the RF cables from the Rocket to the connectors on

the antenna.

Connecting to a Dish Antenna Connecting to a Sector Antenna

7. Attach the Protective Shroud.

Align the hash mark on the top of the

shroud with the notch on the RocketDish.

Rotate the shroud clockwise until it locks

into place.

Slide the Protective Shroud down

over the Rocket until it locks into

place on the Sector Antenna.

Pole‑Mounting

To mount the Rocket on a pole, use the included Metal Strap

and perform the following steps:

1. Open the Metal Strap by turning the screw

counter‑clockwise. You can loosen it by hand or use a

flathead screwdriver.

2. Straighten out the end of the Metal Strap and slide it

through the back of the Rocket.

3. Wrap the Metal Strap around the pole. To tighten the strap,

turn the screw clockwise using a flathead screwdriver.

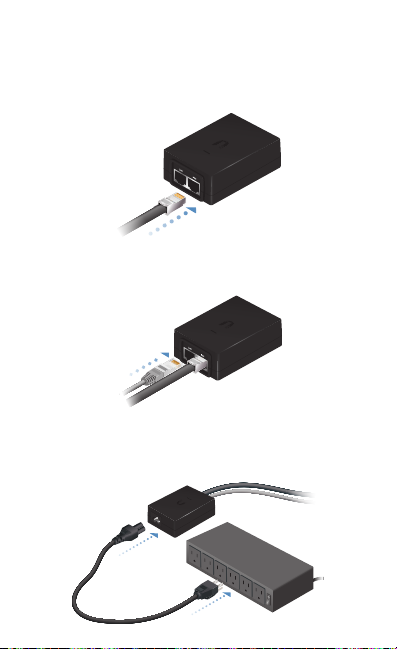

Connecting Power over Ethernet

1. Connect the other end of the Ethernet cable from the

Rocket to the Ethernet port labeled POE on the PoE

Adapter.

2. Connect an Ethernet cable from your LAN to the Ethernet

port labeled LAN on the PoE Adapter.

3. Connect the Power Cord to the power port on the PoE

Adapter. Connect the other end of the Power Cord to a

power outlet.
