Ubiquiti UAP-IW Manuale utente

In-Wall Wi-Fi Access Point

Model: UAP-IW

Introduction

Thank you for purchasing the Ubiquiti Networks® UniFi®

In‑Wall Wi‑Fi Access Point. This Quick Start Guide is designed

to guide you through installation and also includes

warrantyterms.

Important: The UAP‑IW requires the UniFi Controller v4.7

or higher, available at: downloads.ubnt.com/unifi

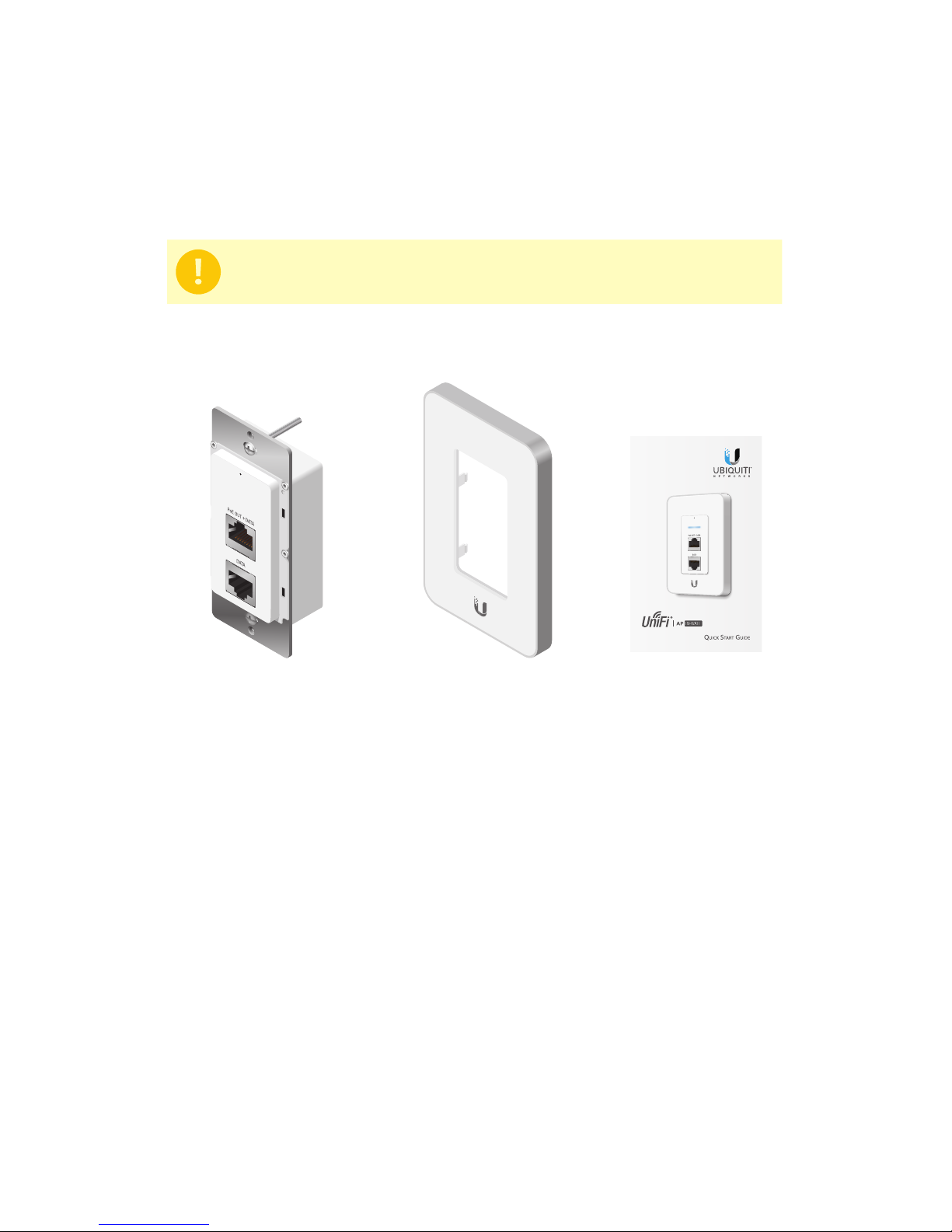

Package Contents

In-Wall 802.11n Access Point

Model: UAP-IW

UAP‑IW Cover Plate Quick Start Guide

operation within legal frequency channels, output power, indoor cabling requirements, and

Dynamic Frequency Selection (DFS) requirements.

Installation Requirements

• Pre‑installed electrical wall box

• Category 5 (or above) UTP cabling approved for indoor use

• Phillips screwdriver

• UniFi Switch or 802.3.af switch

System Requirements

• Microsoft Windows 7/8 or Mac OS X

• Java Runtime Environment 1.6 (or above)

• Web Browser: Mozilla Firefox, Google Chrome, or Microsoft

Internet Explorer 8 (or above)

• UniFi Controller software v4.7 or higher

Network Topology Requirements

• A DHCP-enabled network (for the AP to obtain an IP address

as well as for the wireless clients after deployment)

• A management station running the UniFi Controller

software, located either on-site and connected to the same

Layer‑2 network, or off‑site in a cloud or NOC

UAP-AC Outdoor

NetworkHealth

www WAN LAN

WLAN

VOIP

www WAN LAN WLAN VOIP

DNS

GATEWAY

ACTIVECLIENTS

DOWN

SWITCHES

USERS

GUESTS

DOWN

APS

USERS

GUESTS

DOWN

PHONES

EXTENSION

CALLSIN

CALLSOUT

XXX.XXX.XXX.XXX

XXX.XXX.XXX.XXX 192

162

DASHBOARD

MAP

DEVICES

CLIENTS

CALLS

STATISTICS

INSIGHTS

SETTINGS

CURRENTSITE

Default

REFRESHRATE

2minutes

NetworkHealth

www WAN LAN

WLAN

VOIP

www WAN LAN WLAN VOIP

DNS

GATEWAY

ACTIVECLIENTS

DOWN

SWITCHES

USERS

GUESTS

DOWN

APS

USERS

GUESTS

DOWN

PHONES

EXTENSION

CALLSIN

CALLSOUT

XXX.XXX.XXX.XXX

XXX.XXX.XXX.XXX 192

162

DASHBOARD

MAP

DEVICES

CLIENTS

CALLS

STATISTICS

INSIGHTS

SETTINGS

CURRENTSITE

Default

REFRESHRATE

2minutes

O-Site

Cloud/NOC

On-Site

Management

Station

UniFi Switch

UniFi

Security

Gateway

Internet

UAP-AC-PRO

UAP-IW

LAN

WAN

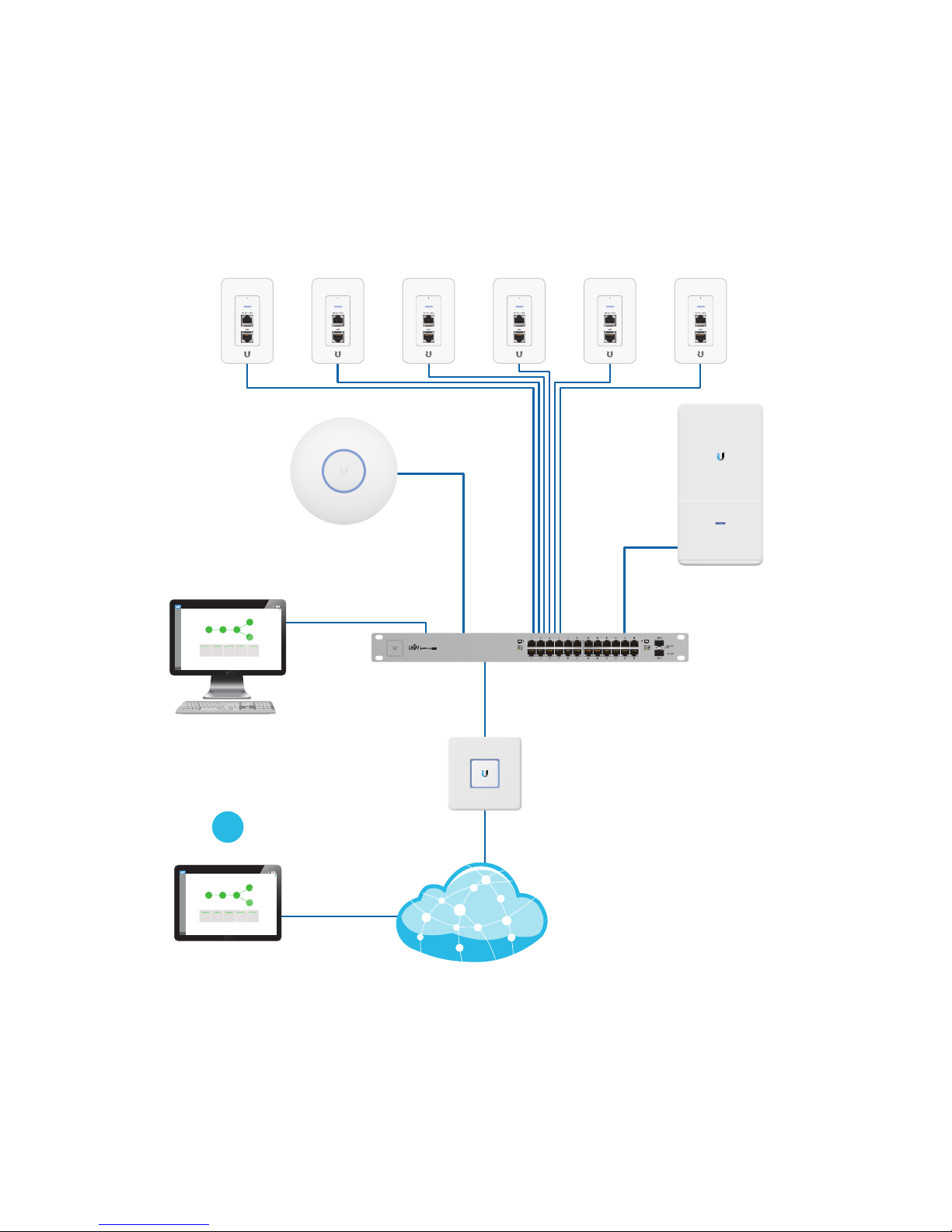

Sample Network Diagram

All UniFi devices support off-site management controllers.

For setup details, see the User Guide on the website:

documentation.ubnt.com/unifi

Hardware Overview

Data

PoE Out + Data Reset

PoE In + Data

PoE Out + Data 10/100 Ethernet port supports data and PoE.

Used to connect an 802.3af device to the LAN.

Data 10/100 Ethernet port supports data only. Used to

connect a client device to the LAN.

PoE In + Data 10/100 Ethernet port supports data and

PoE. Connect this port to the LAN and DHCP server via an

802.3afswitch.

Reset The Reset button serves two functions for the UAP-IW:

• Restart Press and release the Reset button quickly.

• Restore to Factory Default Settings Press and hold the

Reset button for more than five seconds.

LED

LED Color Status

White Factory default, waiting to be integrated.

Flashing White Initializing.

Alternating

White/Blue

Device is busy; do not touch or unplug it.

This usually indicates that a process such

as a firmware upgrade is taking place.

Blue

Indicates the device has been successfully

integrated into a network and is working

properly.

Quickly

Flashing Blue

This is used to locate an AP.

When you click Locate in the UniFi

Controller software, the AP will flash. It

will also display the location of the AP on

the map.

Steady Blue

with occasional

flashing

Indicates the device is in an isolated state

(all WLANs are brought down until an

uplink is found).

Hardware Installation

An electrical wall box should be pre‑installed with an Ethernet

cable running from the box to an 802.3af switch.

1. Detach the Cover Plate from the UAP-IW.

2. Connect the Ethernet cable in the wall box to the port

labeled PoE IN + DATA.

3. Place the UAP‑IW in the wall box and properly position the

cable to ensure the Ethernet connection is not strained.

Note: If the wall box does not have enough room

to accommodate the UAP-IW without straining the

Ethernet connection, replace the wall box with an

open‑end or deeper box.

4. Fasten the top and bottom screws. Adjust the screws to

ensure the mounting plate is flush with the wall for proper

fitting of the Cover Plate.

Note: Do not over‑tighten or rely on the force of the

screws to pull the UAP‑IW into the wall box.

5. Attach the Cover Plate. Press the Cover Plate into position

until the four mounting clips snap into place. If you are

using your own cover plate, secure it with two screws.

Software Installation

Download and install the latest version of the UniFi Controller

software at: downloads.ubnt.com/unifi

Launch the software and follow the on‑screen instructions.

Step‑by‑step instructions are available in the User Guide

located on our website: documentation.ubnt.com/unifi

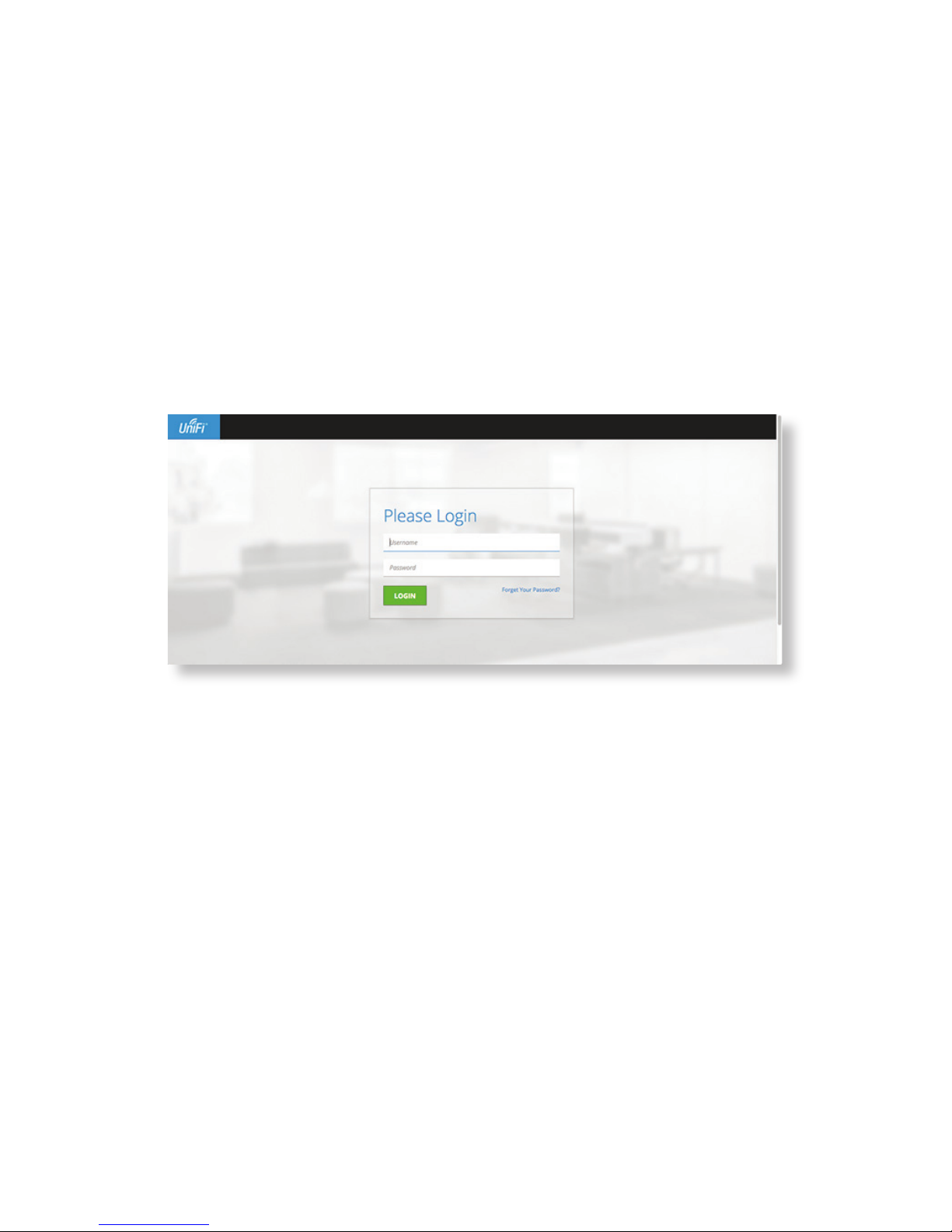

After you have installed the software and run the UniFi

Installation Wizard, a login screen will appear for the UniFi

Controller management interface. Enter the Admin Name and

Password that you created and click Login.

You can manage your wireless network and view network

statistics using the UniFi Controller management interface.

For information on configuring and using the UniFi Controller

software, refer to the User Guide.

*640-00195-03*

640-00195-03
