Ubiquiti UAP-PRO Manuale utente

Enterprise WiFi System

Models: UAP-PRO

Introduction

Thank you for purchasing the Ubiquiti Networks™UniFi®

Enterprise WiFi System. This system includes the UniFi

Controller software, which allows you to manage your wireless

network using a web browser. The UniFi Controller software is

available for download at downloads.ubnt.com/unifi

This Quick Start Guide includes the warranty terms and is for

use with the UniFi AP‑PRO, model: UAP‑PRO.

Installation Requirements

• CAT5/6 cable

• Phillips screwdriver

• Drill and drill bit: 6 mm (¼") for wall-mounting or 3mm(⁄")

for ceiling‑mounting

• Optional: Drywall or keyhole saw to cut 25 mm (1 in) hole for

Ethernet cable feed

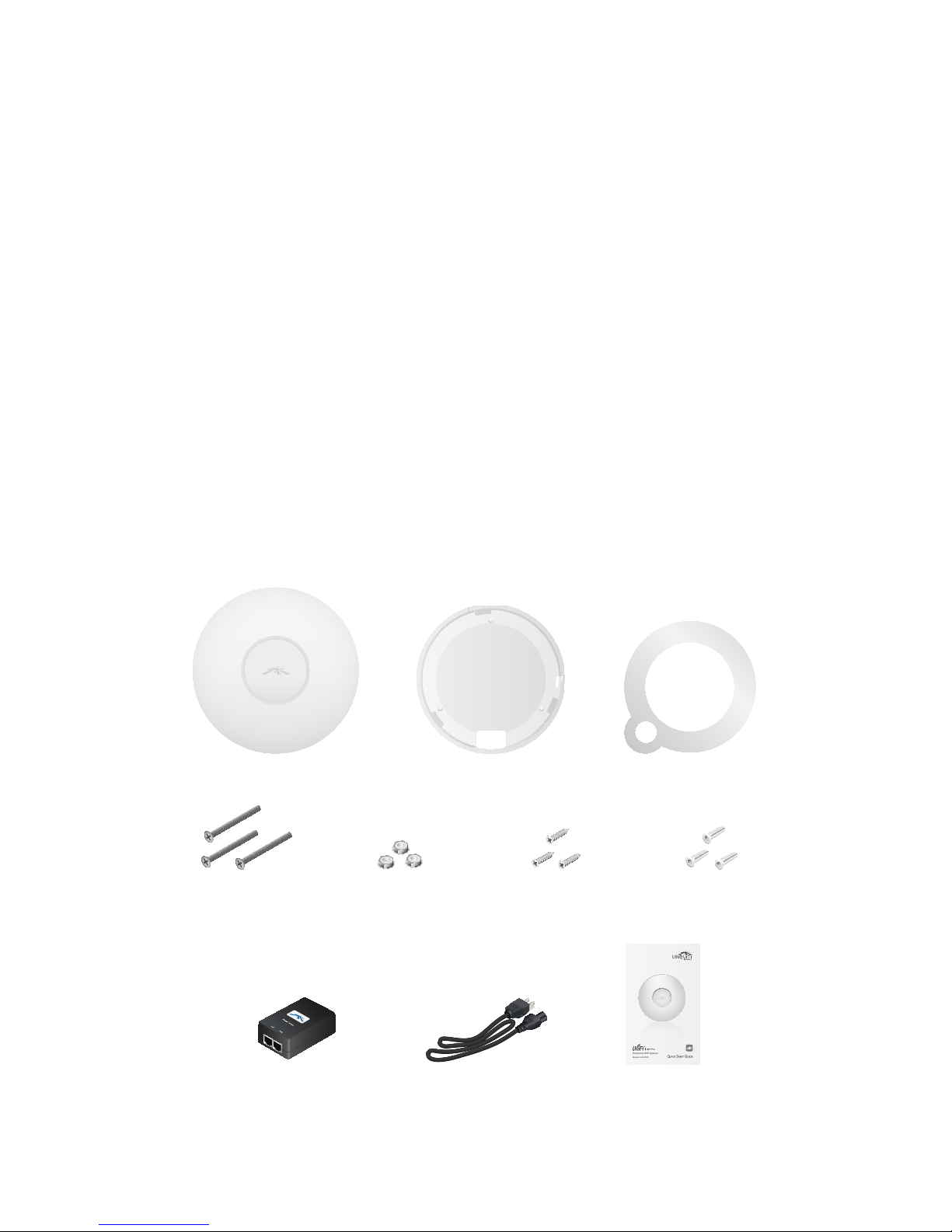

Package Contents

UniFi AP‑PRO Mounting Bracket Ceiling Backing Plate

Flat Head Screws

(M3x50, Qty. 3)

Keps Nuts

(M3, Qty. 3)

Screws

(M2.9x20, Qty. 3)

Screw Anchors

(M3x20, Qty. 3)

Enterprise WiFi System

Models: UAP-PRO

PoE GigE Adapter

(48V, 0.5A Gigabit)

Power Cord Quick Start Guide

responsibility to follow local country regulations, including operation within legal frequency

channels, output power, indoor cabling requirements, and Dynamic Frequency Selection

(DFS) requirements.

System Requirements

• Linux, MacOSX, or Microsoft Windows 7/8

• Java Runtime Environment 1.6 (or above)

• Web Browser: Mozilla Firefox, Google Chrome, or Microsoft

Internet Explorer 8 (or above)

Network Topology Requirements

• A DHCP‑enabled network (for the AP to obtain an IP address

as well as for the wireless clients after deployment)

• A management station computer running the UniFi

Controller software, located either onsite and connected to

the same Layer‑2 network, or off‑site in a cloud or NOC

Router

O-Site

Cloud/NOC

On-Site

Management Station

UAP/UAP-LR UAP-Pro

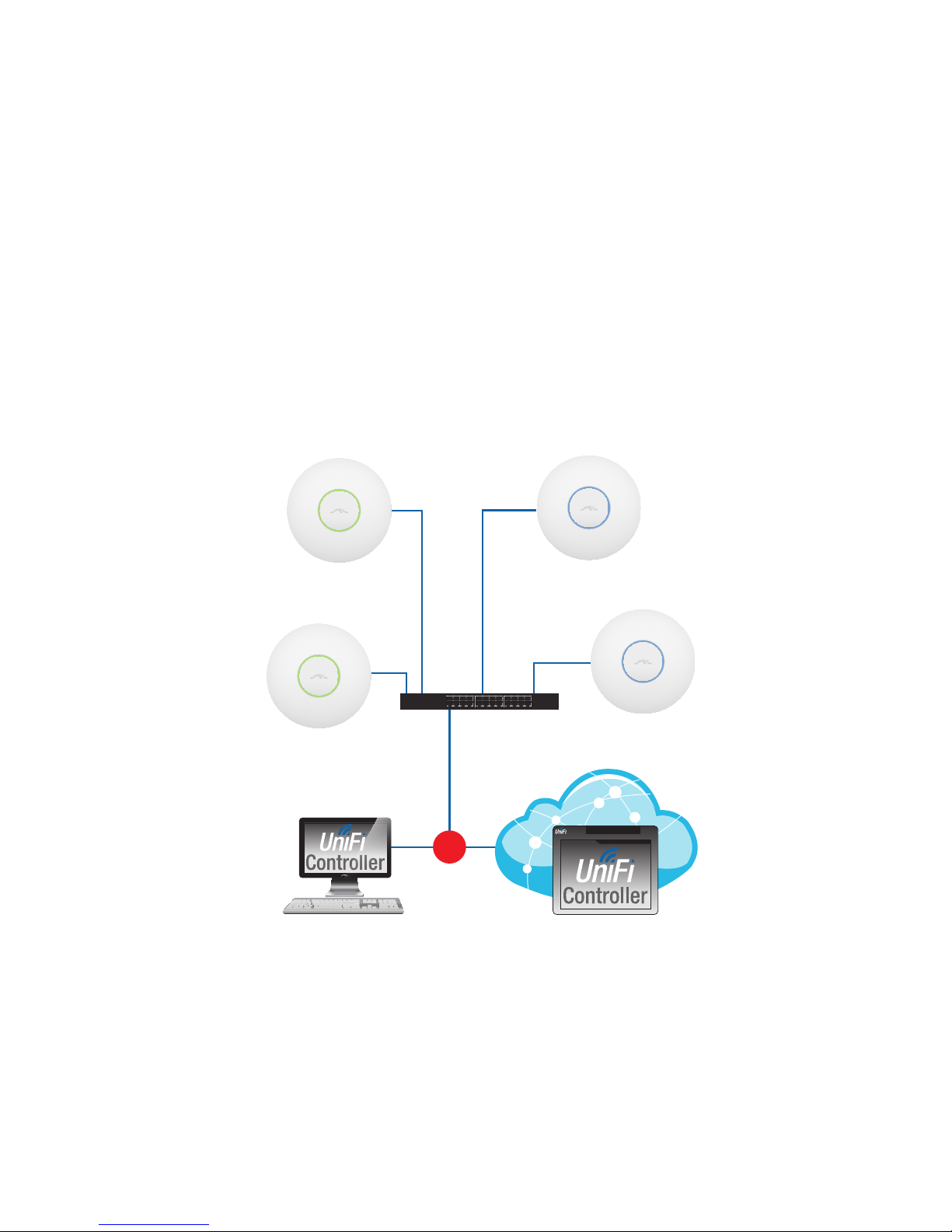

Sample Network Diagram

All UniFi APs support off‑site management controllers.

For setup details, see the User Guide on the website:

documentation.ubnt.com/unifi.

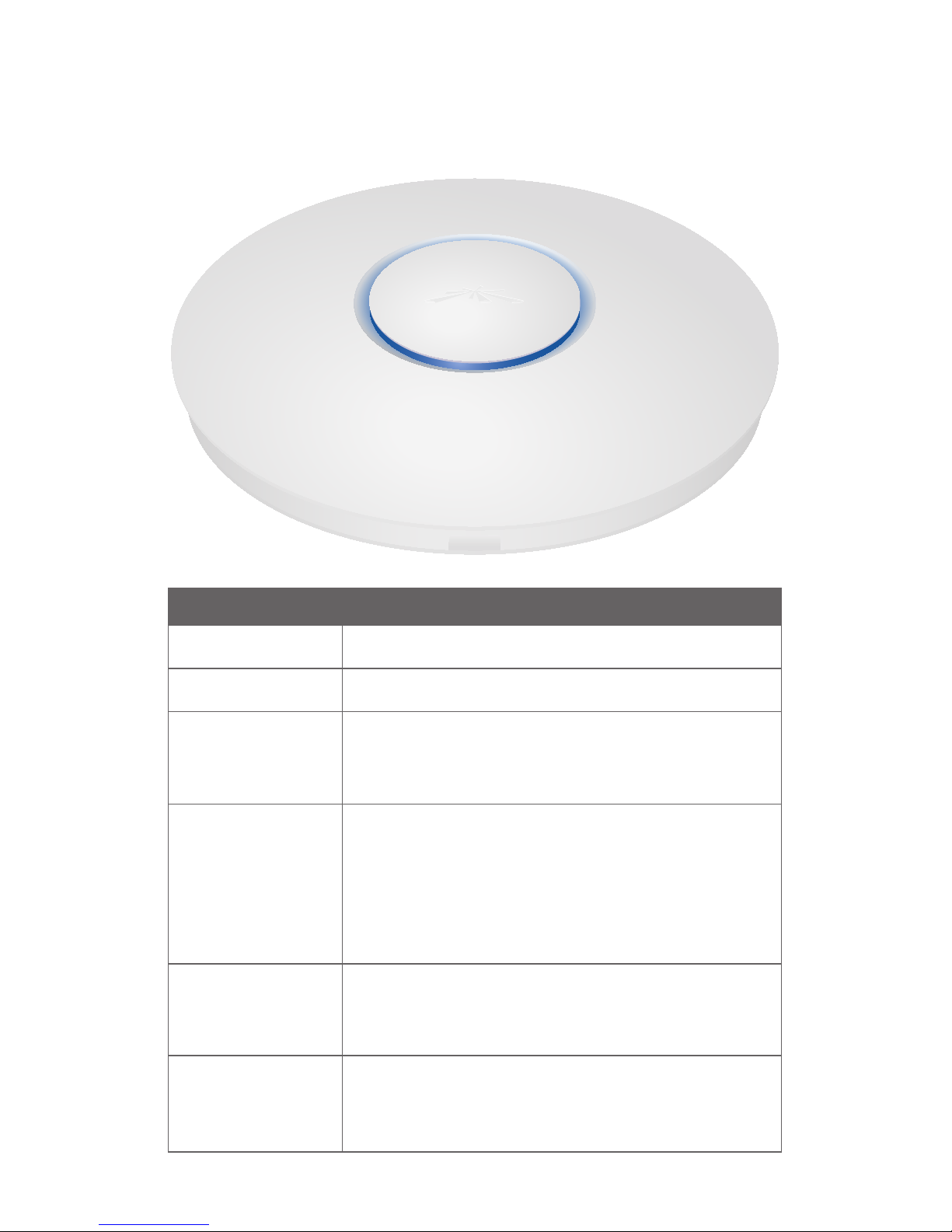

Hardware Overview

LED

LED Color Status

Flashing White Initializing.

Steady White Factory default, waiting to be integrated.

Alternating

White/Blue

Device is busy; do not touch or unplug it.

This usually indicates that a process such

as a firmware upgrade is taking place.

Quickly

Flashing Blue

This is used to locate an AP.

When you click Locate in the UniFi

Controller software, the AP will flash. It

will also display the location of the AP on

the map.

Steady Blue

Indicates the device has been successfully

integrated into a network and is working

properly.

Steady Blue

with occasional

flashing

Indicates the device is in an isolated state

(all WLANs are brought down until an

uplink is found).

Ports

Main/48V

Ethernet Port

Secondary

Ethernet Port

Reset Button

Cable Feed Plug

Main/48V This Gigabit Ethernet port is used to connect the

power and should be connected to the LAN and DHCP server.

Power can be provided by any of the following:

• Included PoE GigE Adapter

• 48V, 802.3af compliant switch

• Ubiquiti Networks TOUGHSwitch™PRO, model TS‑8‑PRO

• Ubiquiti Networks EdgeRouter™PoE, model ERPoe‑5

Secondary This Gigabit Ethernet port is used for bridging.

Reset This button serves two functions for the UniFi AP‑PRO:

• Restart Press and release the Reset button quickly.

• Restore to Factory Default Settings Press and hold the

Reset button for more then five seconds.

Cable Feed Plug If your Ethernet cable feeds along the

mounting surface, remove theCable Feed Plug.

Locking

Clip

Mounting

Bracket

Locking Clip During installation, the Locking Clip on

the Mounting Bracket locks into the Locking Notch on the

UniFiAP-PRO to help prevent theft.

Hardware Installation

The UniFi AP‑PRO can be mounted to the wall or ceiling.

Perform the steps for the appropriate installation:

Wall Mount

1. Position the Mounting Bracket at the desired location on

the wall with the cable feed slot pointed towards the floor.

2. Use a pencil to mark the three holes on the wall. Use a

6mm (¼") drill bit to drill the holes.

Top

Optional 25 mm (1 in) Hole for

Ethernet Cable Feed through Wall

3. Follow the instruction for your Ethernet cable feed:

‑ Feeds Through the Wall Cut or drill a circle

approximately 25 mm (1 in) in diameter, just below

the bottom center of the Mounting Bracket (as shown

above). Then feed the CAT5/6 cable through the hole.

‑ Feeds Along the Mounting Surface Remove the

Cable Feed Plug on the side of the UniFi AP‑PRO.

*640-00042-03*

640-00042-03

4. Insert the Screw Anchors into the 6 mm (0.24 in) holes.

Secure the Mounting Bracket to the wall by inserting the

Screws into the anchors.

5. Connect the Ethernet cable to the Main/48V Ethernet port.

6. Align the notch on the UniFi AP‑PRO with the notch on the

Mounting Bracket.

7. Turn the UniFi AP‑PRO clockwise until it locks into place.

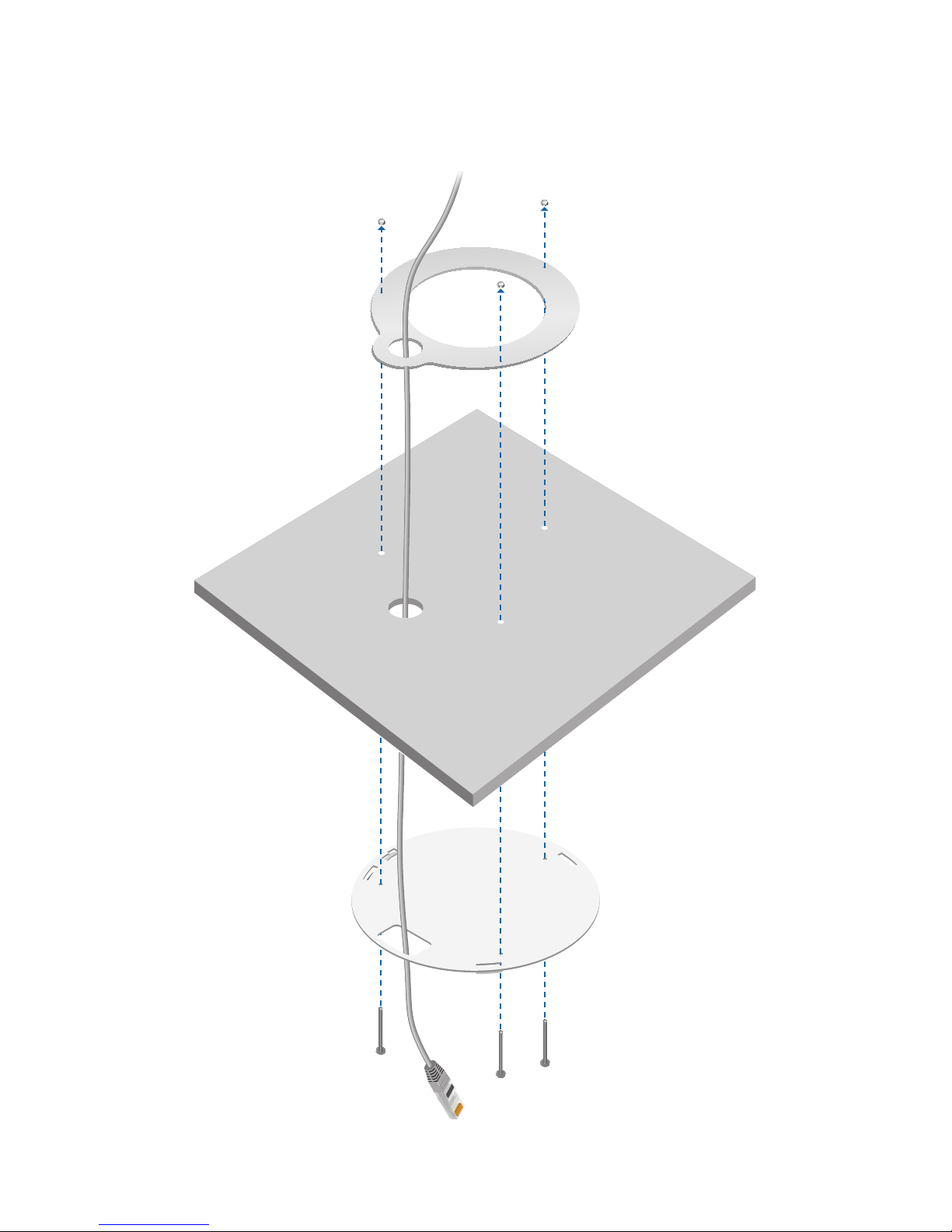

Ceiling Mount

1. Remove the ceiling tile.

2. Place the Mounting Bracket in the center of the ceiling tile.

Mark the three mounting screw holes and 25 mm (1 in)

hole for the Ethernet cable.

25 mm (1 in) Hole for Ethernet Cable Feed

3. Use a 3 mm (⁄") drill bit to drill the screw holes, and cut or

drill the 25 mm (1 in) hole for the Ethernet cable feed.

4. Secure the Mounting Bracket to the ceiling tile using the

Ceiling Backing Plate, Flathead Screws, and KepsNuts. Then

feed the Ethernet cable through the 25mm(1 in) hole.
