UNAVi ENB-X2 Manuale utente
CLASSFICATION.
Installation Manual
MODEL. ENB-X2
DOCUMENT NO.
BU No. 23
Kia Sorento In-Dash Navigation DIY Installation Guide
VERSION.
1.1
PAGE.
1
Information & Manual Copyright © 2013 UNAVI USA, Inc. All rights reserved. Date: 7/17/2013
Kia Sorento In-Dash Navigation
DIY Installation Guide
[Standard Radio Use Only]
MODEL: Kia Sorento 2014+
(Professional Use)
WWW.BUYUNAVI.COM
CLASSFICATION.
Installation Manual
MODEL. ENB-X2
DOCUMENT NO.
BU No. 23
Kia Sorento In-Dash Navigation DIY Installation Guide
VERSION.
1.1
PAGE.
2
Information & Manual Copyright © 2013 UNAVI USA, Inc. All rights reserved. Date: 7/17/2013

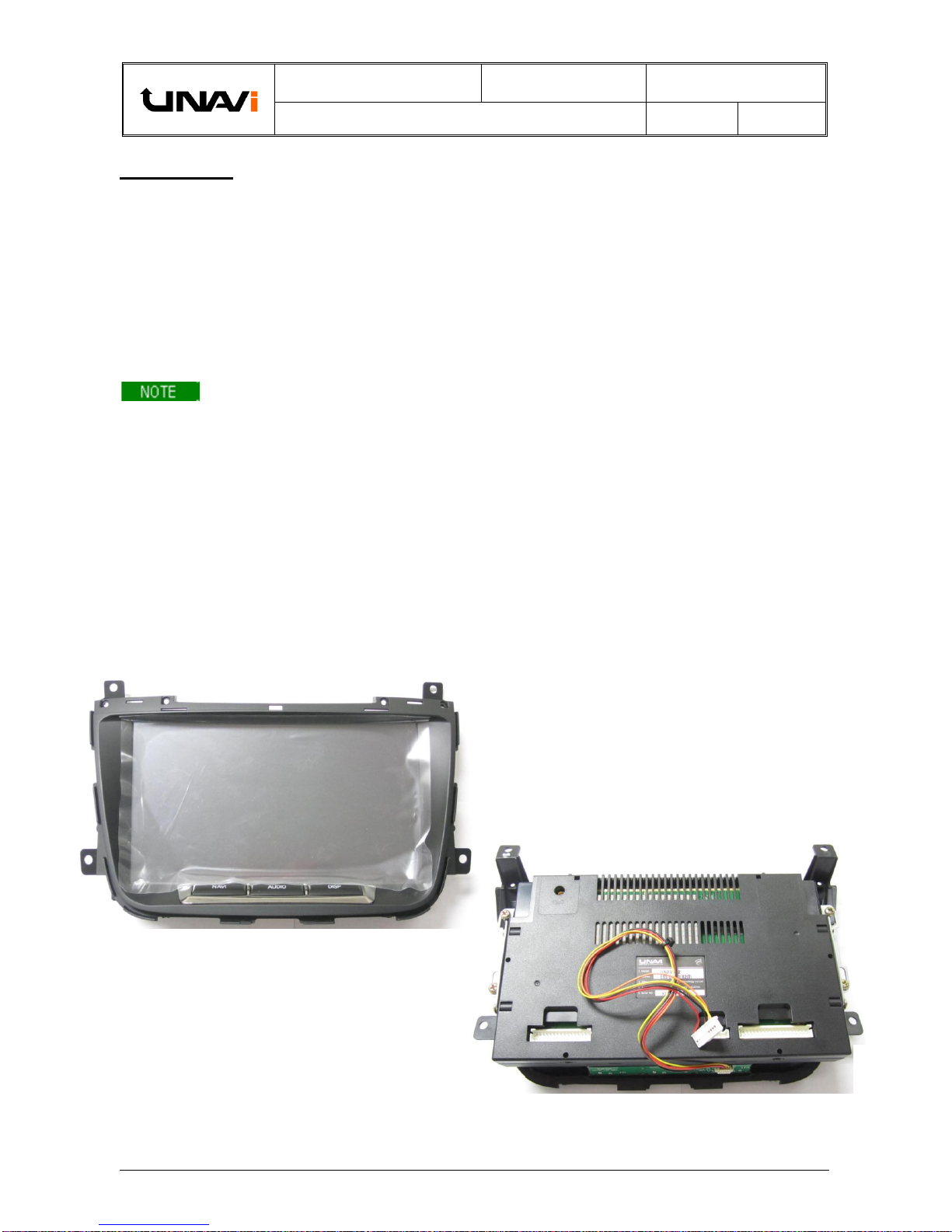

Sorento fascia kit:
- Fascia
- Control keypad w/cable
- Main LCD Panel w/Mounting Bracket
DISCLAIMER:
This ‘Do-It-Yourself Installation Guide’ is intended for informational and reference purposes only.
We do not recommend implicitly or explicitly, to anyone, performing any of the procedures
described in this guide. We are also not responsible for any property damage, personal injury
and/or death, or any other loss or damage that may result from following this informational guide.
Proceed with caution and care when performing modifications to your vehicle.
Be advised that making modification to your vehicle may void your manufacturer’s warranty.
Hyundai is a registered trademark of Hyundai Motor America. iPod is a registered trademark of Apple, Inc.
Kia is a registered trademark of Kia Motors America, Inc. Bluetooth is registered trademark of Bluetooth SIG, Inc.
Take care not to scratch the center fascia panel, dash trim, shift knob, etc.
Eject disc before removing the audio unit to prevent damaging the CD player’s load mechanism.
Disconnecting the negative (-) battery terminal is recommended prior to installation.
Do not touch the circuit board and the terminal connector of the flat cable with your bare hands.
Make sure all connectors and cables are plugged in properly.
All ground wires provided must be connected to chassis ground.
MAIN COMPONENTS
(Not actual size, Items shown may vary)
Rear View
CLASSFICATION.
Installation Manual
MODEL. ENB-X2
DOCUMENT NO.
BU No. 23
Kia Sorento In-Dash Navigation DIY Installation Guide
VERSION.
1.1
PAGE.
3
Information & Manual Copyright © 2013 UNAVI USA, Inc. All rights reserved. Date: 7/17/2013

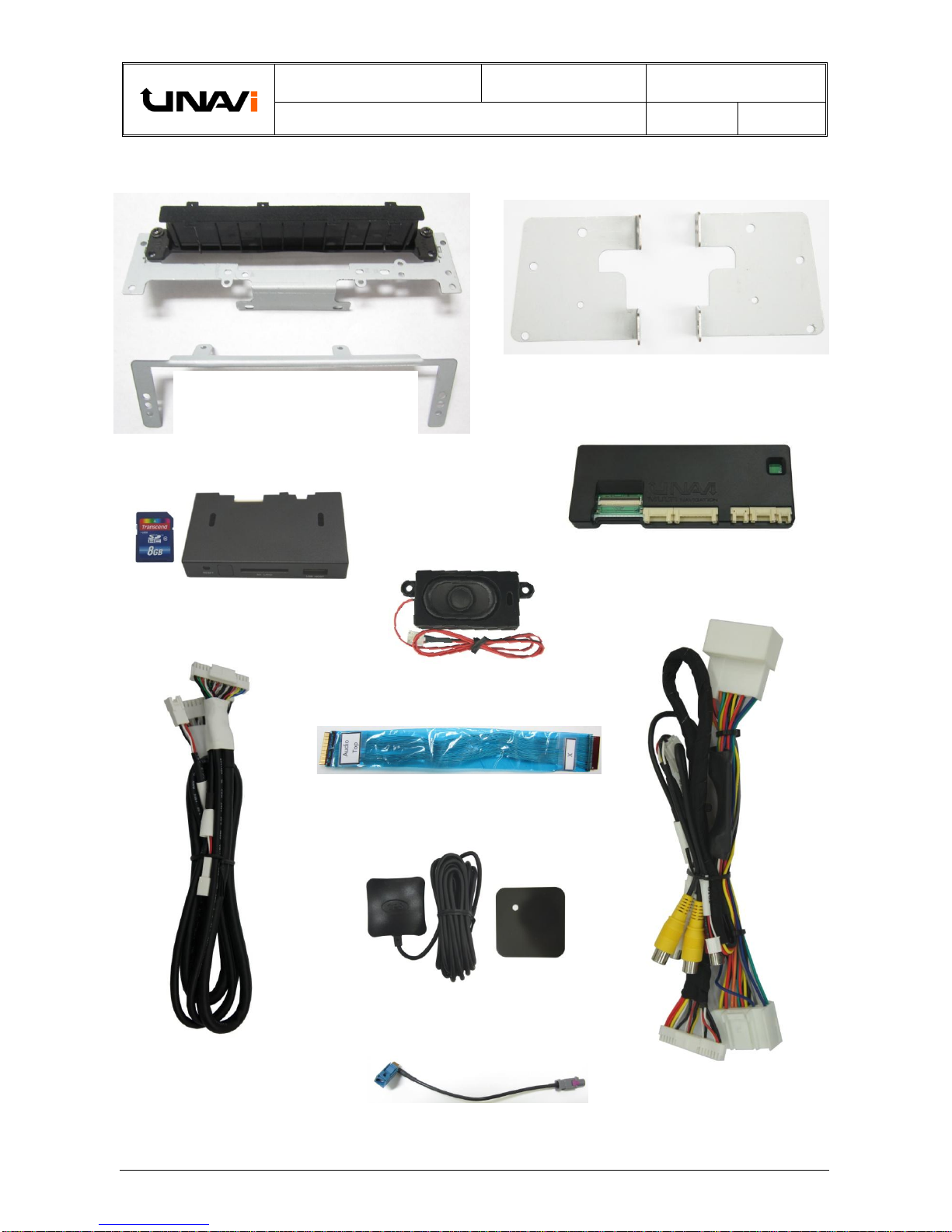

Front bracket replacement
Trip interface board
GPS antenna + Magnetic plate
Control box + SD Card
External speaker
SMART cable
Control box interface cable
Ribbon (FPC) cable - SPARE
XM antenna adapter
(Continued)
Mounting brackets (Left & Right)
Front replacement brackets
(Top & Bottom)
CLASSFICATION.
Installation Manual
MODEL. ENB-X2
DOCUMENT NO.
BU No. 23
Kia Sorento In-Dash Navigation DIY Installation Guide
VERSION.
1.1
PAGE.
4
Information & Manual Copyright © 2013 UNAVI USA, Inc. All rights reserved. Date: 7/17/2013
TOOLS REQUIRED:
Masking Tape
Double-sided Tape *
Electrical Tape
Velcro
Dash Trim Removal Tool *
Zip/Cable Ties
Scissor *
Plastic/Tin Snips *
Pliers *
Screwdriver (Phillips-head, Magnetized) *
Magnetic Screw & Bolt Tray
Power Drill *
Unibit *
Electrical Connectors & Tools - (Wire stripper, Crimper, T-Tap, etc.)
Hand Saw/Reciprocating Saw *
Heat Gun
*Required Tools

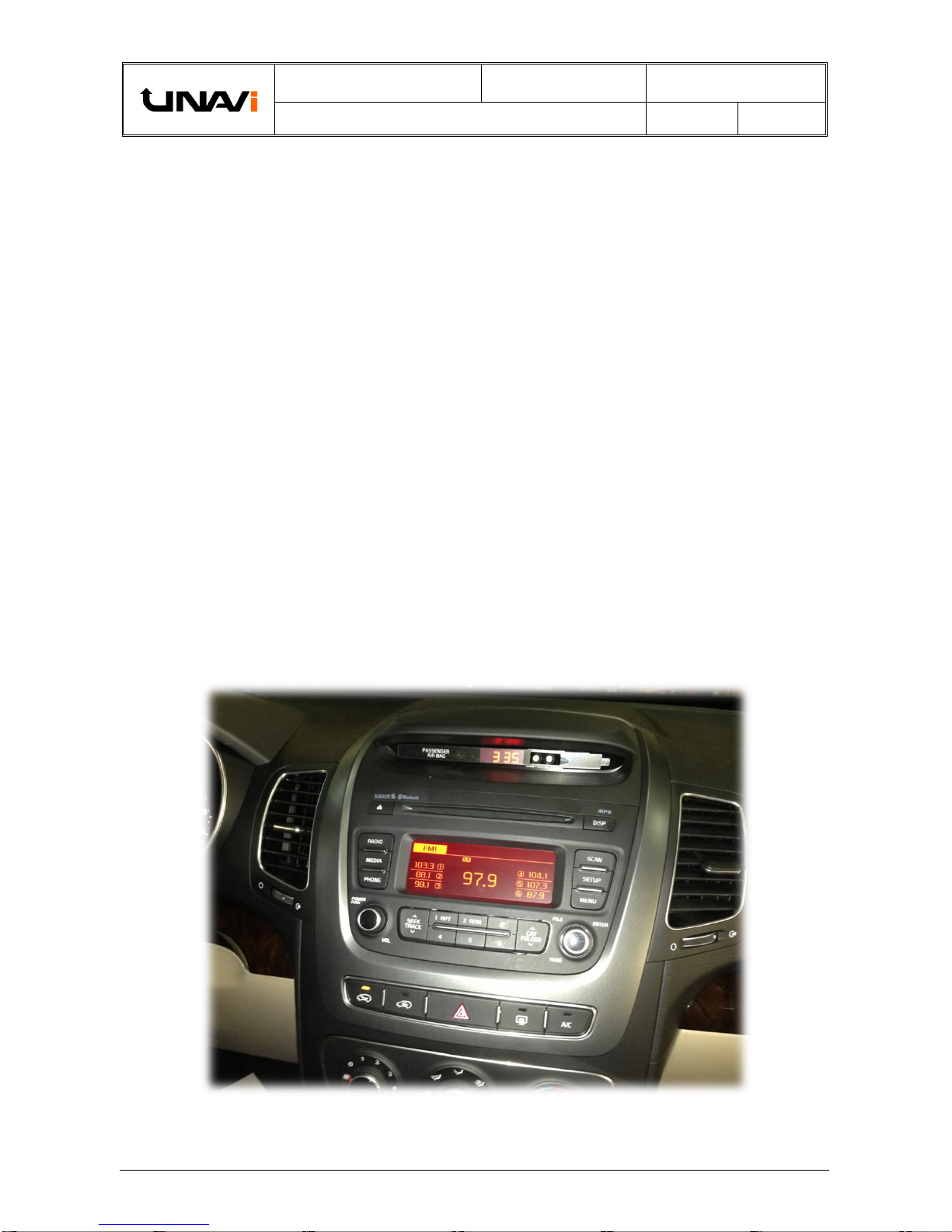

Pre-installation picture of non-navigation equipped models
(Trim levels may vary)
CLASSFICATION.
Installation Manual
MODEL. ENB-X2
DOCUMENT NO.
BU No. 23
Kia Sorento In-Dash Navigation DIY Installation Guide
VERSION.
1.1
PAGE.
5
Information & Manual Copyright © 2013 UNAVI USA, Inc. All rights reserved. Date: 7/17/2013
TPMS (TIRE PRESSURE MONITORING SYSTEM)
WARNING LAMP –ELECTROMAGNETIC INTERFERENCE
SYMPTOM/CONDITION
The TPMS malfunction indicator lamp may be illuminated if the vehicle is moving around electric power
supply cables or radio transmitters at police stations, government and public offices, broadcasting
stations, military installations, airports, transmitting towers, etc. External electronic devices connected
to the vehicle's power outlets (notebook computer, seat warmer, massager, coolers, GPS navigation,
mobile phone charger, etc.) may also cause this condition. The TPMS malfunction indicator lamp
generally turns off after the vehicle is removed from such interferences.
DIAGNOSIS:
If the TPMS indicator lamp is ON, and all four wheel sensors are checked and are working correctly,
external electronic devices connected to the vehicle's power outlets (notebook computer, seat warmer,
massager, coolers, etc.) may be the cause of this condition. Car manufacturers are aware that any
aftermarket device operating especially on the CAN-Bus system can trigger random warning lamps.
ACTION:
1. Please inspect if there are any other electronic devices inside the vehicle that may cause
electromagnetic interferences with the TPMS.
2. Drive the vehicle out of the strong electric field for about 5 minutes to verify that the condition is
corrected.
3. Relocate the Control Box and its related cables away from the TPMS sensor (typically located
behind the glove compartment).
4. If the above doesn’t work, use a metallic shield wrap or a similar material to wrap around the
Control Box and its cables with both ends of the shield connected to chassis ground at the point
of entry.
GPS ANTENNA INSTALLATION
The delay when the GPS receiver is first switched on is due to the latest ephemeris data being
downloaded, which is essential for the GPS receiver. The data is valid for around 4 hours and takes
approximately 20 seconds with a clear line of site to a satellite. It takes longer if using multiple satellites,
for instance if the GPS receiver is moving during first acquisition.
The antenna needs to be facing the sky through a non-metallic enclosure.A metallic enclosure (including
window tints) will prevent the RF signal being received by the antenna and cause a Faraday cage effect.
Likewise, positioning the antenna near to obstructions such as laptop screen or where hands will be over
the antenna should also be avoided, as the shielded will have a negative performance.
The GPSAntenna base is magnetic. On metal vehicles, position the antenna in the center of the vehicle
at the highest point.
For vehicles with non-metallic mounting surfaces, a metal plate with adhesive strips has been included
in the kit for easy mounting and installation. It is STRONGLY recommended to use this metal plate
underneath the antenna as it will improve signal acquisition.
Once the antenna has been positioned, route the antenna cable carefully to avoid damage.
Position the GPS antenna in the center of the vehicle at the highest point with a clear view of the sky.
CLASSFICATION.
Installation Manual
MODEL. ENB-X2
DOCUMENT NO.
BU No. 23
Kia Sorento In-Dash Navigation DIY Installation Guide
VERSION.
1.1
PAGE.
6
Information & Manual Copyright © 2013 UNAVI USA, Inc. All rights reserved. Date: 7/17/2013
> INSTALLATION STARTS HERE <

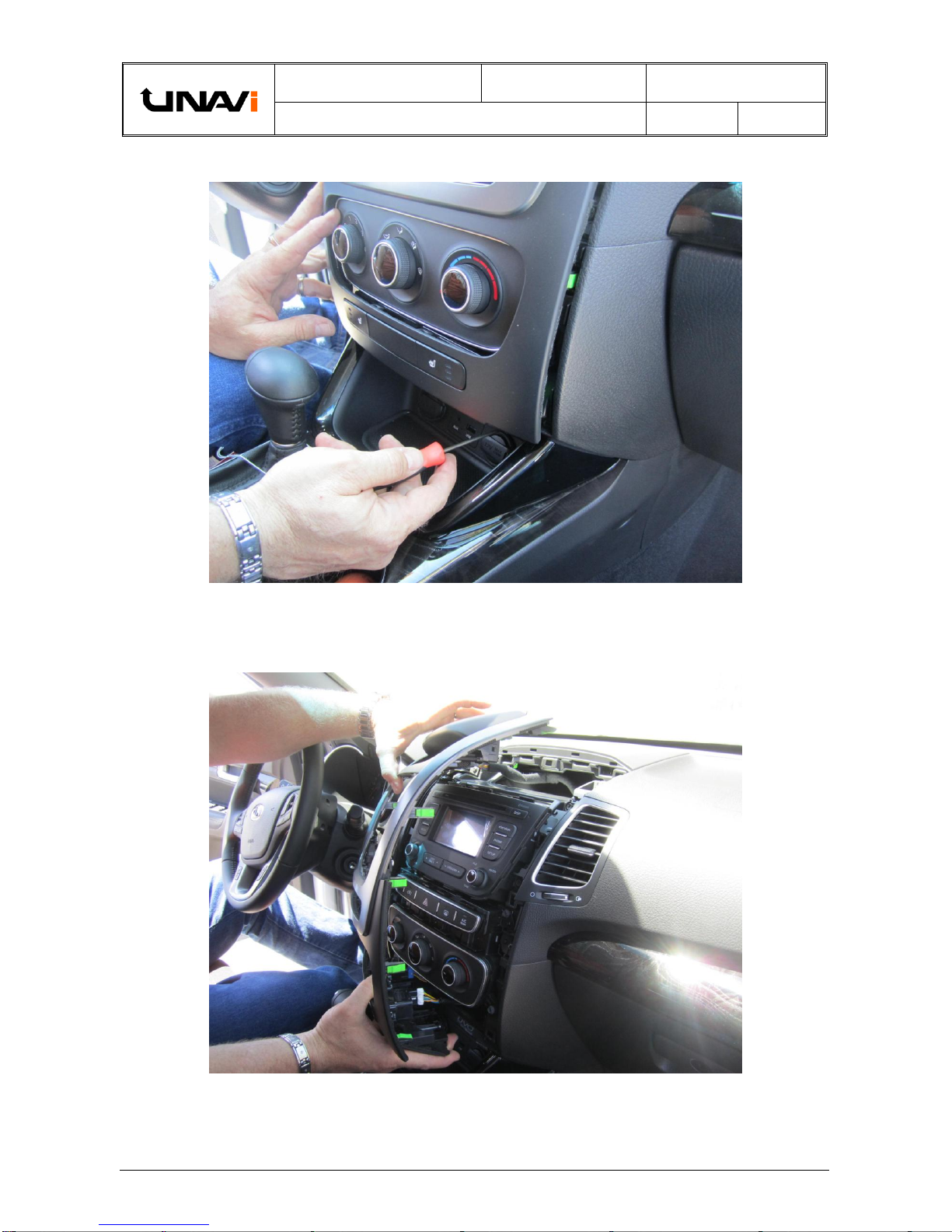

Gently pull out lower section of the center fascia panel.
(Apply protective tapes and take care not to damage and scratch the interior dash and its related parts)
Carefully remove the entire fascia panel and disconnect all plugs behind it.
CLASSFICATION.
Installation Manual
MODEL. ENB-X2
DOCUMENT NO.
BU No. 23
Kia Sorento In-Dash Navigation DIY Installation Guide
VERSION.
1.1
PAGE.
7
Information & Manual Copyright © 2013 UNAVI USA, Inc. All rights reserved. Date: 7/17/2013

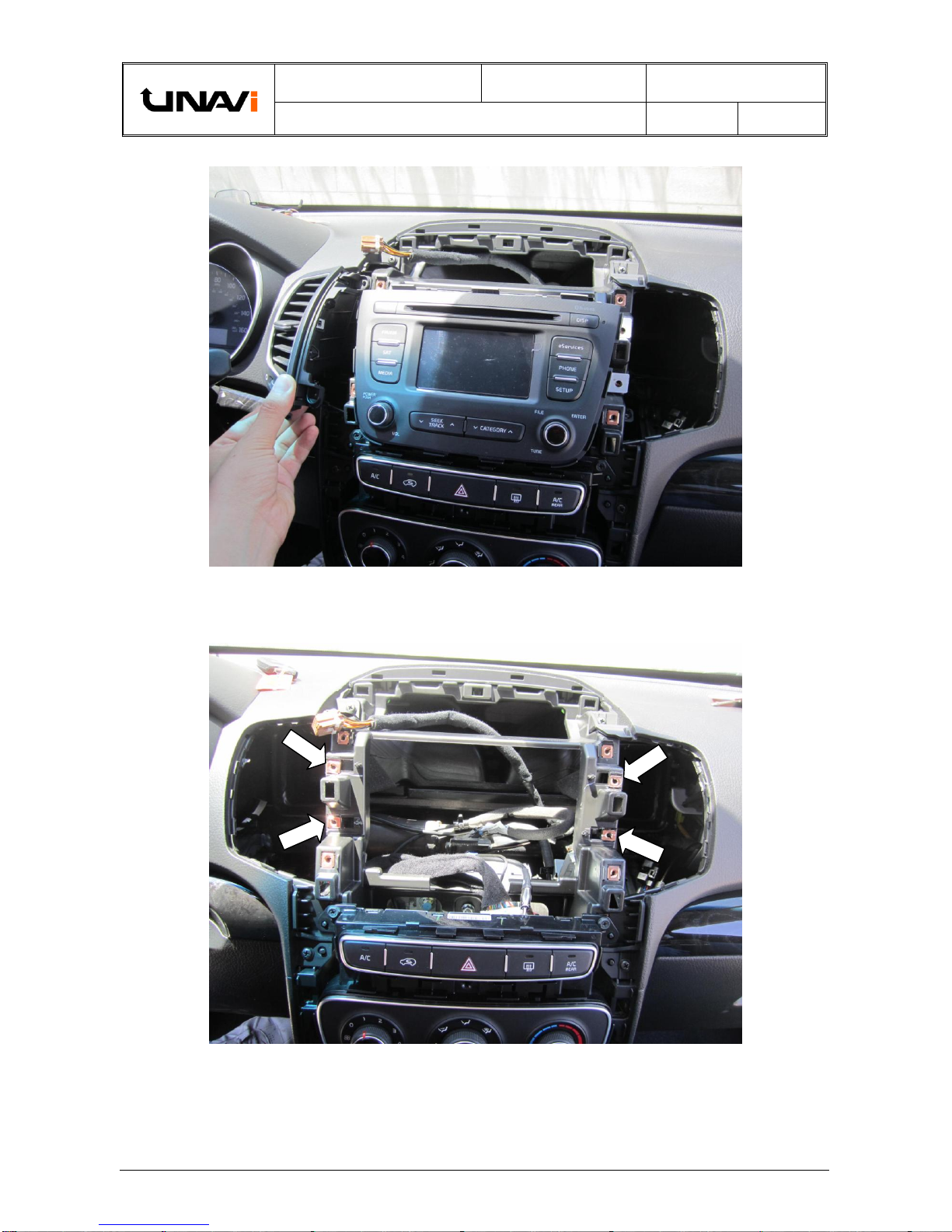

Remove the center air vent ducts (L/R) as shown.
Remove the audio assembly after loosening the mounting screws.
CLASSFICATION.
Installation Manual
MODEL. ENB-X2
DOCUMENT NO.
BU No. 23
Kia Sorento In-Dash Navigation DIY Installation Guide
VERSION.
1.1
PAGE.
8
Information & Manual Copyright © 2013 UNAVI USA, Inc. All rights reserved. Date: 7/17/2013

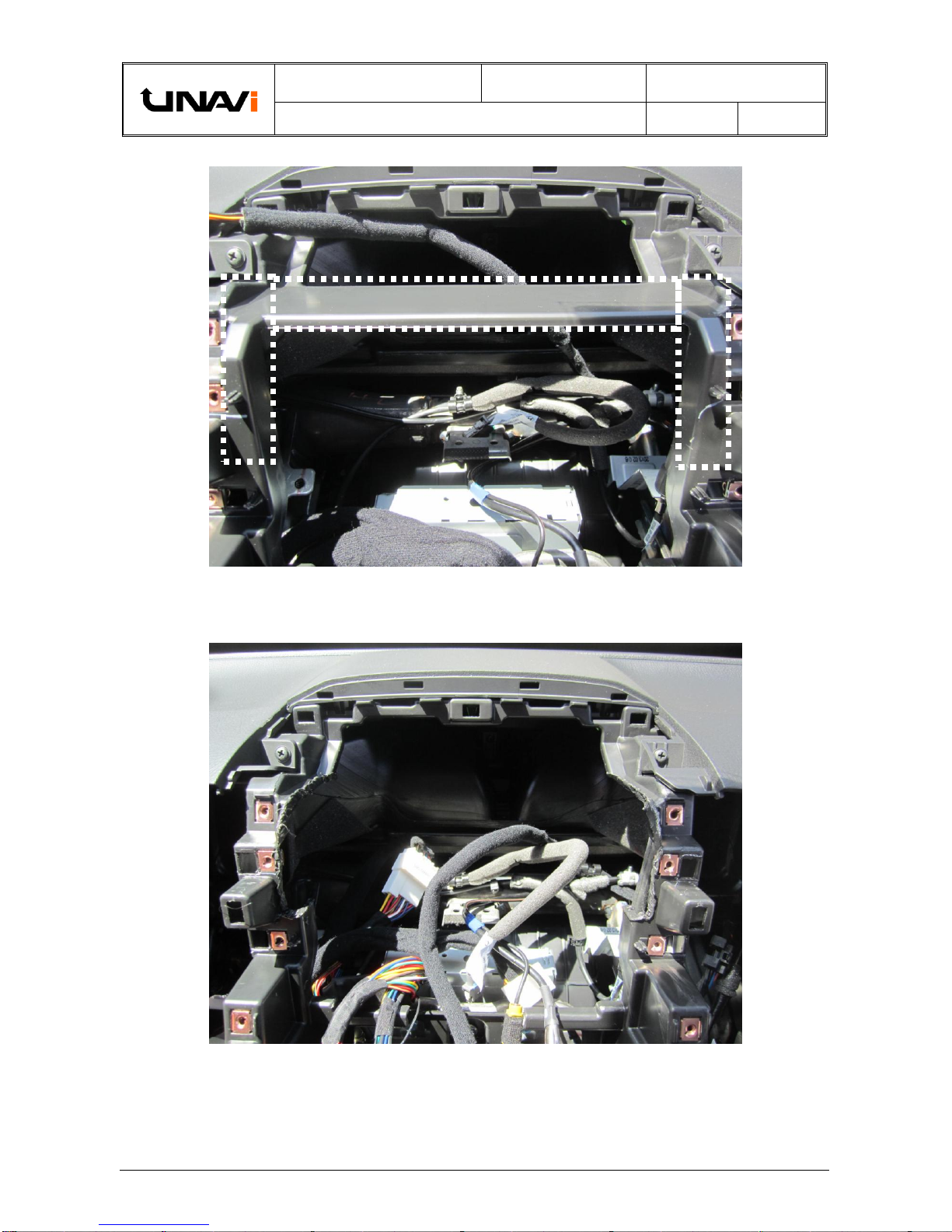

Saw off the plastic trims in the center dash along the dotted lines.
(See next image)
Image of the plastic dash trim pieces removed.
CLASSFICATION.
Installation Manual
MODEL. ENB-X2
DOCUMENT NO.
BU No. 23
Kia Sorento In-Dash Navigation DIY Installation Guide
VERSION.
1.1
PAGE.
9
Information & Manual Copyright © 2013 UNAVI USA, Inc. All rights reserved. Date: 7/17/2013

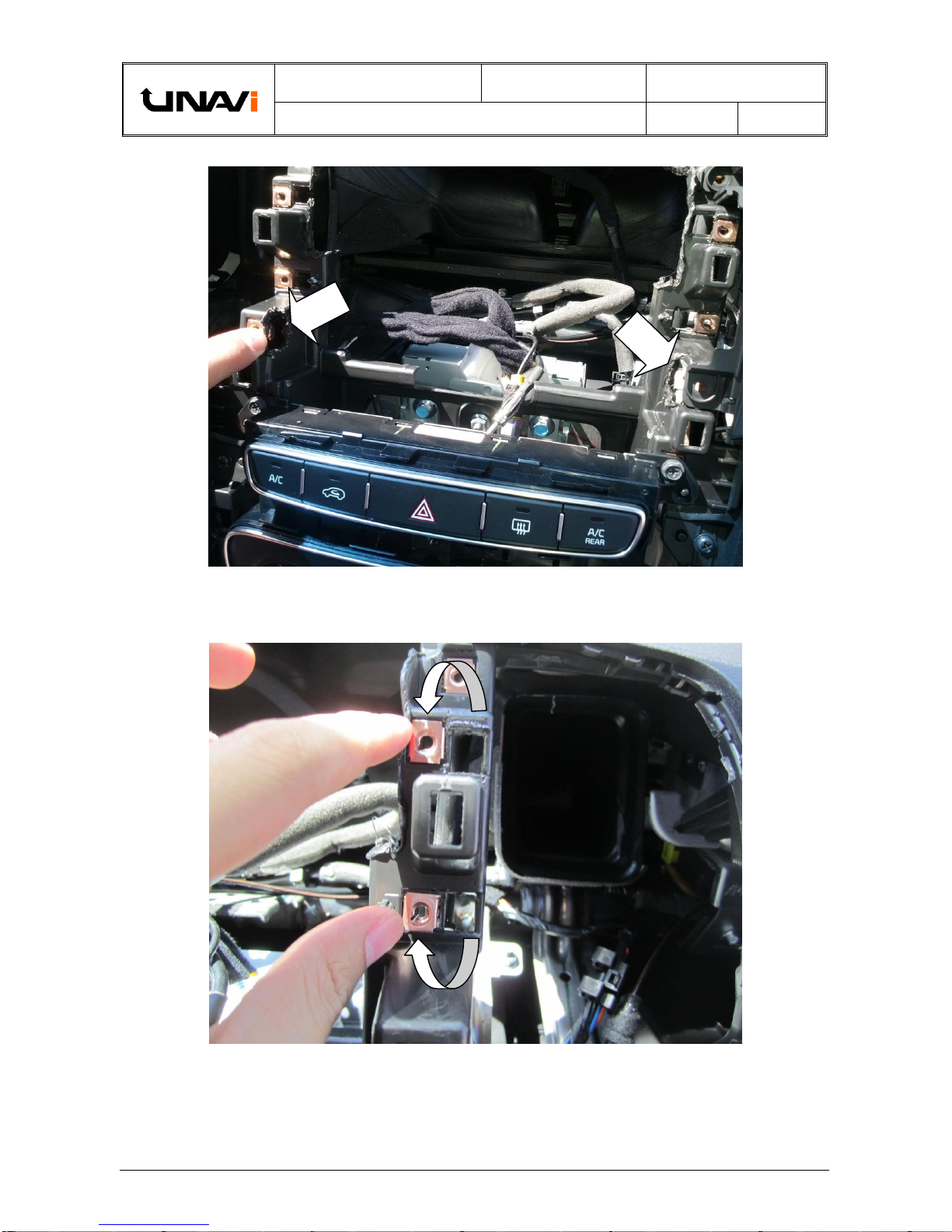

Trim off small layers of plastic indicated with two white arrows.
Transfer the center two speed clips to the adjacent hole on both sides.
CLASSFICATION.
Installation Manual
MODEL. ENB-X2
DOCUMENT NO.
BU No. 23
Kia Sorento In-Dash Navigation DIY Installation Guide
VERSION.
1.1
PAGE.
10
Information & Manual Copyright © 2013 UNAVI USA, Inc. All rights reserved. Date: 7/17/2013

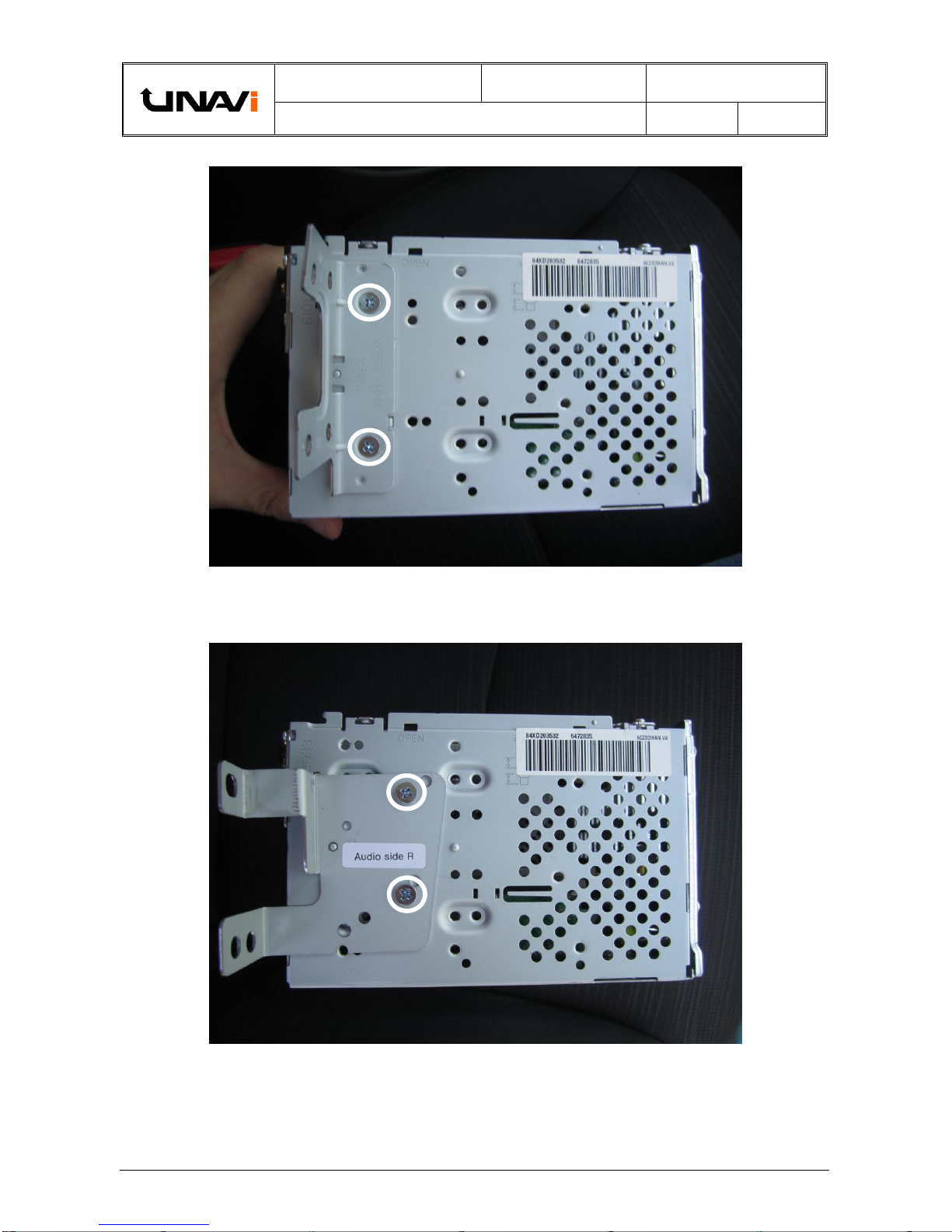

Remove the mounting brackets on each side.
Screw on the replacement mounting brackets (Left and Right) as shown.
