Unicol NST1 Manuale utente

WARNING

Please carefully inspect the product before assembling. If you notice any apparent damage, call your

carrier claims agent and do not continue the installation until it has been reviewed. Please watch for

pinch points. Do not put your ﬁngers between moveable parts. Do not tamper with or disassemble any

spring loaded parts. Before installing, make sure that the supporting surface will support ﬁve times the

combined load of the solution and the hardware. Never exceed the maximum load capacity. Please also

layout all components to ensure that you have all of the required parts before proceeding (see BOM list

on following page). Use of this product for anything other than its speciﬁed use may result in failure or

personal injury. This product is intended for indoor use only. We recommend using a qualiﬁed trades

person for installation. Use an assistant or lifting equipment to lift and position products.

For support, please call: +44 (0)1865 767676 or email: [email protected]

Revised 15/12/20

01865 767676

[email protected]

www.unicol.com

*Please check model speciﬁc details before installing*

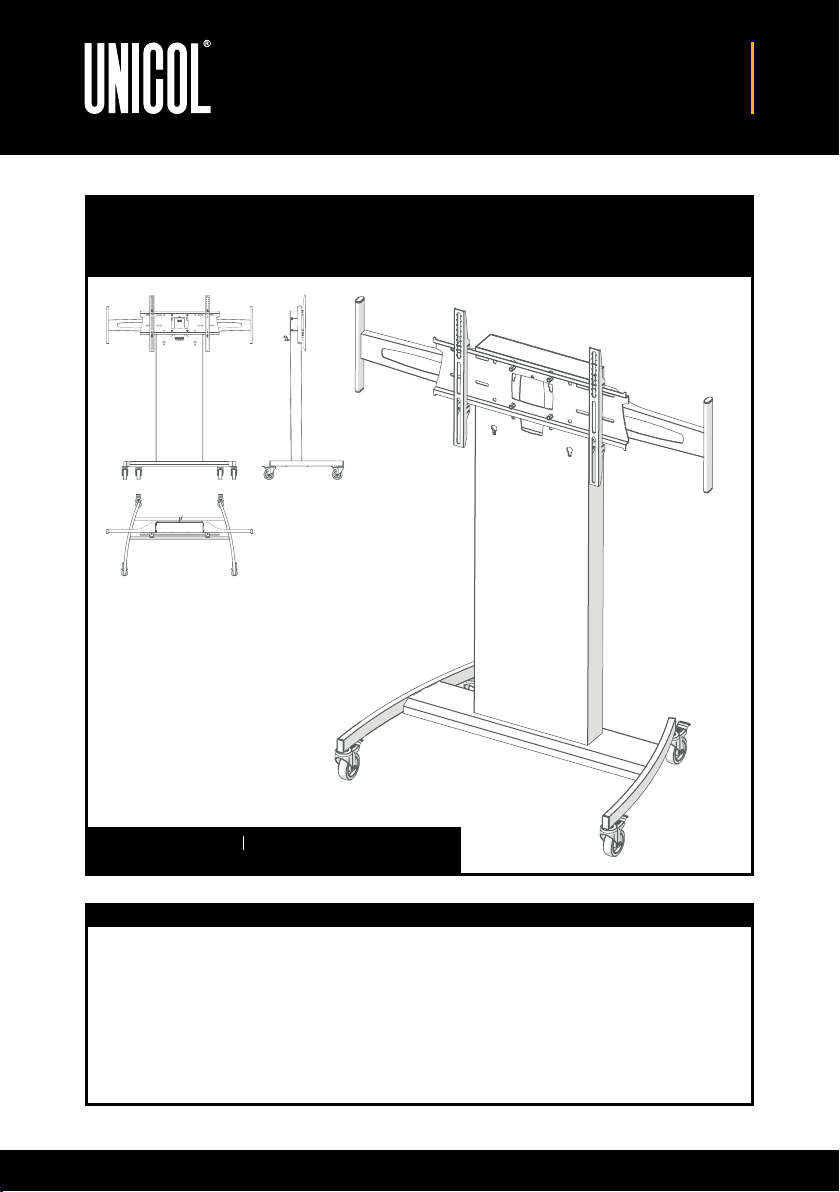

NST1 / NST2

Screen Size: 33-90” Guide Max. Weight: 80-150kg

01865 767676

[email protected]

www.unicol.com

2Revised 15/12/20

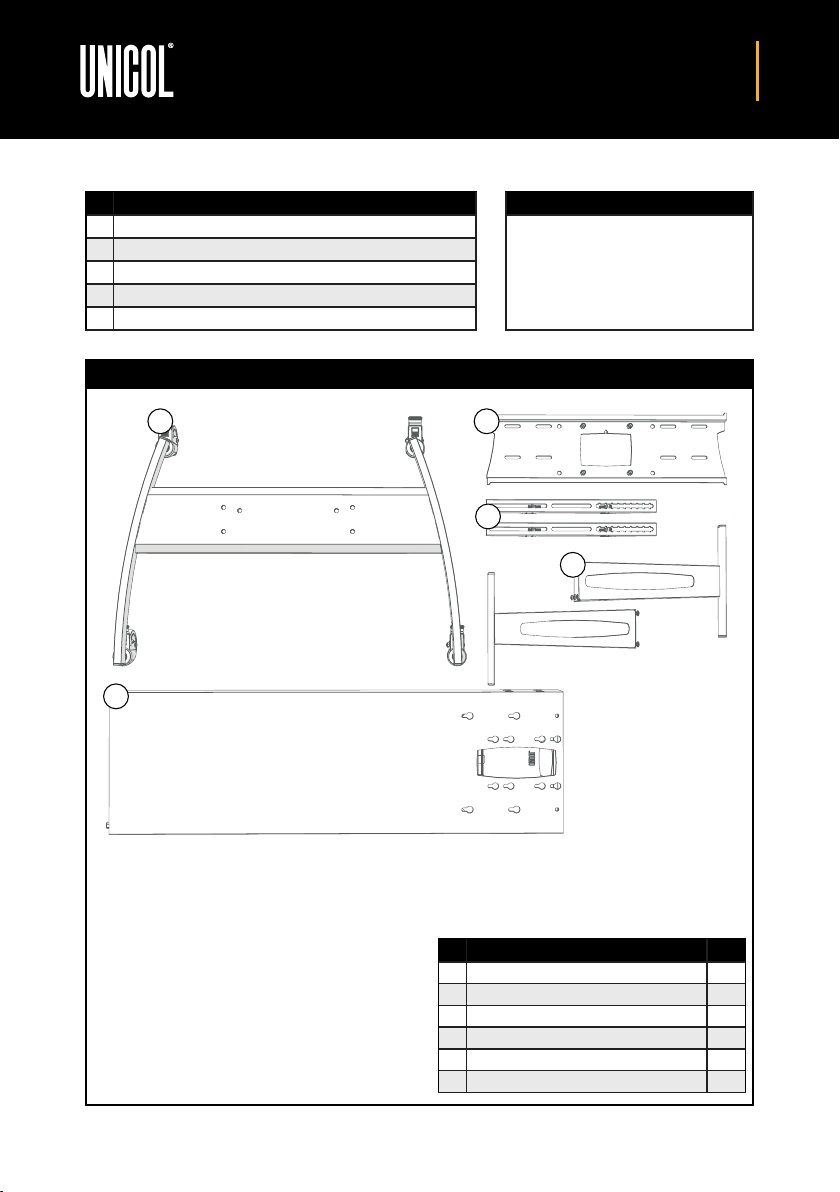

COMPONENTS

INSTALLERS REQUIRED

1-2

# DESCRIPTION QTY

1Standard Rhobus Base 1

2Universal Mount Back Plate 1

3Universal Mount Arms 2

4Rhobus Mast (inc. cabinet door) 1

5Manoeuvrability Handle 2

6Security Key 2

#TOOLS REQUIRED

1 Pozi Head Screwdriver

2 5mm Allen Key

3 4mm Allen Key

4 19mm Spanner

5 17mm Spanner

1 2

01865 767676

[email protected]

www.unicol.com

Revised 15/12/20

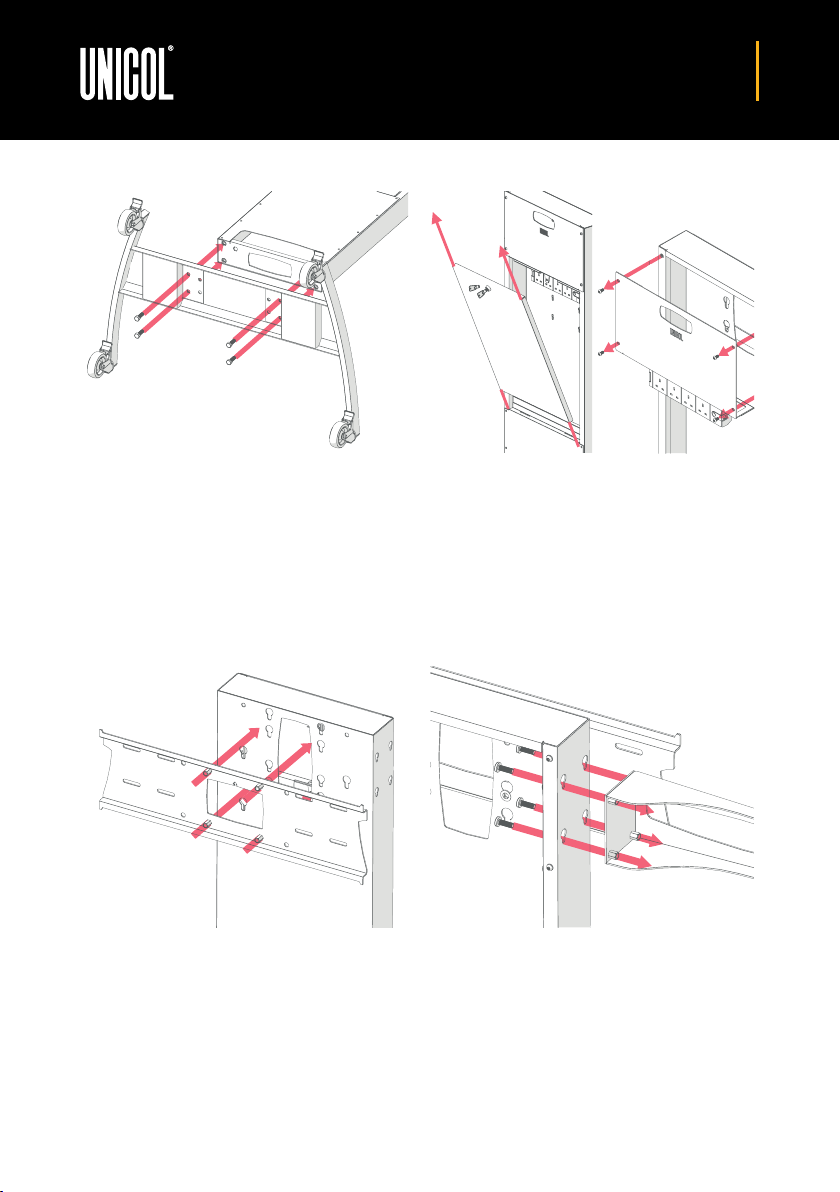

STEP 1

Laying the mast on a ﬂat surface, offer the base

up and attach as shown above. All castors should

already be pre-ﬁxed to the base.

STEP 2

Unlock and lift out rear door. Remove upper rear

panel by unscrewing 4x M6 screws.

STEP 3

Place 2x screws loosely in bottom two rivnuts of

the back plate from rear. Slot into chosen keyholes

in mast. From the rear, screw in top two screws into

the back plate and fully tighten all four screws.

STEP 4

Secure the manoeuvrability handles onto the side

of the mast. From the rear screw into the keyhole

slots and fully tighten. Repeat on the other side.

01865 767676

[email protected]

www.unicol.com

Revised 15/12/20

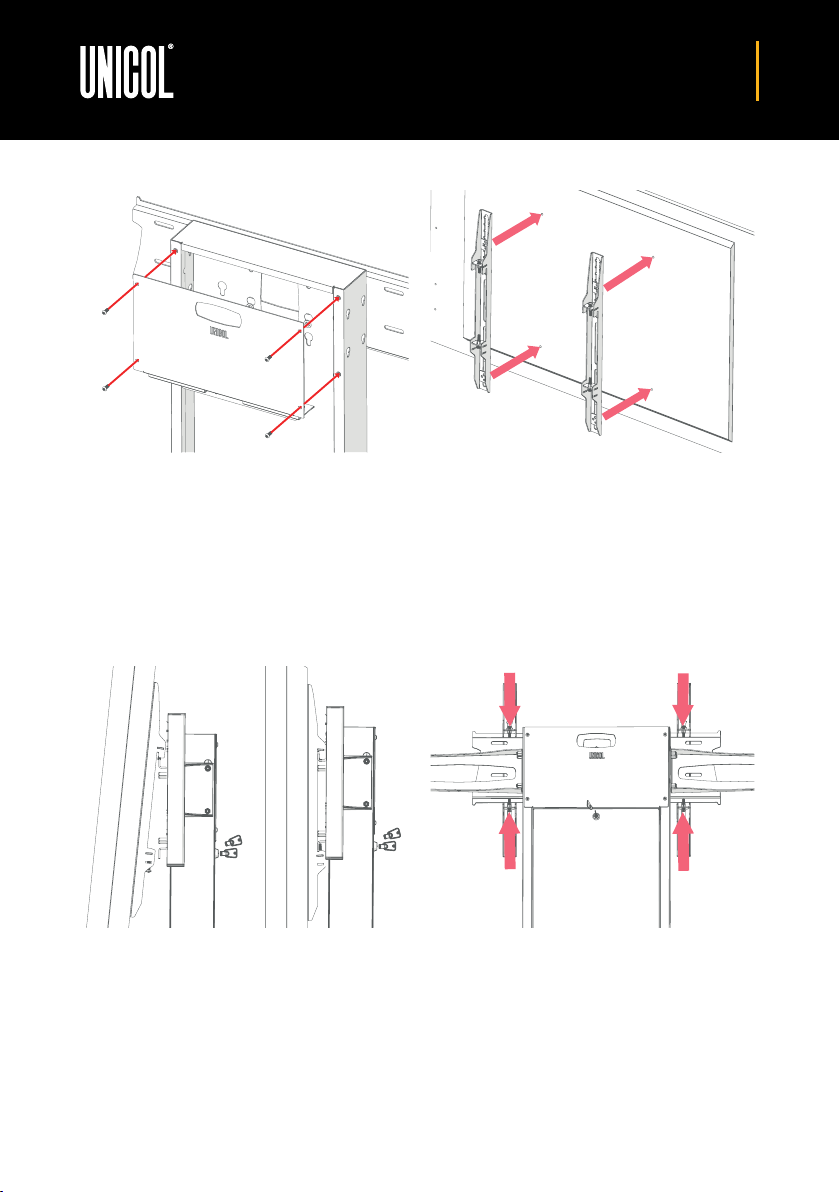

STEP 5

Feed cables for screen through hole in backplate

and front of mast and down through cable access.

Reﬁt rear top panel using x4 M6 screws. Reﬁt rear

top panel door and lock.

STEP 6

Locate the mounting holes on the back of your

screen. Line the two mounting arms up and using

the taglocks/two part spacers provided and the

manufacturer recommended screws (not included),

attach the arms to the back of the screen.

STEP 7

Line the screen and arms up with the secured back

plate and offer it up at a slight angle - allowing the

top of the arms to hook over the lip of the back

plate.

STEP 8

Gently lower the screen until the arms are securely

hanging on top of the back plate. Once centered,

adjust the level of the screen with the two top

screws on the mount arms. Once levelled secure

the screen by tightening the bottom two screws.
