Unicol RH100 Manuale utente
WARNING
Please carefully inspect the product before assembling. If you notice any apparent damage, call your
carrier claims agent and do not continue the installation until it has been reviewed. Please watch for
pinch points. Do not put your fingers between moveable parts. Do not tamper with or disassemble any
spring loaded parts. Before installing, make sure that the supporting surface will support five times the
combined load of the solution and the hardware. Never exceed the maximum load capacity. Please also
layout all components to ensure that you have all of the required parts before proceeding (see BOM list
on following page). Use of this product for anything other than its specified use may result in failure or
personal injury. This product is intended for indoor use only. We recommend using a qualified trades
person for installation. Use an assistant or lifting equipment to lift and position products.
Revised 05/08/21
*Please check model specific details before installing*
01865 767676
www.unicol.com

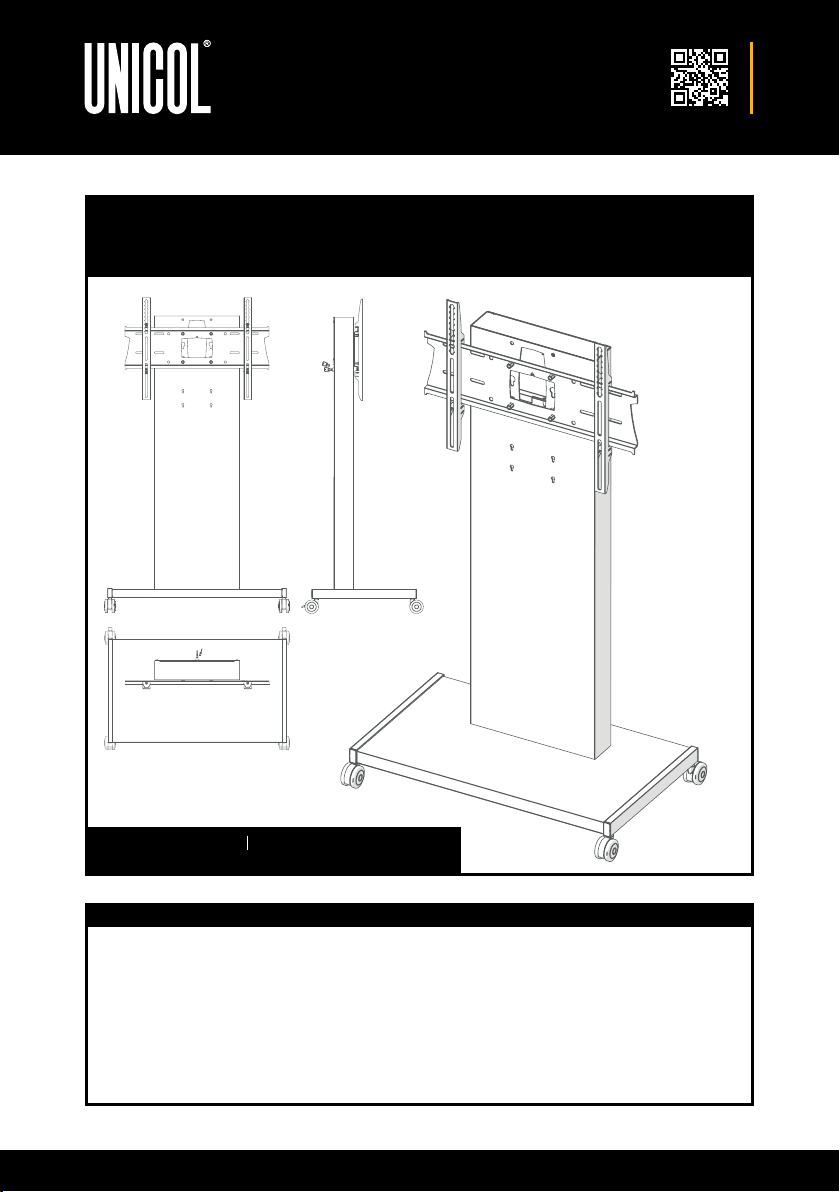

RH100 / RHBDU / RFWSH / RH200
Screen Size: 33-110” Guide Max. Weight: 80-150kg
2Revised 05/08/21
COMPONENTS
01865 767676
www.unicol.com
INSTALLERS REQUIRED
1-2
# DESCRIPTION QTY
1Rhobus Mast (inc. cabinet door) 1
2Universal Mount Back Plate 1
3Universal Mount Arms 2
47.5cm Castors (2 standard, 2 braked) 4
5Standard Rhobus Base 1
6Security Key 2
7 Floor-to-Wall Base and Wall Tie -
8 Bolt Down Alternative Base -
9 Stand Feet -
10 Optional Accessories -
#TOOLS REQUIRED
1 Pozi Head Screwdriver
2 4mm & 5mm Allen Keys
3 19mm Spanner
4 17mm Spanner
5 Rubber Mallet
12
34
5
8
9
7
10
*masts may vary from model to model
*bases may vary from model to model
3
Revised 05/08/21
01865 767676
www.unicol.com
STEP 1
Connect base to mast as shown (4 fixings for
RH100 and 6 for HD versions).
For a stand version, insert the plastic feet. For a
trolley version, tap castors with the rubber mallet
until they lock into place (ensure braked castors
are at the front). For bolt down or floor-to-wall base
instructions, please see page 5.

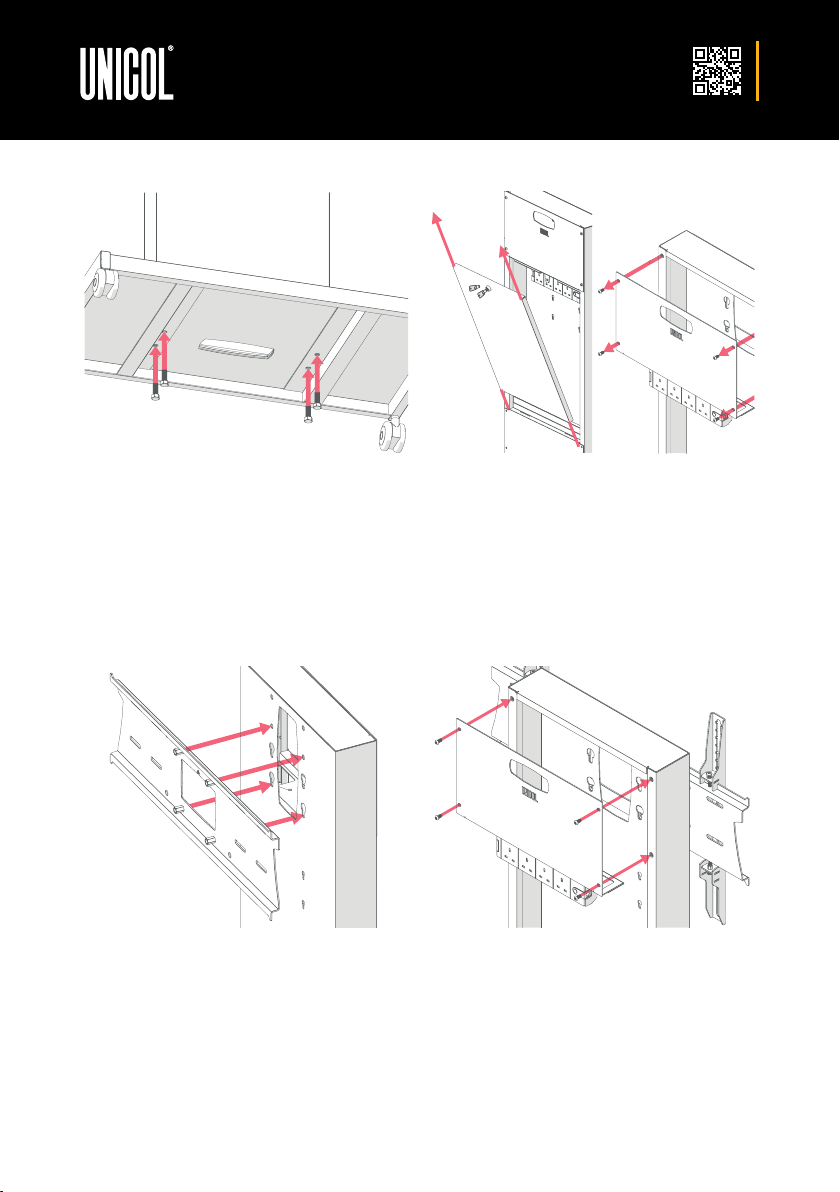

STEP 2
Unlock and lift out rear door. Remove upper rear
panel by unscrewing 4x M6 screws.
For RH200, please continue on page 6.

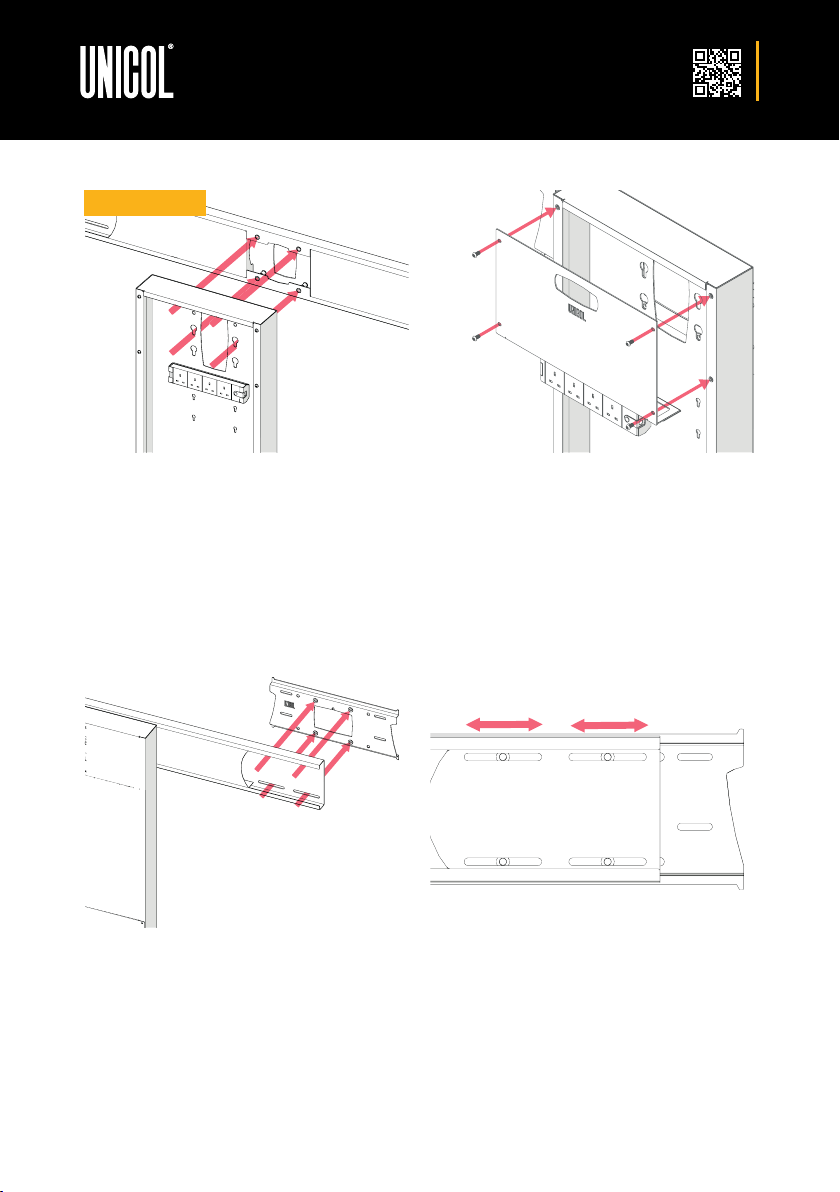

STEP 3
Place 2x screws in the bottom two rivnuts of the
mount back plate and slot into chosen keyholes in
mast. From the rear, screw in top two screws into
the back plate and fully tighten all 4 screws.
STEP 4
Feed cables for screen through hole in backplate
and front of mast and down through cable access.
Refit rear top panel using x4 M6 screws. Refit rear
door and lock.
4Revised 05/08/21
01865 767676
www.unicol.com
STEP 8 [OPTIONAL]
Optional shelf install.
Hook screws into keyhole slots in front of mast.
Fully tighten screw from rear.
STEP 7
Gently lower the screen until the arms are securely
hanging on top of the back plate. Once centered,
adjust the level of the screen with the two top
screws on the mount arms. Once levelled secure
the screen by tightening the bottom two screws.
STEP 6
Line the screen and arms up with the secured back
plate and offer it up at a slight angle - allowing the
top of the arms to hook over the lip of the back
plate.

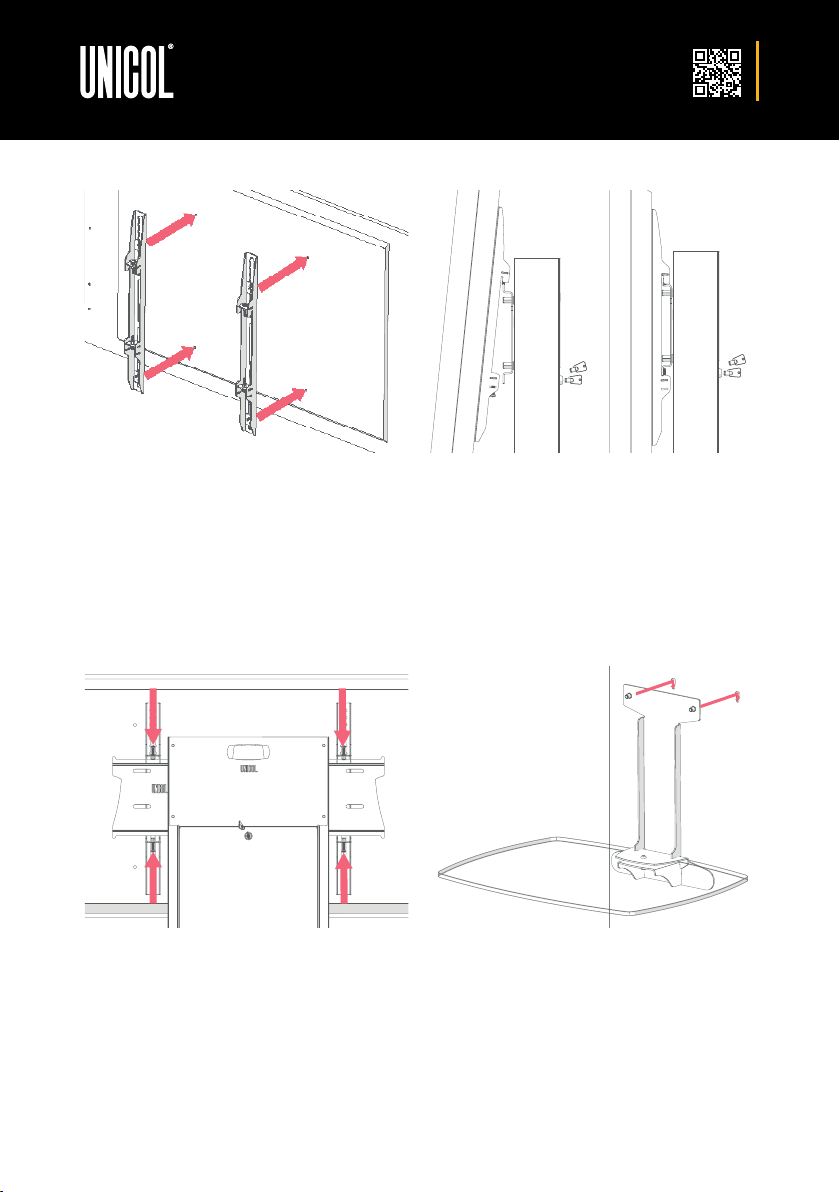

STEP 5
Locate the mounting holes on the back of your
screen. Line the two mounting arms up and using
the taglocks/two part spacers provided and the
manufacturer recommended screws, attach the
arms to the back of the screen.
5Revised 05/08/21
01865 767676
www.unicol.com

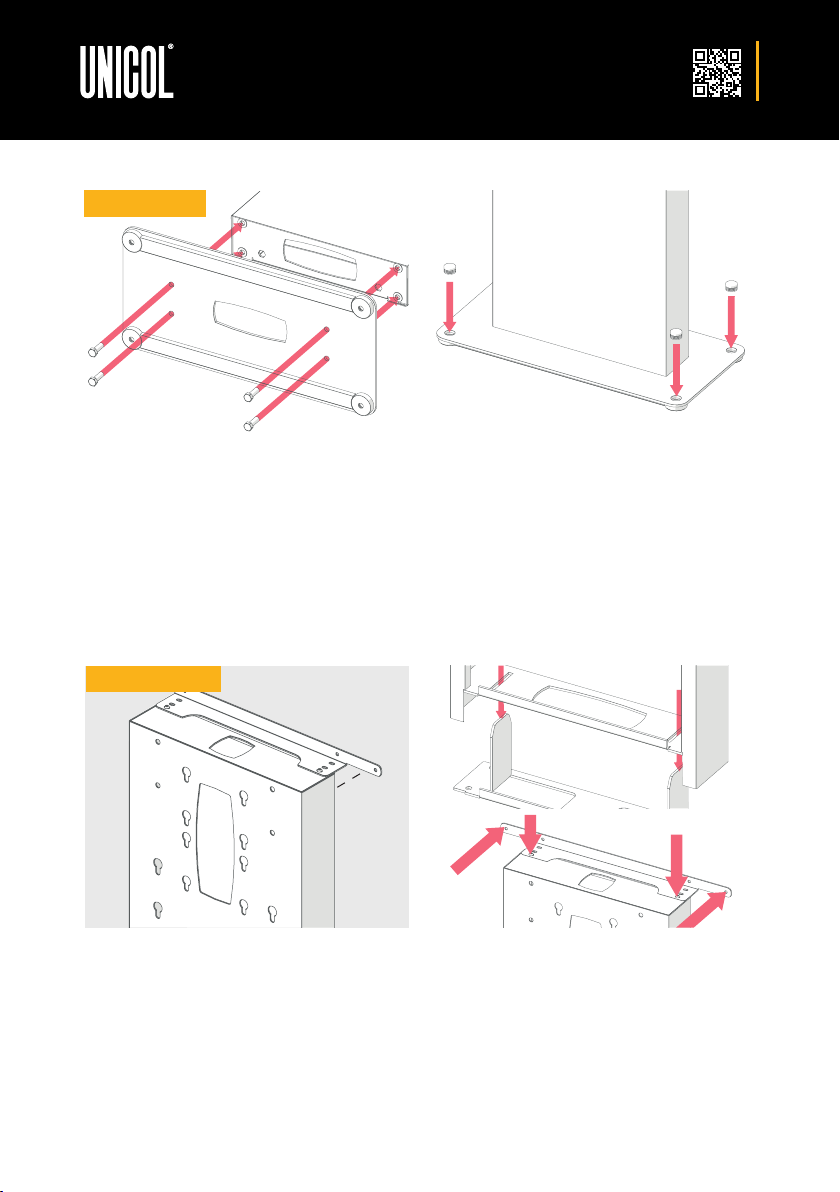

STEP 1a
With mast laying flat on a table (as shown above)
pick up the base and offer the base to the mast.
Ensure fixing holes are aligned and then secure.
STEP 2a
Once secure, stand the stand upright and place
on a flat, stable surface. Mark position of holes, as
highlighted above, and fix into the floor.
Follow on from Step 3.
STEP 1b
Considering skirting boards and cable caddies,
offer the mast up to the wall using the wall bracket
as a guide with how far out you’d like it to sit (a).
Identify bolt down base positioning, mark and
fix into position. Follow Steps 2, 3 and 4 before
continuing to 2b.
STEP 2b
Gently place the mast over the base as shown
above - making sure cables don’t get caught. Mark
out the positioning for the wall tie, then fix to the
top of the Rhobus mast and the wall.
Follow on from Step 5.
BOLT DOWN
FLOOR-TO-WALL
a
6Revised 05/08/21
01865 767676
www.unicol.com
STEP 3
Place 2x screws in the bottom two rivnuts of the
span bar plate and slot into chosen keyholes in
mast. From the rear, screw in top two screws into
the span bar and fully tighten all four screws.
STEP 3b
From the rear, screw in four screws into the mount
back plate through the wide span bar slots and
tighten all four screws.
Repeat for the opposite side.
PLEASE NOTE
Once the screens are fitted onto the back plates
(step 6), you may need to adjust the horizontal
positioning. To do this, loosen the screws on the
rear whilst one/two people are holding the screen,
you can then adjust the screens positioning.
Please follow on with Step 5 on Page 4.
TWIN SCREEN
STEP 3a
Feed cables for screen through hole in backplate
and front of mast, down through cable access and
through the span bar. Refit rear top panel using x4
M6 screws. Refit rear door and lock.
