DSS3405
ADDITIONAL HANDSET
OWNER'S MANUAL
OWNER'S MANUAL
Welcome
Important!
Congratulations on your purchase of the Uniden DSS3405
accessory handset and charger. You can place this fully featured
cordless handset anywhere your home has AC power.
The DSS3405 accessory handset will not operate until it is
registered to a Uniden main base. This manual describes how to
set up your new handset; for more detailed instructions on
operating your new handset, please refer to the manual supplied
with your base.
The main part of the phone that connects to your
phone line and lets you make and receive calls.
A cradle that charges an accessory handset. It
connects to power but not to a phone line.
base.
Accessory handsets must be registered to a base.
The handset is not in use. If it is off the cradle, no
line has been activated. No dial tone is present.
Any handset or the base.
A telephone line has been activated on the handset
or the base, enabling a dial tone.
Base
Charger
Accessory
Handset
Standby
Station
Talk
Note: Illustrations in this manual are used for explanation
purposes. Some illustrations may differ from the actual unit.
Caution: The earcap of this telephone may attract and retain
small metallic objects
Terminology Used in this Manual
A handset that works with an expandable phone
(1)
Compatible Bases
Installing the Accessory Handset
Installing the Battery
This handset is compatible with Uniden's 2.4 GHz Digital
Expandable phone system: the DSS3415, DSS3455 and DSS3435
series. Visit www.uniden.com.au (Australian model) or
www.uniden.co.nz (New Zealand model) for the most up-to-date list
of compatible bases.
Make sure your package contains the following items. If any
items are missing or damaged, contact your place of purchase.
Follow the steps below to install the
rechargeable battery pack.
1. Using the finger indentation, press in on
the battery case cover and slide it down
to remove it.
2. Plug the battery connector into the
battery compartment jack. Be sure to
match the red and black wires to the label
near the jack.
3. Gently pull on the battery wires. If the
battery connector comes loose, try
connecting it again.
4. Replace the battery case cover and slide
it up until it clicks into place.
Checking the Package Contents
Note: Use only the Uniden BT-909 rechargeable battery
pack supplied with your cordless telephone.
• Cordless Handset • Charging Cradle
• AC Adapter, model #AAD-600S • Rechargeable NiMH Battery
Input: 240V AC 50 Hz Pack, model #BT-909
Output: 9V DC 210 mA Capacity: 600 mAh,3.6V
• Belt Clip • Printed Material
(2)
Installing the Belt Clip
Installing the Optional Headset
Line up the tabs with the holes on each side
of the handset. Press the belt clip down until
both tabs click into place. To remove the belt
clip, pull both sides of the clip to release the
tabs from the holes.
Your phone may be used with an optional
headset. To use a headset, insert the headset
plug into the headset jack. Headsets may be
purchased by contacting Uniden. See
warranty on inside back cover for contact
information.
The handset is powered by a rechargeable battery pack that
automatically recharges when the handset is placed in the
charger.
1. Connect the AC adapter to
the jack and to a
240V AC outlet that is not
controlled by a wall switch.
2. Set the charger on a desk or
tabletop, and place the handset in
the charger with the keypad facing forward.
3. Make sure that the LED illuminates. If the LED does not
illuminate, check to see that the AC adapter is plugged in and
the handset makes good contact with the charging contacts on
the charging cradle.
4. Charge the handset battery pack for at least 15-20 hours before
using your new handset for the first time.
Charging the Accessory Handset
DC IN 9V
Caution: Use only the
Uniden AAD-600S adapter.
charge
(3)

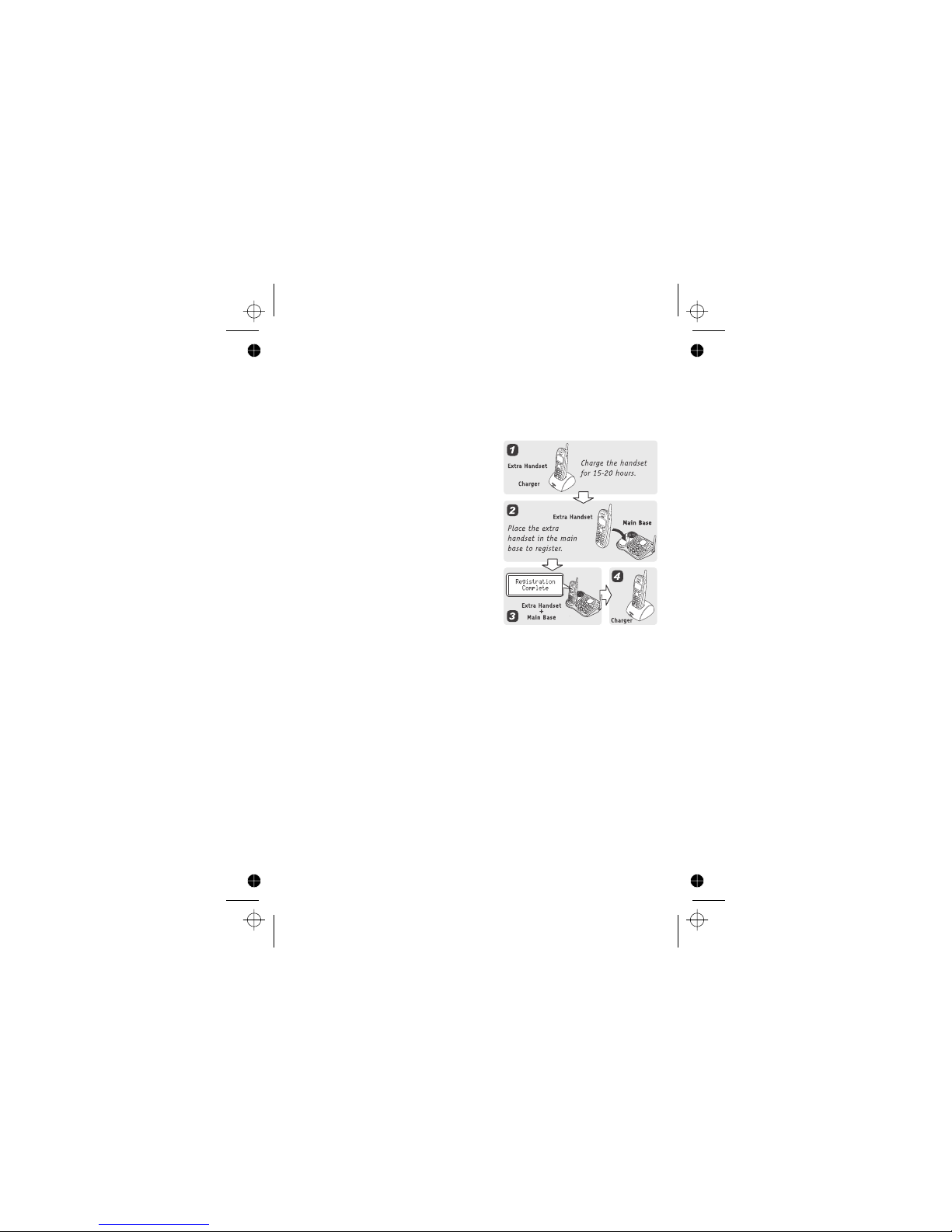

Registering the Handset
You must register the handset to the base before you can use it.
Only one handset can be registered at a time. (If an accessory
handset has ever been registered to a base, you must reset the
handset before you can register it to a new base).
To register to a DSS34 series base,
place the accessory handset in the
base. While the handset is registering,
HANDSET REGISTERING appears in
the LCD. When REGISTRATION
COMPLETE is displayed, the handset
has been registered to the base.
If REGISTRATION FAILED appears,
remove the handset from the base
and try again.
For DSS34 Series Bases
(DSS3415, DSS3455, DSS3435)
(4)
Resetting the Handset
Resetting the Handset Without the Base
If you want to register the handset to a different base or replace a
handset with another one, you must first clear the registration
information from the base and the handset.
1. Press and hold and
for at least 5 seconds, until
the SYSTEM RESET menu
appears.
2. Select the DEREGISTER
HS submenu by pressing .
WHICH HANDSET? appears in the display.
3. Use or to select the handset ID to be de-
registered from the list, and then press .
DEREGISTER HS appears.
4. Press to move the cursor to YES, and then press
. You will hear a confirmation tone.
If the original base the handset was registered to is not available for
some reason (for example, it is lost or somehow
incapacitated), you can still reset the handset and use it with
another base.
1. Press and hold and for at least 5 seconds, until the
SYSTEM RESET menu appears.
2. Press to move the cursor to REPLACING BASE and then
press . REPLACE BASE appears.
3. Press to move the cursor to YES, and then press
You hear a confirmation tone, and the handset
deletes its own link to the base without trying to contact the base.
4. Register the handset to the new base.
[ ] [#/>]
[select/ ]
[][]
[select/ ]
[]
[select/ ]
[ ] [#/>]
[]
[select/ ]
[]
[select/ ].
(5)
Using the Interface
Parts of the Handset
(6)
1. Antenna
2. Headset jack
cover
3. Belt Clip hole
4. Speakerphone
speaker and
ringer
5. Battery
compartment
6. New message
LED
7. Earpiece
8. LCD display
9.
10.
11.
(talk/flash)
12. (phonebook)
13.
14.
(transfer/intercom)
15.
(select/messages)
16. (up)
17. (end call)
18. (Caller ID)
19. (down)
20. (pound)
21. (speaker)
22. Microphone
23. Charging
contacts
[menu/clear ]
[redial/pause ]
[ /flash ]
[]
[*/tone/<]
[xfer/intercom]
[select/ ]
[]
[]
[]
[]
[#/>]
[]
Reading the Display
The handset display uses icons to tell you the status of your phone.
The table below lists the icons and what they mean.
When the phone is in standby, the display shows the following:
Your handset has a four-way function
key that allows you to move the cursor
or pointer on the display and access the
most commonly used features at the
touch of a button. Press the left side of
the key to open the phonebook. Press
the right side to open the Caller ID list.
ICON STATUS DESCRIPTION
The Standby Screen
Using the Four-way Function Key
(7)
Standby/Talk
Standby
Talk
Talk
Talk
Talk
Talk
The icon indicates the handset
battery status: full, medium, low, and empty.
The icon indicates that the ringer is
turned off.
The icon appears when you mute the
handset.
The icon appears while recording
a conversation.
The icon appears when the Clarity
Boost feature is activated.
The icon appears when the handset
speakerphone is in use.
The icon appears when Privacy
Mode is turned on.
battery
ringer off
mute
call record
boost
speaker
privacy
R
B
P
To use this four-way key, place your thumb over the key on the
handset and move to the four positions to get the feel of how it
moves and operates
To open the menu, press . Select the option you
want by pressing the four-way function key. This will move the
cursor; the option currently selected has a triangle beside it.
Activate the selected option by pressing . Pressing
again will go back to the previous menu. To exit the
menu and return to standby, press .
If you do not press a key within 30 seconds, the phone will
time out and exit the menu. When setting the day and time,
the time-out period is extended to two minutes.
If you subscribe to Caller ID, you can store up to 100 Caller ID
records. Your phone shares memory between your phonebook and
Caller ID entries. If you have 100 phonebook entries, Caller ID
records won't be saved (but will display when the call comes in).
Press to open the Caller ID record list. The first thing you will
see is the summary screen. From the summary screen, you have
the following options:
.
Using the Handset Menus
Making and Receiving Calls
Using Caller ID and Call Waiting
[menu/clear]
[select/ ]
[menu/clear]
[]
[]
With the earpiece With the speakerphone
Make a
call
Answer
a call
Hang
Up
*If AutoTalk is on, the phone answers when you remove the handset from the charging cradle.
**If Any Key Answer is on, you can press any key in the twelve-key pad.
(8)
1. Remove the handset from
the cradle.
2. Dial the number.
3. Press .
1. Pick up the handset.*
2. Press .**
Press or return the
handset to the cradle.
[ /flash ]
[ /flash ]
[]
1.Remove the handset from
the cradle.
2. Dial the number.
3. Press .
1. Pick up the handset.*
2. Press .
Press or return the
handset to the cradle.
[]
[]
[]
Scroll through the
records
Jump to records that
start with a certain
letter
Store a record in the
phonebook
Dial a record
Delete a record
Delete all records
Exit the Caller ID list
To scroll through the records from A to Z, press .
To scroll trough the records from Z to A press .
Press the number key corresponding to the letter
you want to jump to.
Find the record you want to store and press
.
Find the entry you want to dial and press
or .
Find the entry you want to dial and press
.
Press .
Press or press again if you are on a call.
[]
[]
[select/ ]
[ /flash ]
[]
[menu/clear]
[menu/clear]
[] [ ]
Using Call Waiting
Redialing a Number
Using the Phonebook
If you subscribe to call waiting, a tone sounds if a call comes
in when you are on the phone. If you subscribe to Caller ID on
call waiting, the Caller ID information of the waiting call appears on
the display. Press and then on
the handset to switch between callers.
Press on the handset to switch
between callers.
To redial one of the last 3 numbers dialed on the handset, press
when the phone is in standby. This opens the redial
list. Use repeatedly or and to find the
number you want to dial, and then press or . (You
can also press or and then to redial
the last number dialed.)
You can store up to 100 names and numbers in the phonebook.
Your handset shares memory between your phonebook and Caller
ID entries. When all the phonebook entries are full, you will hear a
beep and MEMORY FULL appears. You cannot store any
additional names and numbers unless you delete some of the
existing ones.
For Australian model: [ /flash] 2
For New Zealand model: [ /flash]
[redial/pause]
[redial/pause] [ ] [ ]
[ /flash]
[ /flash ] [ ], [redial/pause]
[]
(9)
Indice
Altri manuali Uniden Cornetta
Uniden
Uniden XDECT 7005 Manuale utente
Uniden
Uniden DCX160 Manuale utente
Uniden
Uniden XDECT SSE07 Manuale utente
Uniden
Uniden DCX210 Manuale utente
Uniden
Uniden DCX770 - DCX 770 Cordless Extension Handset Manuale utente
Uniden
Uniden DECT1820 Manuale utente
Uniden
Uniden WDSS 5305 Manuale utente
Uniden
Uniden XDECT 7005 Manuale utente
Uniden
Uniden DCX291 Manuale utente
Uniden
Uniden DCX150 Series Manuale utente
Uniden
Uniden XDECT SSE35 Series Manuale utente
Uniden
Uniden DCX700 Manuale utente
Uniden
Uniden DCX170 Manuale utente
Uniden
Uniden DSS 7905 Manuale utente
Uniden
Uniden DCX320 Manuale utente
Uniden
Uniden DCX320 Manuale utente
Uniden
Uniden XDECT 8105WP Manuale utente
Uniden
Uniden DECT 1715+1 Manuale utente
Uniden
Uniden DCX330 Manuale di servizio
Uniden
Uniden WDECT2380 Manuale utente
