Congratulations! You have purchased one of the most sophisticated and versatile cordless

telephone systems available. To enjoy the best performance from the UNIT’s many features,

please read this Owner’s Guide carefully and save it for future reference.

■Base Unit

■Cordless Handset

■ACAdapter

■Belt Clip

■Telephone Line Cord

■BatteryPack

■Owner’s Guide and Quick Reference Guide

INTRODUCTION TO YOUR

MULTI-HANDSET SYSTEM TELEPHONE

The unit is different from conventional cordless telephones. The base unit, when connected to

AC power and a telephone line, can support the operation of up to eight handsets. You can now

place a fully featured cordless handset anywhere in you home or office that you have AC power

to connect the handset chargers.

Since the system and the adjunct handsets (available separately) are system telephones, you

can enjoy advanced telephone features like handset to handset intercom and call transfer.

The system Directory holds up to 80 names and phone numbers, and can be accessed from any

of the handsets. All of your commonly dialed numbers can be quickly retrieved for easy, one-

touch dialing.

2.4 GHz FHSS (Frequency Hopping Spread Spectrum) technology offers extended range, clarity

and digital security. A belt clip and headset jack (2.5 mm) provide handsfree convenience when

used with an optional headset.

PACKING LIST

Please take a moment to locate and identify the components shipped with your Telephone

System. Enclosed within the packaging:

PAGE 3

PAGE

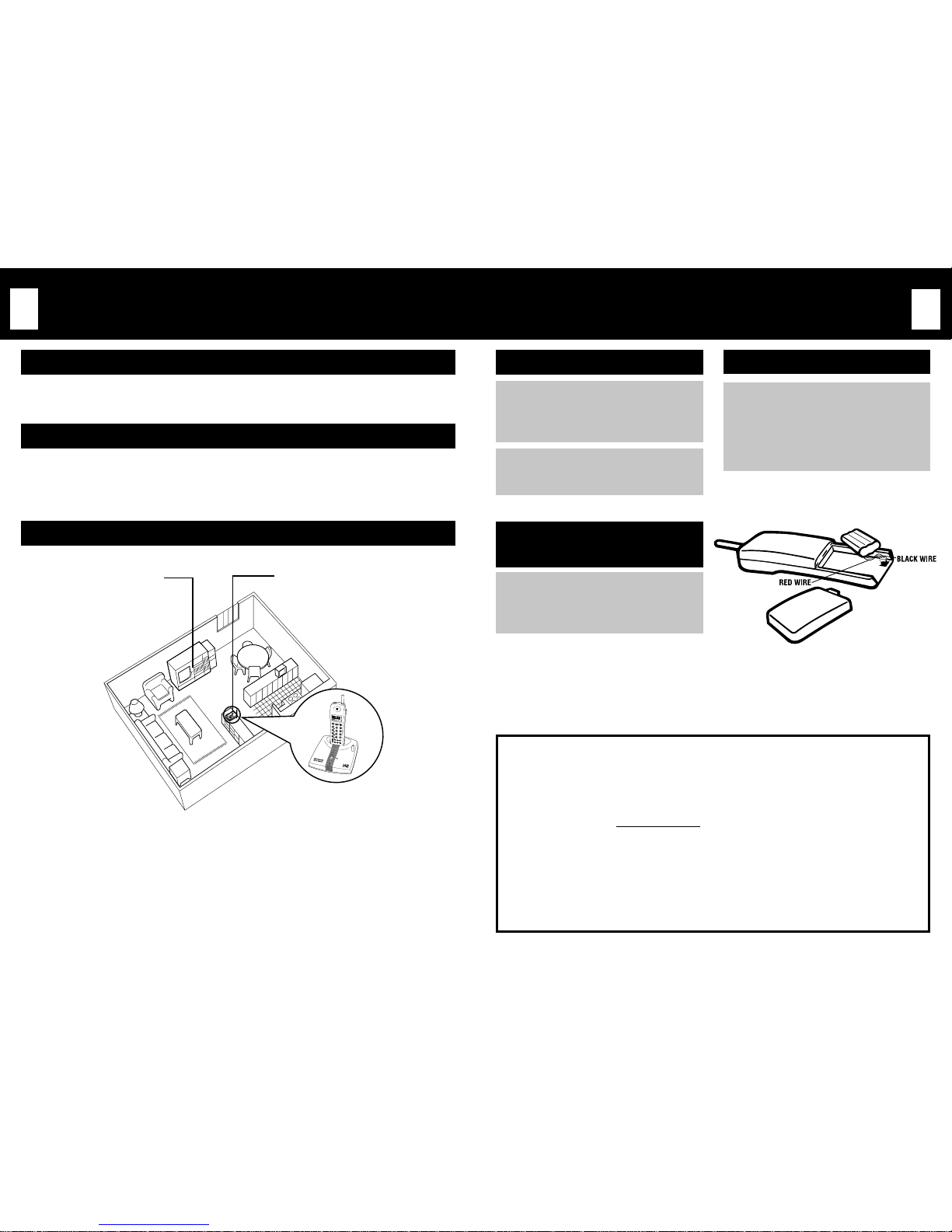

INSTALL THE BASE UNIT

Plug the line cord into the “TEL LINE”

jack on the back of the base unit and

the other end into your telephone wall

jack.

Connect the AC adapter to the back of

the base unit and plug into an electric

outlet.

INSTALL

THE HANDSET BATTERY

1Slide open the battery compartment

cover and connect the NiMH battery

pack as shown in the illustration at

the right.

CHARGING THE BATTERY

1Place the handset in the charging

cradle. Additional handsets will

include their own individual

charging cradles. The battery will

fully charge after approximately

10-12 hours.

INITIAL SETUP

SELECTING A LOCATION FOR THE BASE UNIT

The base unit needs AC power and connection to a telephone jack. This location should be as

central as possible in your home or office.

SELECTING A LOCATION FOR ADDITIONAL HANDSETS

Anywhere you have power will do! Avoid high humidity or high heat areas, and keep the

handsets out of extended exposure to direct sunlight. Handsets can be swapped in their

chargers at any time and can be placed anywhere within the extended transmission range of the

base.

For optimal performance, your phone's base unit should be installed as follows:

OPERATING DISTANCE/NOISE INTERFERENCE

NOTE:

While using the handset:

■If you are near a microwave oven which is being used, noise may be heard at the receiver.

Move away from the microwave oven and closer to the base unit.

■If more than one cordless phone is being used and your handset is near another cordless

phone's base unit, noise may be heard. Move away from the other cordless phone's base unit

and closer to your base unit.

Away from electrical appliances

such as a microwave oven, TV,

personal computer, or another

cordless phone.

In a HIGH and CENTRAL location with

no obstructions nearby.

WARNING

To prevent fire or shock hazard, do not expose the set to rain or moisture.

To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

CAUTION

1. Use batteries only intended for recharging. Use only the following battery pack:

Nickel Metal Hydride, 3.6 volts, 700 mAh.

2. Do not dispose of the battery(ies) in a fire. The cell may explode. Check with local codes

for special disposal instructions.

3. Do not open or mutilate the battery(ies). Released electrolyte is corrosive and may cause

damage to the eyes or skin. It may be toxic if swallowed.

4. Exercise care when handling the battery(ies) in order not to short the battery(ies) with

conducting materials such as rings, bracelets, and keys. The battery or conductor may

overheat and cause burns.

PAGE 5

PAGE

Each handset must have a DIFFERENT

handset ID number. If any two handsets have

the same ID number, the entire system will

not function properly.

PROGRAMMING THE

HANDSET ID

TURNING THE RINGER

ON/OFF (L1 Ring)

NOTE:

■When the ringer is set to “Off”, an icon will display

to alert you that the handset will not ring during

incoming calls.

BASICPROGRAMMING

Press

PRG

Press▲or▼until“Handset ID”

displays.

Press

“#”

to begin programming the

Handset ID.

Enter a selected 2-digit station ID

number (choose any number from

11-70).

Press

OFF

PRG

to end the

programming session OR press ▲or

▼to advance to another

programming step.

You can turn the ringer on or off on each

handset.

Press

PRG

Press▲or▼until“L1 Ring”

displays.

The current setting will be displayed

on the second line of the display.

Press

“#”

to toggle between “On”and

“Off”.

When the desired setting is displayed,

press

OFF

PRG

to end the

programming session OR press ▲or

▼to advance to another

programming step.

RINGER TYPE

PROGRAMMING

The unit allows you to select one of four ring

tones for each handset. The ringer type

default is set to type 1.

Press

PRG

Press▲or▼until“Ring Type”

displays.

Press

“#”

to toggle between any one

of the four ring tones. Each time you

make a selection, you will hear the

corresponding ringer sound.

When the desired ringer type is

displayed, press

OFF

PRG

to end

the programming session OR press

▲or ▼to advance to another

programming step.

All handsets must be programmed with the

SAME security code (Sec. Code) in order to

operate as a system. The first handset that is

programmed must be registered to the base

(see instructions below). Additional handsets

need only be programmed with the same

security code to begin operation.

1Press

PRG

(Program).

Press ▲or ▼(located on the side of

the handset) until “Sec Code”

displays.

3Enter

“#”

to begin programming the

security code.

4Using the keypad, enter any 6 digit

code.

5Press

OFF

PRG

to end the

programming session OR press ▲or

▼to advance to another

programming step.

REGISTERING THE

HANDSET TO THE BASE

If you are programming the FIRST handset in

the system, you must register the new system

security code to the base unit.

1Position the handset close (within 6-8

inches) to the base.

2Press

PRG

3Press▲or▼until“REGISTER HS

to Base”displays.

4Press and hold

PAGE

on the base unit

for at least 3 seconds. The light will

begin to flash.

5Release

PAGE

SYSTEMREGISTRATION

(SECURITY CODE)

PROGRAMMING THE

SYSTEM SECURITY CODE

NOTE:

■Once you choose a security code for the first

handset, you must use the SAME code for each

additional handset. Don’t worry about forgetting

the code- it can be displayed on the handset to

remind you of the code when you add additional

handsets.

NOTE:

■Make sure you don’t confuse the System Security

Code with the Handset ID number. Each handset

must have the SAME System Security Code, but

they must have DIFFERENT Handset ID numbers.

6Press

“#”

on the handset. Keep

holding

“#”

until a confirmation beep

is heard.

NOTE:

■You don’t need to hold both buttons (PAGE and

“#”) at the same time. After you press and release

the PAGE button, then press the “#”button until

you hear the confirmation beep. If you don’t hear

the beep after about 15 seconds, try repeating the

steps again.

7Press

OFF

PRG

to end the

programming session OR press ▲or

▼to advance to another

programming step.

Ring: Mid

ID: 11

PAGE 7

PAGE

BASICPROGRAMMING(cont.)

PROGRAMMING

AREA CODE

It is only necessary to enter your area code if

you choose the “Smart Dial”method for

dialing from Caller ID records (see “Dialing

Mode”section). The Smart dialing method

will compare the area code of the Caller ID

number to your local area code to determine

whether to dial 7 digits or 11 digits.

NOTE:

■Area Code programming will ONLY display when

“Smart Dial”is selected as the Dialing Method. If

any other method is selected, the Area Code

programming option will be hidden. Once the Area

Code has been set, it will remain in the system’s

memory, even if the option is hidden.

To enter your area code:

Press

PRG

2Press▲or ▼until“Area Code”

displays.

3Press

“#”

to enter your Area Code.

4Using the keypad, enter your 3 digit

AreaCode.

5Press

OFF

PRG

to end the

programming session OR press ▲or

▼to advance to another

programming step.

NOTE:

■Area Code is a universal setting. When the setting

is changed on any handset, the setting is changed

for the entire system.

DIALING MODE

When dialing from Caller ID records, the

unit can use one of the following four dialing

methods:

A) 7/10/11 Digit Dialing –For each call,

the unit will prompt you to choose

7-digit, 10-digit, or 11-digit dialing, based

on the local telephone company’s

requirements. This system is useful in

areas that sometimes require the user to

dial 10 or 11 digits for local dialing. When

dialing from a Caller ID record, the LCD

will display your choice of 7, 10, or 11

digits. Press “1”to initiate dialing using 7

digits, Press “2”for 10 digits, or Press “3”

for 11 digits.

B) All 11 Digit Dialing (Always 11)–For

each call, the unit will dial 11 digits (a “1”

and the area code, followed by the 7 digit

number).

C) Smart Dialing –For each call, the

unit will look at the Caller ID phone

number to see if the area code of the

number matches your local area code

(Note- this feature requires you to enter

your area code –see “Programming Area

Code”). If the area code does match, the

unit will dial only 7 digits. If it does not

match, the unit will dial 11 digits.

D) Exact Dialing –The unit will always dial

the exact digits that are displayed in the

CallerIDrecord.

PROGRAMMING

THE FLASH TIME

In the unlikely event that you need to change

the unit’s flash duration, the unit allows you

to choose from four pre-programmed

settings. The default setting of 600 ms will

usually not need to be changed. If the phone

is being used for a Centrex service or in a

country outside of North America, it is

possible that you might need to change the

setting. Contact your service provider for the

specific requirements.

Press

PRG

Press▲or▼until“Flas Time”

displays.

Press

“#”

to toggle among the flash

time choices of 600/100/275/375 ms.

When the desired flash time is

displayed, press

OFF

PRG

to end

the programming session OR press

▲or ▼to advance to another

programming step.

1Press

PRG

Press▲or▼until“Tone/Pulse”

displays.

Press

“#”

to toggle between the tone

and pulse modes.

When the desired setting is displayed,

press

OFF

PRG

to end the

programming session OR press ▲or

▼to advance to another

programming step.

NOTE:

■Tone/Pulse Mode is a universal setting. When the

mode is changed on any handset, the setting is

changed for the entire system.

Press

PRG

Press▲or▼until“Hold Remind”

displays.

NOTE:

■Flash Time is a universal setting. When the mode

is changed on any handset, the setting is changed

for the entire system.

TONE/PULSE MODE

PROGRAMMING

You may program your phone to be a TONE or

PULSE dialing phone. Most telephone

services dial in the TONE mode.

PROGRAMMING THE HOLD

REMINDER

The unit can be programmed to remind you if

a call has been left on hold for extended

periods of time. You can choose how often

you wish to be alerted or if you wish to turn-

off this feature.

3Press

“#”

to toggle among the

settings (15, 30, 45 or 60 seconds or

OFF).

When the desired setting is displayed,

press

OFF

PRG

to end the

programming session OR press ▲or

▼to advance to another

programming step.

NOTE:

■Hold Reminder is a universal setting. When the

setting is changed on any handset, the setting is

changed for the entire system.

PAGE 9

PAGE

PROGRAMMING

THE RINGER LEVEL

Select between three volume levels for the

handset’s ringer.

Press

PRG

Press▲or ▼until “Ring Level”

displays.

Press

“#”

to toggle among the

settings Low/Mid/Hi.

When the desired setting is displayed,

press

OFF

PRG

to end the

programming session OR press ▲or

▼to advance to another

programming step.

BASICPROGRAMMING(cont.)

RESETTING

THE HANDSET

At any time, you may reset a handset to return

to the factory default settings. Please note

that this action will completely restore the

handset to its factory programmed settings.

Resetting the handset will NOT reset the

universal settings or the stored information

(such as Caller ID records) contained in the

base unit.

Press

PRG

Press▲or▼until “Reset ?”

displays.

Press

PRG

again to complete the

reset. You will hear a beep to confirm

that the reset process has been

initiated. The LCD will display:

PRG OK!

Resetting

After 15 seconds, the handset will

return to standby mode.

PRIVACY

The Privacy setting is only necessary if the

handset is used with a 2-Line multiple

handset system. This setting is not necessary

when using the system. Regardless of

whether Privacy is programmed to “On”or

“Off”, the unit’s operation will not be affected.

PROGRAMMING

DIALING MODE

Press

PRG

Press▲or▼until “Dialing Mode”

displays.

Press

“#”

to toggle among the

settings.

When the desired setting is displayed,

press

OFF

PRG

to end the

programming session OR press ▲or

▼to advance to another

programming step.

Press

PRG

Press▲or▼until“LIU Detect”

displays.

Press

“#”

to toggle between “On”and

“Off”.

When the desired setting is displayed,

press

OFF

PRG

to end the

programming session OR press ▲or

▼to advance to another

programming step.

NOTE:

■LIU Detect is a universal setting. When the mode

is changed on any handset, the setting is changed

for the entire system.

NOTE:

■Dialing Mode is a universal setting. When the

mode is changed on any handset or the base, the

setting is changed for the entire system.

PROGRAMMING

LINE IN USE DETECTION

(LIU DETECT)

The unit can be programmed to detect

whether the line is properly connected, and to

display when the line is being used. For most

users, this feature should be programmed to

“On”. If you are connecting the unit to a PBX

system or if you live in an area prone to line

voltage irregularities, you may want to turn

this feature “Off”.

When LIU is set to “On”, line-in-use status

will be displayed as follows:

On handset –L1 icon will display when the

line is in use.

On base unit –Base LED will flash when the

line is in use.

To program Line In Use Detection:

NOTE:

■Make sure to set the Handset I.D. and Security

Code after resetting the handset. Each handset

has the same default Handset I.D. of station 11. If

more than one handset has the same Handset

I.D., the system will not function properly.

PAGE 11

PAGE

DISPLAY REDIALING

Display redialing allows you to view the first

10 digits of the last number dialed. This is

useful if you aren’t sure what number was

last dialed.

Without pressing one of the TALK

buttons, press

RDL

. The LCD will

display the last number dialed.

2Press one of the

TALK

buttons

(●or ❍) and the number will be

automatically dialed.

1During a phone conversation, press

HLD/XFR

on the handset. The LCD

will display:

PLACING A CALL ON HOLD

2If you wish to transfer the call to

another handset, dial the desired

handset ID number.

AUDIBLE HOLD REMINDER

HOLD RECALL RING

If the call on hold is not picked up for 3

minutes, all handset units will start to ring

(Recall Ring) to remind all of the stations that

a call is on hold.

TAKING A CALL OFF HOLD

Press one of the

TALK

buttons (●or

❍) OR pick up another phone on the

line (including any of the extension

handsets).

The call will be released from Hold.

NOTE:

■If a call has been on hold for more than 5

minutes, the unit will automatically disconnect the

call.

NOTE:

■If you do not press one of the

TALK

buttons

within 15 seconds, the unit will return to standby

mode.

3If you do not transfer the call, it will

remain on Hold.

Audible Hold Reminder is designed to prevent

calls from accidentally being placed on hold

for a long duration of time. Audible Hold

Reminder automatically alerts the station that

placed the call on hold, that the call has been

unattended for longer than the hold reminder

time. The default hold reminder time is 30

seconds. To change the hold reminder time,

see page 6.

The unit is in standby mode whenever it is

idle and waiting for a call. In standby mode,

the handset LCD will display the current

ringer volume setting and the handset’s

station ID: Ring:Low

ID:12

There are 5 receiver volume levels.

2When you reach the maximum or the

minimum volume settings, you will

hear a beep.

Pick up the handset and press either

TALK

button (●or ❍) .

Wait for a dial tone and then dial the

phone number. The number will

appear in the display as you dial.

L1 00:04

13105553345

To hang up, press

OFF

or return the

handset to its charger.

When the phone rings, pick up the

cordless handset and press either

TALK

button (●or ❍) to answer the

call.

LAST NUMBER REDIAL

(RDL)

The unit remembers the last number you

dialed. The redial memory will hold up to 32

digits. Every time you dial a new telephone

number, the redial memory is updated with

the new number.

Press one of the

TALK

buttons

(●or ❍) and wait for a dial tone.

Press

RDL

3The last number dialed will be

displayed in the LCD and will be

automatically dialed.

BASICOPERATION

VOLUME CONTROL

Press ▲or ▼on the side of the

handset to change the volume level

of the handset during a conversation.

3The volume control automatically

stays at the last setting after each

phone call.

PLACING A CALL

Ten digits can be shown at one time

on the display. If more than ten digits

are entered, the “←”will appear to

indicate that additional digits are

contained in the number.

TO END A CALL

RECEIVING A CALL

STANDBY (IDLE) MODE

TRNF To

Hold

CALL TIMER

During a phone call, a timer, located at the top

right corner of the LCD, will display the

elapsed time of the call.

L1 02:47

13105553345

PAGE 13

PAGE

BASIC OPERATION (CONT.)

TONE/PULSE MIXED

DIALING

Press

❋❋

❋

TONE

on the handset to

temporarily change from PULSE

dialing to TONE dialing.

Dial the tone numbers (such as

automated menu choices).

DO NOT DISTURB (DND)

FEATURE

From standby mode, press

FCN

and

then press

DND

(the

“4”

key).

This feature can be used to temporarily

prevent interruptions during meetings or

telephone conversations. When you activate

the DND feature on a handset, the handset

will not ring for incoming calls, transferred

calls, or intercom calls.

2To cancel the DND mode, press

FCN

and press

DND

again.

OUT OF RANGE WARNING

The unit has an operating range which can

vary, depending on conditions such as

climate, altitude, and the type of obstacles

between the handset and the base. If you

move out of the base unit’s operating range,

the LCD will display “Out of Range”and

you will hear a double beep warning tone.

Move closer to the base unit to deactivate the

warning. If you remain out of range for too

long, the unit will place the call on hold. Go

back into range and pick up the held call.

This feature is useful if your telephone

service is PULSE and you need to use TONE

dialing to access a special service. This

feature is only needed if you have

programmed the TONE/PULSE setting to

PULSEmode.

Dial the telephone number and wait

for the line to connect.

4Hang up and the unit automatically

returns to the PULSE mode.

TRANSFERRING A CALL

During a phone conversation, press

HLD/XFR

on the handset.

Dial the desired handset ID number.

The other handset will ring to indicate

the incoming transferred call.

NOTE:

■If you do not enter a station number within 10

seconds, the display will return to standby with the

call on hold.

ANSWERING A

TRANSFERRED CALL

Pick-up the handset and press one of

the

TALK

buttons (●or ❍).

The call will be transferred to the new

handset, and will be released from the

other handset.

If a transferred call is not answered within 3

minutes, all handsets will start to ring to

remind all of the stations of the unanswered

call. An icon will flash in the LCD to indicate

the transferred line. Any handset may answer

the transferred call at this time.

TRANSFERRED

CALL ALERT

Press and HOLD

MUTE

, on the side of

the handset. The LCD will display:

To resume your conversation, release

MUTE

MUTE FUNCTION

The mute feature turns off the microphone so

the other party cannot hear you. You,

however, are still able to hear the other party.

The mute feature automatically cancels when

you let go of the Mute key.

To initiate the mute feature during a

conversation,

Mute 00:14

Ring: DND

ID:20

MULTIPLE HANDSET

SIMULTANEOUS

CONVERSATIONS

The unit is a multiple handset system, but the

transceiver design can only allow one

handset at a time to talk with an outside

caller. A handset can transfer a call to another

handset (see Transferring a Call, on page 12).

When a handset is talking to an outside caller,

another handset cannot join in the

conversation. The other handset can,

however, intercom a different handset and

have an internal conversation.

PAGE 15

PAGE

PAG

ROOM MONITOR

You can automatically turn on the

microphone of a handset to listen for activity.

From standby mode, press

INT

Press

INT

again. The microphone of

the station you are calling will

automatically turn on.

CALL WAITING

Call waiting is a subscription service offered

by your local telephone company. When you

are on the line and another call comes in, a

beep is emitted over the line. You can

continue speaking to the first caller or, by

pressing

FLS

(Flash), you can toggle to

speak to the second caller.

2Dial the desired handset number. The

handset you are calling will ring.

4Exit by pressing

OFF

Each handset can be used with any standard

2.5 mm. headset for handsfree operation.

Plug the headset into the headset jack

on the top of the phone (remove the

rubber plug if it is covering the hole).

INSTALLING

THE BELT CLIP

Place one side of the belt clip into the

groove on the side of the handset.

MAKING

AN INTERCOM CALL

You can call from one handset to another,

without tying up the outside phone line.

The LCD will show which handset is

calling.

Pick-up the handset and press a

keypad key. The LCD will display:

The calling party’s LCD will display:

When the battery pack needs recharging, the

low battery icon will be displayed. You may

also notice a reduction in the quality of your

cordless handset communications. Return

the handset to the charging station as soon

as possible, whenever the low battery icon

is on.

HANDSET LOW BATTERY

INDICATOR

USING A HEADSET

2Calls can now be made using the

headset.

3To return to using the handset

without a headset, simply unplug the

headset.

2Snap the other side of the belt clip

into the groove on the other side of

the handset.

1From standby mode, press

INT

2Dial the desired handset number. For

example, if handset 12 calls handset

15, the LCD of the calling unit will

display:

ANSWERING

AN INTERCOM CALL

When the conversation is over, press

OFF

to release the call.

BASIC OPERATION (CONT.)

ICM To 15

ID:12 Ring

ICM By 12

ID:15 Ring

ICM By 12

ID:15 Talk

ICM To 15

ID:12 Talk

PAGE ALL HANDSETS

To page all the handset users or to locate the

handset from the base unit:

Press

PAGE

on the base unit.

Each handset will make a chirping

sound for about 15 seconds.

3To turn off the page, press

OFF

any handset.

Ring: Mid

ID: 11

To avoid a low battery condition, it is

recommended that you keep the handset in

its charging station whenever it is not in use.

VOICE MESSAGE

INDICATION

If you subscribe to voice mail service from

your local telephone company AND if your

telephone company uses FSK message

waiting indication (a signaling method that

sends an indication that you have new,

unplayed messages in your voice mail), the

unit will alert you that you have new

messages.

The unit will detect the message waiting

signal and will activate indicators on the base

and the handsets. The base LED will flash

and the handsets will display “MsgWait”.

L1 Msg Wait

ID:11

To retrieve your messages, follow the

voice mail retrieval procedure specified

by your local telephone company.

Soon after you review the new

messages, a signal will alert the

unit to turn off the voice message

indicators.

3To manually turn off the indicators,

press

FCN

and then press

DEL

(

“1”

PAGE 17

PAGE

If the name or number is larger than 12

characters in length, the first 12 characters

will display on the handset’s screen.

To view the remaining characters,

Press

MUTE

(on the side of the

handset).

2Press

MUTE

again to view the date

and time of the call, as well as the

Caller ID record number and the

Repeat Indicator.

CALL WAITING CALLER ID

If you subscribe to Call Waiting Caller ID

(combined service), you will receive Caller ID

information (if available) from Call Waiting

calls. During a phone call, you will hear a

beep to indicate the presence of a Call

Waiting call. Shortly afterward, the Caller ID

information will appear on the handset LCD.

You can then choose to answer the call, by

pressing

FLS

, or let the incoming call

continue to ring.

REVIEWING CALLER ID

RECORDS

The unit can store 50 of the most recent

Caller ID records. The records are stored in

the base unit and can be accessed by any

handset. Caller ID records are numbered

sequentially, in the order in which they are

received. When the 50 record memory is full,

the oldest record will be deleted automatically

each time a new record is received.

To view the Caller ID records stored in

memory:

Press

CID

to enter the Caller ID

database. The LCD will display the

number of CID records:

Press ▲to view the most recent

record.

CALLER ID DISPLAY

If you have subscribed to Caller ID service

from your telephone company, each

handset’s display will show the telephone

number and the name of the incoming call (if

available), as well as the date and time the call

is received. The information will display on

the LCD while the phone is ringing (after

the first ring), and is then stored in the

unit’s Caller ID database.

CALLER ID SUBSCRIPTION

Caller ID is a subscription service available

from your telephone service provider. For the

Caller ID feature to work on the unit, you

must subscribe to the service.

To receive Caller ID information for a Call

Waiting call, you must subscribe to

combined Call Waiting Caller ID service from

your telephone service provider. Even if you

subscribe to both Caller ID and Call Waiting

services separately, it is possible that you are

not subscribed to the combined service.

If a caller chooses to partially or completely

“block”Caller ID information, a message will

appear on the display indicating that the

name and/or phone has been blocked. The

call will display as a Caller ID record, showing

time and date information, and the message

“PRIVATE”.Othermessagesthatmight

appear to indicate missing Caller ID data, are

“Out of Area”,“No Number”or“No

Name”. These messages indicate that

complete Caller ID data was not sent.

MISSING CALLER ID DATA

CALLER ID OPERATION 5Press

MUTE

again to toggle back to

the name and number display OR

press ▲to continue scrolling to the

next most recent record. (Press ▲ to

view earlier records and press ▼to

viewlater records).

6Press

OFF

to exit, or wait 15 seconds

and the LCD will revert back to the

standby display.

3The first display screen will show the

name and the phone number, if

available.

4Press

MUTE

to toggle to the second

display screen, which will show the

record number, the time and date of

the call, and the Repeat counter (see

“Repeat Counter”section).

BLUMENFELD J

6189910

←ENNIFER

#02 *02

AUG06 14:43

ALL CID: 23

JACOBS SHAWN

5552174

#12 *00

JUL18 15:35

The unit is programmed to automatically

condense all calls from the same phone

number within the same day as a single Caller

ID record. This feature saves memory and

prevents the Caller ID log from being filled

with duplicate records from frequent callers.

Each time that a repeat caller calls again

within the same calendar date, the unit will

condense the calls into one Caller ID record,

listing only the time of the most recent call.

When viewing a Caller ID record, press

MUTE

to toggle to the screen that contains

the record number, the time and date of the

call, and the Repeat Counter. The Repeat

Counter is located in the upper right side of

the display. The number displayed in the

Repeat Counter indicates how many times the

repeat caller called that day. For example, if a

Caller ID record displays a Repeat count of

“3”, this indicates that the caller called 3

times that day.

REPEAT COUNTER

NOTE:

■You will never see a Repeat count of “1”, because

a call is not considered a Repeat until the caller

has called twice. A Repeat count of “0”indicates

that the Caller ID record is not a repeat call

because the caller only called one time.

#16 *03

JUL21 08:45

PAGE 19

PAGE

You may create a new Directory record or you

may copy a Caller ID record into the Directory.

STORING A DIRECTORY

RECORD

Press

DIR

Press

PRG

Press the appropriate keypad button

to toggle through the letters and

numbers associated with that key. The

upper case letters will appear first,

followed by the lower case letters, and

the number. (For example- press the

number

“5”

button to toggle among

“J”,“K”,“L”“j”, “k”, “l”,andthe

number“5”).

When the desired letter appears,

either wait 1-2 seconds for the cursor

to automatically move to the next

character, OR press ▲or ▼to

manually move to the next character.

DIRECTORYOPERATION

The unit allows you to store up to 80 names

and numbers in an alphabetical phone

Directory.

CREATING A NEW

DIRECTORY RECORD 6Press

PRG

again to begin

programming the phone number.

7Use the keypad to enter the desired

phone number. Remember to include a

“1”for a long distance phone number

and any prefixes necessary to access

an outside line (such as a “9”).

8Press

PRG

again to complete. A

confirmation beep will be heard.

EDITING TIPS

1. To move the cursor forward or backward

while editing, press the ▲or ▼keys.

2. To insert a character, position the cursor

to the right of the location in which you

wish to add the character and type the

new character.

3. To insert a space between two existing

characters, position the cursor to the right

of the location in which you wish to insert

the space. Type “00”, using the keypad, to

insert the space.

4. To delete a character, position the cursor

on the character, Press

FCN

(↑ will

display to indicate “function”mode), and

then press

DEL

(

“1”

DELETING A CALLER ID

RECORD

Locate the desired Caller ID record.

Press

FCN

(↑ will display to indicate

“function”mode), and then press

DEL

(

“1”

The display will ask for confirmation

that you wish to delete the record.

Press

PRG

to permanently delete the

record.

2Press

FCN

(↑ will display to indicate

“function”mode), and then press

DEL

(

“1”

DIAL A CALLER ID

RECORD

1Press

CID

to enter the Caller ID

database.

2Press ▲or ▼to scroll to the desired

CallerIDrecord.

3Press either of the

TALK

buttons

(●or❍).

4The unit will automatically dial the

number.

DELETE ?

DELETING ALL CALLER ID

RECORDS

Press

CID

. The display will read “All

CID”.

3The display will ask for confirmation

that you wish to delete all of the

records.

DELETE ALL ?

4Press

PRG

to permanently delete all

of the records.

CALLER ID OPERATION (CONT.)

(Name?)

5To add a 2 second pause to a Directory

dialing sequence (for example, to add a

delay between dialing a phone number

and dialing a password or menu

choice), press

FCN

and then press

PAUSE

(

“7”

). The letter “P”will

display to indicate the placement of

the pause. Add as many 2 second

pauses as neccessary.

Indice

Altri manuali Uniden Sistema telefonico

Uniden

Uniden EXP1240 Manuale utente

Manuali Sistema telefonico popolari di altre marche

Teleco

Teleco Perfect Voice Tis 16 Manuale utente

AT&T

AT&T Network Adapter 25 Manuale utente

AVE

AVE AF902R-CE Manuale utente

Tynetec

Tynetec Advent xt Manuale utente

Ericsson

Ericsson DCT1800-S Manuale utente

NEC

NEC Electra Elite 192 Manuale utente

Alcatel

Alcatel EASY REFLEXES 4200 Manuale utente

Panasonic

Panasonic KX-TDA50 Manuale utente

Bticino

Bticino PABX 28D Manuale utente

NEC

NEC SL 2100 Manuale utente

Sonifex

Sonifex Phone In 6 Manuale di istruzioni

TransTel Communications

TransTel Communications TD-824i Istruzioni per il montaggio

Nortel

Nortel BCM50 Manuale del prodotto

Panasonic

Panasonic KX-TS25B Manuale utente

ASCOM

ASCOM TD 92375GB Manuale del proprietario

Karel

Karel MS26S Scheda informativa del prodotto

EnGenius

EnGenius DuraFon PRO Manuale utente

Teledat

Teledat X130 DSL Manuale utente
