UniGuard UM206 Manuale utente
UniGuard Technology Limited
- - www.uniguardgps.com
1
Mini GPS Vehicle Tracker
User Manual
UM206
UniGuard Technology Limited
- - www.uniguardgps.com
2
1 Product Instructions

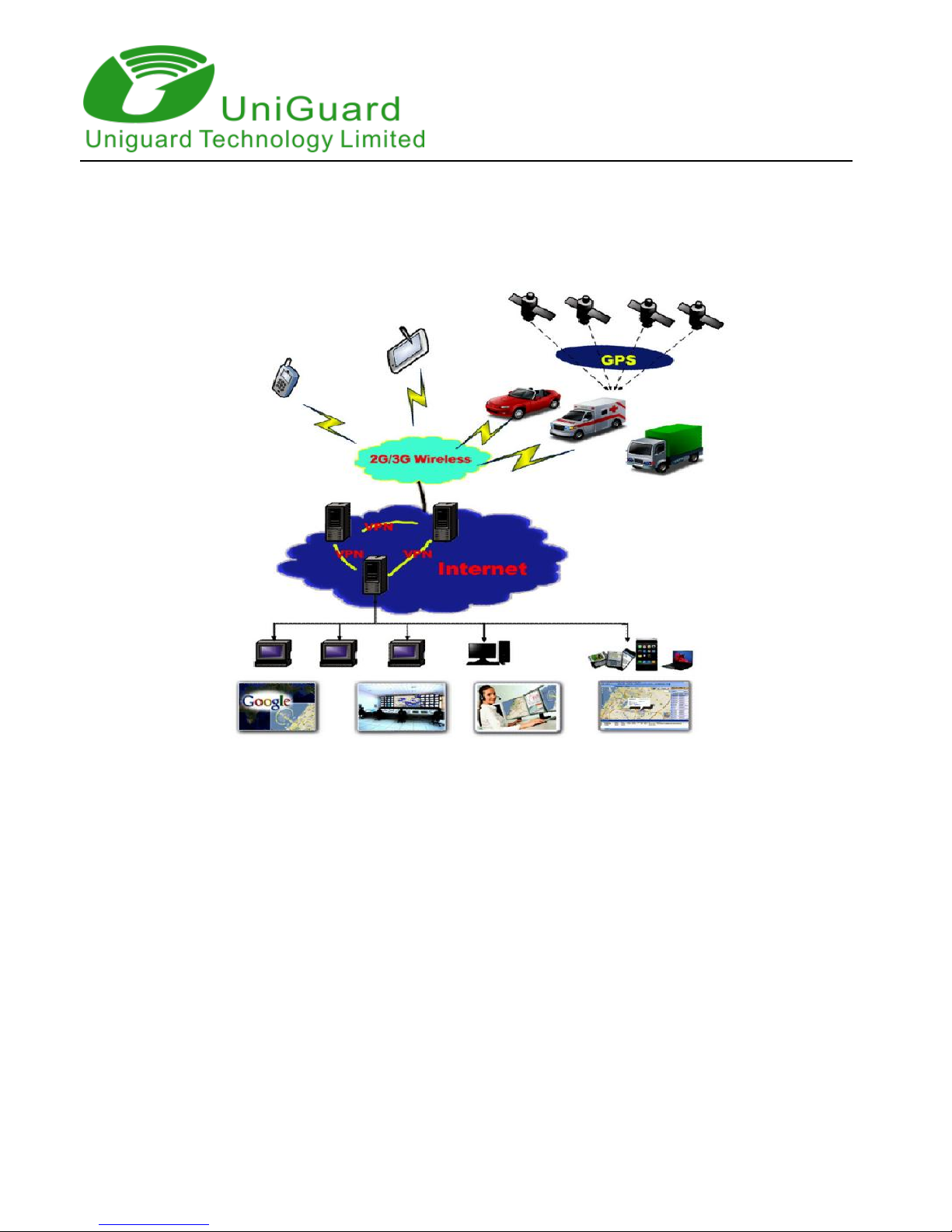

It is a mini GPS Tracker, built-in GPS Antenna and GSM Antenna,
Size: 94*45*10mm, Weight: 85g, it can send vehicle location and
status to mobile and Internet. It can track the vehicles remotely.
Tracker the vehicle on the Internet and Mobile. (Wide working voltage
9V-75V.)
UniGuard Technology Limited
- - www.uniguardgps.com
3

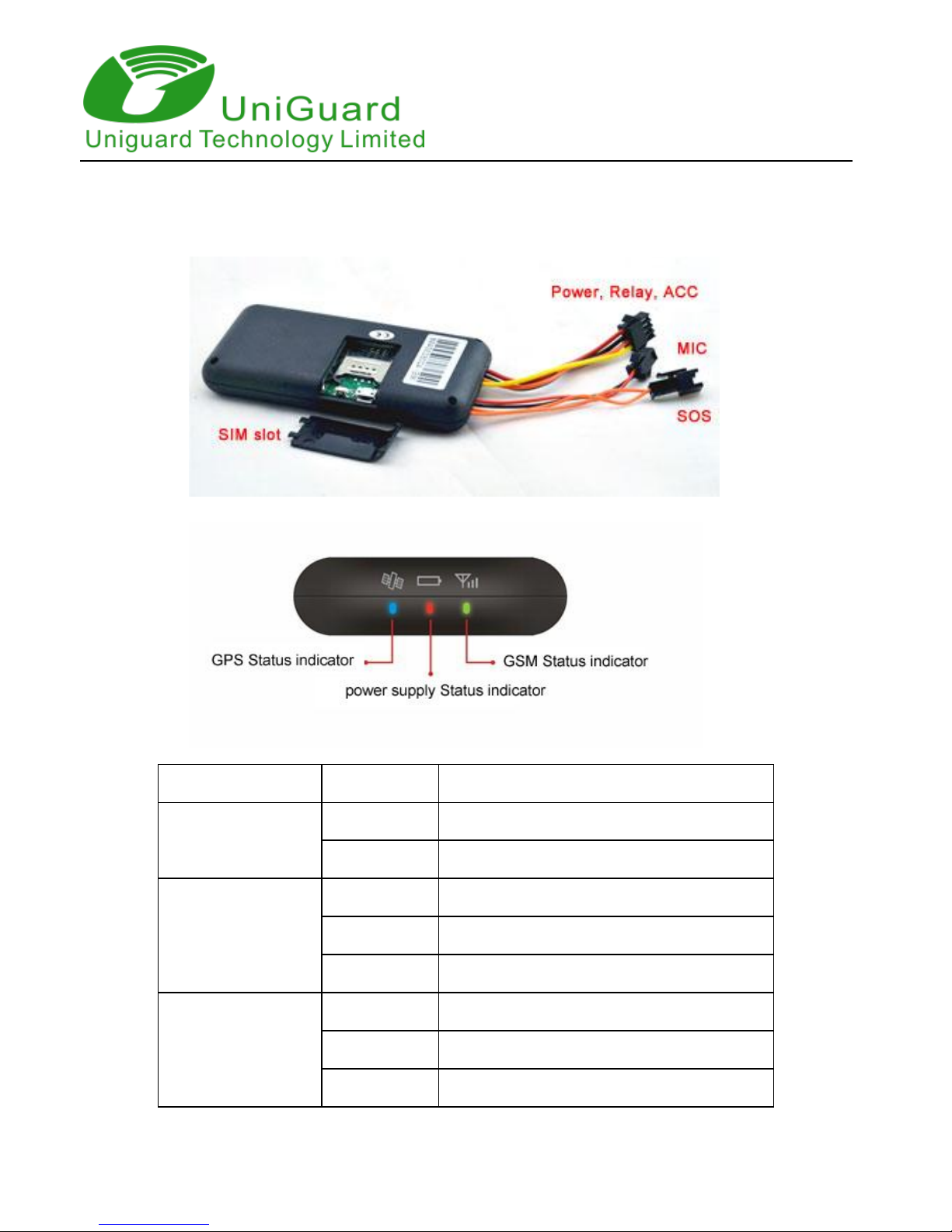

1.1 Interface
LED
Status
Explanation
RED-Power
Blink
OK
OFF
No Turn on Or Low Power
GREEN-GSM
ON
Initialize GSM Signal
Blink
GPRS OK
OFF
GSM Standby
Blue-GPS
ON
Search GPS Signal
Blink
GPS OK
OFF
GPS Not Working
UniGuard Technology Limited
- - www.uniguardgps.com
4
1.2 Installation Figure
1.2.1 Check products to see if there is any accessory missing.
Please contact us immediately.
You can hear “click”sound is insert is correct.

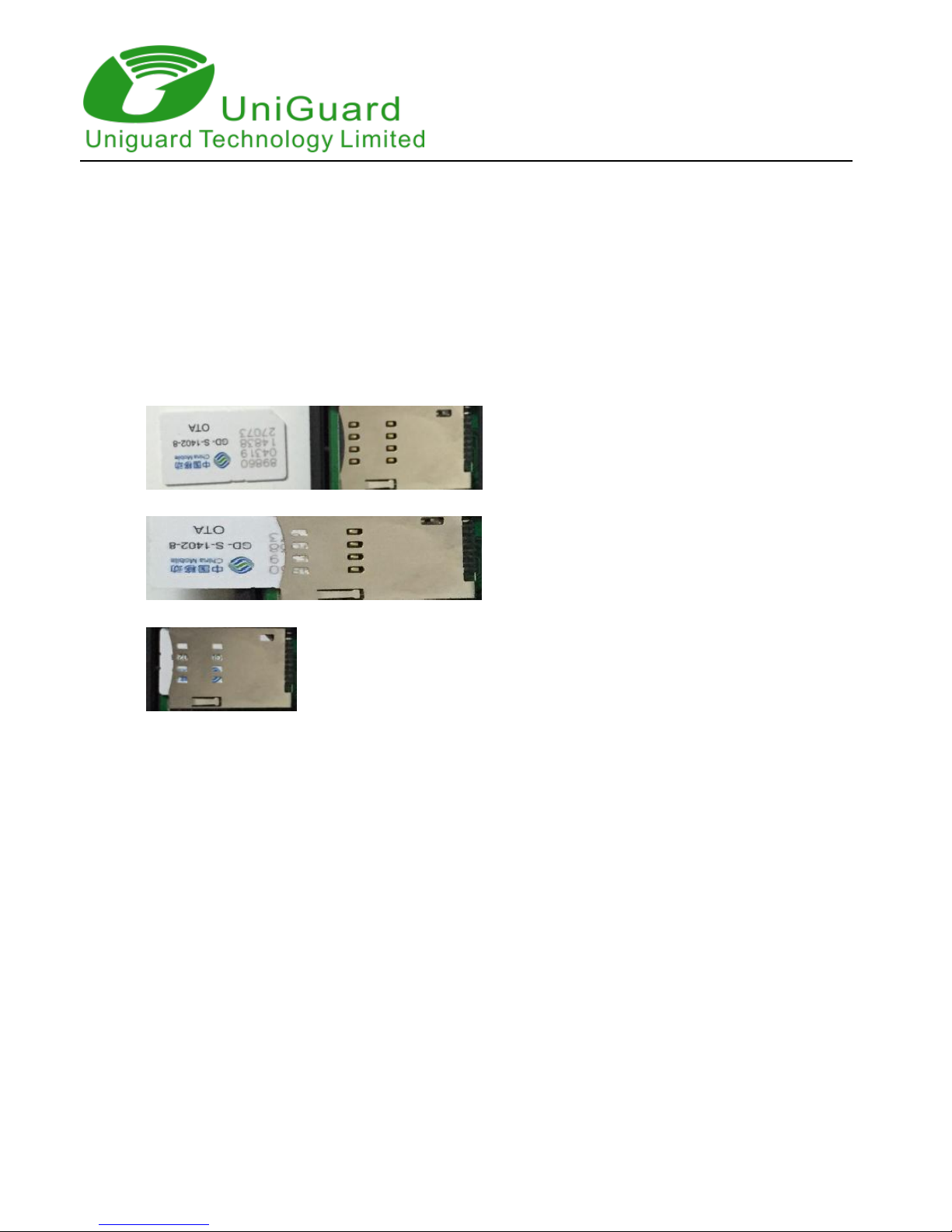

1.2.2 Insert SIM card
1
2
3
Tips:
Don't insert the SIM card up-side-down.
Make sure the SIM card with GPRS service.
If the SIM card has been inserted, but it requires you to input SIM
PIN, please close the SIM PIN function under the instruction of your
mobile phone user ’s manual.
Make sure the SIM card account has enough credit.

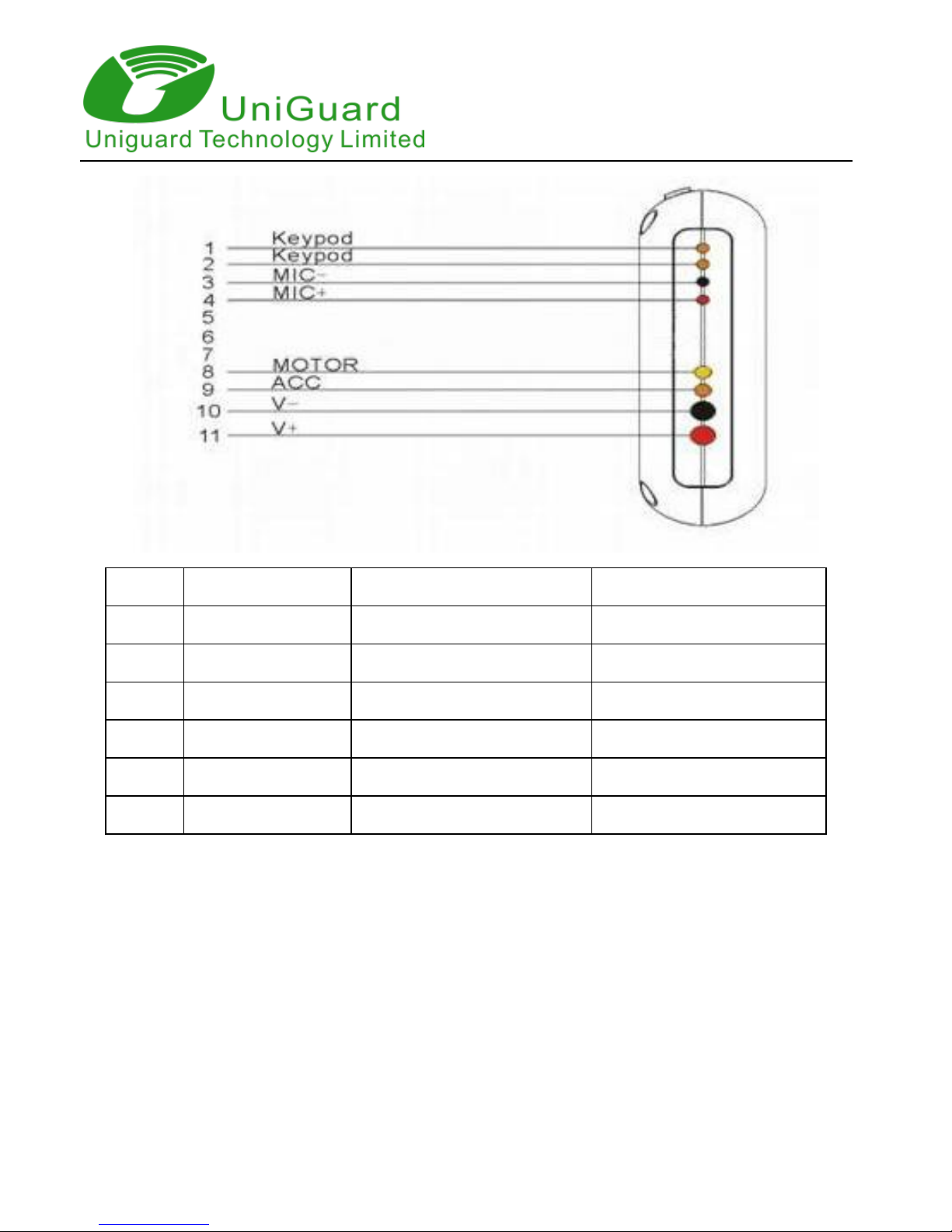

1.2.3 GPS Tracker outlet definition
UniGuard Technology Limited
- - www.uniguardgps.com
5
Line
Usage
Color
Instructions
1.2
SOS
Orange, Orange
SOS alarm
3.4
MIC
Black, Red
Voice monitoring
8
Power OFF
Yellow
Engine immobile
9
ACC
Orange
Engine status
10
V-
Thick Black
12V/24V Negative
11
V+
Thick Red
12V/24V Positive
UniGuard Technology Limited
- - www.uniguardgps.com
6
1.2.4 Wiring Diagram
UniGuard Technology Limited
- - www.uniguardgps.com
7
2 SMS Operation Instruction
****** is default password 123456
2.1 Set Admin Number
Message format: adm******,Tel
e.g. adm123456,13800000000
Reply: ADM! A1: 13800000000
Delete admin Number
Message format: noadmin******,
e.g. noadmin123456,
Reply: ADM! A1:
2.2 Change Password
Message format: pwd****** NewPass
e.g. pwd123456 666666
Note: 123456 is the old password, 666666 is the new password.
Reply: OK! New password: ******. Safe keeping!
UniGuard Technology Limited
- - www.uniguardgps.com
8
Below commands are sent through Admin Number Only!
2.3 Set SOS Alarm Number (Max 2 numbers)
Message format: sos,Tel or sos,Tel1,Tel2
e.g. sos,13900000000 OR sos,13900000000,13911111111
Reply: SOS!S1: 13900000000 S2: 13911111111
Delete SOS number
Message format: SOS,
e.g. sos, or sos,,
Reply: SOS!S1:,S2:
(Press SOS button for 3 secs, SOS alarm will be triggered.
SOS alarm has 3 modes:
Message format: sosX
SOS1 GPS Tracker only sends SMS alarm message
SOS2 GPS Tracker only make calls.
SOS3 GPS Tracker sends SMS alert message and Make calls.
(Default)
SOS alarm message:
SOS! http://maps.google.com/maps?q=22.53908%2c113.90871
Spd:XXXkm/h 2013-07-11 21:54:33
UniGuard Technology Limited
- - www.uniguardgps.com
9
2.4 Location Query
Message format: G****** or where
e.g. G123456
Reply: <DateTime:10-11-18 18:41:04>
http://maps.google.com/maps?q=N22.540885,E113.951341
2.5 Arm/Disarm
ARM Message format: 111
Reply: GSM: A/B/C/D. POWER: X. ARM Delay in XXS!
(When vehicle stays static for 10 minutes, GPS Tracker goes to ARM
mode. Open Auto Arm function, send command auto1, close Auto
Arm function, send command auto0)
DISARM Message format: 000
Reply: GSM: A/B/C/D. POWER:X. DISARMED!
Notes: The GSM signal A is strong, B is good, C is general. D is poor.
2.6 Shock Alarm under ARM state
When shock time continues for 3 seconds, GPS Tracker will send
Shock Alarm message at every 5 minutes till shock action stops.
Shock Alarm has 3 modes:
UniGuard Technology Limited
- - www.uniguardgps.com
10
Vib1 GPS Tracker only sends SMS alarm message
Vib2 GPS Tracker only makes call. (Default)
Vib3 GPS Tracker sends SMS alarm message then makes call.
Vib0 No shock alarm.
SMS Alarm message:
Vibration! Please check it now! Lat: Lon: GPS:A/V 2013-07-20
16:23
2.7 Movement Alarm
Message format: moveX X=300 or 0
Send move300, GPS Tracker sends alarm after moving 300 meter.
Reply: OK! Move alarm: ON.
Send move0, GPS tracker closes movement alarm.
Reply: OK! Move alarm: OFF.
2.8 Over Speed Alarm
Message format: spdX
X =[050-300 (Unit:KM/H) . X=0 Closes over speed alarm.
e.g. spd080
Reply: OK! Over Speed Alarm! 80KM/H. When vehicle speed
exceeds 80 KM/H, GPS tracker sends out over speed alarm.
