Unitech MS912+ Manuale utente

MS912+ Wireless

Barcode Scanner

Quick Guide

Version 1.8

For more detailed scanner setting,

please go to www.ute.com to

download the user manual and scanner

configuration manager utility.

- 1--2-

OUT OF THE BOX

Quick Connection Card

Wrist Lanyard

INTRODUCTION

SPECIFICATIONS

Quick Guide

USB Charger Cable

MS912 Wireless

Pocket Scanner

Quick Guide

NUMERIC BARCODES

*1*

*2*

*3*

*4*

*5*

Wireless Pocket

Scanner

LED Indicator

1. Type-C USB port 4.

Exit Window

Trigger

5. Hard

Reset Button

(insert pin into the hole)

Light source 625nm visible red LED

Scan rate 650 scans/sec

Sensor Linear CMOS sensor

Resolution 4mil/ 0.1mm

PCS 30%

Housing Plastic(PC+ABS)

Profile SPP, HID

Battery Life 6000 scans (1 scan/ 5 sec)

Charge Time 2 hours (fully charged)

Coverage 10M/33ft. (line of sight)

Operating Temp -10 to 50˚C (14˚F to 122˚F)

Symbologies All major 1D barcodes incl. GS1 Databar

- 3--4-

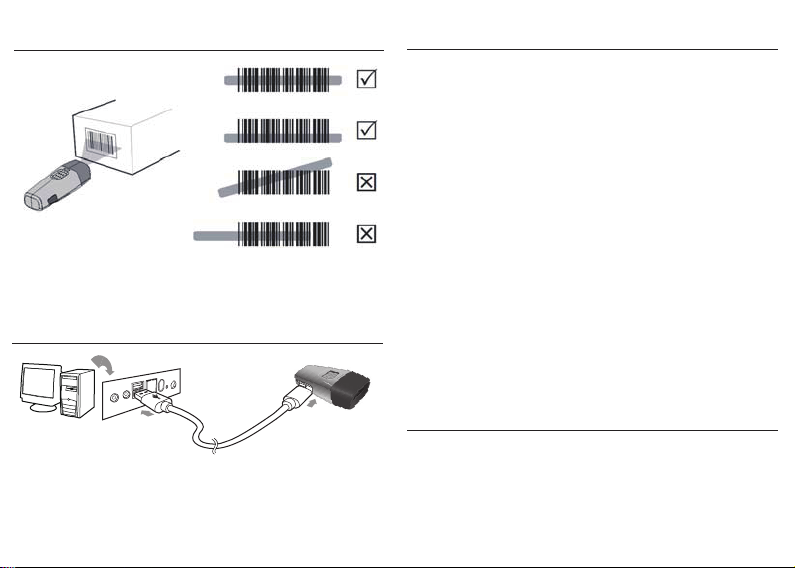

CHARGING THE BATTERY

1. Flip open the Type-C USB port on the scanner.

2. Insert the Type-C USB connector into the port on the

scanner and USB A connector into a USB port on

the host PC or a smartphone charger.

BEEPER INDICATION

LED INDICATION

Single long beep Power up

Single beep Good read

Single short beep The scanner reads a Code39 of

ASCII in configuration procedure

Two beeps i. Wireless connection

ii. The scanner successfully reads

a configuration barcode

Two short beeps Good read (Auto mode)

Several short beeps The scanner switches from one

communication mode to another

Off

Flashing Green

One Green Flash

Flashing Red

Solid Red

Standby or Power off

Disconnected or Discoverable

Good Read

Low power

Charging

GETTING STARTED

Four beeps (Hi-Lo-Hi-Lo) Out of range/Poor connection

Five beeps Low power

Three beeps Wireless disconnection

Three short beeps i. The scanner reads a barcodes

while disconnected.

ii. The scanner reads an unexpected

barcode during configuration

procedure. (scan [ABORT] to abort

and start over)

USB A

Host Scanner

Type C

To scan a barcode, make sure the aiming beam crosses

every bar and space of the barcode.

- 5--6-

INTERFACE

There are 5 interfaces for data transmission/collection:

1. BT HID - Emulates a Bluetooth HID keyboard that transmits

each barcode data to the host after decode.

(See page 7)

2. BT SPP - Emulates a Bluetooth SPP device that transmits

each barcode data to the host after decode.

(See page 7)

3. Batch Mode - Emulates a USB mass storage device

that saves each barcode data during

off-line data collection (See page 23)

4. USB HID - Emulates a USB keyboard that transmits each

barcode data to the host after decode.

5. USB VCP - Emulates a USB virtual com device that

transmit each barcode data to the host after

decode.

INTERFACE

. C006$

USB VCP

. C008$

USB HID

BT SPP

. C035$

BT HID

*Note: For Ez Utility(PC-based software utility), please contact your local

distributor.

FuncƟon Support Matrix

Mode Interface Auto Mode Batch Mode Ez UƟlity

USB HID

USB VCP

BT HID

Wireless

Tethered

BT SPP

Batch



. E042$

. E043$

Batch Mode

(MS912M+ only)

- 7--8-

GETTING CONNECTED PINCODE SETUP

1. Press the trigger for 1 second to activate the scanner.

2. Scan [DISCONNECT]

3. Scan [BT mode - SPP]

4. Select “Wireless Scanner” from discovered device list.

If pincode is requested, enter default pincode “1234”.

5. Open serial communication software with com port

properly set up.

6. The scanner will beep twice to verify the connection.

There are two modes of wireless communication:

. E042$

BT mode - SPP

Pincode Start

. E032$

. E033$

. E043$

BT mode - HID

Disconnect

. E031$

$TX

1. Press the trigger for 1 second to activate the scanner.

2. Scan [DISCONNECT]

3. Scan [BT mode - HID]

4. Select “Wireless Scanner” from discovered device list.

5. If the Bluetooth application requests to enter pincode,

please refer to PINCODE SETUP section on the next page.

6. The scanner will beep twice to verify the connection.

Scan numeric barcodes (see NUMERIC BARCODES section

on the next pages) based on the pincode generated

by the Bluetooth application.

STEP 1

Pincode Stop

Enter

STEP 4

STEP 3

STEP 2

[ Recommended ]

- 9--10 -

NUMERIC BARCODES

- 11 --12 -

SMARTPHONE/TABLET TOUCH KEYBOARD

Touch Keyboard - Android

Touch Keyboard - iOS

While connected with the scanner, the Touch Keyboard on the

Android smartphone or tablet might disappear. To resolve this

issue, please change settings on Android device with below steps:

1. Enter “Settings”

2. Enter “Language & input”

4. Turn off “Physical keyboard”, or Turn on “On-screen keyboard”

and the Touch Keyboard will function properly again.

3. Tap on “Default keyboard”

After enabling iOS Hotkey(enabled by default), you may simply

double-click the trigger to toggle the iPhone/iPad Touch Keyboard.

. E047$

ENABLE iOS HOTKEY

Slide to

turn off

POWER OFF TIMEOUT

Variable Timeout

No Timeout (Scanner Always On)

*.B030$*

. B030$

SET MINUTE

*.B029$*

. B029$

SET SECOND

*.B021$*

. B021$

DISABLE

TIMEOUT

The default timeout is 3 minutes 0 second.

For example, to set the timeout as 5 minutes 30 seconds:

1. Scan [Set Minute]

2. Scan [0] & [5] on page 9 & 10.

(Range: 00 ~60)

3. Scan [Set Minute]

4. Scan [Set Second]

5. Scan [3] & [0] on page 9 & 10.

6. Scan [Set Second]

The period of inactivity before auto power-off.

- 13 --14 -

GENERAL SETTINGS TERMINATOR

CR + LF

NONE

SPACE

TAB

. D012$

. D011$

. D013$

. D010$

. D015$

. D014$

BEEPER

. P023$

. A007$

. F012$

ABORT

CHECK

VERSION

BEEP OFF

. F018$

. A001$

DEFAULT

BEEP ON

- 15 --16 -

KEYBOARD LAYOUT

. C010$

ENGLISH

(USA)

. C018$

ENGLISH

(UK)

. C011$

GERMAN

. C012$

FRENCH

. C013$

SPANISH

. C014$

ITALIAN

. C009$

JAPAN

(106 key)

CANADIAN

(TRADITIONAL)

. C034$

NORWEGIAN

. C029$

SWEDISH

. C026$

PORTUGUESE

. C031$

CANADIAN

(FRENCH)

. C025$

- 17 --18 -

HUNGARIAN

(101 KEY)

BRAZILIAN

(PORTUGUESE)

SLOVAK

SWISS

(FRENCH)

DUTCH

DANISH

BELGIAN

(AZERTY)

. C016$

SWISS

(GERMAN)

KEYBOARD LAYOUT

. C017$

CZECH

(QWERTY)

. C022$

CZECH

(QWERTZ)

HUNGARIAN

(QWERTZ)

. C021$

. C015$

ALT CODE

. C024$

. C023$

. C033$

. C032$

. C027$

. C028$

. C030$
