Unitech PA500II Manuale utente

PA500II Enterprise Mobile Computer

- PA500II -

Quick Reference Guide

400891G Version 1.0

PA500II Product Introduction & Accessory Kit

After opening the box, ensure the following accessories for the PA500II are

present:

PA500II Terminal Power Adapter* Battery Pack

Stylus with bungee

lanyard USB charging cable USB docking station

(optional)

QRG/UM CD-ROM

* The adapter’s replaceable clip plugs is available, depending on the region.

If anything is missing or appears damaged, contact your dealer.

PA500II Front View

1 Barcode laser scanner (optional) 2 Status indicator

3 SDIO/MMC slot 4 Power button

5 LCD touch screen 6 Keypad

7 (Reserved) 8 Left scanner trigger key

9 Cord holder

PA500II Rear View

11 15

10 Speaker 11 Battery release latch

12 Reset button 13 Main battery

14 Universal connector 15 Right scanner trigger key

16 Stylus

Installing the Battery

WARNING! There is a risk of fire and burns if the battery pack is handled

improperly. DO NOT disassemble, crush, puncture, short external

contacts, or dispose the battery pack in fire or water. DO NOT

attempt to open or service the battery pack. Dispose of used

batteries according to the local recycling guidelines in your area.

A backup battery cell is embedded into your device to prevent data loss when

the removable battery pack is removed or completely discharged. The backup

battery will keep the data and system settings up to 1 hour if the main battery is

removed.

NOTE: To enable the internal battery cell to provide backup power supply,

charge your device with the main battery pack for at least three and a

half hours.

1. Position the battery pack, making sure the battery pack fits the shape of

the battery compartment.

2. Slide the battery pack into the battery bay. The battery pack locks to the

chassis with an audible click.

3. If you remove the main battery and plug it back before the backup battery

lost power, PA500II will be warm start.

4. If you remove the main battery and plug it back after the backup battery

lost power, PA500II will be clean booted.

Charging the Battery

For initial use, you need to charge your device for about 16 hours. After that,

you can charge it everyday to recharge the battery to full capacity. You can

charge your device using the USB charging cable or the docking station.

CAUTION! Operating the PA500II for the first time without the AC adapter, and

without fully charging the backup battery may result in loss of data

stored in RAM memory.

NOTE: Data you entered may not be properly stored until the internal backup

battery has been fully charged.

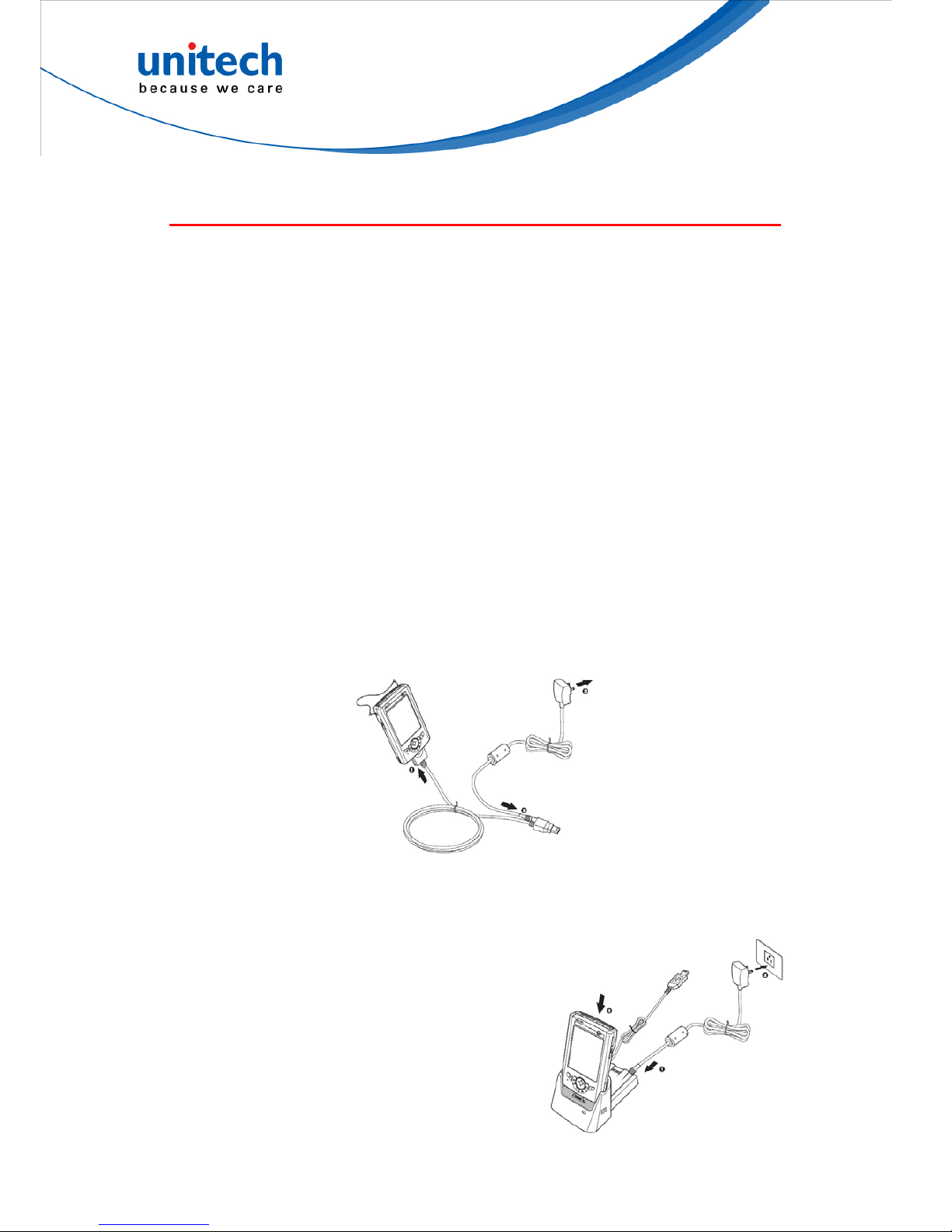

To charge the device using the USB charging cable:

1. Attach the clip plug to the AC adapter, if necessary. Slide the replaceable

clip plug into the AC adapter until it locks into place with an audible click.

2. Press and hold the connector button on the USB charging cable and

connect it to the PA500II (1).

3. Plug the AC adapter cable into the power jack on the USB charging cable

(2).

4. Connect the AC adapter into an electrical outlet (3).

To charge the device using the docking station:

1. Plug the AC adapter cable into the power jack on the docking station.

2. Plug the AC adapter into an electrical

outlet.

3. Slide the device into the docking station

until it clicks into place.

The connection is secure when the bottom edge of the device is aligned

smoothly with the docking station, and the LED indicator on the docking station

and device lights up red.

LED status during charging:

– Solid red: Charging

– Solid green: Charging complete

If the battery level becomes low, a status icon appears on the device screen

indicating low or very low battery status. In both cases, perform an

ActiveSync operation to back up your data, and then recharge your device as

soon as possible. If the battery level reaches a low status, the device will enter

a sleep mode and cannot be powered up until the battery is charged. Windows

Mobile 5.0 devices will retain installed applications and data when the main

battery is completely drained for extended periods of time.

Turning ON the PA500II for the First Time

After you have initially charged your device for about 16 hours, the device is

ready to be used. You can now start up your device where you can calibrate

the screen, set up the system time zone, and learn some basic stylus usage.

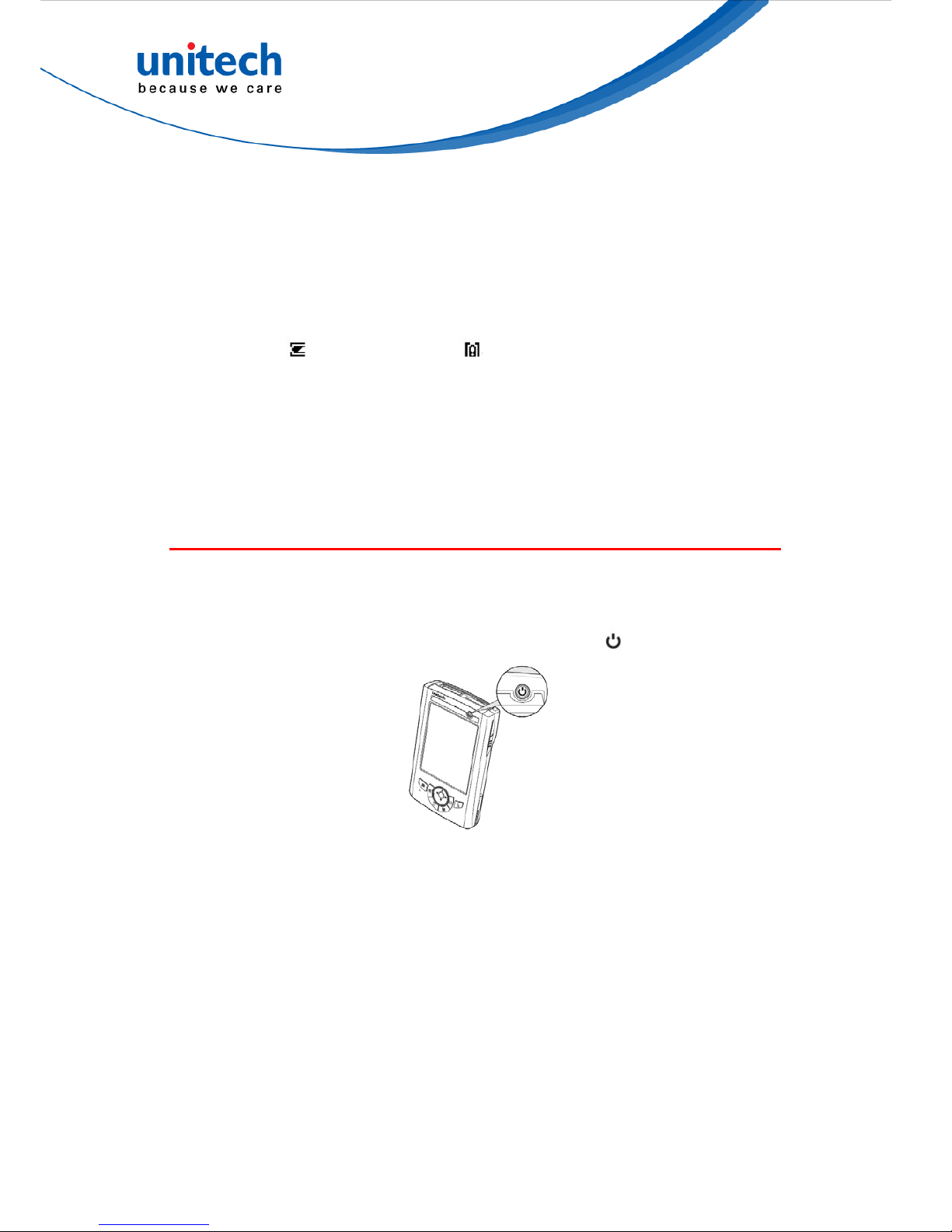

1. Turn on your device by pressing the Power button on the front panel.

NOTE: The PA500II screen ships with a protective plastic film. You may

remove it by peeling from one corner. The screen will be more

susceptible to scratching without the film, but will be more readable.

The unitech PA500II welcome screen appears. The Windows Mobile

screen will appear shortly.

2. Calibrate the PA500II

The calibrate screen will automatically appear when the unit is

powered-on for the first time or after the system is reset. This screen can

also be accessed at any time by tapping Start →Settings →System tab

→Screen.

The PA500II will prompt you to calibrate the unit by tapping a sequence of

screen locations. Tap gently but firmly. When you have completed the

series of taps, press the Enter button to confirm it.

3. Set the Time Zone, Date, and Time

Select your current time zone from the Time zone drop-down menu, and

then tap Next.

4. Follow all onscreen instructions to complete the set up. The setup wizard

provides tips for using the pop-up menus and assign a lock password to

access your device.

After the device setup, you can create an ActiveSync partnership to

synchronize information between your computer and your device. See

Establishing Device-PC Connection in chapter 3 of user manual for

detailed instructions.

Using the SDIO/MMC Slot

Your device has an expansion slot compatible with a range of SD, SDIO, and

MMC storage cards, which are primarily used to back up or transfer files and

data.

To insert a storage card:

1. Hold the device securely, and then lift the rubber cover from the

SDIO/MMC slot

2. Push the card into the slot until you feel the SD card click into place, and

this will signal that the card is already properly seated in the slot.

The card is secure when it is not protruding from the slot.

To remove a storage card:

1. Hold the device securely. Push the card in and release. The card pops

out.

2. Remove the card from the slot.

Keypads

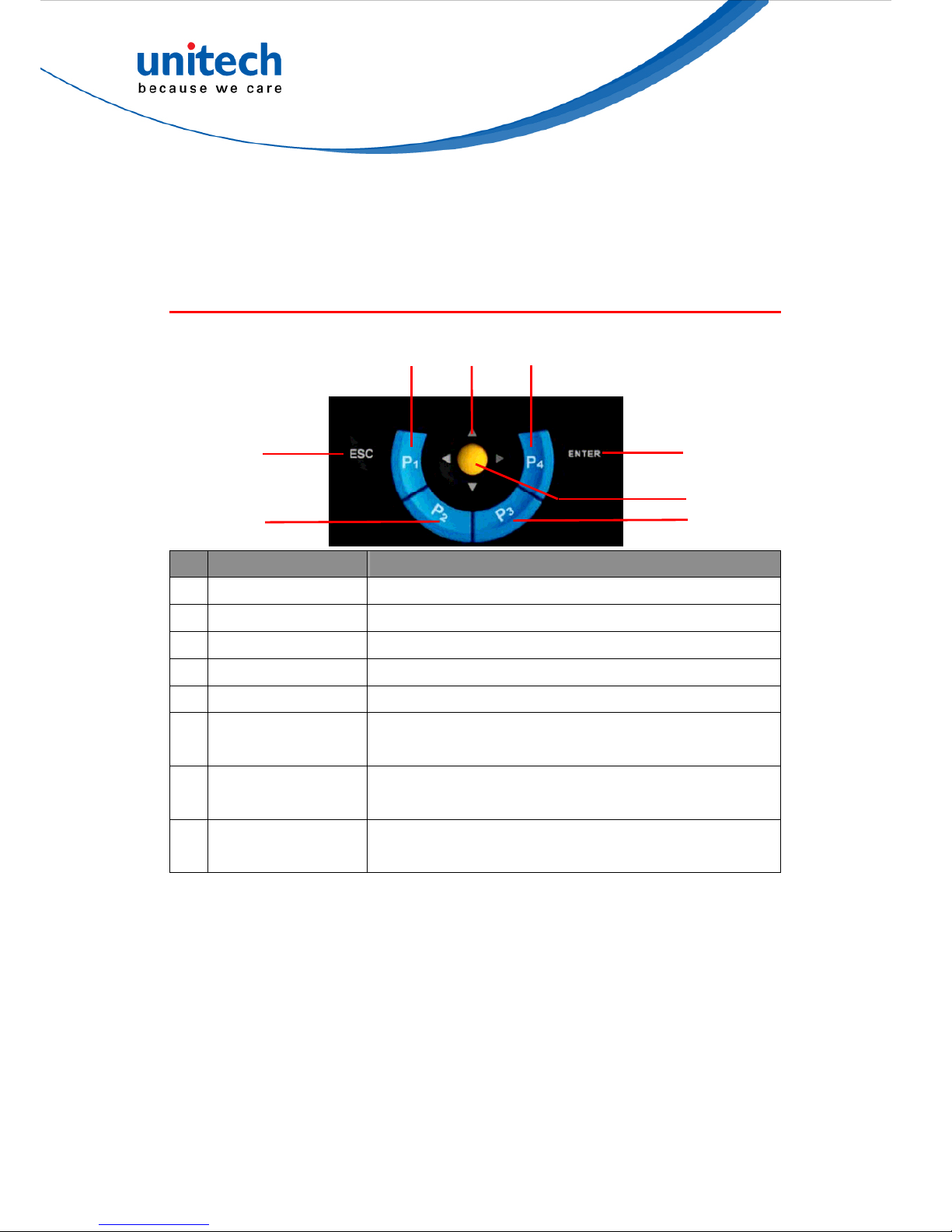

The PA500II keypad has a navigation key and six special keys to launch

particular applications and display the on-screen keyboard.

No. Button Name Description

1 ESC Press the ESC button to exit from the section you entered.

2 P1Press P1to enable Task Manager.

3 P2Press P2to enable scanner.

4 P3Press P3to enable Battery.

5 P4Press P4to enable Device Setting.

6 Enter Press the Enter button to access the menu options and confirm

your selection.

7 Navigation key Use the up, down, left, and right arrow keys to navigate through

the menu options.

8 OK Press the OK button to access the menu options and confirm

your selection.
