UH-4U-8K
8K UHD 4x1 HDMI 2.1 Switcher
with eARC and Auto-Switching
All Rights Reserved
Version: UH-4U-8K_2023V1.1
User Manual
UH-4U-8K: 8K60 UHD 4x1 HDMI 2.1 Switcher with eARC
U.T.E. electronic GmbH & Co. KG www.ute.de
Statement
Thanks for purchasing this product, please read this user manual carefully before using
this product. Pictures are shown in this manual for reference only. Different models and
specifications are subject to real product.
This manual is only for operation instruction, please contact the local dealer for
maintenance assistance. The functions described in this version are updated till
January 4, 2023. In the constant effort to improve our product, we reserve the right to
make functions or parameters changes without notice or obligation. Please refer to the
dealers for the latest details.
All product function is valid till 2023-01-04.
Trademarks
Product model and logo are trademarks of U.T.E. electronic GmbH & Co. KG.
Any other trademarks mentioned in this manual are acknowledged as the properties of
the trademark owner. No part of this publication may be copied or reproduced without
the prior written consent.
FCC Statement
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. It has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a commercial
installation.
Operation of this equipment in a residential area is likely to cause interference, in which
case the user at their own expense will be required to take whatever measures may be
necessary to correct the interference.
Any changes or modifications not expressly approved by the manufacture would void
the user’s authority to operate the equipment.
UH-4U-8K: 8K60 UHD 4x1 HDMI 2.1 Switcher with eARC
U.T.E. electronic GmbH & Co. KG www.ute.de
Safety Precaution
To ensure the best performance from the product, please read all instructions carefully
before using the device. Save this manual for further reference.
⚫Unpack the equipment carefully and save the original box and packing material for
possible future shipment.
⚫Follow basic safety precautions to reduce the risk of fire, electrical shock and injury
to persons.
⚫Do not dismantle the housing or modify the module. It may result in electrical shock
or burn.
⚫Using supplies or parts not meeting the products’ specifications may cause damage,
deterioration or malfunction.
⚫Refer all servicing to qualified service personnel.
⚫To prevent fire or shock hazard, do not expose the unit to rain, moisture or install
this product near water.
⚫Do not put any heavy items on the extension cable in case of extrusion.
⚫Do not remove the housing of the device as opening or removing housing may
expose you to dangerous voltage or other hazards.
⚫Install the device in a place with fine ventilation to avoid damage caused by
overheat.
⚫Keep the module away from liquids.
⚫Spillage into the housing may result in fire, electrical shock, or equipment damage.
If an object or liquid falls or spills on to the housing, unplug the module immediately.
⚫Do not twist or pull by force ends of the optical cable. It can cause malfunction.
⚫Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to
the device before cleaning.
⚫Unplug the power cord when left unused for a long period of time.
⚫Information on disposal for scrapped devices: do not burn or mix with general
household waste, please treat them as normal electrical wastes.
UH-4U-8K: 8K60 UHD 4x1 HDMI 2.1 Switcher with eARC
U.T.E. electronic GmbH & Co. KG www.ute.de
Contents
1Introduction ...............................................................................................................1
1.1 Product Introduction..........................................................................................1
1.2 Features ...........................................................................................................1
1.3 Packing List ......................................................................................................2
2Panel Description ......................................................................................................3
2.1 Front Panel .......................................................................................................3
2.2 Rear Panel........................................................................................................4
3System Connection ...................................................................................................5
3.1 Usage Precautions ...........................................................................................5
3.2 System Diagram UH-4U-8K..............................................................................5
4Source Button Control...............................................................................................6
4.1 Manual Switching .............................................................................................6
4.2 Automatic Switching .........................................................................................6
5IR Remote Control ....................................................................................................7
6RS232 Control...........................................................................................................8
6.1 RS232 Control Software ...................................................................................8
6.1.1 Installation/ uninstallation of RS232 Control Software ...........................8
6.1.2 Basic Settings........................................................................................8
6.2 RS232 Command ...........................................................................................10
6.2.1 RS232 Communication Protocol .........................................................10
6.2.2 Signal Switching ..................................................................................10
6.2.3 Source Device Control.........................................................................11
6.2.4 Display Device Control ........................................................................12
6.2.5 Audio Selection ...................................................................................12
6.2.6 System Control....................................................................................13
7EDID Management..................................................................................................14
7.1 Predefined EDID Setting.................................................................................14
7.2 User Defined EDID Setting .............................................................................15
8Firmware Upgrade ..................................................................................................16
9Technical Specification............................................................................................17
UH-4U-8K: 8K60 UHD 4x1 HDMI 2.1 Switcher with eARC
U.T.E. electronic GmbH & Co. KG www.ute.de
10 Panel Drawing.........................................................................................................19
11 Troubleshooting & Maintenance..............................................................................20
12 After-sales / Customer Service................................................................................21
UH-4U-8K: 8K60 UHD 4x1 HDMI 2.1 Switcher with eARC
U.T.E. electronic GmbH & Co. KG 1 www.ute.de
1 Introduction
1.1 Product Introduction
The UH-4U-8K is an auto switcher with four HDMI video inputs and one HDMI output.
This switcher supports HDMI video resolution up to 8K@60Hz 4:2:0 HDR+ and High
Definition audio.
Except passing EDID information from the display, there are multiple built-in EDID
settings to simplify an installation. The switcher will de-embed digital stereo audio to
provide an analog audio source for an existing audio system. The switcher also
supports enhanced audio return channel (eARC) for transmitting audio back to HDMI
input port from the connected display.
In auto-switch mode, it switches to an HDMI input as soon as a new source is
connected. When the active input is removed, the switcher will select the first source on
the lowest numbered input. The switcher may also be controlled via RS232, IR with the
included remote, or from the source button on the front of the switcher.
1.2 Features
⚫Switches any one of four HDMI inputs to one HDMI output.
⚫Supports HDMI V2.1, HDCP 2.3 compliant and 40Gbps.
⚫Supports video resolution up to 8K@60Hz 4:2:0, Dolby Vision, HDR.
⚫40Gbps high bandwidth.
⚫Fully compliant with the HDMI 2.1 and HDCP2.3 specifications.
⚫Supports enhanced audio return channel (eARC).
⚫Advanced EDID management: multiple preset and user defined allowed.
⚫Controllable via front panel buttons, RS232 and IR.
⚫Supports CEC.
⚫Provides seven LEDs to indicate the current operating status and to assist
troubleshooting an installation.
⚫Firmware upgrade by Micro-USB port.
UH-4U-8K: 8K60 UHD 4x1 HDMI 2.1 Switcher with eARC
U.T.E. electronic GmbH & Co. KG 2 www.ute.de
1.3 Packing List
⚫1x UH-4U-8K: 8K UHD 4x1 HDMI 2.1 Switcher with auto-switching
⚫2x Mounting Ears
⚫2x Mounting Screws
⚫4x Plastic Cushions
⚫1x RS232 Cable (3-pin terminal block to DB9)
⚫1x IR Remote
⚫1x IR Receiver
⚫1x Power Adapter (12V DC 1A)
⚫1x User Manual
Note: Please contact your dealer immediately if any damage or defect in the
components is found.
UH-4U-8K: 8K60 UHD 4x1 HDMI 2.1 Switcher with eARC
U.T.E. electronic GmbH & Co. KG 3 www.ute.de
2 Panel Description
2.1 Front Panel

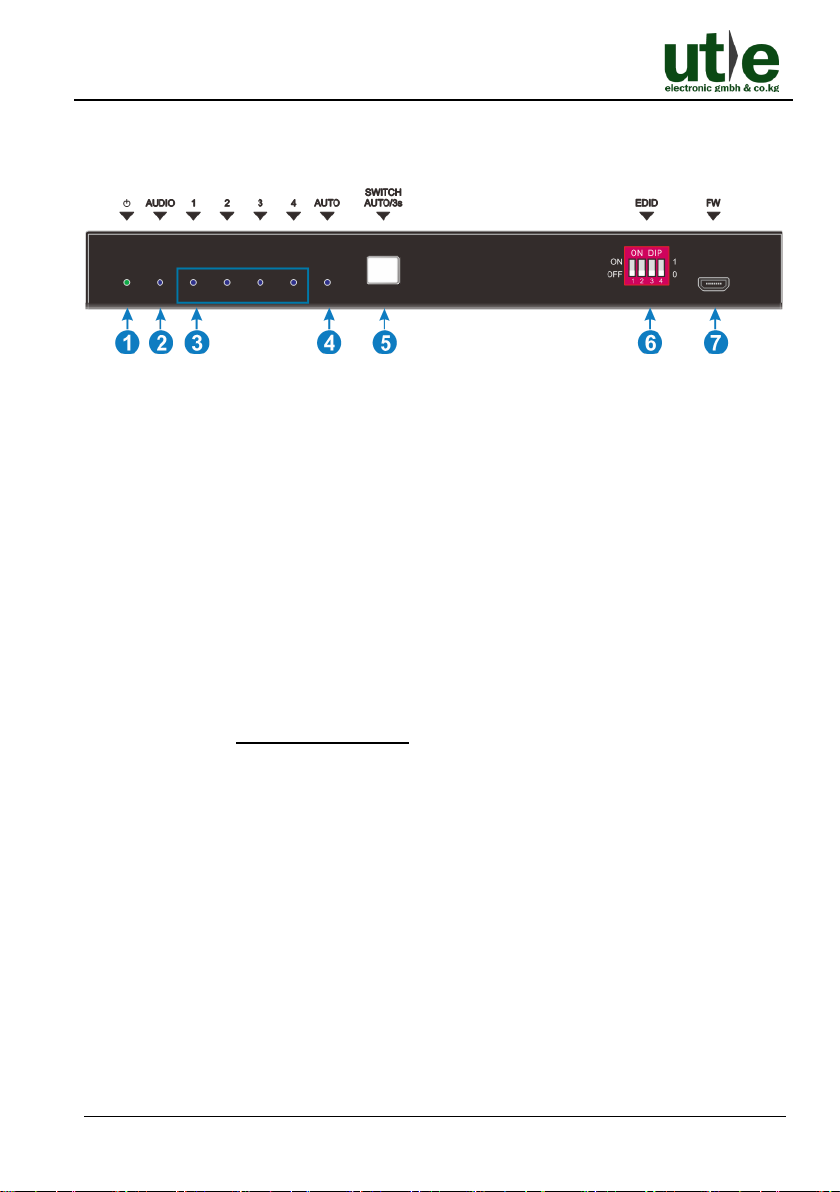

Figure 2-1 UH-4U-8K Front Panel
①POWER LED: The LED illuminates green when power is applied.
②AUDIO LED: Illuminates blue when de-embedding audio
③INPUT 1~4 LEDs: The LED illuminates green when there is HDMI input on the
corresponding channel.
④AUTO LED: Illuminates blue when auto switching mode.
⑤Switch AUTO/3s Button:
•Press to switch to next input source.
•Press and hold at least three seconds to switch between manual mode and auto
mode.
⑥EDID: 4-pin DIP switch for EDID setting.
Please refer to 7 EDID Management for more details.
⑦FW: Micro-USB port for firmware upgrade.
Note: Pictures shown in this manual are for reference only, different model and
specifications are subject to real product.
UH-4U-8K: 8K60 UHD 4x1 HDMI 2.1 Switcher with eARC
U.T.E. electronic GmbH & Co. KG 4 www.ute.de
2.2 Rear Panel
Figure 2-2 UH-4U-8K Rear Panel
①IN 1~4: Four type-A female HDMI input ports to connect HDMI sources.
The input 4 port supports eARC.
②OUT: Type-A female HDMI output port to connect HDMI display.
③AUDIO: 3.5mm mini jack for analog audio output.
④IR IN: 3.5mm mini jack to connect the included IR receiver for remote control.
⑤RS232: 3-pin terminal block to connect control device (e.g. PC or TF8).
⑥DC 12V: DC barrel port to connect an AC power adapter.
Notes:
•Output HDCP compliant status depends on input signal.
When the input signal is with HDCP, then output signal is with HDCP and vice
versa.
•Pictures shown in this manual are for reference only, different model and
specifications are subject to real product.
UH-4U-8K: 8K60 UHD 4x1 HDMI 2.1 Switcher with eARC
U.T.E. electronic GmbH & Co. KG 5 www.ute.de
3 System Connection
3.1 Usage Precautions
1) Make sure all components and accessories included before installation.
2) System should be installed in a clean environment and has a prop temperature and
humidity.
3) All of the power switches, plugs, sockets and power cords should be insulated and
safe.
4) All devices should be connected before power on.
3.2 System Diagram UH-4U-8K
The following diagram illustrates the typical input and output connection that can be
utilized with 8K60 UHD 4x1 HDMI2.1 Switcher UH-4U-8K:
Figure 3-1 Connection and System Diagram
Note: When the 1-4 channel is switched to any one and an active signal is
detected, the ARC of the 4th channel can work normally.
When no source signal is detected on any one channel, the output 5V is turned off,
and the ARC cannot work at the same time.
