SAFETY PRECAUTIONS
When using electrical appliances, basic safety precautions should always be followed. These
instructions should be saved for future reference:
• Read and familiarise yourself with all operating instructions before using this Pedestal Fan.
• Before plugging your unit into the mains, visually check that the unit is intact and has not
suffered any transit damage.
• Do not use this product with a programmer, timer, separate remote-control system or any
other device.
• Check that the voltage indicated on the data plate corresponds with that of the local network
before connecting the appliance to the mains power supply.
• This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
• This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety. And Children should be supervised to ensure that they do not play with the appli-
ance
• Do not immerse the appliance or its cord in water or any other liquids.
• Do not leave the appliance unattended during use.
• Do not leave the appliance unattended whilst connected to the mains supply.
• Always use this appliance on a solid, level, surface.
• Do not use this appliance outdoors.
• It is imperative to unplug the power cord after the appliance has been used, before it is
cleaned and whilst being repaired.
• Repairs to electrical appliances should only be performed by a qualified electrician. Improper
repairs may place user at serious risk.
• Do not operate this appliance with a damaged plug or cord, after a malfunction or after being
dropped or damaged in any way.
• Regular, periodic checks should be carried out on the mains cable to ensure no damage is
evident. Should there be any signs of damage the appliance should not be used.
• If the power cable is damaged, it should only be replaced by the manufacturer or a suitable
qualified after-sales-service in order to avoid a hazard.
• Do not allow the mains cable to hang over sharp edges or come in contact with hot surfaces.
• Do not run the mains cable under carpets, rugs, etc.
• This appliance is intended for household use only and should not be used for industrial pur-
poses.
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please
read these instructions carefully before starting the installation and keep this manual handy
for future reference. If you have any another query, please contact our dealer or local
vendor from whom you have purchased the product. They are trained and ready to serve
you at the best.
INTRODUCTION & WARRANTY
This marking indicates that this
product should not be disposed
of with other household wastes.
Caution, risk of electric shock.
• Do not use any accessories or attachments with this appliance other than those supplied or
recommended by the supplier.
• Do not use this appliance for anything other than its intended use.
• Do not push objects (including fingers) into the fan grill or any openings as this could risk
injury, damage to the appliance and/or electric shock.
• Unplug after each use. Grasp the plug, not the cord.
• Please make sure to turn off the power before starting the installation.
• Installation should only be done by a certified electrician.
INSTRUCTION MANUAL
STAND FAN
MULTI-LANGUAGE MANUAL QR CODE
Please scan the QR code to
access the manual in multiple
languages.

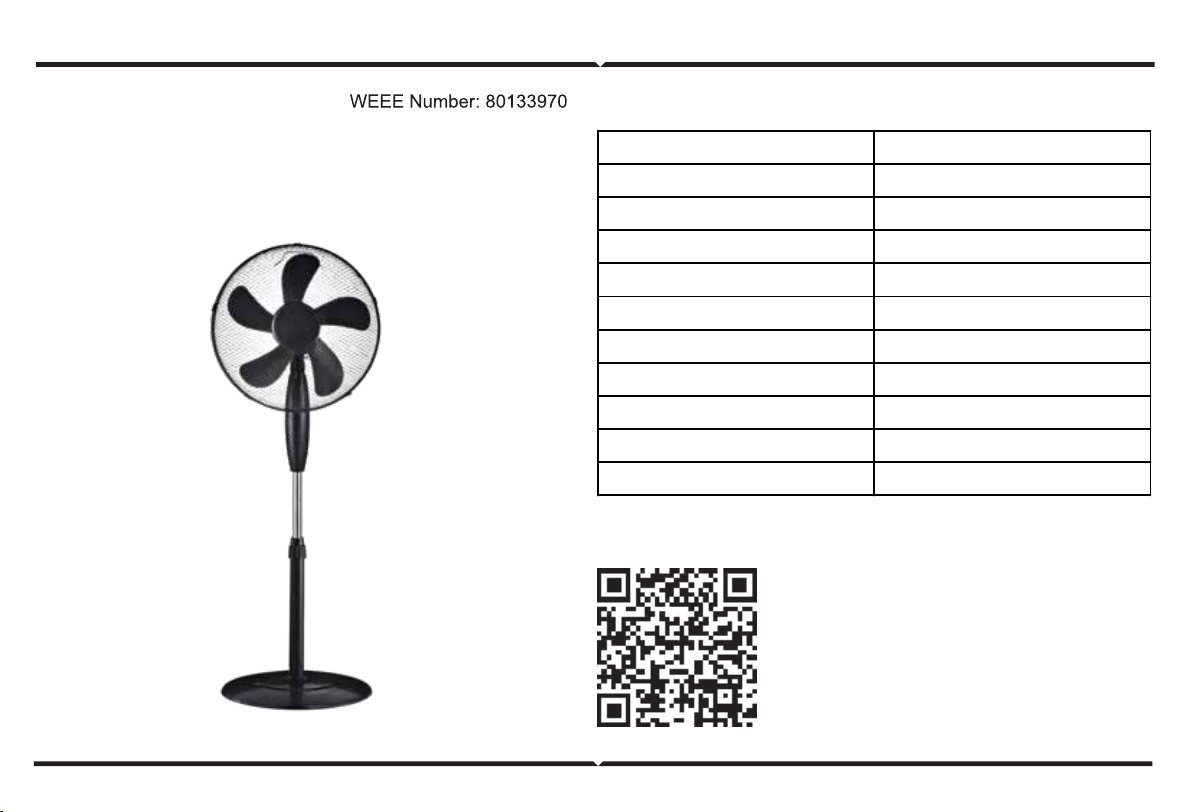

TECHNICAL DATA
MODEL VT-5016–5
WATTS 55W
FAN SPEED LOW-MED-HIGH
OSCILLATION LOW-MED-HIGH
STAND FAN 16 INCHES STAND FAN
HEIGHT 1.25M
ADJUSTABLE HEIGHT 125CM MAX
GROSS WEIGHT 4.3 KGS
DIMENSION 430x410x125mm
BASE 410mm ROUND BASE
INPUT POWER
AC: 220-240~, 50/60Hz
ENGLISH
1. Front Guard
2. Guard Nut and Screw
3. Fan Blade
4. Rear Guard Central Fixing Nut
5. Rear Guard
6. Speed Control Switches
7. Motor Housing
8. Oscillation Control
9. Motor Spindle
10. Blade Retaining Nut
11. Pivot Screw
12. Pole Retaining Screw
13. Adjustable Pole
14. Pole Clamp
15. Lower Base Pole
16. Round Base
17. Heavy
18. Screw

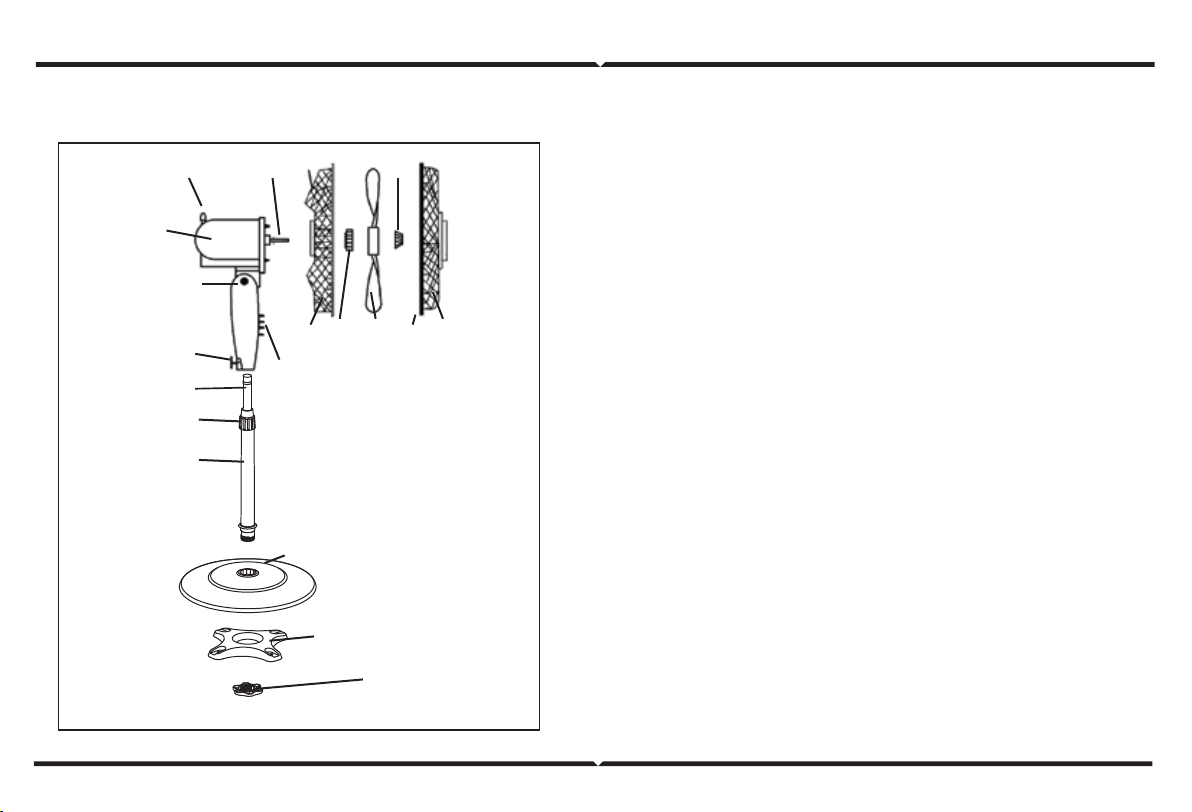

DESCRIPTION OF PARTS
17.
18.
7.
10.
11.
5.
6.
9.
16.
13.
14.
8.
3. 1.
4. 2.
12.
15.
ENGLISH
Step 1. Take the lower
base pole (15)into the
round base hole(16),put
the heavy (17)inside the
round base(16) with the
lower base pole(15),Tight-
en the heavy(17) and the
round base(16) with
screw(18).
Replace the pole clamp
(14) and at the same time
raise the chrome adjust-
able pole (13) then tighten
the clamp (14).
Attach the fan assembly on
top of the pole and tighten
the pole retaining screw
(12).
Note: the adjustable pole
(13) can sometimes slip
inside the lower base pole
(15) during transit.

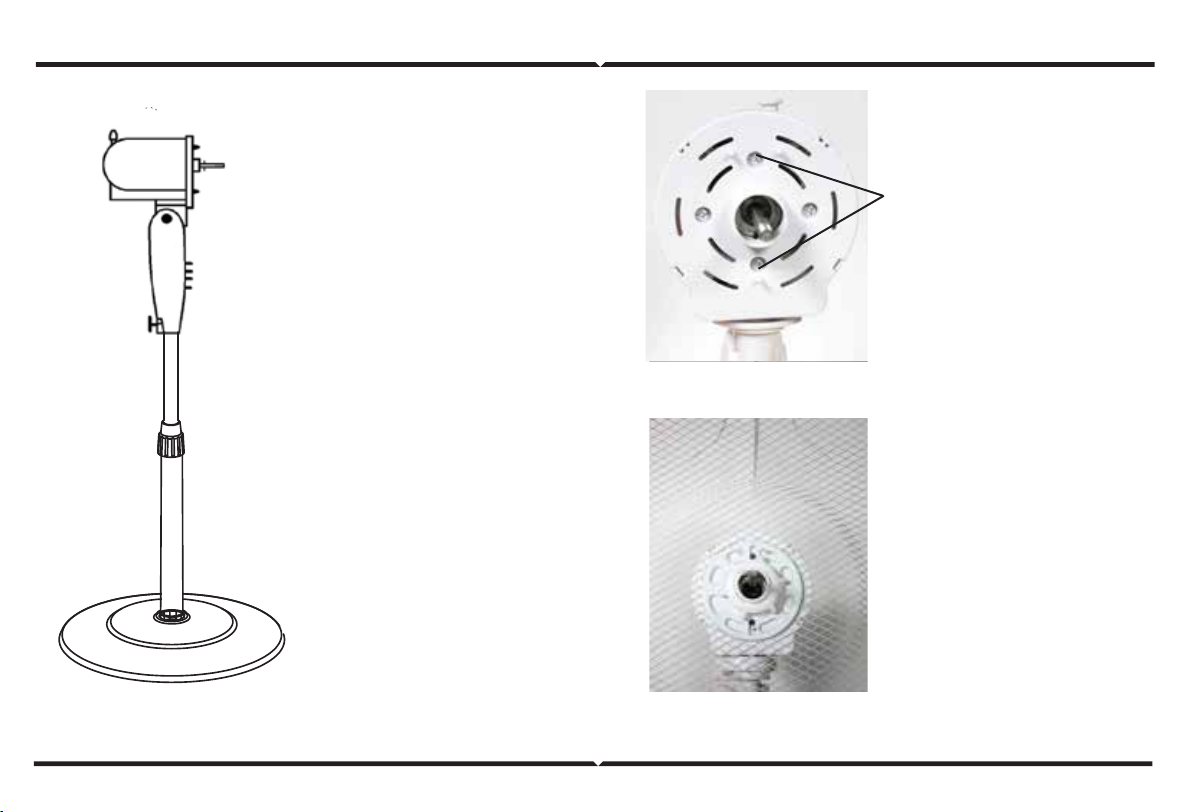

Step 2. Note the Rear
Guard locating pins on
the Motor Housing (7).
Step 3. Place the rear
guard (5) over the
pins on the motor
housing (7) and
replace the Rear
Guard Central Fixing
(4) nut by screwing it
back clockwise.
Note: the carry
handle is at the top:
Guard
locating pins
FIG 5
FIG 6
FIG 1
ENGLISH

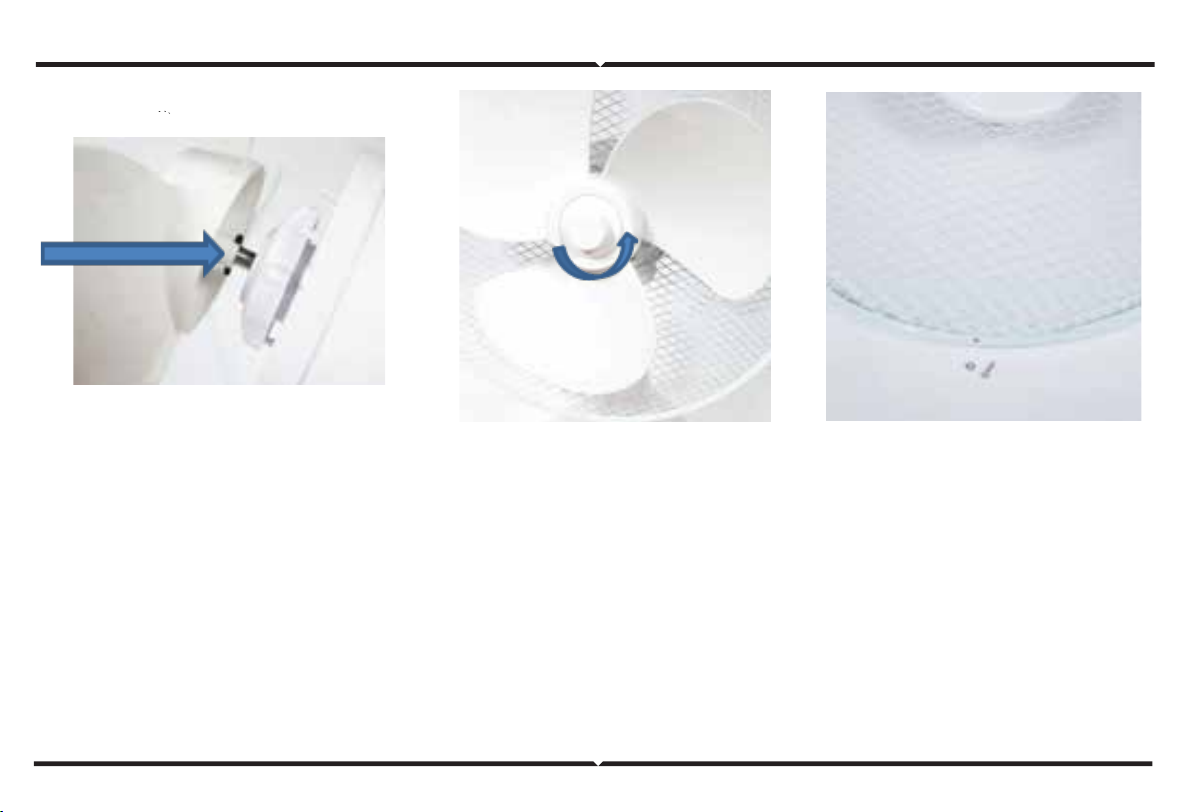

Step 4. Take the fan blade (3) and slide it onto the motor spindle (9) ensuring that notch-
es on the rear of the fan blade line up with the splines on the spindle.
Note: Rear Guard removed for clarity (see figure 4).
Step 5. Secure the fan blade to the motor spindle by screwing on the Blade Retaining Nut
(10) in an anticlockwise direction.
Note: the retaining nut is reverse threaded (see figure 5).
Step 6. Remove the small Guard Nut & Screw (2) from the front guard (1) (see figure 6).
FIG 4 FIG 5 FIG 6
ENGLISH

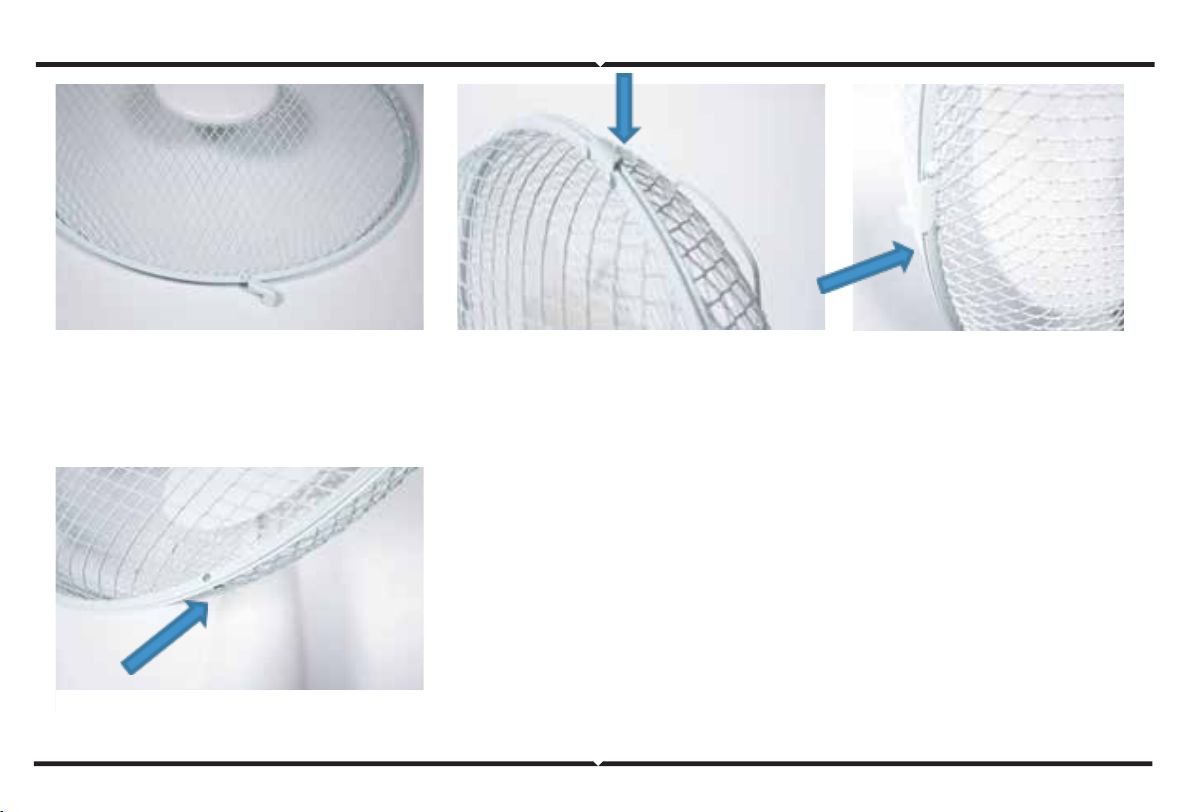

Step 9. Bring the front guard down to meet the rear guard
and push the clips inwards until the front guard is fastened
to the rear guard (see figure 9).
Step 10. Finally fit the guard nut and screw (arrowed)
through the holes in the bottom edge of the guards and
tighten with a suitable pozidrive screwdriver (not supplied).
Note: this screw and nut must be fitted so that the guard
cannot be removed (see figure 10).
Step 7. Move the clips around the outside edge of the front guard outwards (see figure 7).
Step 8. Hang the front guard (1) over the top of the rear guard (5) (see figure 8).
FIG 10
FIG 7 FIG 8 FIG 9
ENGLISH
OPERATING INSTRUCTIONS
• Place the fan in the desired position ensuring that it is level and stable.
• If desired, the fan guard can be tilted up and down to alter the direction of the airflow.
Note: do not adjust the fan whilst connected to the mains and/or switched on.
Slacken the Pole Clamp (14) and adjust the fan to the desired height using the Adjustable Pole
(13), tighten the pole clamp once the desired height is set.
Note: the adjustable pole (13) can sometimes slip inside the lower base pole (15) during transit.
Press the ‘0’ button on the pedestal to ensure the fan is off.
Insert the mains plug into the nearest socket.
• Press the 1 button for fan low speed.
• Press the 2 button for fan medium speed
• Press the 3 button for fan high speed
Note: Press the ‘0’ button to switch off the fan.
MAKING YOUR FAN OSCILLATE FROM SIDE TO SIDE
• Press the oscillation control (8) down to enable the fan to oscillate from side to side.
• Pull the control up to stop the fan oscillating.
CARE AND USE OF YOUR FAN
• Ensure that the fan is not connected to the mains supply before cleaning.
• Wipe the fan body with a clean, soft damp cloth.
• Do not immerse the fan or its cord in water or any other liquid.
MESURES DE SÉCURITÉ
Lors de l'utilisation d'appareils électriques, des précautions de base doivent toujours être prises. Ces consignes doivent
être conservées pour référence ultérieure:
• Lisez et prenez connaissance de toutes les consignes d'utilisation avant d'utiliser ce ventilateur sur pied.
• Avant de brancher votre appareil sur le réseau électrique, procédez à un examen visuel afin de vous assurer que
l'appareil est intact et n'a subi aucun dommage pendant le transport.
• Ne pas utiliser ce produit avec un programmateur, une minuterie, un système de commande à distance séparé ou tout
autre appareil.
• Vérifiez que la tension indiquée sur la plaque signalétique correspond à celle du réseau local avant de brancher l'appar-
eil sur le réseau électrique.
• Cet appareil peut être utilisé par des enfants âgés de 8 ans et plus et par des personnes ayant des capacités physiques,
sensorielles ou mentales réduites ou manquant d'expérience et de connaissances sous réserve d’être supervisés ou
d’avoir reçu des consignes concernant l'utilisation de l'appareil d'une manière sûre et comprennent les risques encourus.
Les enfants ne doivent pas jouer avec l'appareil. Le nettoyage et l'entretien de la part des utilisateurs ne doivent pas être
effectués par des enfants sans surveillance.
• Cet appareil n'est pas destiné à être utilisé par des personnes (y compris des enfants) dont les capacités physiques,
sensorielles ou mentales sont réduites ou qui manquent d'expérience et de connaissances, à moins qu'elles ne soient pas
supervisées ou aient reçu des consignes sur l'utilisation de l'appareil par une personne responsable de leur sécurité. Les
enfants doivent être surveillés aussi pour s'assurer qu'ils ne jouent pas avec l'appareil
• N’immergez pas l'appareil ou son cordon dans l'eau ou tout autre liquide.
• Ne laissez pas l'appareil sans surveillance pendant l'utilisation.
• Ne laissez pas l'appareil sans surveillance lorsqu'il est branché sur le réseau électrique.
• Utilisez toujours cet appareil sur une surface solide et plane.
• N'utilisez pas cet appareil à l'extérieur.
• Il est impératif de débrancher le cordon d'alimentation après l'utilisation de l'appareil, avant son nettoyage et pendant
sa réparation.
• Les réparations des appareils électriques ne doivent être effectuées que par un électricien qualifié. Une réparation
incorrecte peut faire courir de sérieux risques à l'utilisateur.
• N’utilisez pas cet appareil si la fiche ou le cordon sont endommagés, s’il y a un dysfonctionnement ou s’il a été laissé
tomber ou endommagé de quelque manière que ce soit.
FRENCH
