V-TAC VT-8056 Manuale utente

INSTALLATION INSTRUCTION

Model: VT-8056

UP/DOWN SOFT LIGHT-OUTDOOR

WEEE Number: 80133970

INTRODUCTION

Thank you for selecng and buying V-TAC LED Up/down so light-outdoor. V-TAC

will serve you the best. Please read these instrucons carefully before starng

the installaon and keep this manual handy for future reference. If you have any

other query, please contact our dealer or local vendor from whom you have

purchased the product. They are trained and ready to serve you at the best.

TECHNICAL PARAMETERS

LED

parameter

Performace

parameter

Lamp warm white

350 lm

3000K 4000K

≥80

≥30000Hrs

500Vac/1min

100LM/W

60PCS

12C5B

36 - 39V

240mA

0.9

240mA, 30-80V

PC

calss I

IP65

173 x 81 x 46mm

-30°C ~ 85°C, 0% - 95% R.H.

-25°C ~ 50°C, 10% - 90% R.H.

/

100~240Vac, 50/60Hz

less than 3% within 1000 working hours

COB LED

9W

90°

6400K

380 lm 400 lm

cool white

natural white

Lumens (lm)

Color temperature (K)

CRI

Type of LED

Decay rate (%)

Total power (W)

Lifespan (Hrs)

High voltage testing

Lighting efficiency

Series-parallel way

Voltage

Current

Input parameter

Power factor

Output paremeter

Material

Dimension

Cut - out

Protection class

IP

Application hotel, home-lighting, recreation place, supermarket

office building

Operating temperature

Storage temperature

Qty / Ctn N.W G.W

carton size

Chip quantity

Beam angle

Packing

specification

Environment

parameter

Structure

parameter

Driver

specification

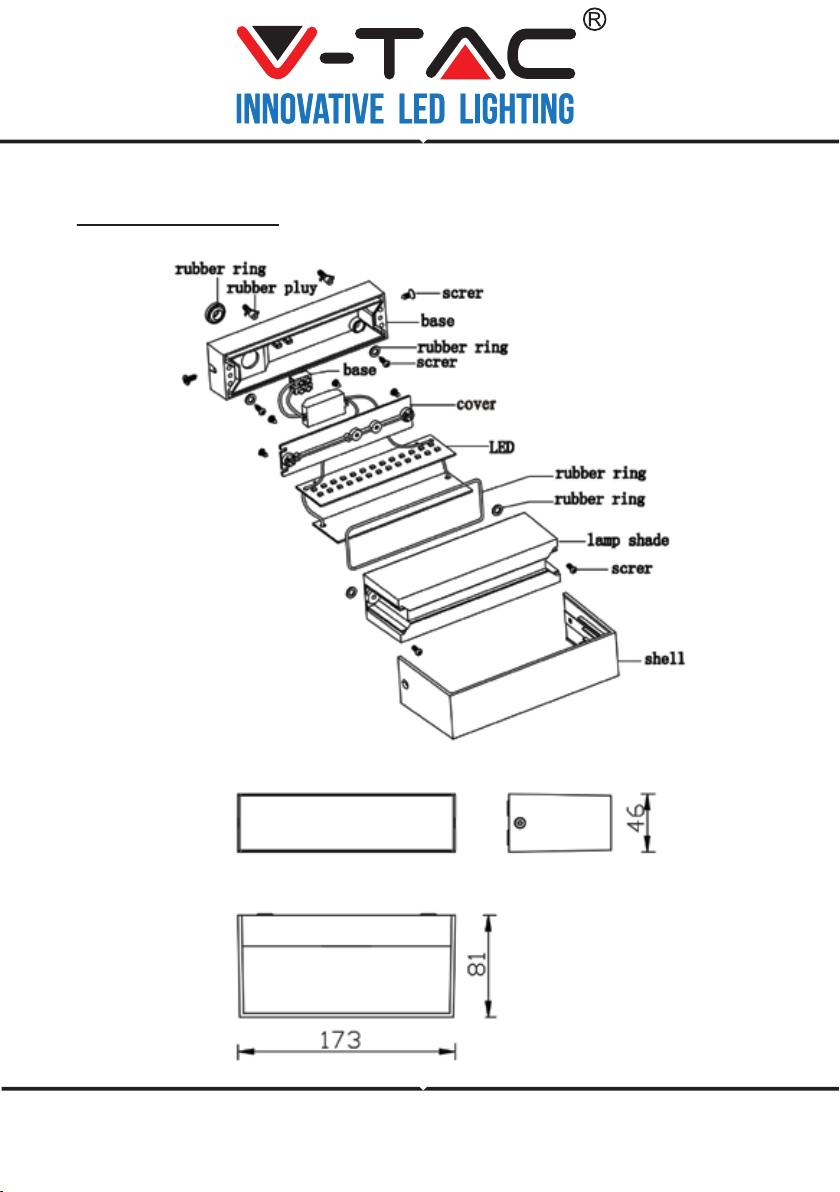

STRUCTURE & SIZE

INSTALLATION INSTRUCTION

In case of any query /issue with the product please reach out to us at [email protected]om

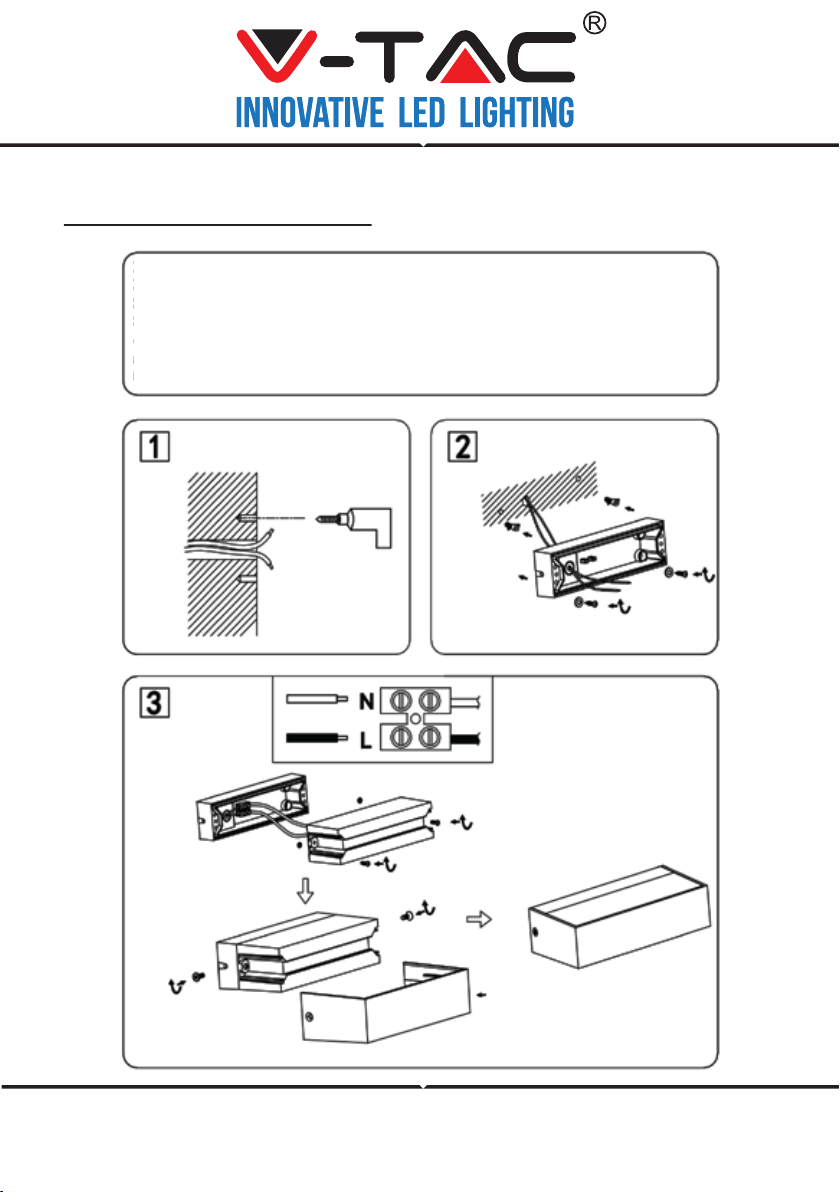

1. Switch oﬀ the power.

2. To drill the appropriate holes on the wall. (picture 1)

3. Enter the parcles and install the lamp base on the wall. (picture 2)

4. Connect the light into the mains (100-240V), install the lampshade

and cover the shell. (picture 3)

5. Switch on the power if above steps are done properly without any mistakes.
