Vaillant VRT 360 Operating and Scheda tecnica

For the owner and the heating engineer

Operating and Installation Manual

VRT 360

Programmable room thermostat with separat HW time control

Contents

VRT 360 Operating and Installation Manual

Contents

Notes on the documentation . . . . . 4

Symbols used........................................... 4

Storage of the documents.................... 4

Safety . . . . . . . . . . . . . . . . . . . . . . . . 5

Operating manual. . . . . . . . . . . . . . . 6

1 Room thermostat overview . . . 6

2 Display overview. . . . . . . . . . . . 7

3 Description of the room

thermostat . . . . . . . . . . . . . . . . 8

4 Operation. . . . . . . . . . . . . . . . . . 8

4.1 Setting the operating modes ...... 9

4.2 Setting the current day and

time ................................................... 12

4.3 Setting timer programmes .......... 13

4.4 Setting the room temperature ... 16

4.5 Setting the hot water

temperature .................................... 18

4.6 Activating special functions........ 19

4.7 Info level........................................... 22

5 Vaillant warranty . . . . . . . . . . . 23

6 Recycling and disposal. . . . . . . 24

3VRT 360 Operating and Installation Manual

Contents

Installation manual . . . . . . . . . . . . . 25

7 Information on installation

and operation . . . . . . . . . . . . . . 25

7.1 CE label............................................. 25

7.2 Intended use.................................... 25

8 Safety instructions and

regulations . . . . . . . . . . . . . . . . 26

8.1 Safety instructions ........................ 27

8.2 Regulations...................................... 27

9 Installation . . . . . . . . . . . . . . . . 28

9.1 Place of installation....................... 28

9.2 Mounting the room thermostat.. 28

10 Electrical installation. . . . . . . . 30

10.1 Connecting the room

thermostat....................................... 30

11 Start-up. . . . . . . . . . . . . . . . . . . 31

11.1 Installer level................................... 32

11.2 Service/diagnostic level................ 36

11.3 Handing over to the owner.......... 37

12 Technical data. . . . . . . . . . . . . . 38

13 Vaillant customer service . . . . 38

4VRT 360 Operating and Installation Manual

Notes on the documentation

The following information is intended to

help you throughout the entire docu-

mentation.

Other documents apply in combination

with this installation and operation man-

ual.

We accept no liability for any damage

caused by failure to observe these

instructions.

Symbols used

Please observe the safety instructions in

this manual for the installation of the

room thermostat.

Danger!

Immediate risk of serious injury

or death.

• Symbol for a necessary task

Storage of the documents

Please pass on this operating and instal-

lation manual to the owner of the system

in order for him/her to store it so that it

is available whenever it is required.

5VRT 360 Operating and Installation Manual

Safety

The room thermostat must be installed

by an authorised heating engineering

company, which is responsible for com-

pliance with the applicable standards

and regulations.

We accept no liability for damage

resulting from failure to observe these

instructions.

6VRT 360 Operating Manual

1 Room thermostat overview

Operating manual

1 Room thermostat over-

view

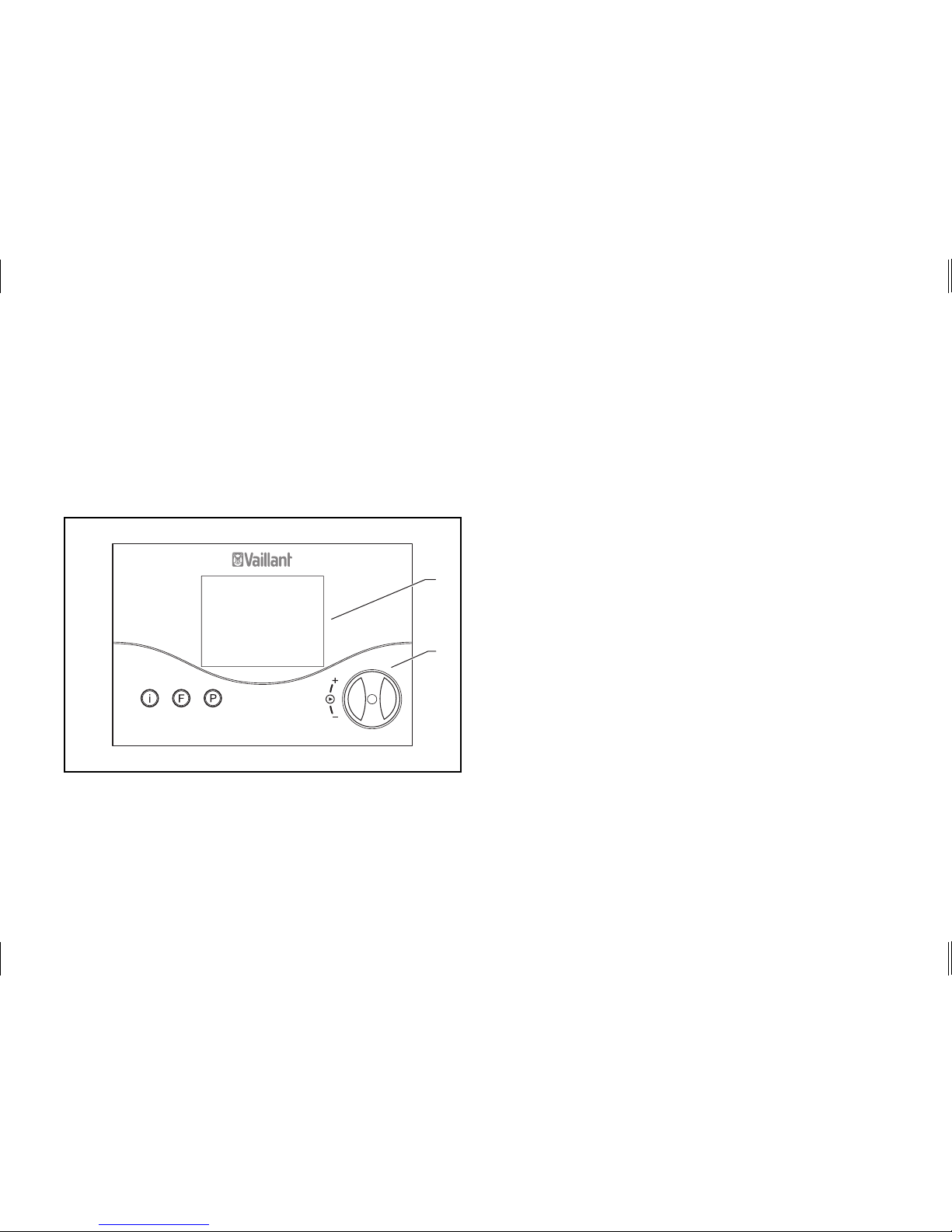

Fig. 1.1 Room thermostat overview

Key

1 Display

2 Dial (turn and click)

I Info button

F Special functions button

P Programming button/installer level

7VRT 360 Operating Manual

Display overview 2

2 Display overview

910

Fig. 2.1 Display overview

Key

1 Installer level and

service/diagnosis level (see 11.1)

2 Info level (see 4.7)

3 Hot water symbol

4 Time / temperature display

5 Days of the week

6 Actual temperature

7 Operating modes (see 4.1)

8 Special functions (see 4.6)

9 Setting timer programmes (see 4.3)

10 Boiler operation indicator

11 Circulation pump symbol

12 Heating circuit symbol

8VRT 360 Operating Manual

3 Description of the room thermostat, 4 Operation

3 Description of the room

thermostat

The VRT 360 is a programmable room

thermostat with a weekly programme for

heating, hot water and a circulation

pump for connecting to Vaillant boilers

with an eBus.

The VRT 360 enables you to set the

room temperature using heating pro-

grammes. In addition, you can select

special functions (such as the party

function), and control the timed opera-

tion of hot water and a separate circula-

tion pump.

4 Operation

The operating principle uses three but-

tons and a dial (Vaillant “Turn and Click”

operating concept).

The display normally shows the current

operating mode (e.g. ), or, if activat-

ed, the special function and the current

room temperature, the day of the week,

the time and the symbol for heating, hot

water and/or the circulation pump,

depending on which is requested.

9VRT 360 Operating Manual

Operation 4

4.1 Setting the operating modes

Table 4.1 contains an overview of the

operating modes you can select. The

selected operating mode affects the

timer programmes both for heating and

for hot water and the circulation pump.

• When the room thermostat is in nor-

mal display mode, press the dial once –

the symbol for the selected mode

flashes in the display.

• Turn the dial until the display shows

the operating mode you want.

The display switches back to normal

mode after five seconds.

10 VRT 360 Operating Manual

4 Operation

Symbol Meaning

Heating Hot water

Automatic:

According to the timer programme set in the room ther-

mostat, the heating circuit switches between heating

and set-back mode. The heating circuit symbol is

displayed if a heating requirement is detected.

The operating mode of the

boiler/circulation pump switch-

es according to the timer pro-

gramme set on the room ther-

mostat between heating/ON

and OFF .

The hot water symbol and

the circulation pump symbol

appear when the time window

is active. If there is a hot water

request, the hot water symbol

flashes.

Heating:

The heating circuit is operated according to the room

temperature, regardless of the programme set on the

room thermostat. The heating circuit symbol is dis-

played if a heating requirement is detected.

Set-back:

The heating circuit is operated according to the set-

back temperature “ECO”, regardless of the programme

set on the room thermostat. The heating circuit symbol

is displayed if a heating requirement is detected.

Table 4.1 Operating modes
