Vantec EZ-Swap MRK-103F Manuale utente

EZ•Swa

p

Quic

k

Installation Guid

e

Model MRK-103F

6

13

2

5

4

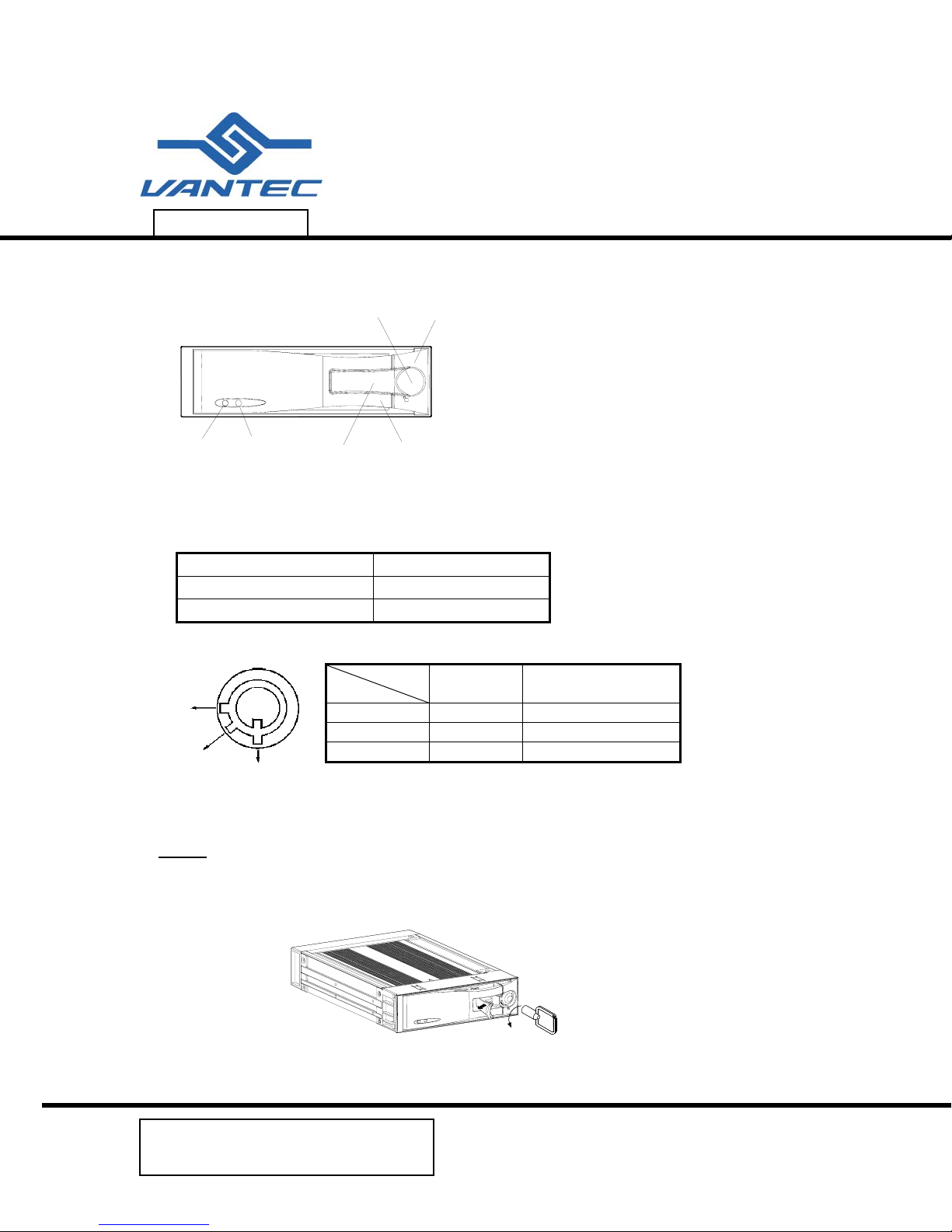

1. Front Panel Description

1. HDD Access indicator

2. Power indicator

3. Active-handle

4. Handle

5. Cartridge frame

6. Key lock

2. Function Settings and Operation

2-1 Power Indicator and HDD Access indicator

When power is turned on, the indicator will displays the following

Item Indicator

Power Indicator Green LED

HDD Access Indicator Amber LED

2-2 Key lock

Status

Segment Power status Security status

A ON Locked (Irremovable)

B OFF Locked (Irremovable)

C OFF Unlocked (Removable)

A

B

C

3. Installing Hard Drive into Cartridge

Step 1

1-1. Pull the active-handle outwards and use the miniature key provided and insert into the key hole,

turning the key anti-clockwise, then the handle will auto-eject for pulling out. (Fig.1)

Fi

g

. 1

Copyright 2002 Vantec Thermal Technologies, INC.

All Rights Reserved

http://www.vantecusa.com

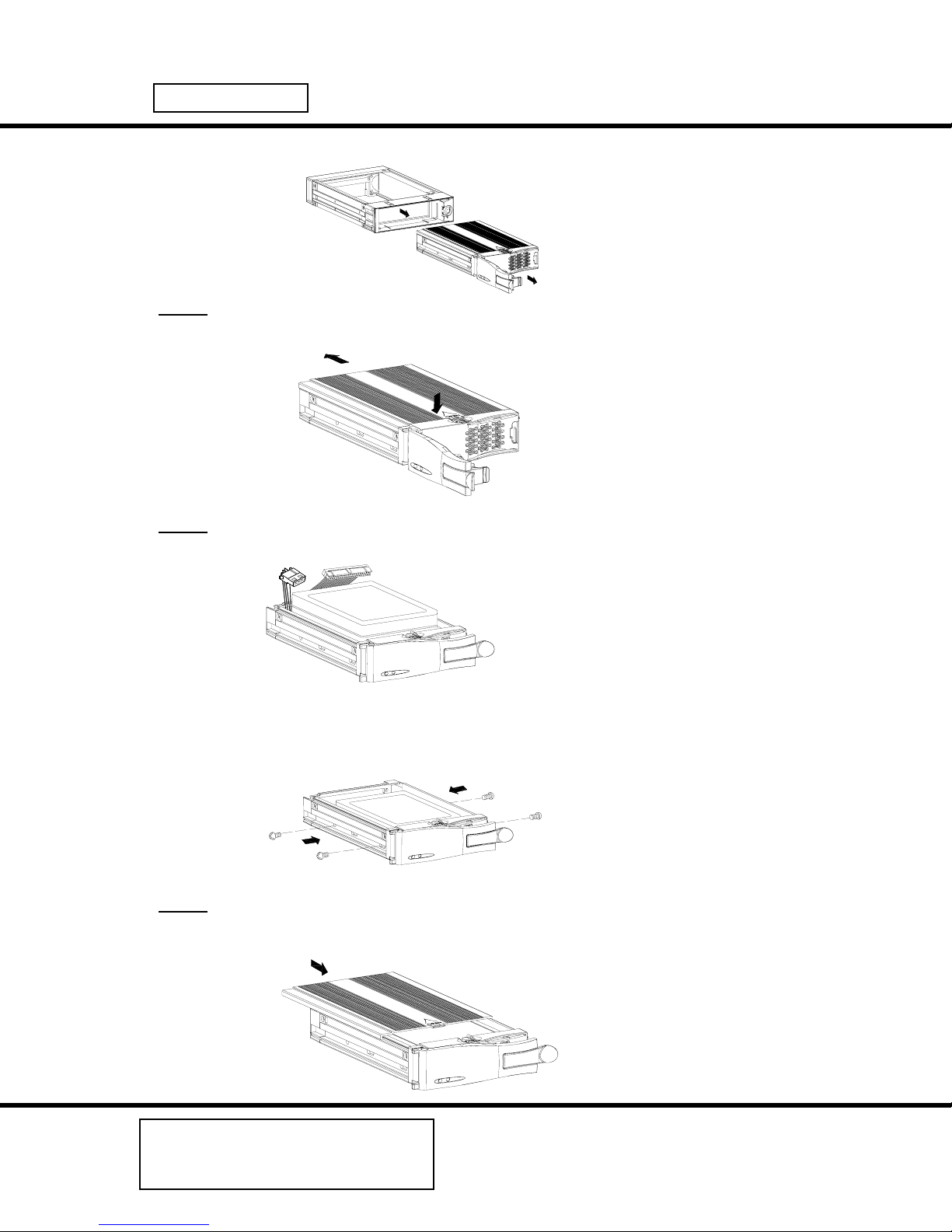

1-2. Pull the handle outwards to remove the carrier body away from the cartridge frame. (Fig.2)

Step 2

2-1. Push the release latch to slide the top cover backwards and remove. (Fig.3)

PUSH

Step 3

3-1. Insert the DC power cable and IDE cable on the HDD. (Fig.4)

3-2. Position the HDD into carrier body and secure the HDD using the four 6#-32 screws provided.

(Fig.5)

Step 4

4-1. Slide the top cover back to the carrier body by sliding forward to secure. (Fig.6)

Fi

g

. 2

Fig. 5

Copyright 2002 Vantec Thermal Technologies, INC.

All Rights Reserved

http://www.vantecusa.com

Fi

g

. 3

Fi

g

. 4

Fi

g

. 6

Model MRK-103F

Model MRK-103F

Step 5

5-1. Slide the carrier body back into the cartridge frame. (Fig.7)

Fi

g

. 7

5-2. Push carrier body further into cartridge frame until fully inserted. (Fig. 8)

Fi

g

. 8

Step 6

6-1. Install the module into a 5.25” half-height expansion bay. Insert the DC power cable and the IDE

cable of the user’s chassis to connectors located at the back plane of the cartridge frame. Then,

fully secure the module to the chassis by using the four M3x6 screws provided. (Fig.9)

Fi

g

. 9

6-2. Pull the active-handle outwards and use the miniature key provided and insert into the key hole,

turning the key clockwise to secure the handle. (Refer to section 2-2 Key lock)

Copyright 2002 Vantec Thermal Technologies, INC.

All Rights Reserved

http://www.vantecusa.com
