Vantec NexStar-HX4 Manuale utente

User’s Manual

Dual/Quad 3.5” SATA to USB 3.0 & eSATA

External Hard Drive RAID/Non-RAID Enclosure w/Fan

Package Contents:

NextStar HX4/HX4R NextStar HX2R

TRADEMARKS

MS-DOS, Microsoft, Windows NT/2000/XP/Vista/7/8 are trademarks of Microsoft Corporation.

Apple, Macintosh and Mac are trademarks of Apple Computer.

NexStar is a registered trademark of Vantec Thermal Technologies.

*All other third-party brands and names are the property of their respective owners.

71 NexStar HX4R/HX4

2 USB 3.0 Cable

3 eSATA Cable

4 Power Adapter

5 User’s Manual

6 Installation Screws

7 Foam Spacer

71 NexStar HX2R

2 USB 3.0 Cable

3 eSATA Cable

4 Power Adapter

5 User’s Manual

6 Installation Screws

7 Foam Spacer

Table of Contents:

Table of Contents

1. Introduction

2. Specications/Features

3. System Requirements

4. Parts Layout

5. LED Indicator

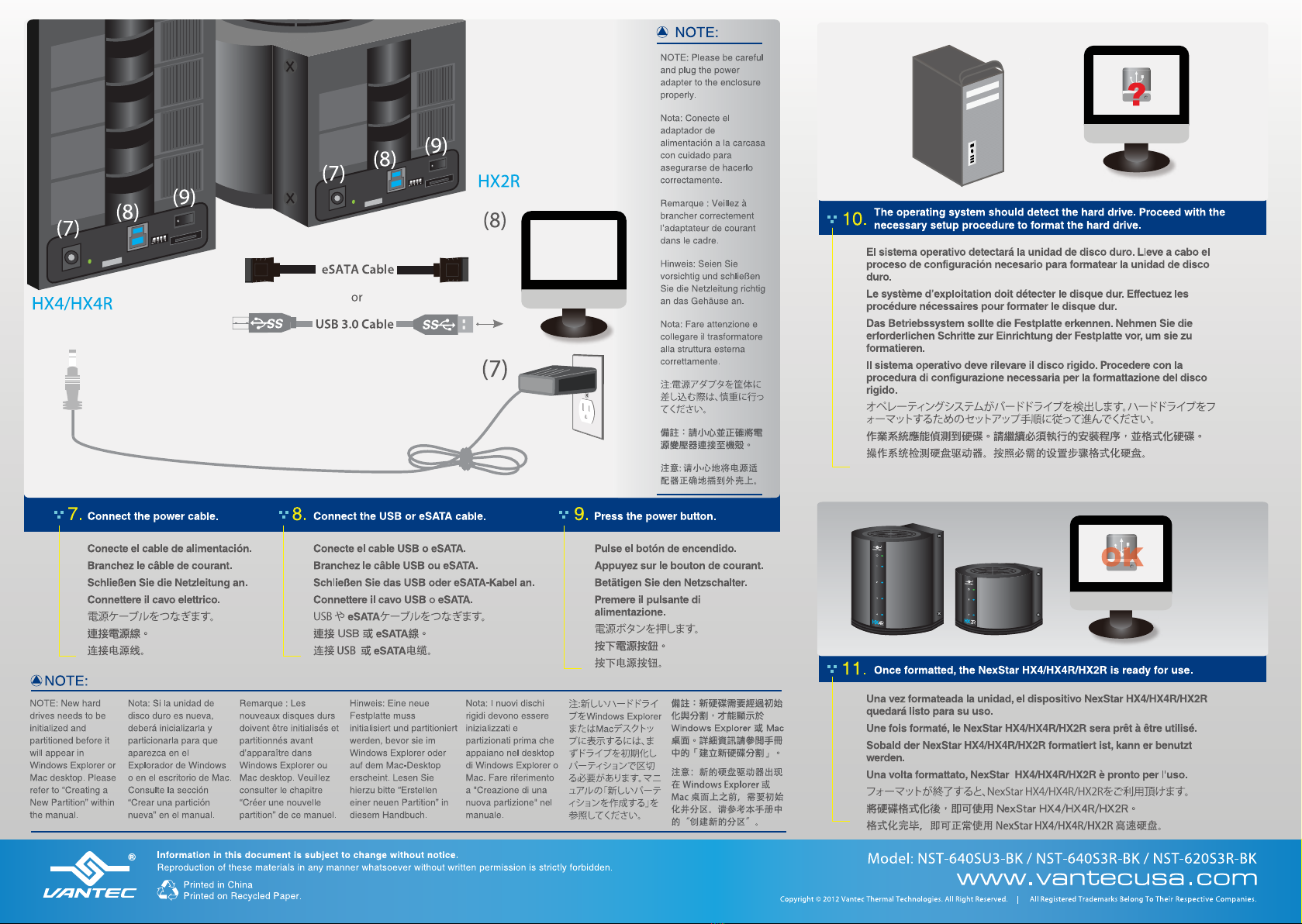

6. Installation

7. RAID Mode Guide

8. RAID Rebuild

9. Hardware Formatting Guide

10. Disconnecting the NexStar HX4R

11. Warranty

12. Contact

Introduction

1.Introduction:

Introducing the NexStar HX4R / HX2R / HX4 – a quad or dual 3.5”SATA to USB 3.0

& eSATA External RAID / non-RAID Hard Drive Enclosure designed to keep all your

hard drive safe and cool. This enclosure features a hard aluminum shell that eec-

tively draws away the heat while an active controlled 80mm fan on top exhausts

the hot air from the enclosure ensuring your hard drive is protected and cooled.

Integrated with USB 3.0 & eSATA technology; transfer les to and from your

computer at blazing fast speeds. The NexStar HX4R / HX2R / HX4 is also packed

with support for Individual or RAID features making backing up, transfering, and

copying your data quick and easy.

Specications/Features

2.Specications/Features:

Features:

• Aluminum Casing Cools Down Your Hard Drive

• Vents To Intake Cool Air

• Maximum Transfer Rates Up to 5 Gbps w/USB 3.0

• Maximum Transfer Rates Up to 3Gbps w/eSATA

• Active Large 80mm Fan To Exhaust Heat

• Easily Add Storage to Any System with USB 2.0, 3.0 or eSATA

• Backwards-Compatible with USB 2.0 or 1.1

• Hot-Swappable: Plug & Play Without Rebooting

• Attractive LED Indicates Power & HDD Activity

NexStar HX4 (NST-640SU3-BK)

• Supports Individual

NexStar HX4R (NST-640S3R-BK)

• Supports Individual, JBOD, RAID 0, 1, 3, 5 & 10 Modes

NexStar HX2R (NST-620S3R-BK)

• Supports Individual, JBOD, RAID 0 & 1 Modes

Specications:

• Model: NST-640SU3-BK

• Drive Support: SATA I/II/III Hard Drives

• Drive Size: 3.5”

• Internal Interface: SATA

• External Interface: USB 3.0 & eSATA

• HDD Capacity: Up To 16TB*

• Power Supply: AC Adapter

• Fan: 80mm

• Material: Aluminum & Plastic

• Dimension: 209 x 170 x 181 mm

• Model: NST-620S3R-BK

• Drive Support: SATA I/II/III Hard Drives

• Drive Size: 3.5”

• Internal Interface: SATA

• External Interface: USB 3.0 & eSATA

• HDD Capacity: Up To 8TB*

• Power Supply: AC Adapter

• Fan: 80mm

• Material: Aluminum & Plastic

• Dimension: 209 x 170 x 181 mm

*Check our website www.vantecusa.com for any updates

• Model: NST-640S3R-BK

• Drive Support: SATA I/II/III Hard Drives

• Drive Size: 3.5”

• Internal Interface: SATA

• External Interface: USB 3.0 & eSATA

• HDD Capacity: Up To 16TB*

• Power Supply: AC Adapter

• Fan: 80mm

• Material: Aluminum & Plastic

• Dimension: 209 x 170 x 181 mm

Syetem Requirements

3.System Requirements:

Microsoft Windows XP/Vista/7/8

1. For USB 2.0 speeds, the system must

support USB 2.0 specications

2. For USB 3.0 speeds, the system must

support USB 3.0 specications

3. For eSATA Speeds, the System Must

Support eSATA Specications

4. Port Multiplier Is Required For eSATA

Mac OS 10.6 & greater

1. For USB 2.0 speeds, the system must

support USB 2.0 specications

2. For USB 3.0 speeds, the system must

support USB 3.0 specications

3. For eSATA Speeds, the System Must

Support eSATA Specications

4. Port Multiplier Is Required For eSATA

Parts Layout

4.Parts Layout:

5 8

Power LED

HDD1 LED

HDD2 LED

HDD3 LED

HDD4 LED

NexStar HX4 (NST-640SU3-BK)

NexStar HX4R (NST-640S3R-BK)

Power LED

HDD1 LED

HDD2 LED

NexStar HX2R (NST-620S3R-BK)

(HX4R only)

LED Indicator

5.LED Indicator:

General Operation:

Power LED

HDD 1 LED

HDD 2 LED

HDD 3 LED

HDD 4 LED

Green

Blue

ON : Power on

OFF: Power o

ON : HDD inserted

Flash Randomly: Accessing (Read/Write/Rebuild)

Flash Consistently (3 ashes per second): HDD error

OFF: HDD not installed/Removed/sleep mode

ON : HDD inserted

Flash Randomly: Accessing (Read/Write/Rebuild)

Flash Consistently (3 ashes per second): HDD error

OFF: HDD not installed/Removed/sleep mode

ON : HDD inserted

Flash Randomly: Accessing (Read/Write/Rebuild)

Flash Consistently (3 ashes per second): HDD error

OFF: HDD not installed/Removed/sleep mode

ON : HDD inserted

Flash Randomly: Accessing (Read/Write/Rebuild)

Flash Consistently (3 ashes per second): HDD error

OFF: HDD not installed/Removed/sleep mode

Power LED

HDD 1 LED

HDD 2 LED

Green

Blue

ON : Power on

OFF: Power o

ON : HDD inserted

Flash Randomly: Accessing (Read/Write/Rebuild)

Flash Consistently (3 ashes per second): HDD error

OFF: HDD not installed/Removed/sleep mode

ON : HDD inserted

Flash Randomly: Accessing (Read/Write/Rebuild)

Flash Consistently (3 ashes per second): HDD error

OFF: HDD not installed/Removed/sleep mode

NexStar HX4 (NST-640SU3-BK)

NexStar HX4R (NST-640S3R-BK)

NexStar HX2R (NST-620S3R-BK)
