VarTech Systems VT201CM Manuale utente

20.1” PowerVue User Guide 150-055

VT201 PowerVue

Military / Marine Series

20.1” Flat Panel LCD Displays

VT201CM · VT201PM · VT201RM

VT201MM · VT201WM · VT201YM

User’s Guide

Read these instructions completely before attempting to operate your new Color Display.

VarTech Systems Inc.

Solutions for Demanding Applications

Industrial CRT and Flat Panel Displays

Table Of Contents

Section 1 Page Section 4 Page

Introduction Touch screen

Unpacking 1 Touch Screen Introduction 17

Checking Package Contents 1 Touch Screen Definition 17-18

Product Safety Precautions 2 Touch Screen Serial Interface 18

On Safety 2 Setting up the Touch Interface 18

On Installation 3 Installing Windows NT 4.0 Touch Drivers 19

On Cleaning 3 Installing Windows 95/98 Touch Drivers 19-20

On Repacking 3 Installing Windows 2000 Touch Drivers 20

Section 2 Section 5

Display Setup Troubleshooting Tips 21

Display Features 4

Unpacking The Display 4 Section 6

Included Parts 4 Cleaning & Maintenance 22

Connecting Your Display 5

Signal Connections 5-7 Section 7

Mechanical Drawings

Section 3 Console / Panel Mount Procedure 23

Getting Started VESA / Wall Mount Procedure 24

Operator Controls and Indicators 8 Rack Mount Procedure 24

Setting up the Video Source 9-10 Panel Mount Mechanicals 25

Adjusting the monitor 11 Rack Mount Mechanicals 26

Navigating the OSD 12

Picture Submenu 13 Section 8

OSD Submenu 14 Display Specifications 27

Utility Submenu 15

Quick Menu 16

20.1” PowerVue User Guide 150-055

INTRODUCTION

1.1

Section

UNPACKING

Before unpacking, the shipping carton should be inspected for damage. Then, the carton

should be carefully opened and the monitor removed. The monitor itself should be carefully

inspected for shipping damage. If damage has occurred, the shipping carton and all packing

materi-als should be saved for possible inspection by the shipping company, and the shipping

company and VarTech should be notified immediately.

NOTE:

Please save the packaging for re-use in case the monitor should ever have to be shipped to a

new location.

CHECKING PACKAGE CONTENTS

All monitors are supplied with a User’s Manual and with cables and other optional accessories as

specified by the customer at the time of order. The contents of the package should be checked

against the packing list to ensure that all items are present.

1.2

Product Safety Precautions

1.3

This unit has been engineered and manufactured to ensure your personal safety,

however improper use may result in potential electrical shock or fire hazards. In order

to allow the proper operation of all safeguards incorporated in this display, observe the

following basic rules for its installation, use, and servicing.

On Safety

Use only the power cord supplied with the unit. In case you use another power cord, make sure

that it is certified by the applicable national standards if not being provided by the supplier. If

the power cable is faulty in any way, please contact the manufacturer or the nearest authorized

repair service provider for a replacement. The power supply cord is used as the main

disconnection device. Ensure that them socket-outlet is easily accessible after installation.

Operate the display only from a power source indicated in the specifications of this manual or

listed on the display. If you are not sure what type of power supply you have, consult with your

service or maintenance department. Overloaded AC outlets and extension cords are

dangerous. So are frayed power cords and broken plugs. They may result in a shock or fire

hazard Call your service technician for replacement.

Do not Open the Display.

♦ There are no user serviceable components inside.

♦ There are Dangerous High Voltages inside, even when the power is OFF.

♦ Contact your dealer if the display is not operating properly.

To Avoid Personal Injury :

♦ Do not place the display on a sloping shelf unless properly secured.

♦ Use only a stand recommended by the manufacturer.

♦ Do not try to roll a stand with small casters across thresholds or deep pile carpets.

To Prevent Fire or Hazards:

♦ Always turn the display OFF if you leave the area for more than a short period of time.

♦ Do not drop or push objects into the display's cabinet openings. Some internal parts carry

hazardous voltages.

♦ Do not add accessories that have not been designed for this display.

♦ During a lightning storm or when the display is to be left unattended for an extended period

of time, unplug it from the wall outlet.

Important Precautions

1.4

20.1” PowerVue User Guide 150-055

On Installation

Do not allow anything to rest upon or roll over the power cord, and do not place

the display where the power cord is subject to damage.

Do not use this display near water such as near a sink, in a wet location where there is

standing water. Displays are provided with ventilation openings in the cabinet to allow the

release of heat generated during operation. If these openings are blocked, built-up heat can

cause failures which may result in a fire hazard.

Therefore, NEVER:

♦ Block any ventilation slots.

♦ Place the display in a built-in enclosure unless proper ventilation is provided.

♦ Cover the openings with cloth or other material.

♦ Place the display near or over a heat source.

Do not rub or strike the Active Matrix LCD with anything hard as this may scratch, mar, or

damage the Active Matrix LCD permanently.

Do not press the LCD screen with your finger for a long time as this may cause some

afterimages.

Some dot defects may appear as Red, Green or Blue spots on the screen.

However, this will have no impact or effect on the display performance.

If possible, use the recommended resolution to obtain the best image quality for your LCD

display. If used under any mode except the recommended resolution, some scaled or

processed images may appear on the screen. However, this is characteristic of the

fixed-resolution LCD panel.

On Cleaning

Unplug the display before cleaning the face of the display screen. Use a 50/50 mix of Isopropyl

alcohol and water. Apply with a slightly damp (not wet) lint free cloth. Do not use an aerosol

directly on the display screen because over-spraying may cause electrical shock.

On Repacking

Do not throw away the carton and packing materials. They make an ideal container in which to

transport the unit. When shipping the unit to another location, repack it in its original material.

1.5

1.7

1.6

DISPLAY SETUP

VT201 Military/Marine Series Display Features

⇒ Capable of displaying unlimited colors in a continuous spectrum. The high contrast LCD

enhances the image with no geometric distortion.

⇒ The VT201 Military / Marine Series directly accepts an analog 5 wire RGB with separate H/V

sync or 4 wire RGB with separate combined sync or 3 wire SOG.

⇒ The VT201 Military / Marine Series is auto synchronous adjusting the display to the appropriate

input between VGA, SVGA, and XGA.

⇒ The VT201 Military / Marine Series is available in Console, Panel Mount, Rack Mount, Wall

Mount, Yoke, or Tabletop industrial packages.

⇒ The VT201 Military / Marine Series is supplied with a Anti-Reflective Screen unless equipped

with an optional Touch System.

⇒ The VT201 Military / Marine Series has an integrated 115/220VAC supply as standard on all

models.

Unpacking and setting up your display

Before unpacking, the shipping carton should be inspected for damage. Then, the carton

should be carefully opened and the monitor removed. The monitor itself should be carefully

inspected for shipping damage. If damage has occurred, the shipping carton and all packing

materials should be saved for possible inspection by the shipping company, and the shipping

company and VarTech Systems should be notified immediately.

What is included with your display

⇒ VT201CM, VT201PM, VT201RM , VT201MM, VT201WM, or VT201YM LCD

⇒ 5 ft Video Cable

⇒ 10-32 Mounting Hardware. (For use with Panel Mount only)

⇒ 6 ft RS232 Touch Interface Cable (Optional when touch is installed)

⇒ CD ROM with Touch Screen Drivers (Optional when touch is installed)

⇒ Users Guide (Printed or on CD)

Section

2.1

2.2

2.3

20.1” PowerVue User Guide 150-055

When connecting the monitor to an analog signal source, it is necessary to use a cable that

terminates on the monitor end with an HD-15 connector that mates to the monitor’s connector, and

on the source end with an HD-15 connector or with some combination of three to five BNC

connectors, as appropriate to the source.

Provided the correct cable is used, the monitor will automatically sense and adapt to the sync type

(sync-on-green, composite separate sync, or separate horizontal and vertical syncs).

Please refer to figure 1 for location of the

HD-15 connector on the monitor’s rear panel.

Connecting the Display

Signal Connections

POWER

VIDEO IN

SERIA

-26 5 VAC

-440Hz

FUSE

POWER

VIDEO IN

SERIAL

85-265 VAC

47-440HZ

FUSE

Figure 1

Rear view showing connectors

You can use an HD-15 connector cable or a BNC adapter cable to connect the flat panel

monitor to the host computer. The HD-15 video cable (supplied in the kit) you use with this

monitor is equipped with a conventional HD-15 connector at each end.

HD-15 Video Connector

The following table provides the pin numbers and corresponding pin assignments for the

HD-15 video connector.

Note: The following figure is the view looking into the pin end of the male connector or solder

term end of the female connector.

12345

678910

11 12 13 14 15

HD15

Pin Signal (HD15) Pin Signal (HD15) Pin Signal (HD15)

1 Red Video 6 Red Return 11 ID0

2 Green Video 7 Green Return 12 ID1

3 Blue Video 8 Blue Return 13 Horizontal Sync

4 ID2 9 Reserved 14 Vertical Sync

5 Reserved 10 Ground 15 Reserved

2.4

2.5

Signal Connections Cont.

Optional Video Cable Options

HD15 to HD15

This cable should be used when connecting the monitor to a signal source that provides analog

RGB outputs by way of an HD-15 connector.

HD-15 to 5 BNC

This cable should be used when connecting the monitor to an analog source that provides RGB

video by way of BNC connectors. There are three possible wiring schemes, depending on the

type of sync supplied by the source. The DVI-I to BNC cable can be used with all three schemes.

When the source provides composite sync on green, only three of the cable’s five BNC connectors

are used. When the source provides RGB video and separate composite sync, four of the cable’s

five BNC connectors are used. When the source provides RGB video and separate horizontal and

vertical sync, all five of the cable’s BNC connectors are used.

Source w/3 BNC Source w/4 BNC Source w/5 BNC Signal Monitor HD-15

BNC R BNC R BNC R Analog Red 1

BNC G BNC G BNC G Analog Green

(with sync if 3 BNC setup) 2

BNC B BNC B BNC B Analog Blue 3

BNC H/C BNC H/C Composite Sync( 4 BNC setup) or

Horizontal Sync (5 BNC setup) 13

BNC V Vertical Sync 14

(BNC RGB shells) (BNC RGB shells) (BNC RGB shells) Analog RGB Ground 6, 7, 8

BNC H/C shell (BNC H/C and V shells) Sync Ground 10

HD15 to BNC Cable Adapter

2.5

20.1” PowerVue User Guide 150-055

AC Power

A monitor equipped for operation on AC power should be connected to a single-phase power

source providing 115 to 230VAC nominal (85 to 264VAC) at 47 to 66Hz, or 400Hz.

Connection is made by way of an IEC power cord at the monitor’s power input connector, or by way

of a military style connector, when that option is specified.

DC Power

A monitor equipped for operation from a DC power source should be connected to the DC main

using UL approved #10 stranded wire. The wire should use properly color-coded insulation.

Power and Ground Connections

WARNING: To ensure against fire or shock hazards, the monitor chassis should be con-

nected to an earth ground by a path that is independent of the power cord. While the AC

power cord provides a ground wire, the power cord ground can be defeated by use of an

extension cord or 3-prong to 2-prong AC adapter, and it can be rendered ineffective by im-

proper wiring of the AC receptacle.

NOTE: To minimize ground loop induced “noise” on the video inputs, it is good practice to

connect the monitor’s AC power cord to the same receptacle that supplies power to the video

source.

2.6

GETTING STARTED

Section

Operator Controls and Indicators

Operator controls include a power switch (an option), a button panel for accessing the setup

menus (OSD), and a luminance control. The VT201 Military / Marine Series monitors have an

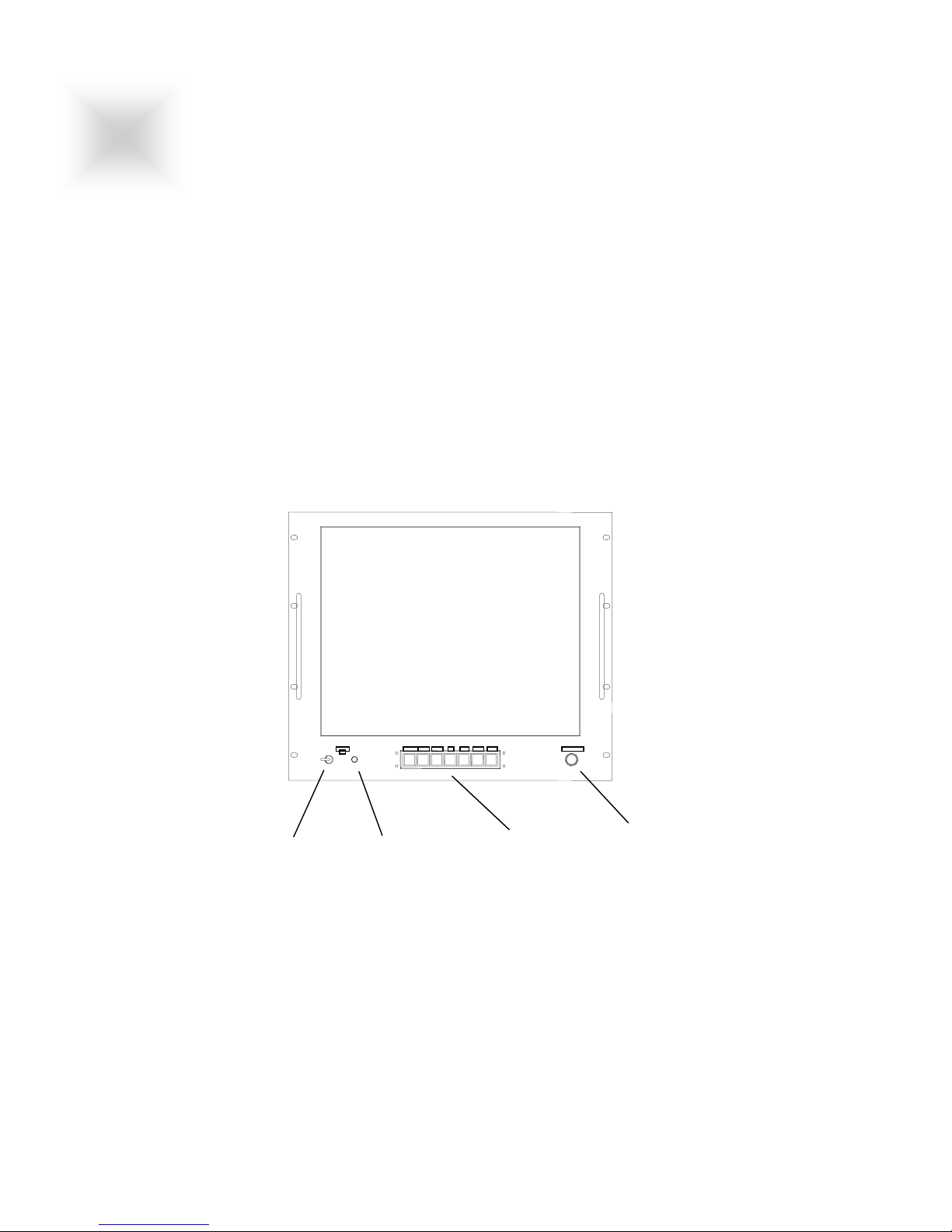

LED to indicate power on. Figure 2 show a drawing of the VT201RM to illustrate the layout.

• The power switch controls main power to the monitor. Power on is indicated by an

LED next to the switch.

• The OSD controls are discussed in detail in a following section.

• The luminance control controls the backlight. The range of the control is determined

by the brightness setting made with the OSD.

The monitor is pre-aligned at the factory. However, minor adjustments are usually necessary

following installation to optimize the monitor’s performance with a particular video source and

particular video formats. This section of the manual describes the operator accessible controls that

allow for such adjustment. It goes on to describe a typical setup procedure.

LEF

SOU

E D

WNMEN

PBRI

HTNE

Power

Switch

Power on

indicator

OSD

Controls

Luminance

Control

Figure 2 – VT201RM front view, showing operator controls

3.1

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali VarTech Systems Monitor

VarTech Systems

VarTech Systems VT420W Manuale utente

VarTech Systems

VarTech Systems VT190PVS Manuale utente

VarTech Systems

VarTech Systems VT170W Manuale utente

VarTech Systems

VarTech Systems GDM-5001PT Manuale utente

VarTech Systems

VarTech Systems VT320D Manuale utente

VarTech Systems

VarTech Systems VT14A-D Manuale utente

VarTech Systems

VarTech Systems ColorVue VT190PC Manuale utente

VarTech Systems

VarTech Systems VT181R2 Manuale utente

VarTech Systems

VarTech Systems VT213C Manuale utente

VarTech Systems

VarTech Systems DiamondVue VT084C Manuale utente

VarTech Systems

VarTech Systems DiamondVue VT150P Manuale utente

VarTech Systems

VarTech Systems VTPC2100VS Manuale utente

VarTech Systems

VarTech Systems VTPC150XPE Manuale utente

VarTech Systems

VarTech Systems VT121CC Manuale utente

VarTech Systems

VarTech Systems VT20A Manuale utente

VarTech Systems

VarTech Systems VT520 Manuale utente

VarTech Systems

VarTech Systems VT170CM Manuale utente

VarTech Systems

VarTech Systems vt550 series Manuale utente

VarTech Systems

VarTech Systems VT084XA4 Manuale utente

VarTech Systems

VarTech Systems VT121XA4 Manuale utente

VarTech Systems

VarTech Systems VT420D Manuale utente

VarTech Systems

VarTech Systems DiamondVue VT201C Manuale utente

VarTech Systems

VarTech Systems VT14B-C1 Manuale utente

VarTech Systems

VarTech Systems VT121 DiamondVue Series Manuale utente

Manuali Monitor popolari di altre marche

Linear Acoustic

Linear Acoustic LQ-1000 Manuale utente

AOC

AOC I2579V Manuale utente

Gateway

Gateway FPD1520 Manuale utente

Furuno

Furuno Mu 120c Manuale utente

Asus

Asus VB171D - 17" LCD Monitor Manuale utente

Dell

Dell S2230MX Istruzioni utente

Philips

Philips 107C64 Manuale utente

Dell

Dell S2409WFP Manuale utente

EverFocus

EverFocus EN-7517E Manuale utente

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuale utente

Dell

Dell Precision 7680 Manuale di istruzioni

LG 50PM1M - - 50" Plasma Panel Manuale utente

Bosch

Bosch DDU 9 Manuale utente

Acer

Acer A231HL Manuale utente

Philips

Philips 86BDL4152T Manuale utente

NEC

NEC AccuSync LCD5V Manuale utente

Emay

Emay SleepO2 Manuale utente

IBM

IBM 6360 Istruzioni per l'installazione
