Vaxcel Proline T0429 Manuale di istruzioni

Page 1 of 3 180806

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

T0429 / T0430

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. Read and save these instructions.

Important to Know

1. Read all instructions carefully before installation and operation.

2. If you are not familiar with state and local electrical codes, it is recommended that you consult with a qualified

electrician.

3. Before installation, shut off power at the main fuse or circuit breaker box. Be aware that simply turning off the

wall switch is not sufficient to prevent an electrical shock.

4. This fixture requires a 120 VAC, 60 Hz power source.

5. Do not attempt to take the lantern apart; there are no serviceable parts inside.

Maximum Wattage: 60W Incandescent Bulb

Work Temperature: - 4°F~104°F

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

HARDWARE CONTENTS Note: Hardware not shown actual size.

Cross Bar

Mounting Screw

Headless Screw

Wire Connector

Lock Nut

Ball Nut

Rubber Pad

HH Green Grounding

Screw X1

Please read and understand this entire manual before attempting to assemble, operate or install the product.

WARNING

●Turn off electricity at main fuse box (or circuit breaker box) before beginning installation by removing fuse (or

switching off circuit breaker).

●Be careful not to damage or cut the wire insulation (covering) during fixture installation. Do not permit wires to contact

any surface having a sharp edge. To do so may damage or cut the wire insulation, which could cause serious injury

or death from electric shock.

CAUTION

●All electrical connections must be in agreement with local codes, ordinances or the national electric code (NEC).

Contact your municipal building department to learn about your local codes, permits and/or inspections.

●Risk of fire – most dwellings built before 1985 have supply wire rated for 140°F/60ºC. Consult a qualified electrician

before installation.

●Do not connect this fixture to an electrical system that does not provide a means for equipment grounding. Never use

a fixture in a two-wire system that is not grounded. If you are not sure your lighting system has a grounding means,

do not attempt to install this fixture. Contact a qualified, licensed electrician for information with regards to proper

grounding methods as required by the local electrical code in your area.

PREPARATION

Before beginning assembly, installation or operation of product, make sure all parts are present. Compare parts with

package contents list and diagram on previous page. If any part is missing or damaged, do not attempt to assemble,

install or operate the product.

Tools Required for Assembly (not included): Screwdriver, Phillips Screwdriver, Pliers, Electrical Tape, Wire Cutters,

Safety Glasses, Ladder, Wire Stripper.

Page 2 of 3 180806

SAFETY INFORMATION

ASSEMBLY INSTRUCTIONS

Thread two headless screws (CC)

through the cross bar (AA), and

then secure them with four lock

nuts (EE) (two on each side of the

cross bar (AA). Adjust the length of

the headless screws (CC) if

necessary.

Note: Make sure that the

Headless screws are lined up

horizontally to make the fixture

level.

2. Attach cross bar(AA) to outlet box

using two mounting screws(BB).

4. Screw one end of the threaded

pipe into the coupling, secure it

with the washer and hex nut.

Adjust the length of the

threaded pipe by using the hex

nut if necessary. Attach the tail

and pipe cap through the

threaded pipe, then secure

them with the finial.

Coupling

Pipe Cap

Tail

Finial

Hex Nut

Threaded Pipe

Washer

3. Pull out the source wires from the

outlet box. Make wire connections

using wire connectors (DD) as

follows:

• Connect the hot wire (usually

black insulation) from the fixture

to the black wire from the power source.

• Connect the neutral wire (usually white insulation)

from the fixture to the white wire from the power

source.

• Attach the fixture grounding wire (usually green

insulation or bare wire) to the cross bar (AA) with

the green grounding screw (HH), and then connect it

to the house grounding wire with the wire connector

(DD).

Carefully put all of the wires back into the outlet box.

Turn off the power at fuse or circuit box.

●Toclean, turn off and wipe with a damp, non-abrasive cloth.

1) Thelight does not come on at all:

a) Make sure the wall switch and circuit breaker are on.

b) Make sure the wiring is correct.

2) Fuse blows or circuit trips when lightis turned on.

a) Check for crossed wires, ensure wiring is correct.

CARE AND MAINTENANCE

TROUBLESHOOTING

If unable to fix any of the above issues, please consult a certified electrician.

180806

Page 3 of 3

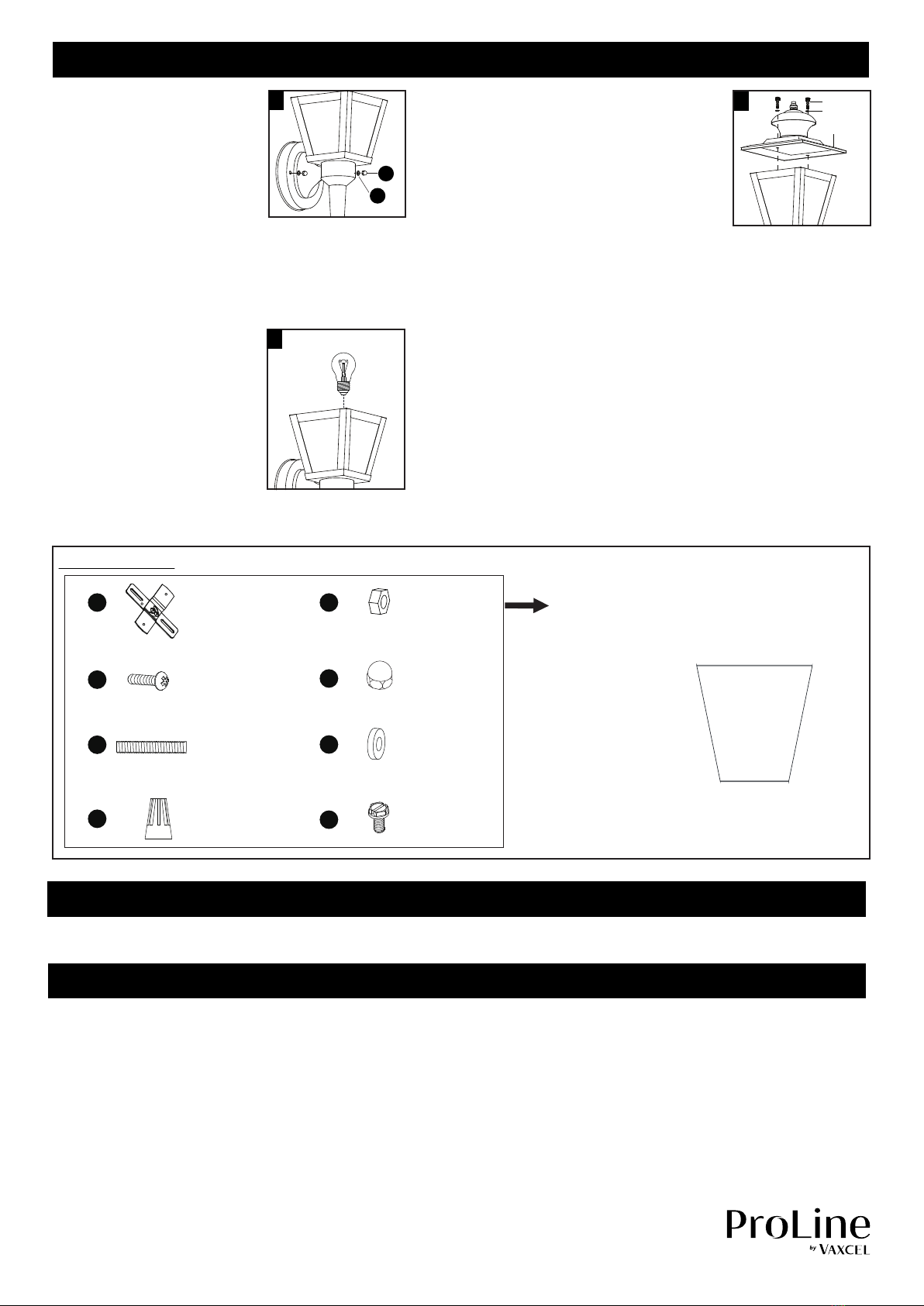

Spare Parts List:

The following parts are available for re-order if damaged or missing. Call our toll free at 800-482-9235.

Assembly Kit

4861MM(1 SET) For T0429

4862MM(1 SET) For T0430

5. Attach the back plate to the

cross bar by inserting the

headless screws (CC), then

secure it with rubber pads

(GG) and ball nuts (FF).

CAUTION: With silicone

caulking compound, caulk

completely around where

the back plate meets with

the wall surface to prevent

water from seeping into the

outlet box.

6. Install a bulb (not included).

See relamping label at

socket area or packaging for

maximum allowed wattage.

Bulb Type A Max.60W

(not included)

7. Unscrew the set screws and

rubber pads form fixture.Attach

the cover to the main fixture by

aligning holes, secure it with two

rubber pads and two set screws.

Rubber Pad

Cover

set screw

GlassX4

9293C

ASSEMBLY INSTRUCTIONS (continued)

Turn on the power at fuse or circuit box.

Cross Bar

Mounting Screw

Headless Screw

Wire Connector

Lock Nut

Ball Nut

Rubber Pad

EEAA

HH Green Grounding

Screw X1
