Vaxcel T0350 Manuale di istruzioni

181010

Lock Nut (E)

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THESE INSTRUCTIONS.

1. Thread two headless screws (D) through the cross bar (A), and then secure them with four lock nuts (E).

Adjust the length of the headless screws (D) if necessary.

Note: Make sure that the headless screws are lined up horizontally to make the fixture level.

2. Attach the cross bar

(A)

to the outlet box by using two mounting screws (B).

3. Pull out the source wires from the outlet box. Make wire connections using wire connectors (F) as follows:

---Connect the hot wire (usually black insulation) from the fixture to the black wire from the power source.

---Connect the neutral wire (usually white insulation) from the fixture to the white wire from the power source.

---Attach the fixture grounding wire (usually green insulation or bare wire) to the cross bar (A) with the green

grounding screw (C), and then connect it to the house grounding wire with the wire connector (F).

Carefully put the wires back into the outlet box.

Green Grounding Screw (C)

Outlet Box

Wire Connector (F)

Headless Screw (D)

Cross Bar (A)

Lock Nut

(E)

House Grounding Wire

Fixture Grounding Wire

Fixture Wire

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

T0350 T0494

Mounting Screw (B)

Mounting Screw (B) Wire Connector (F) Ball Nut (G) Rubber Pad (H)

Cross Bar (A)

Bulb Type A Max.60W

(not included)

Ball Nut(G)

Rubber Pad(H)

Fixture

Shade

Socket

Holder

Socket Ring

Photocell

Back Plate

Hardware Package (included):

Headless Screw (D)

Green Grounding

Screw (C)

Turn off the power at fuse or circuit box.

Installation Steps

IMPORTANT:

The sensor has an excellent photocell function

to enable the light to turn on at dusk and off at

dawn automatically.

181010

4. Attach the fixture to the cross bar (A) by inserting headless screws (D) into holes on back plate, and then secure

it with two rubber pads (H) and two ball nuts (G).

Note: With silicone caulking compound, caulk completely around where the back plate meets with the wall

surface to preface to prevent water from seeping into outlet box.

5. Attach the shade to the socket, and then secure it with the socket ring.

6. Install a bulb (not included). Check relamping label at socket area or packaging for maximum allowed wattage.

Turn on the power at fuse or circuit box.

A: 12"

B: 9"

C: 14"

The following parts are available for re-order if damaged or missing.

Spare Parts List:

Assembly Kit

5486MM (1 SET) for T0350

5993MM (1 SET) for T0494

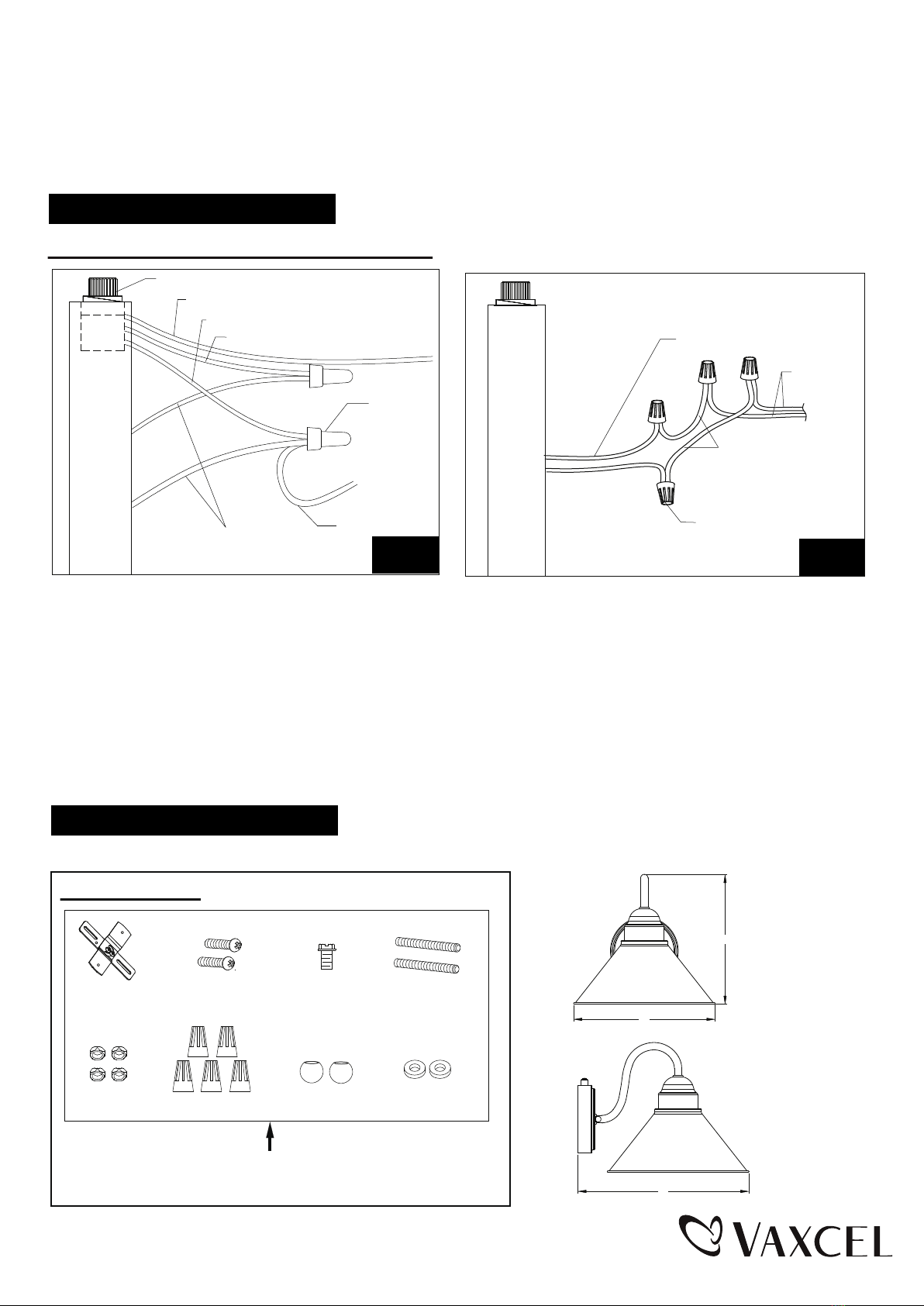

1. Turn off the power at the fuse or circuit box before starting installation.

2. Loosen the wire connectors connected with the wires from photocell. (See Fig.1)

Note: Do not move the photocell to prevent water from seeping into the outlet box.

3. Take a white pigtail and black pigtail and make wire connections using wire connectors (F): (See Fig.2)

a. The black wire from the fixture to one end of the black pigtail.

b. The white wire from the fixture to one end of the white pigtail.

c. The other end of the black pigtail to the black wire from the power source.

d. The other end of the white pigtail to the white wire from the power source.

Put all wires back into the back plate of the fixture.

Photocell

White Wires From Photocell

Wire Connector

Wires From Fixture

Wires From

Main Power

Wire Connector (F)

White Pigtail

Pigtail

Red Wires From Photocell

Black Wires From Photocell

Operation the Unit Without Photocell

Fig.1Fig.2

Mounting Screw (B)

Wire Connector (F) Ball Nut (G) Rubber Pad (H)

Cross Bar (A) Green Grounding

Screw (C)

Lock Nut (E)

Headless Screw (D)
