ASSEMBLY AND INSTALLATION

INSTRUCTIONS

T0572

WARNING: Turn off the main power at circuit breaker before installing fixture.

AVERTISSEMENT: Coupez la source d’alimentation principale au panneau

central de disjoncteurs avant d’installer le luminaire.

Installation steps

1. Thread two headless screws (E) through the cross bar (A), and then secure them with four lock nuts (F) (two on each

side of the cross bar (A).) Adjust the length of the headless screws (E) if necessary.

Note: Make sure the headless screws are lined up horizontally to make the fixture level.

2. Attach the

cross bar

(A) to the outlet box by using two mounting screws (B).

Turn off the power at fuse or circuit box.

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THESE INSTRUCTIONS.

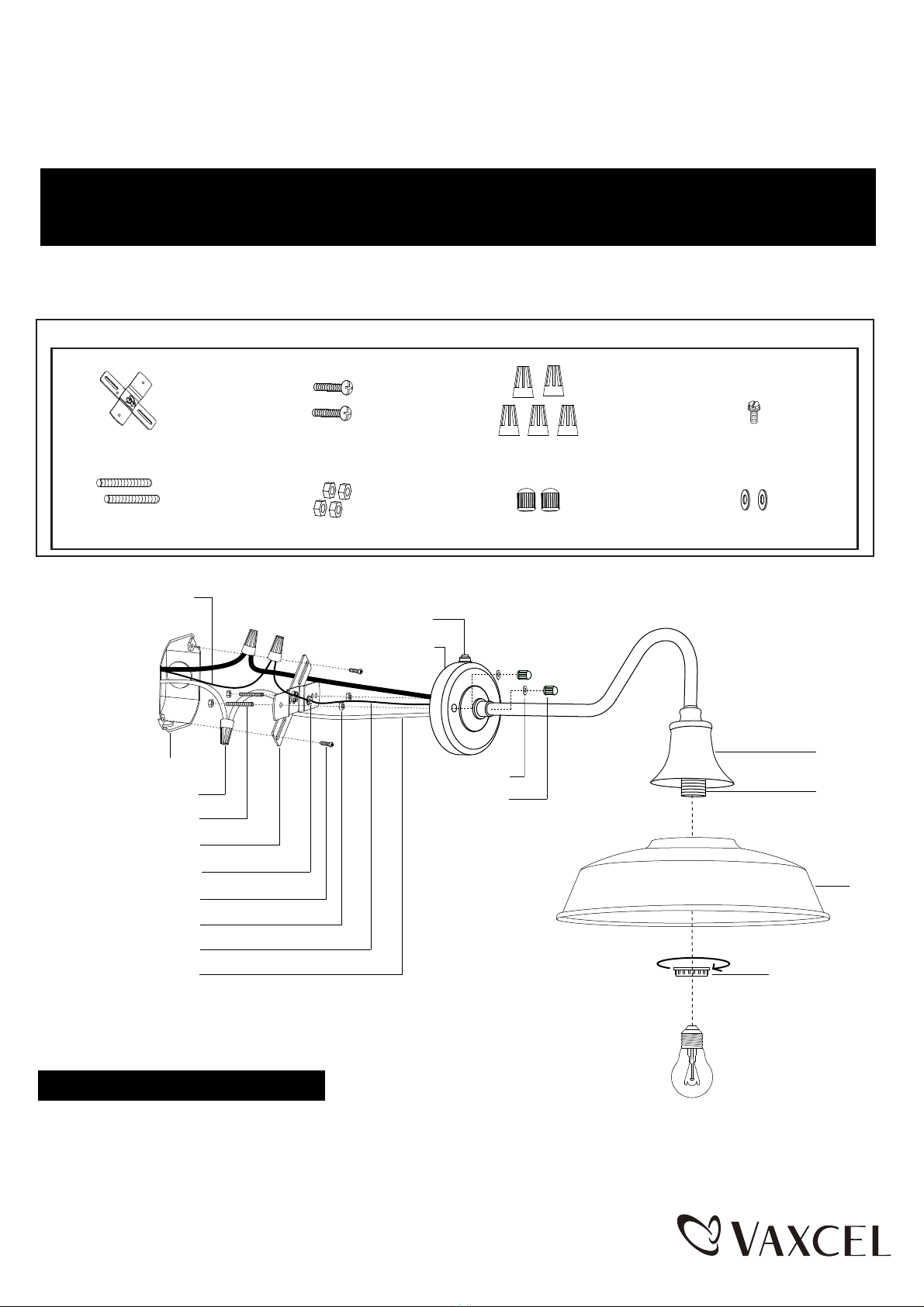

Hardware Package (included):

Green Grounding Screw (D)

Headless screw (E)

Mounting Screw (B) Wire Connector (C)

Lock Nut (F)

Bolt Nut (G) Rubber Pad (H)

Cross Bar (A)

Wire Connector (C)

House Grounding Wire

Outlet Box

Mounting Screw (B)

Green Grounding Screw (D)

Headless Screw (E)

Cross Bar (A)

Lock Nut (F)

Fixture Grounding Wire

Fixture Wire

Backplate

Photocell

Bolt Nut (G)

Rubber Pad (H)

Max.60W Type A Bulb

(not included)

Fixture

Socket

Shade

Socket Ring

191203

3. Pull out the source wires from the outlet box. Make wire connections using wire connectors (C) as follows:

• Connect the hot wire (usually black insulation) from the fixture to the black wire from the power source.

• Connect the neutral wire (usually white insulation) from the fixture to the white wire from the power source.

• Attach the fixture grounding wire (usually green insulation or bare wire) to the cross bar (A) with the green

grounding screw (D). Then, depending on local code connect it to the house grounding wire with the wire

connector (C).

Carefully put all of the wires back into the outlet box.

4. Attach the backplate of the fixture to the cross bar (A) by aligning and inserting the two headless screws (E) from

the cross bar (A) into the open holes on the backplate, then place the two rubber pads (H) over the exposed

headless screws (E) before screwing the two bolt nuts (G).

Note: With silicone caulking compound, caulk completely around where the backplate meets with the wall

surface to prevent water from seeping into the outlet box.

5. Attach shade to fixture, then secure it with socket ring.

6. Install bulb (not included). Check relamping label at socket area or packaging for maximum wattage allowed .

Turn on the power at fuse or circuit box.

1. Turn off the power at the fuse or circuit box before starting installation.

2. Loosen the wire connectors connected with the wires from photocell. (See Fig.1)

Note: Do not move the photocell to prevent water from seeping into the outlet box.

3. Take a white pigtail and black pigtail and make wire connections using wire connectors (C): (See Fig.2)

a. The black wire from the fixture to one end of the black pigtail.

b. The white wire from the fixture to one end of the white pigtail.

c. The other end of the black pigtail to the black wire from the power source.

d. The other end of the white pigtail to the white wire from the power source.

Put all wires back into the backplate of the fixture.

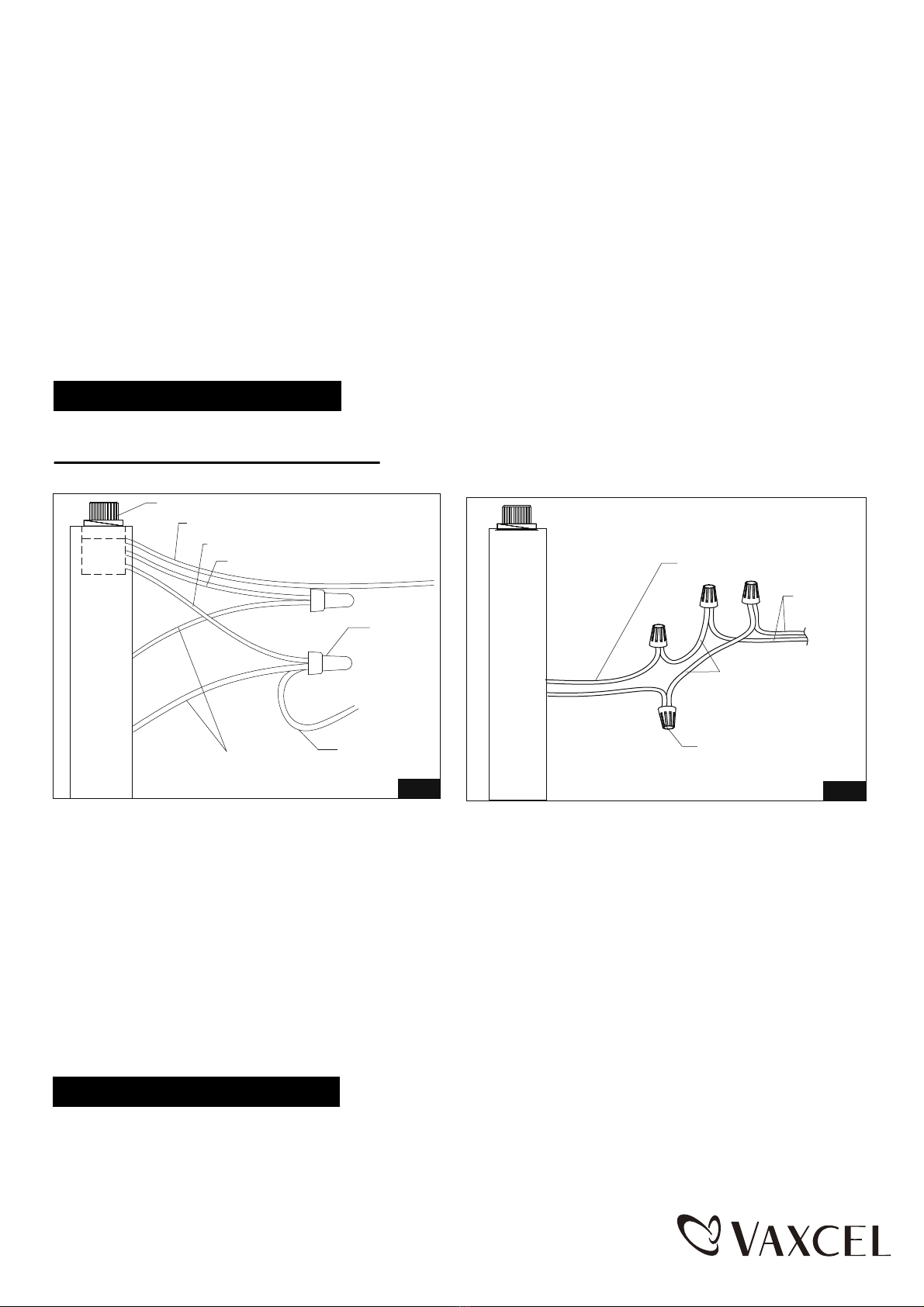

Operation the Unit Without Photocell

Fig.1 Fig.2

Photocell

White Wires From Photocell

Wire Connector

Wires From Fixture

Wires From

Main Power

Wire Connector (C)

White Pigtail

Pigtail

Red Wires From Photocell

Black Wires From Photocell

191203

Green Grounding Screw (D)

Headless screw (E)

Mounting Screw (B) Wire Connector (C)

Lock Nut (F)

Bolt Nut (G) Rubber Pad (H)

Cross Bar (A)

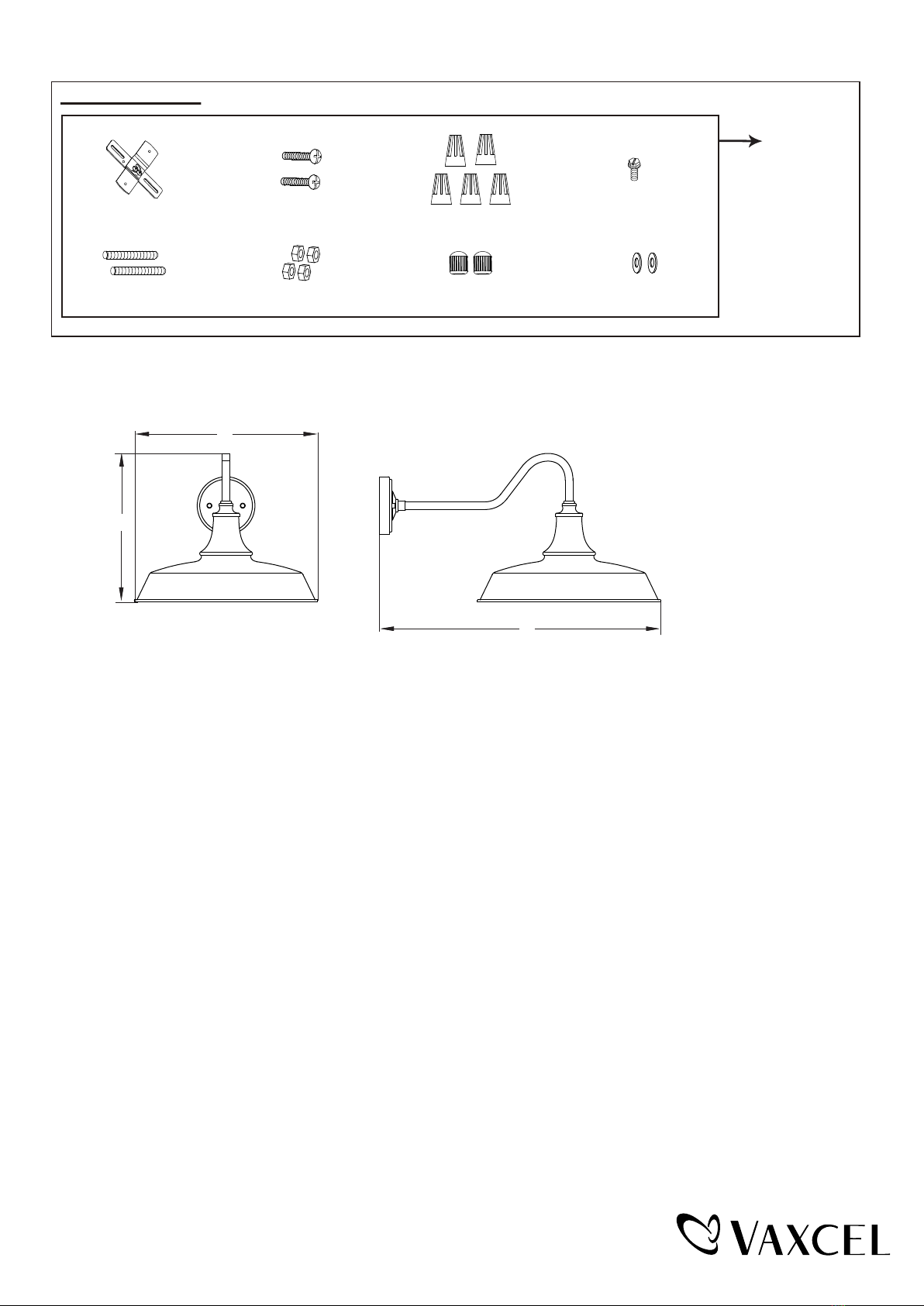

The following parts are available for re-order if damaged or missing.

Spare Parts List:

Mounting Hardware

6200MM (1SET)

A: 14”

B: 18”

C: 24-1/2”
