Important to Know:

1. If you are not familiar with state and local electrical

codes, it is recommended that you consult with a

qualified electrician.

2. This fixture requires a 120 VAC, 60 Hz power

source.

3. For general safety and to avoid any possible

damage to the sensor, be sure the power is

switched "off" before adjustment.

Maximum Wattage: 29 W

Working Temperature Range: -40F ~ 1130F

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THESE INSTRUCTIONS.

T0274 / T0275

Features:

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

Note: Fixture can be wall mounted or eave mounted.

Wall Mounted Eave Mounted

Read notes section on page 4 for additional information about mounting location of fixture.

Light fixture and sensor should be mounted as shown above when installed (depending upon type of installation)

Before installing the light fixture under an eave, the sensor head must be rotated as shown in the next two steps for

proper operation and to avoid the risk of electrical shock.

For eave mounted only:

Swing the sensor head towards the mounting bracket. Rotate the sensor head clockwise 180˚ so the controls face down.

Controls

Mounting Bracket

Controls

1. Energy saving LED fixture.

2. Motion sensor: turns light ON automatically when

motion is detected and turns light OFF automatically

when motion stops.

3. Photocell keeps the light OFF during daylight hours.

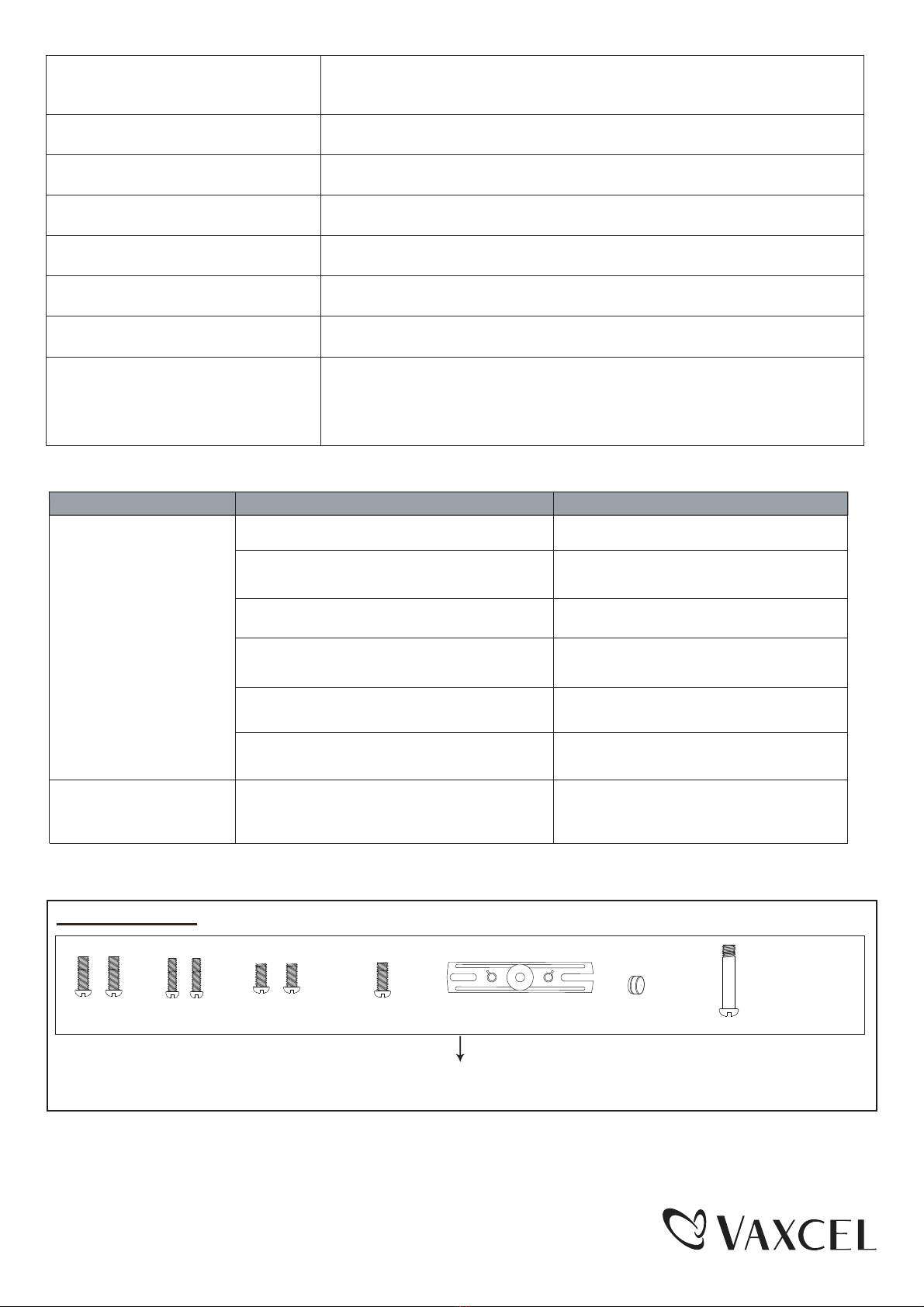

Hardware Package (included):

Mounting Screw X2

#8/32X1/2 in Mounting Bracket Screw Fixture Mounting Screw

Mounting Strap

Mounting Screw X2

#6/32 X1/2 in

Mounting Screw X2

#10/24 X1/4 in Decorative cover

160826

Page 2 / 10

Installation Steps

1. The fixture mounting bracket is pre-assembled on the light fixture. Unscrew

both the decorative cover and the fixture mounting screw in order to remove

the mounting bracket.

2. Install the mounting strap to the outlet box with the stamped word “FRONT”

facing away from the outlet box, using two mounting screws that best fit the

outlet box. Mounting bracket should sit flush against wall surface when

secured.(Choose one matching pair of suitable mounting screws from the

3 pairs provided)

3. Pull out the source wires from the outlet box.Unscrew the screws from the

terminal station. And connect the black wire from the outlet box to the “L”

interface of the terminal station on the mounting bracket. Connect the white

wire from the outlet box to the “N” interface of the terminal station on the mounting bracket. Then tighten the screws

back to screw the wires in place.

Carefully tuck the wires back into the outlet box.

4. Place mounting bracket against the outlet box, insert the mounting bracket screw through the mounting bracket hole,

thread mounting bracket screw into the center hole of the mounting strap. Tighten the mounting bracket screw securely.

▲ When mounting to a wall, the “UP” arrow must point upward. (See Fig. 1)

▲ When mounting to an eave, the “UP” arrow must point toward the building.

5. Attach the back plate of the light fixture to the mounting bracket, secure it with the fixture mounting screw.

6. Push the decorative cover firmly into the fixture mounting screw hole on the light fixture.

7. With silicone caulking compound, caulk completely around where the mounting bracket meets the wall surface.

CAUTION: Be sure to caulk completely where the mounting bracket meets the wall surface to prevent water

from seeping into the outlet box.

Sensor

Mounting Strap

Mounting Bracket

Outlet Box

Back Plate

Mounting Screw

Light Head

sensor

Adjusting the Sensor Head:

1. Aim sensor head toward desired detection area, maintaining a

5° - 40° downward angle to allow moisture to drain.

Note: Make sure sensor head is positioned with control knob facing

towards the ground.

Turn off the power at fuse or circuit box.

Turn on the power at fuse or circuit box.

Fig. 2

Fixture Mounting

Screw

Mounting Bracket Screw

Fig. 1

FRONT

Decorative cover

160826

Page 3 / 10

Function and Operation

Choose a mode by sliding the switch on the bottom of the sensor. (See Fig.6)

Note: When power is first applied, the light will turn on to 100% brightness. The sensor will take 30 seconds

to warm up.

1. Test mode (daytime or nighttime operation )

● Slide the switch on the left side of the sensor to the “TEST” position.

(See Fig.6)

● With the power on, the light turns to low-level brightness

automatically.

● The light turns to high-level brightness when motion is detected,

and stays on as long as the motion continues. Then it reverts back

to low-level brightness about 5 seconds after motion is no longer

detected.

Note: You can adjust the low-level (0~50%) and high-level (50~100%)

brightness by using the brightness switch on the back plate.

(See Fig. 7)

2. AUTO MODE (nighttime operation only)

● To shift to “AUTO” mode, slide Time Delay switch to the desired

time setting (between 5 seconds and 5 minutes). At dusk, the light

turns on to pre-selected low-level brightness. When motion is

detected, the light turns to pre-selected high-level brightness and

stays on as long as motion continues. When the motion is no longer

detected, the light at high-level brightness remains on for the

predetermined time you set (5s ~ 5min), and then switches back to

low level automatically.

● The light turns off automatically at dawn.

Note: You can adjust the low-level (0~50%) and high-level (50~100%)

brightness by using the brightness switch on the back plate.

(See Fig. 7)

Adjustment Sensor Lower For Short Coverage

Adjustment Sensor Higher For Long Coverage

Fig. 5

1. Gently grasp the light heads and tilt them up or down, left or right to

adjust the light coverage area. Keep the light heads at least 1˝ (25mm)

away from the sensor.(See Fig. 5)

2. Keep the light heads 30˚ below horizontal to avoid water damage and

electrical shock.

Fig. 3 Fig. 4

Adjusting the Light Head:

Fig. 6

Fig. 7

Sensitivity of Motion Sensor

● You can adjust the sensitivity of the motion sensor by using the “SENSITIVITY” selector located on the right side

of the bottom surface of the sensor. (See Fig. 6)

● Adjust motion sensor sensitivity to HIGH (H), MEDIUM (M), or LOW (L) to achieve desired performance.

● Approximate range for each setting: 25 ft. (L), 45 ft. (M), 70 ft. (H).

2. You can rotate the sensor head up and down to change the coverage area (See Fig. 2). Walk through the detection

zone at the farthest distance you wish to detect motion.

Note: Range set too high may increase false triggering. (See Fig. 3 and Fig. 4)

160826

Mode

HIGH LEVEL

75% 25%

100%

50% 50%

LOW LEVEL

TEST

AUTO

RESET

3MIN

1MIN

5MIN

CUSTOM

SETTINGS

SENSITIVITY

Sensitivity

Page 4 / 10

3. CUSTOM SETTINGS MODE (nighttime operation only)

● Set motion-sensor operation to go on at a specified time, turn the wall switch “OFF” and then

turn it “ON” within 3 seconds at that time. The light will go into motion-sensor operation at the

specified time every night. The light turns off automatically at dawn.

● For example, a homeowner wants to have the light stay on high-level brightness from dusk to

8pm. At 8pm, the homeowner would like the light to go into motion sensor mode. To achieve

this, the homeowner will, at 8pm, turn wall switch on and off within 3 seconds. This sets the light

such that every day, the light will behave the same way.

●To revert back to Default, turn the wall switch “OFF” and then turn it “ON” over 5 seconds again.

Note: You can adjust the low-level (0~50%) and high-level (50~100%) brightness by using the brightness

switch on the back plate. (See Fig. 7)

Notes:

1. The sensitivity of the motion sensor will increase as the

environmental temperature gets cooler. You may wish to

make adjustments when the season changes.

For best performance, gently clean the lens with a soft

cloth every 1 or 2 months to assure maximum sensitivity.

2. For best performance, install fixture at least 8 feet above

the ground. At such a height, the fixture will provide a

detection distance of up to 70 feet at 77 degrees

Fahrenheit. (See Fig.8)

3. The sensor detects movement across a detection range

of 240 degrees. (See Fig.9)

4. The sensor will be more sensitive to motion across its

detection path than motion directly towards it. (See Fig.10)

5. To reduce possible nuisances, do not mount the fixture

near a heat source like an air conditioner, vent or furnace

exhaust, or in a direction facing any reflecting object or

other light source.

25'

8.0'

12.0'

70'

Where you install your fixture is important:

Be sure the light is mounted straight on the wall

or eave; otherwise, the detection distance may

be limited.

Fig. 8 Fig. 9

Motion

Least sensitive

Motion

Most sensitive

Sensor

Fig. 10

160826

240'

Page 5 / 10

160826

User Guide

Setting for single light through mobile device (Take iOS for example as below.

Android will be slightly different).

Before you start

Fig.1

2. Start the APP.

Add a light

Fig.2

9:41 AM 100%

Bluetooth security light

Fig.3 Fig.3-1

My Dualux Lights

9:41 AM 100%

Search for Lights

Searching. Please wait.

Light List

9:41 AM 100%

Search for Lights

No light found.

- Please make sure Bluetooth on your

device is turned on.

- Please make sure the light is turned

on.

3. Click “Search for Lights” to search for existing lights.

4.If there is a light in the

bluetooth cover range, the

new light will be shown in

light list. Click the “Light 1”, it

will go to the step 5 for

choosing mode. And click

“ ” icon, it will go to the

step 8 .

Fig.4

Search for Lights

Light List

Light 1

9:41 AM 100%

5. Select “Test” in Manual

override and adjust “Detection

Distance” and “Brightness”

as desired. Then click “Save”.

Use light in “Test” mode

Fig.5

9:41 AM 100%

SaveBack

Detection Distance

70ft5ft

70ft

Motion Delay Time

5s 5min

High Level

Low Level

Brightness

50% 100%

100%

0 50%

20%

Test

Auto

Custom Settings

Manual override

6. Select “Auto” in Manual

override and adjust “Motion

Delay Time”, “Detection

Distance” and “Brightness” as

desired. Then click “Save”.

Fig.6

Use light in “Auto” mode

9:41 AM 100%

SaveBack

Test

Auto

Custom Settings

Manual override

Detection Distance

70ft5ft

70ft

Motion Delay Time

5s 5min

Low Level

Brightness

0 50%

20%

High Level

50% 100%

100%

1. Search “Dualux BT” at Apple

store or Android Google

Play. Download the “Dualux

BT” APP onto the device.

●Turn on bluetooth on mobile

device.

● Turn light switch controlling

the light to “ON”.

Page 6 / 10

160826

TROUBLESHOOTING

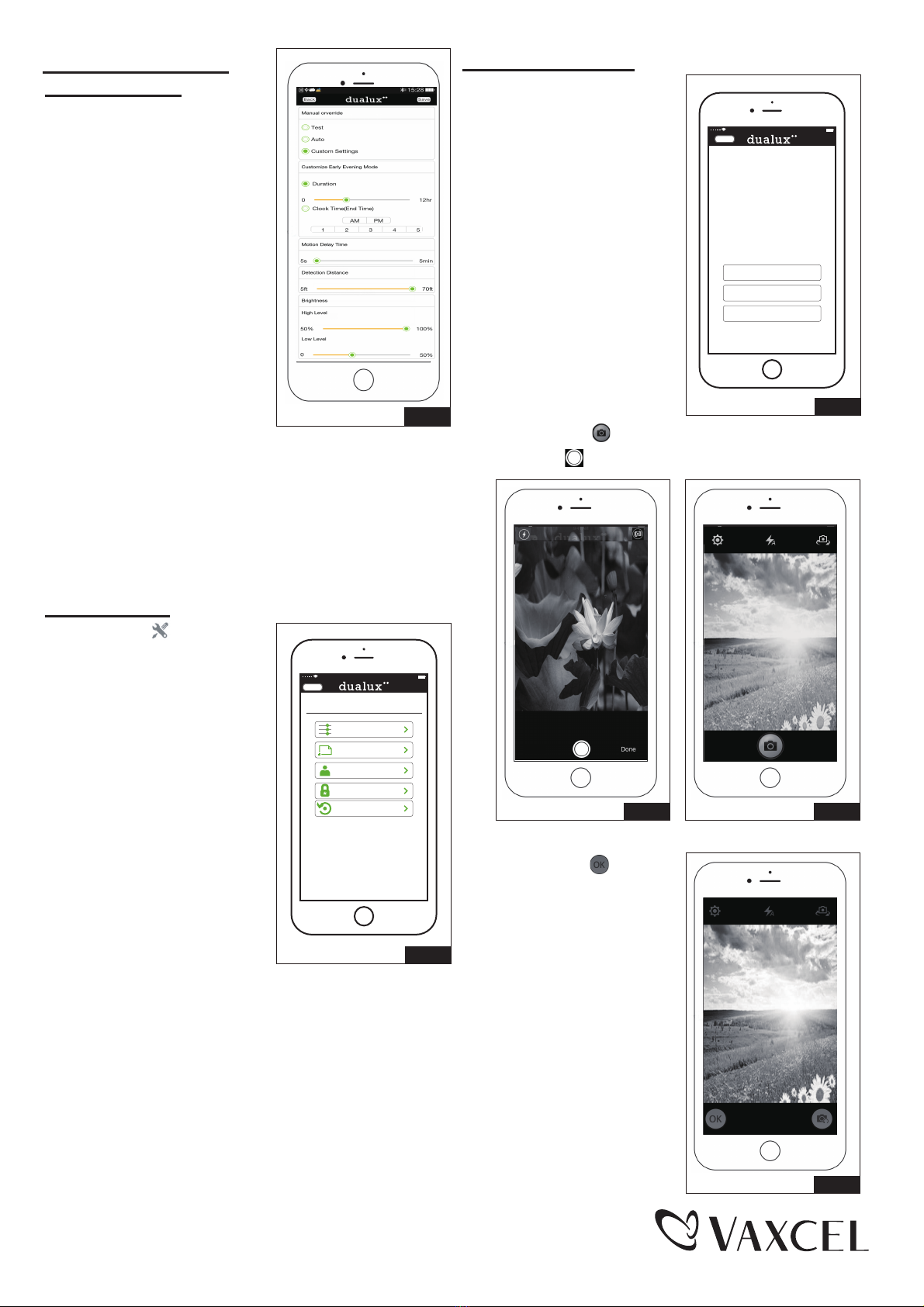

7. Select “Custom Settings” in

Manual Override for

Customize Early Evening

Mode setting, and choose

option between “Duration” or

“Clock Time (End Time)” to

set the continuous bright light

illumination duration. Within

“Duration”, you may set from

0 to 12 hours for continuous

bright light once lamp is

activated at night. In “Clock

Time (End Time)”, is the time

you set to deactivate the

continuous bright light

according to the actual hour

in the mobile device after the

lamp is activated. Both option

settings will return to motion-sensor operation after the

continuous bright light is deactivate. 9:00 P.M. is the

default in “Clock Time(End Time)”.

Note: "Duration" setting will only work once per setting,

it automatically go into “Clock Time (End Time) on the

next day. Also if you do not click save for either option,

then the settings will follow according to the switch

control on the actual lamp.

Fig.7

Use light in “Custom

settings” mode

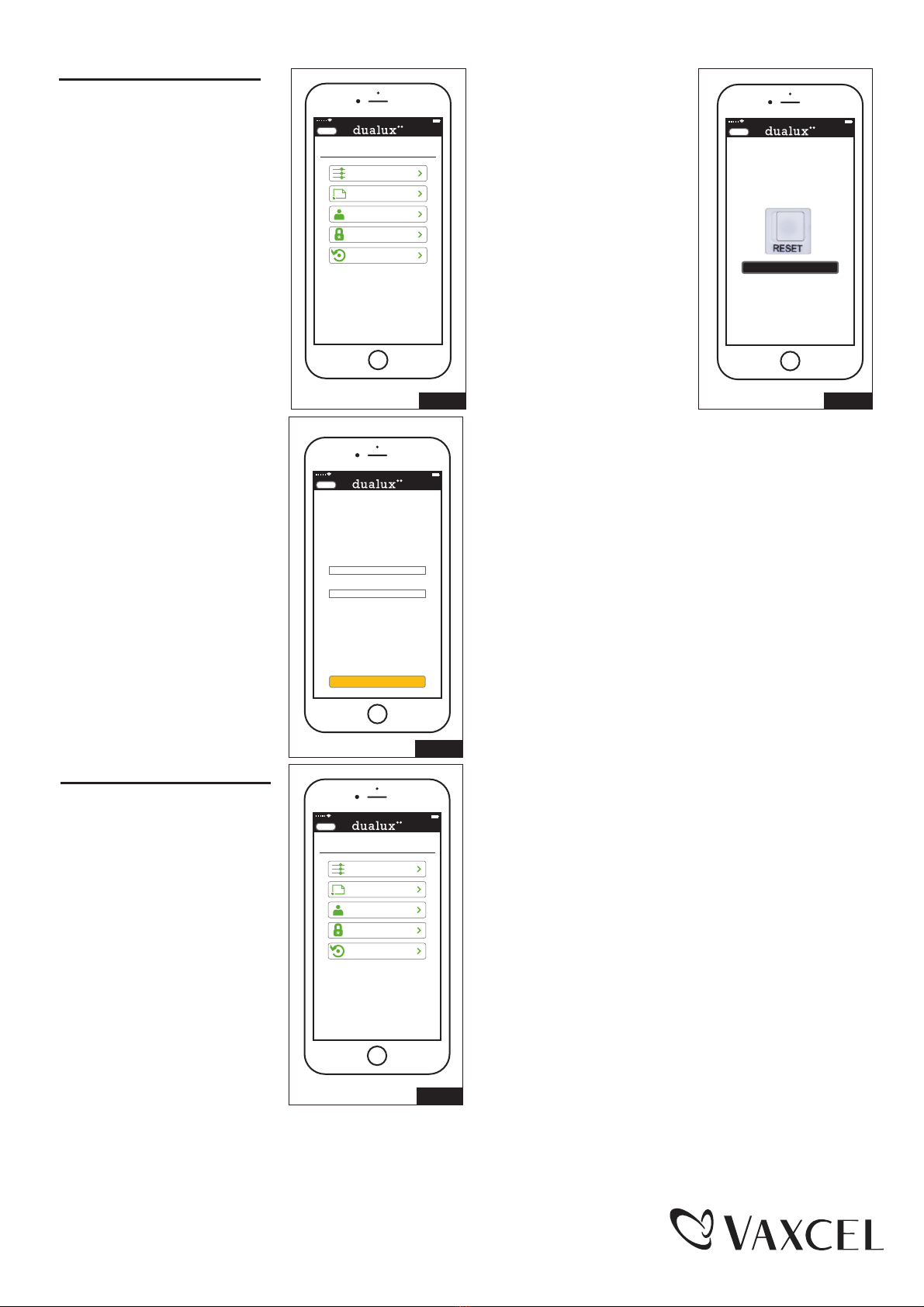

8. Click Fig.4“ ” icon,

select “Functions”, you can

choose “Test”, “Auto”, or

“Custom Setting” , which are

the same as the step 5,6,7.

Fig. 8

Choose mode

Functions

Change image

Rename light

Password

Restore factory defaults

9:41 AM 100%

Setting

Back

9. Click Fig.8 “Change image”.

And click “take photo” to take

a photo .

Fig.9

Set picture for light

9:41 AM 100%

Back

Take photo

Choose existing photo

Cancel

9.1 Android:Click “ ” to grasp a your desired view.

iOS:Click “ ” to grasp a your desired view.

iOS Android

9.2 Android:Click “ ” to take

a photo. The iOs system

does not have this step.

Fig.9-1

Fig.9-2

Fig.9-1

Cancel

Page 7 / 10

160826

iOS Android

9.3. Android:Adjust the photo to trim the photo’s desired

size. Then click “ ” .

iOS: Click“Done” to take a photo.

Fig.9-3

Crop picture

11. Click fig.8 “Rename light” to

enter a name for the light,

then click “Save”.

10. Click fig.9 “Change existing

photo” to choose a desired

image on your device. Then

click “Cancel” back to

“Setting” menu list.

Fig.10

Fig.11-1

9.5. Go back to “Light list”, the

photo will show on the left

of “Light 1”.

9.4. It will turn to “change image”

The photo will show on it.

(Android will be slightly

different from the iOS

system)

Fig.9-5

Fig.9-4

Fig. 11

Set name for light

9:41 AM 100%

Back

Take photo

Choose existing photo

Cancel

Functions

Change image

Rename light

Password

Restore factory defaults

9:41 AM 100%

Setting

Back

Save

Enter a name for the light

9:41 AM 100%

Back

Cancel

Page 8 / 10

160826

12. Click fig.8 “Password” to set

a password for bluetooth

device so that others need

password to connect this

lamp.

Fig. 12

Set password for light

Functions

Change image

Rename light

Password

Restore factory defaults

9:41 AM 100%

Setting

Back

12. 1 The password must be 4

to 6 alpha-numberic

characters. Enter new

password and verify it

then press “Save”.

13. Click fig.8 “Restore factory

defaults” to restore your

settings (only the light name

and password) to the

original conditions.

13.1 Keep pressing the “reset”

button on the light for 5

seconds, the light will flash

three times. Then

press “Back” button.

Note: The photo’s settings

can’t be restored by

using this function.

Note: 1. Manual control and App control

independently.

2. The function which is executed is the lastest

settings.

3. After a power cut or power outage, the

function of the light will revert back to the

actual settings of the switches on the fixture.

App settings will also revert back to the factory

default.

4. For achieving the best performance,make

sure the wall switch is in “ON” state (daytime

and nighttime).

9:41 AM 100%

Enter new password

Verify password

(Must be 4 to 6 alpha-numberic characters)

Back

Save

Fig. 13

Fig. 13-1

Fig. 12-1

Restore factory defaults

Functions

Change image

Rename light

Password

Restore factory defaults

9:41 AM 100%

Setting

Back

Restore factory defaults

Please press the reset button on the bottom

of sensor head for 5 seconds.

9:41 AM 100%

Back

Page 9 / 10

Spare Parts List:

The light will not come

on.

Turn the light switch on.

Replace the fuse or turn the circuit

breaker on.

Recheck after dark.

Re-aim the motion sensor to cover the

desired area.

Increase the “Sensitivity” setting.

The light fixture is operating normally

under these circumstances.

Verify the wiring is correct.

The light switch is turned off.

The fuse is blown or the circuit breaker is

turned off.

Daylight turn-off (photocell) is in effect.

The motion sensor is aimed in the wrong

direction.

The outside air temperature is close to the

same as a person’s body heat.

The circuit wiring is incorrect (if this is a new

installation).

The motion sensor may be installed in a

relatively dark location.

Problem Possible Cause Solution

The light comes on during

the day.

Mounting Screw X2

#8/32X1/2 in Mounting Bracket Screw Fixture Mounting Screw

Mounting Strap

Mounting Screw X2

#6/32 X1/2 in

Mounting Screw X2

#10/24 X1/4 in Decorative cover

Troubleshooting

The following parts are available for re-order if damaged or missing.

160826

Assembly Kit

5569MM (1 SET) for T0274

5570MM (1 SET) for T0275

Range Up to 70ft. (Varies with surrounding

temperature)

Up to 240º

29W

2600lm

120 VAC, 60Hz

Test, Auto, Custom setting

5s, 1min, 3min, 5min

Iphone 4S or newer running IOS 8.0 x or later.

Android v4.4 or later

Phone must also have Bluetooth version 4.0 or later

Sensing angle

Electrical load - LED

Lumens

Power requirements

Operating modes

Time delay

Mobile device requirements

Page 10 / 10

FCC Statement

Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's

authority to operate the equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment .

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

160826

5-YEAR LIMITED WARRANTY:

All products are warranted to be free of defects in material and workmanship for five (5) years from date of purchase.

This warranty is limited to the correction of any such defect, or the replacement of any such defective item(s), provided

that: (a) we are properly notified and consent to return of the item(s) in question:(b) the item(s) is / are returned with proof

of purchase date; and (c) it is found upon inspection by us that the item(s) is / are defective as noted above. This warranty

does not cover labor costs, consequential damages, nor does it apply to any item(s) that have been improperly installed,

overloaded, altered, or otherwise abused by the customer, its agent(s) or employee(s). Finishes are specially excluded

from the terms of this warranty since they are subject to environmental maintenance deemed beyond our control. Other

than the described obligation, we assume no further liability with respect to the sale or use of our products.We make no

warranty, express or implied, and disclaim any warranty of merchantability or fitness for a particular purpose.

A: 13”

B: 6-1/2”

C: 5-3/4”

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Vaxcel Luce esterna

Vaxcel

Vaxcel T0454 Manuale di istruzioni

Vaxcel

Vaxcel T0696 Manuale di istruzioni

Vaxcel

Vaxcel T0178 Manuale di istruzioni

Vaxcel

Vaxcel T0165 Manuale di istruzioni

Vaxcel

Vaxcel T0395 Manuale di istruzioni

Vaxcel

Vaxcel T0389 Manuale di istruzioni

Vaxcel

Vaxcel T0698 Manuale di istruzioni

Vaxcel

Vaxcel T0363 Manuale di istruzioni

Vaxcel

Vaxcel Theta T0612 Manuale di istruzioni

Vaxcel

Vaxcel T0366 Manuale di istruzioni

Vaxcel

Vaxcel T0297 Manuale di istruzioni

Vaxcel

Vaxcel T0647 Manuale di istruzioni

Vaxcel

Vaxcel T0521 Manuale di istruzioni

Vaxcel

Vaxcel Chatham Manuale di istruzioni

Vaxcel

Vaxcel T0694 Manuale di istruzioni

Vaxcel

Vaxcel T0238 Manuale di istruzioni

Vaxcel

Vaxcel T0692 Manuale di istruzioni

Vaxcel

Vaxcel T0364 Manuale di istruzioni

Vaxcel

Vaxcel T0414 Manuale di istruzioni

Vaxcel

Vaxcel T0294 Manuale di istruzioni

Vaxcel

Vaxcel T0551 Manuale di istruzioni

Vaxcel

Vaxcel T0476 Manuale di istruzioni

Vaxcel

Vaxcel T0694 Manuale di istruzioni

Vaxcel

Vaxcel T0692 Manuale di istruzioni

Manuali Luce esterna popolari di altre marche

Sealey

Sealey LED37 Manuale utente

nordlux

nordlux VEJERS Guida utente

SImx

SImx ELITE LED LHTC637 Manuale utente

GEV

GEV CAROLINE 10833 Manuale utente

NEBO

NEBO NEB-LSP-0020 Manuale utente

WE-EF

WE-EF PFL540 LED Manuale utente

Lindby

Lindby 9949029 Manuale utente

HEPER

HEPER DOGO Side LW6048.585-US Istruzioni per l'installazione e il funzionamento

HEPER

HEPER LW8034.003-US Istruzioni per l'installazione e il funzionamento

Maretti

Maretti VIBE S 14.6080.04.A Manuale utente

BEGA

BEGA 84 253 Manuale

HEPER

HEPER MINIMO Istruzioni per l'installazione e il funzionamento

LIGMAN

LIGMAN BAMBOO 3 Manuale utente

Maretti

Maretti TUBE CUBE WALL 14.4998.04 Manuale utente

Maxim Lighting

Maxim Lighting Carriage House VX 40428WGOB Manuale utente

urban ambiance

urban ambiance UQL1273 Manuale utente

TotalPond

TotalPond 52238 Manuale utente

Donner & Blitzen

Donner & Blitzen 0-02661479-2 Manuale utente
