VEEA VeeaHub Pro Outdoor Manuale utente

Installation Guide for

VeeaHub™ Pro Outdoor

Version 0.3

Veea, Inc. Confidential & Proprietary

Introduction

The VeeaHub Pro Outdoor (VHH10) is a ruggedized version of the popular VeeaHub Pro intelligent

wireless hub. The VHH10 has an IP-65 rating and is designed to be installed in outdoor environments.

This document will be your guide to the proper installation of the VHH10.

VHH10 Installation Kit

The VHH10 installation kit is packed in a separate box from the VHH10 unit itself. The installation kit

contains:

• 1 x Wall Mounting Bracket (2 pieces)

• M8 screws to attach mounting bracket to VHH10

• M8 screw to attach grounding cable

• 2 x M12 male connectors with pigtail cables for ethernet

• 1 x M12 female connector with pigtail cable for power

• 1 x Self-locking tweezers (for SD card insertion)

Understanding the VHH10

As you read through this document, please refer to the following diagrams to help you locate the various

connections, buttons and Indicators:

1 2 3 4 5 6 7

Figure 1

1. Lower LED

2. Upper LED

3. Power Connector (M12 male)

4. Ethernet Connector (M12 female) – this connection supports PoE

5. Ethernet Connector (M12 female)

Veea, Inc. Confidential & Proprietary

6. RS232/422/485 (M12 female) – for serial IoT connection

7. Reset button

A B C

Figure 2

A. LTE Primary Antenna

B. Bluetooth Antenna

C. LTE Diversity Antenna

Understanding the Lights

The lights (refer to Figure 1) are named as follows:

1. Lower – This light is the lower of the pair of lights on the side of the unit.

2. Upper – This light is the upper of the pair of lights on the side of the unit.

Each of these lights are either off, on or flashing read, green or blue. The resulting pattern provides

information about the state of the unit. The following table is a partial listing of the status patterns of the

device indicator lights.

State

Lower

Upper

Normal Operation

On Green

No Power

Off

Bootloader Starting

On Green

Off

Linux Starting

Off

On Green

Reset

Flashing Red

Off

Recovery

Flashing Red

Table 1

In general, when a light is flashing red, some error condition exists. In that case, the specific pattern on

the indicator lights will tell more details about the specific error. For a complete listing of all the error

conditions and their associated light patterns please refer to the VHH10 User Guide document.

Ethernet Ports

The VHH10 unit has two ethernet ports. The port labeled #4 in Figure 1 above, accepts 802.3bt power

and should be used as the primary gateway connection. The other ethernet port is an optional auxiliary

Veea, Inc. Confidential & Proprietary

ethernet connection. Use the connectors provided in the installation kit to install the ethernet

connection(s), as needed. Refer to Table 3 for the pinout information and cabling recommendations for

each connection attaching to the lower edge of the VHH10 unit.

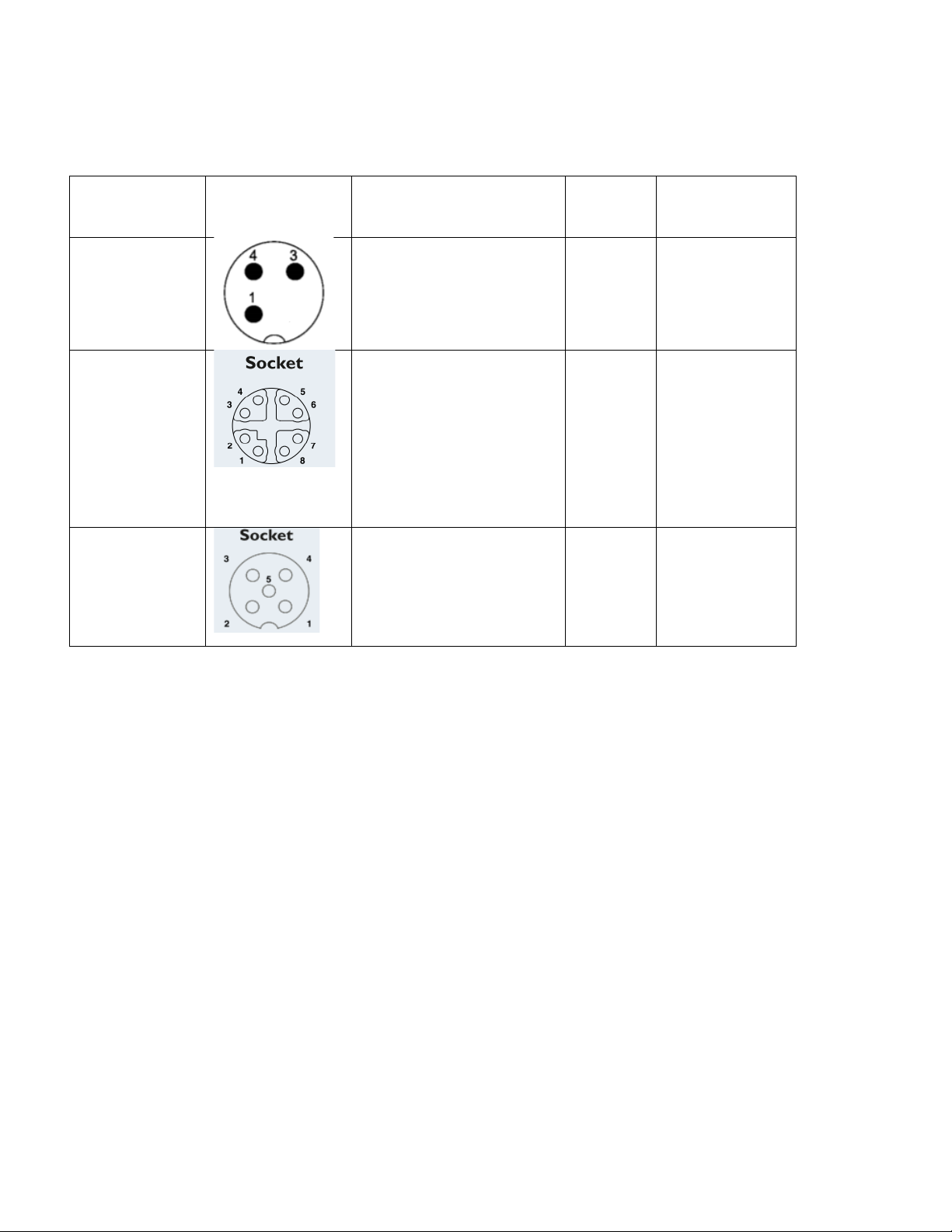

Connector

Pin Diagram

Assignment

AWG

Twisted

Pairs

Power

Pin1, V+, Red

Pin3, V-, Black

Pin4, GND, Green/Yellow

24#

Pin 1&3

Ethernet/PoE

P1, DA+, White/Orange

P2, DA-, Orange

P3, DB+, White/Green

P4, DB-, Green

P5, DD+, White/Brown

P6, DD-, Brown

P7, DC-, White/Blue

P8, DC+, Blue

24#

CAT5e

Pin 1&2

Pin 3&4

Pin 5&6

Pin 7&8

RS232/422/485

Serial

Pin1, RTS, White/Orange

Pin2, CTS, White/Green

Pin3, TXD, Orange

Pin4, RXD, Green

Pin5, GND, Brown

24#

CAT5e

Pin 1&3

Pin 2&4

Table 2

Veea, Inc. Confidential & Proprietary

For reference, Table 4 shows the pin assignments for the far end of the cables coming from the VHH10

unit.

Connector

Twisted Pairs

Pin Assignments

Ethernet/PoE

RJ-45

Pin1, DA+, White/Orange

Pin2, DA-, Orange

Pin3, DB+, White/Green

Pin4, DB-, Blue

Pin5, DD+, White/Blue

Pin6, DD-, Green

Pin7, DC-, White/Brown

Pin8, DC+, Brown

Serial DB-9M

Pin1, N/C

Pin2, RXD, Green

Pin3, TXD, Orange

Pin4, N/C

Pin5, GND, Brown

Pin6, N/C

Pin7, RTS, White/Orange

Pin8, CTS, White/Green

Pin9, N/C

Table 3

Mounting the VHH10

The unit may be mounted either on a flat surface (such as a wall) or on a pole (refer to Fig. 3). The wall

mount bracket is included in the installation kit. Note that this bracket consists of two pieces: one piece

attaches to the VHH10 unit and the other piece gets mounted to the surface of the wall.

IMPORTANT: You must ensure that the unit is mounted so that the edge with the antenna connections

facing UP, as shown in Fig. 3. Also make sure to orient the wall mounting bracket correctly, as shown in

the diagram.

Veea, Inc. Confidential & Proprietary

Figure 3

Grounding Connection

The VHH10 unit must be properly grounded to ensure reliable operation. The grounding connection (see

Fig 4) must be securely and effectively connected to an actual earth ground. A grounding stake, grounded

pole or similar grounded metal structure may be used. Figure 4, shows the back of the VHH10 unit with

the unit piece of the wall mounting bracket attached. The location of the grounding connection is shown

in that Figure by the large green arrow. Because it may be difficult to reach this connection after the unit

is hung on the wall, it is advisable to connect the grounding lug to the VHH10 unit before hanging the

unit on the wall mount.

Veea, Inc. Confidential & Proprietary

Figure 4

Wall Mounting Procedure

1. Attach the unit piece of the wall mounting bracket to the back of the VHH10 unit with three M8 bolts, as

shown in Figure 4. Please notice that a single bolt attaches in the middle at the top of the bracket and

two bolts attach the bottom of the bracket. The holes in the top corner of the bracket are unused.

2. Attach the wall piece of the wall mounting bracket to the wall surface so that it is oriented as shown in

Figure 5. The side rails must be away from the wall so that the unit lays flat on the wall. The locking

flanges must be on the bottom as shown in this figure.

3. Attach the grounding cable to the grounding connection on the unit assembly, as described above.

4. Hang the unit assembly on the wall piece of the bracket by matching up the bracket side flanges and

sliding the unit assembly down onto the mounted wall piece until it rests on the locking flanges.

Veea, Inc. Confidential & Proprietary

5. Insert 2 M8 screws into the locking flanges at the bottom to fasten the two pieces of the mounting

bracket together (see Figure 3).

Figure 5

Power Connections

If Using PoE to Power the Unit

A PoE switch or a cable injector may be used to power this unit. Refer to Tables 3 & 4 for connection

information.

If Using a Separate DC Power Cable

Refer to Table 3 for power cable connections. When using a separate DC power cable, a minimum 14#

conductor cable should be used. Maximum length is 50 feet.

Sim Card Installation

Veea, Inc. Confidential & Proprietary

The SIM card normally comes pre-installed in the unit if it was manufactured with the LTE option. The

SIM card port is sealed with a weatherproof seal. Do NOT unnecessarily open this port to avoid

impairing the weather resistance. If it becomes necessary to open the port, take care to ensure that the

port sealing ring and closure cap remains clean and undamaged and that the cap is closed securely.

Reset Button Use

The reset button is located on the bottom surface of the unit (see Fig x). Pressing this button will switch

through a set of reset modes depending on how long the button is pressed. As you enter each mode, the

Upper and Lower indicator lights will change their patterns to show the new mode. When you release the

reset button, the current mode is executed. The Logo light is nor affected by the reset button. The

following table describes the reset modes:

Mode

Upper Light

Lower Light

Notes

Reboot

Off

Red Flashing

Short Press <5 secs

Container Reset

Red On

Red Flashing

Med Press 5-10 secs

Recovery

Red Flashing

Long Press 10-15 secs

If the reset button is held for longer than 15 seconds, the unit is returned to the state it was in before the

reset button was pressed. This effectively cancels the reset.

Professional installation instruction:

1.Installation personal

This product is designed for specific application and needs to be installed by a qualified personal

who has RF and related rule knowledge. The general user shall not attempt to install or change the setting.

2.Installation location

The product shall be installed at a location where the radiating antenna can be kept 28cm from nearby

person in normal operation condition to meet regulatory RF exposure requirement.

3.External antenna

Use only the antennas which have been approved by the applicant. The non-approved antenna(s) may produce

unwanted spurious or excessive RF transmitting power which may lead to the violation of FCC limit and is prohibited.

4.Installation procedure

Please refer to user’s manual for the detail.

5.Warning

Please carefully select the installation position and make sure that the final output power does

not exceed the limit set force in relevant rules. The violation of the rule could lead to serious federal penalty
