VelectriX Front Hub Series Manuale utente

MY23 VelectriX Instruction Manual

(Front Hub Series)

•Foldaway

Page 1

Contents

Safe Riding Recommendations

Page 2

Pre-Ride Checklist

Page 3

Display and Controls

Page 4-7

Battery Instructions

Page 8-13

Quick Guide to Folding

Page 14

Maintenance & Warranty

Page 16-18

Model Specification

Page 19

Page 2

Safe Riding Recommendations

1. Please ensure you are familiar with and follow all traffic laws

and regulations for your state. Please remember you may need

to review these when travelling interstate.

2. Always wear a bicycle helmet when riding your bike.

3. Don’t lend your bike to anyone who is unfamiliar with it.

4. As with all bikes it is important that you stay within safe limits

and speeds.

5. Please read and become familiar with the “Pre-Ride Checklist”

in this manual before riding your bike.

6. Switch the lights on your bike on when riding at all times of the

day or night. If your bike doesn’t have lights fitted as standard,

it is recommended that you purchase them and fit before riding.

Page 3

Pre-Ride Checklist

1. Check over the bike for any loose nuts, bolts, or fixings.

2. Check the tyre pressure. Please always refer to the tyre

manufactures suggested levels on the side of the tyre.

3. Check the tyres for any visible damage, wear and tear or bald

spots.

4. Check that the brake levers have been installed correctly on

your bike. The left-hand brake lever should operate the rear

brake and the right-hand brake lever should operate the front

brakes.

5. Check that the brakes are working effectively.

6. Check that the bike is fitted with a working bell and reflectors.

7. Check that the wheel nuts or quick release skewers on the bike

are correctly fitted and sufficiently tight.

8. Check that the electronic functions on the bike are working.

9. Check that the handlebars and stem are correctly fitted and

sufficiently tight.

10. Check all accessories and luggage are securely fastened.

11. Check that the battery has sufficient charge for your ride.

Page 4

LCD Display & Controls

The display is mounted on the left side of the handlebar and is controlled with 3

easy to use buttons, Power, (Up) and (down)

LCD Display Operation

Power On/Off

Hold the “Power” button down for 1 second to start display and supply

power to the motor controller. To turn off, hold down the “Power” button

for 2.5 seconds. The display will turn off automatically after 10 minutes, if

not in use.

Page 5

User Interface

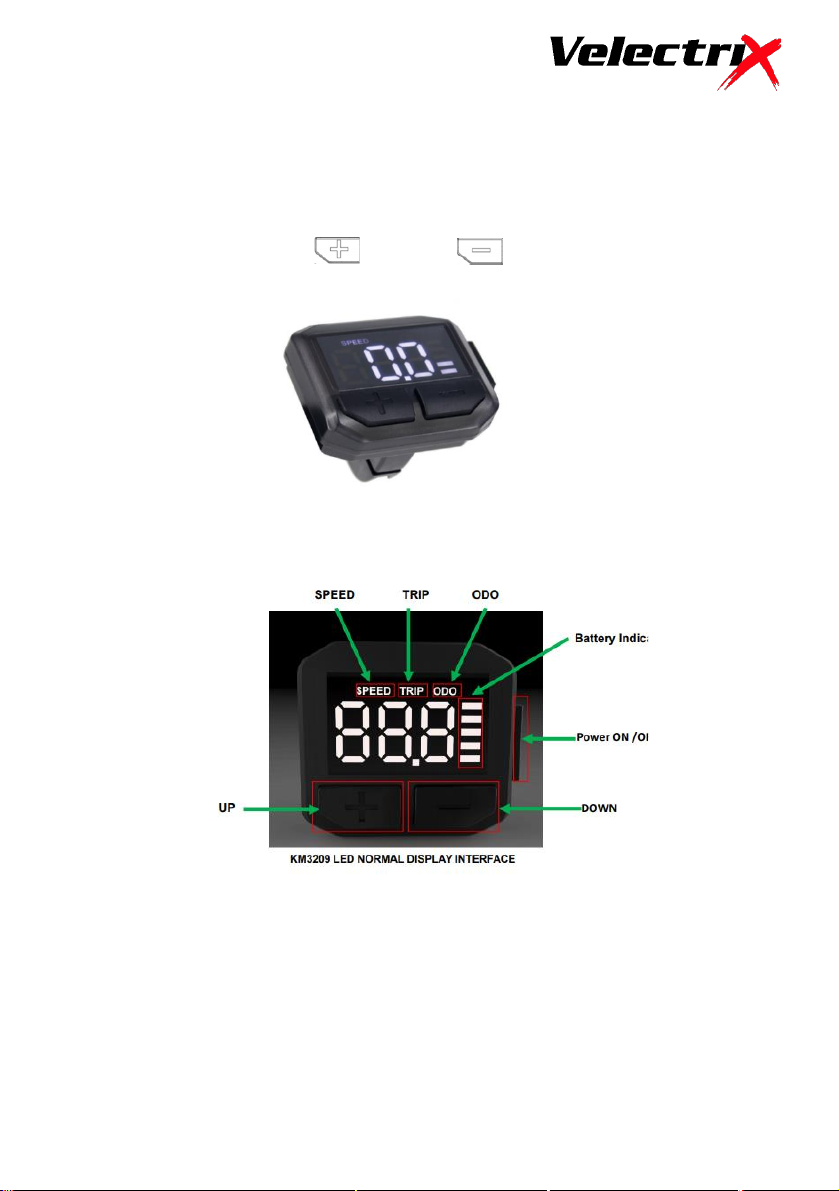

When the display is turned on, the screen will look as below.

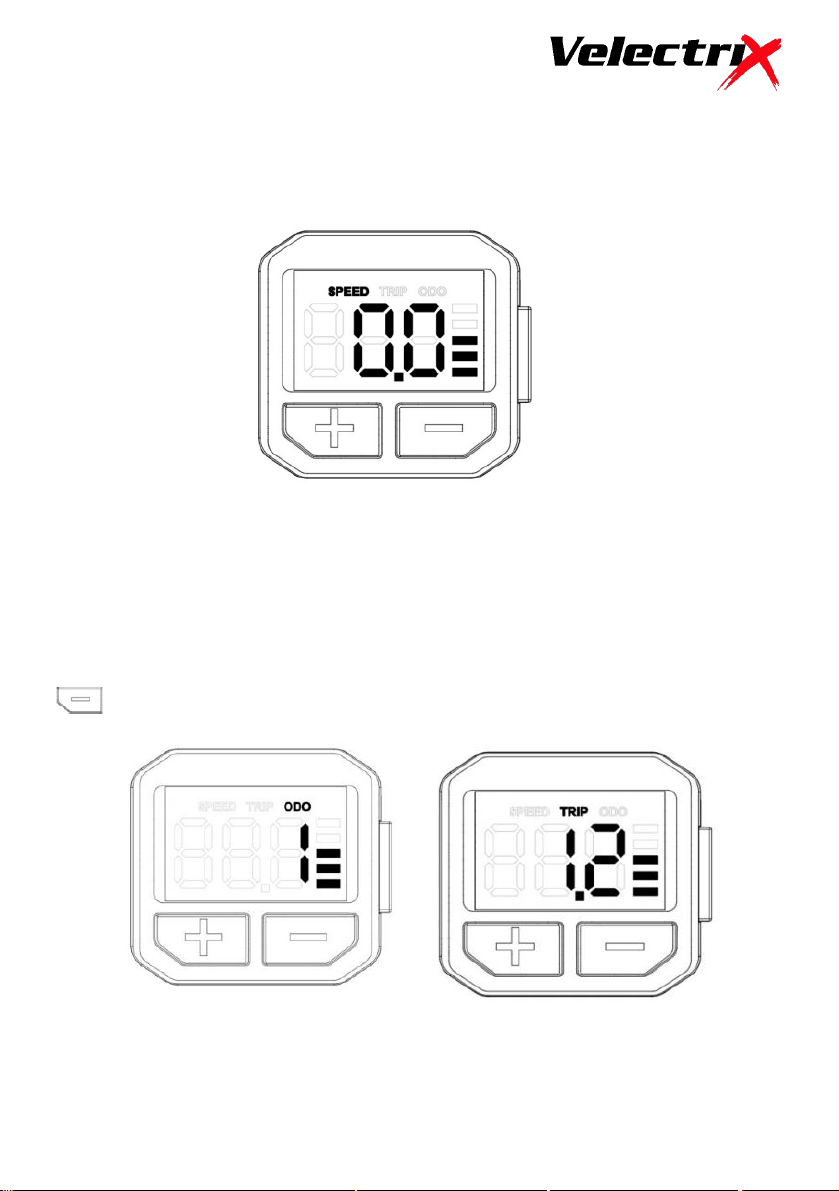

Trip & Odometer Functions

Pressing the “Power” button will allow you to access the “Trip” and

“Odometer” functions.

The “Trip” distance can be cleared by pressing and holding both “Power” &

buttons together for 2 seconds.

The “Odometer” will continue to accumulate for the life of the bike.

Page 6

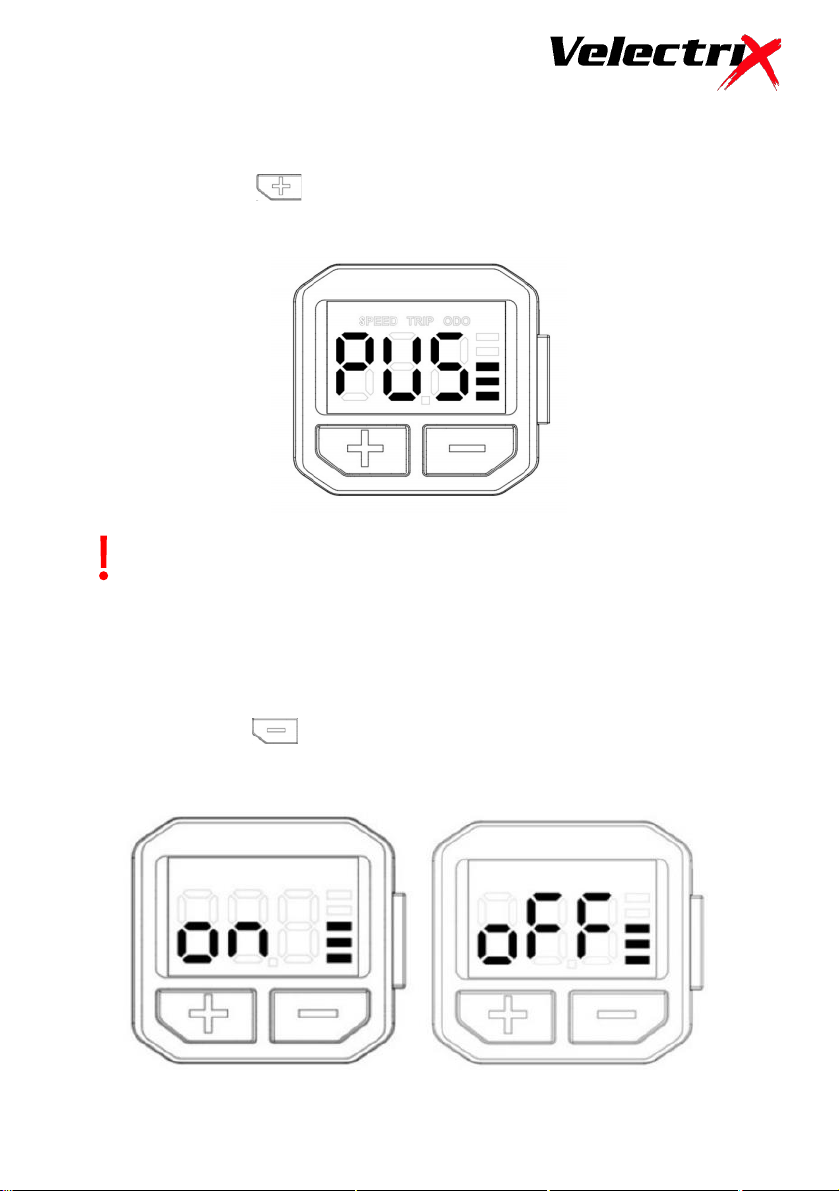

Walk Assist

Press and hold the Button for 2 seconds to enable the walk assist

function. Releasing the button will disable the walk assist.

The walk assist feature is not a riding mode. It is designed to assist

with walking the bike up an incline to a maximum of 6 kph.

Light Operation (for models equipped with lights as standard)

Press and hold the button for over 2 seconds, to turn the lights on.

Repeat, to turn the lights off.

Page 7

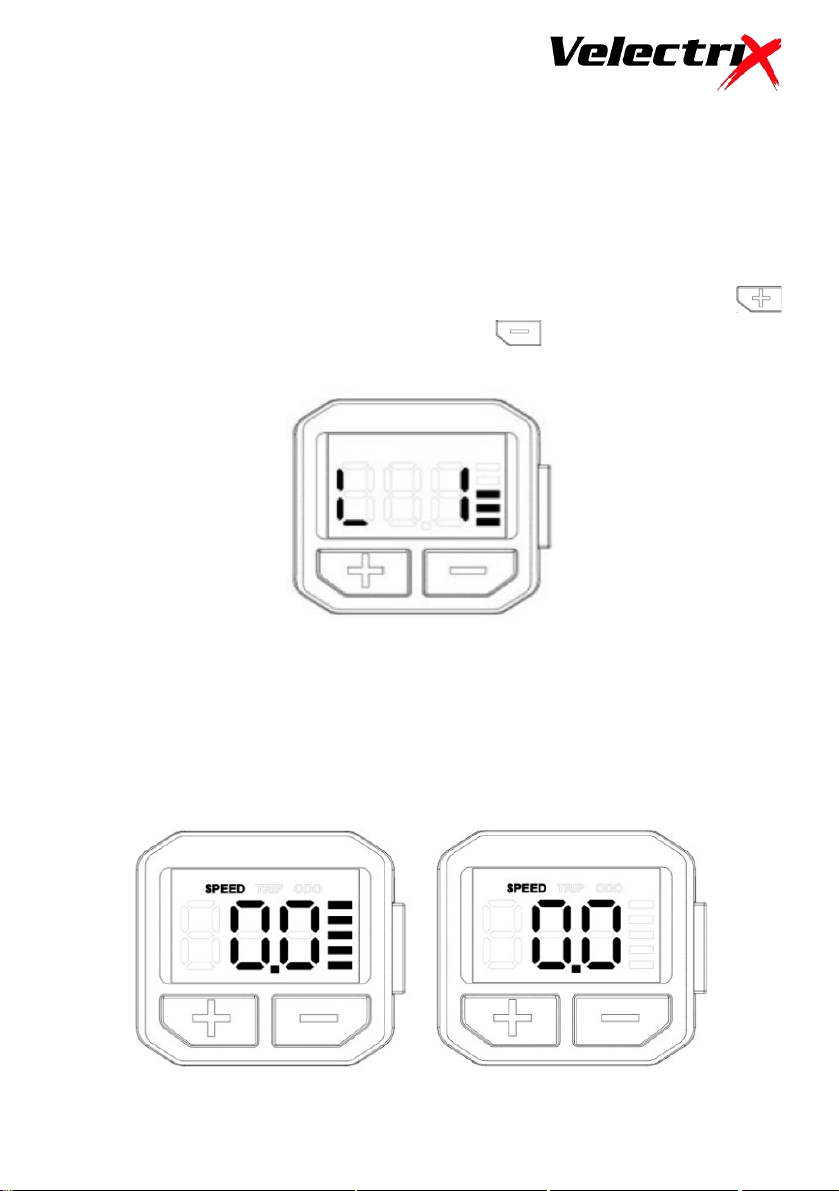

Power Assist Adjustment

There are 5 levels of Power Assist. Level 1 is the slowest setting, and level

5 is the fastest. For example, level 1 will power to an approximate speed of

13-14 kph, level 2 to approximately 18 kph, and so on with a maximum

assist speed in level 5 at 25 kph. Level ”0” offers no Power Assist. Level 1

is the default setting when the display is first turned on. Press the

button to increase your speed and press the button to decrease your

speed.

Battery Indicator

The battery charge level is indicated by 5 bars. When the battery is low on

charge, the last bar will flash. The battery needs charging as soon as

possible.

Page 8

Battery Instructions

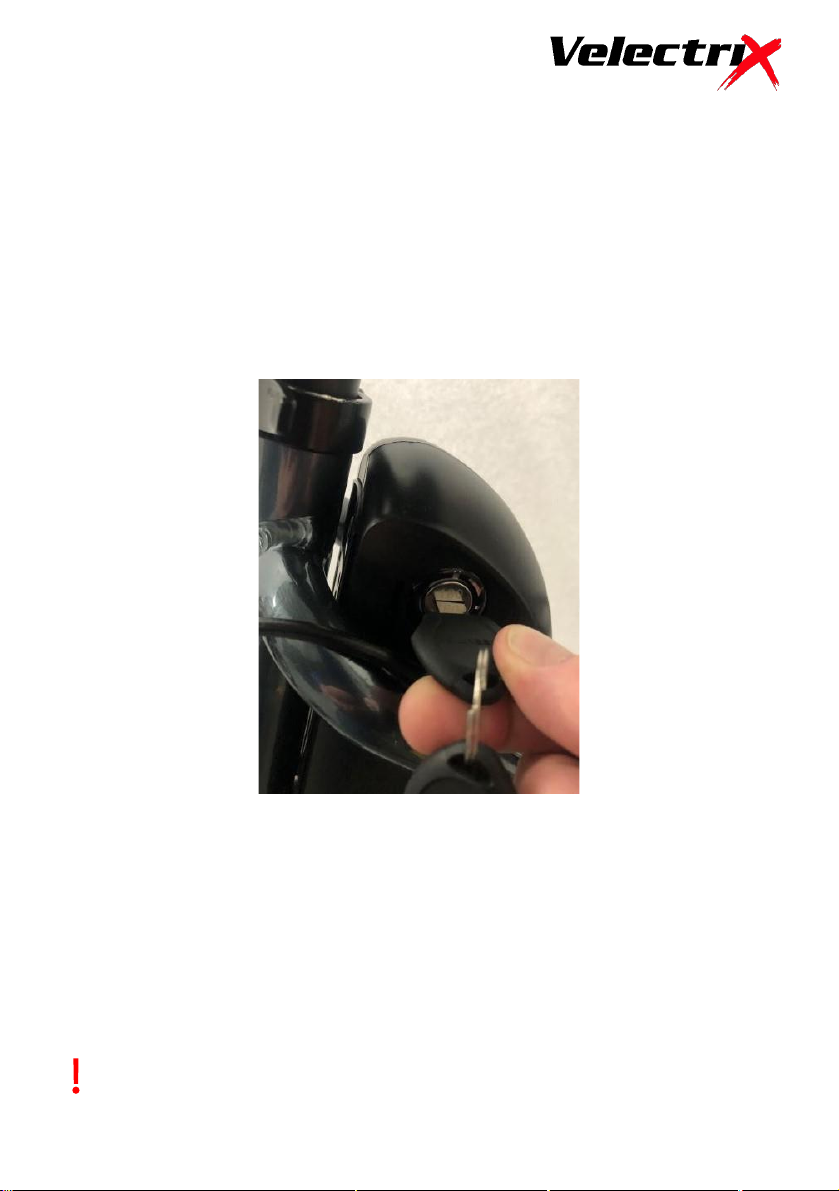

Locking & Unlocking the Battery

This bike is supplied with a set of keys, that are required to lock & unlock

the battery from the bike. The lock is located at the top of the battery near

the seat clamp. Simply turn clockwise to unlock the battery.

Removing the Battery from the Bike

To remove the battery, raise the seat if required, turn the key clockwise and

slide the battery up. When the battery has been lifted 30mm, it can be pulled

from its retaining slots, and can be removed from the frame. When

reinstalling the battery make sure to align the retaining tabs with the

retaining slots and then push down until the lock can be heard “click” into

place.

Always make sure the battery is securely locked in place before riding.

Page 9

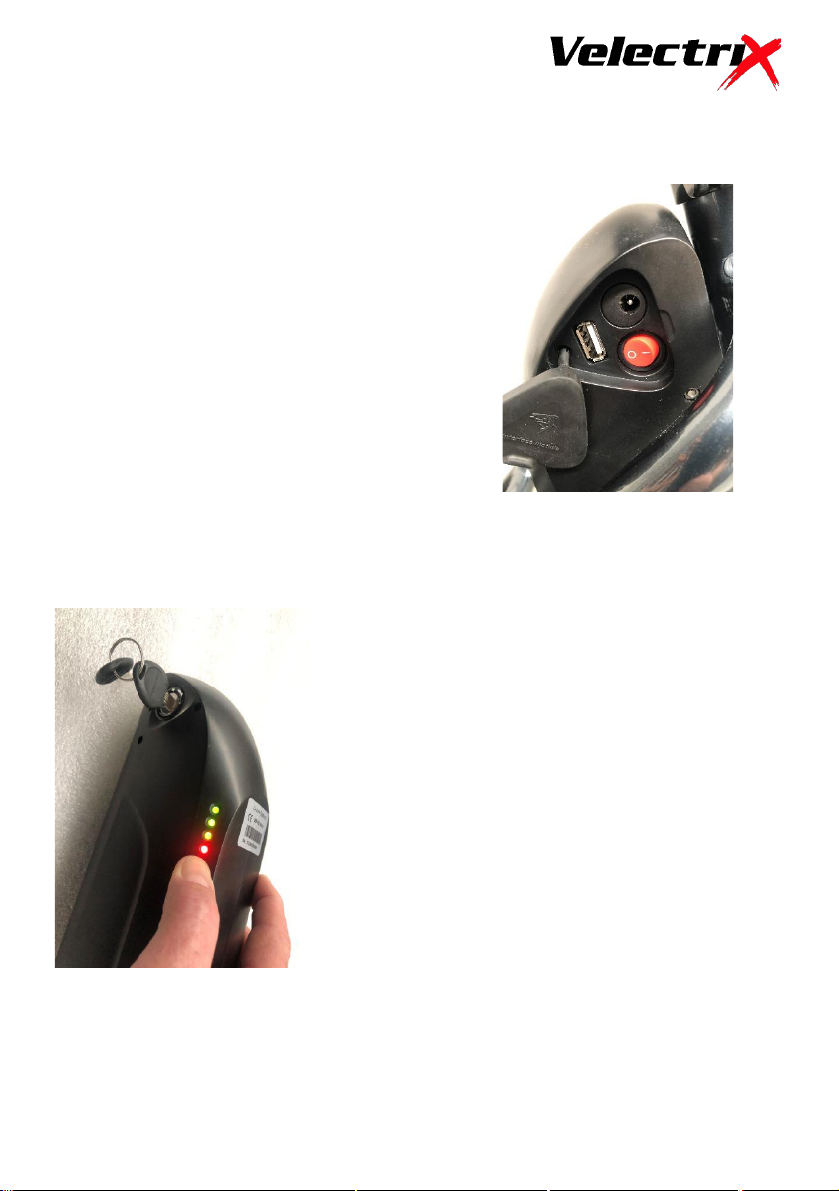

Turning the Battery On/Off

To ride with power assistance, you must

first switch the battery on. Lift the

weather cover on the right hand side of

the battery (as you sit on the bike) and

“flick” the red switch.

The battery charge can now be checked by

pressing the button below the key barrel

will illuminate the LED lights. The number

of LED’s illuminated indicates the level of

battery charge:

o4 lights on = More than 90% charge

o3 lights on = 40-90% charge

o2 lights on = 20-40% charge

o1 Red light on = Less than 20%

charge
