VelectriX Rear hub Series Manuale utente
MY23 VelectriX Instruction Manual
(rear hub series)
•Ascent 29
•Compact
•Urban+
•Urban+ ST
•Cruiser
•Cruiser ST
•Newtown
Page 1
Contents
Safe Riding Recommendations
Page 2
Pre-Ride Checklist
Page 3
Display and Controls
Pages 4-7
Battery Instructions
Page 8-12
Maintenance
Pages 13
Warranty
Page 14-16
Model Specification
Pages 17-23
Page 2
Safe Riding Recommendations
1. Please ensure you are familiar with and follow all traffic laws
and regulations for your state. Please remember you may need
to review these when travelling interstate.
2. Always wear a helmet when riding your bike.
3. Don’t lend your bike to anyone who is unfamiliar with it.
4. As with all bikes it is important that you stay within safe limits
and speeds.
5. Please read and become familiar with the “Pre-Ride Checklist”
in this manual before riding your bike.
6. Switch the lights on your bike on when riding at all times of the
day or night. If your bike doesn’t have lights fitted as standard,
it is recommended that you purchase them and fit before riding.
Page 3
Pre-Ride Checklist
1. Check over the bike for any loose nuts, bolts, or fixings.
2. Check the tyre pressure. Please always refer to the tyre
manufactures suggested levels on the side of the tyre.
3. Check the tyres for any visible damage, wear and tear or bald
spots.
4. Check that the brake levers have been installed correctly on
your bike. The left-hand brake lever should operate the rear
brake and the right-hand brake lever should operate the front
brakes.
5. Check that the brakes are working effectively.
6. Check that the bike is fitted with a working bell and reflectors.
7. Check that the wheel nuts or quick release skewers on the bike
are correctly fitted and sufficiently tight.
8. Check that the electronic functions on the bike are working.
9. Check that the handlebars and stem are correctly fitted and
sufficiently tight.
10. Check all accessories and luggage are securely fastened.
11. Check that the battery has sufficient charge for your ride.
Page 4
LCD Display and Controls
The display is mounted on the left side of the handlebar and is controlled with 3
easy to use buttons, Power, (Up) and (down)
LCD Display Operation
Power On/Off
Hold the “Power” button down for 1 second to start display and supply
power to the motor controller. To turn off, hold down the “Power” button
for 2.5 seconds. The display will turn off automatically after 10 minutes, if
not in use.
Page 5
User Interface

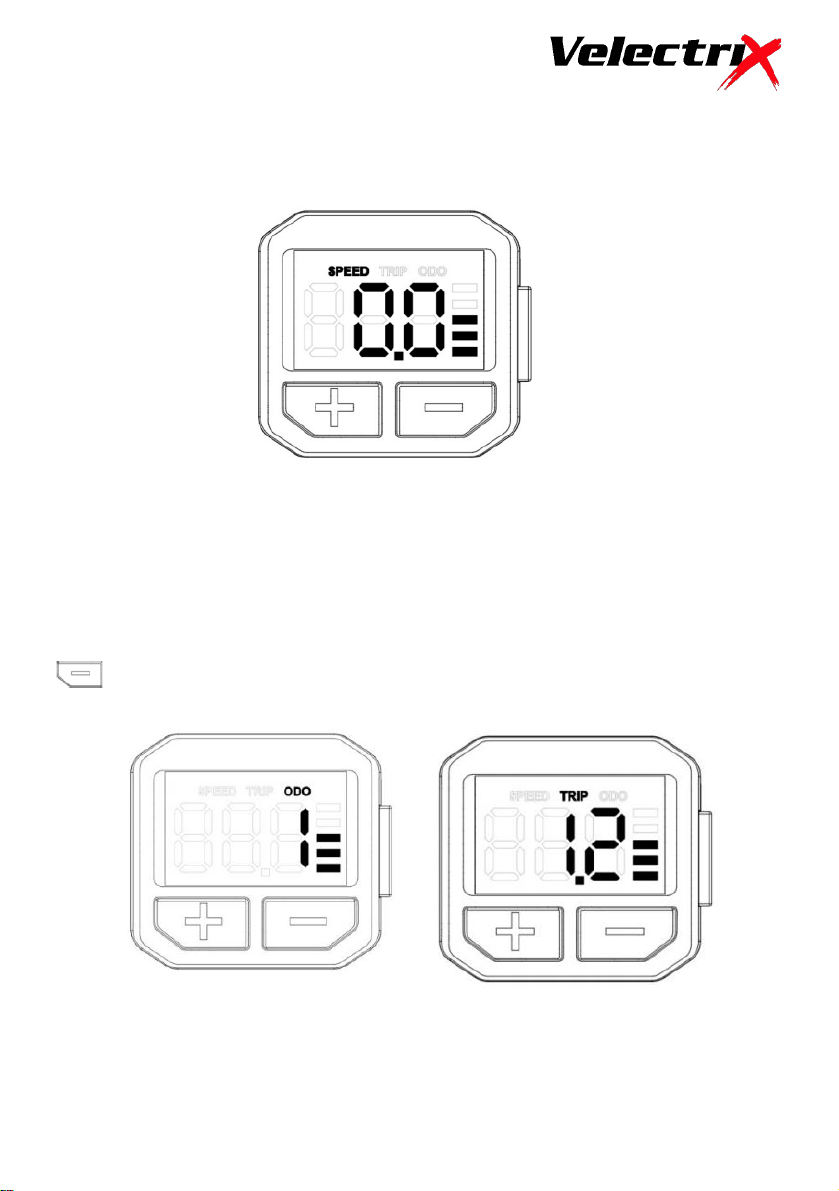

When the display is turned on, the screen will look as below.
Trip & Odometer Functions
Pressing the “Power” button will allow you to access the “Trip” and
“Odometer” functions.
The “Trip” distance can be cleared by pressing and holding both “Power” &
buttons together for 2 seconds.
The “Odometer” will continue to accumulate for the life of the bike.
Page 6
Walk Assist

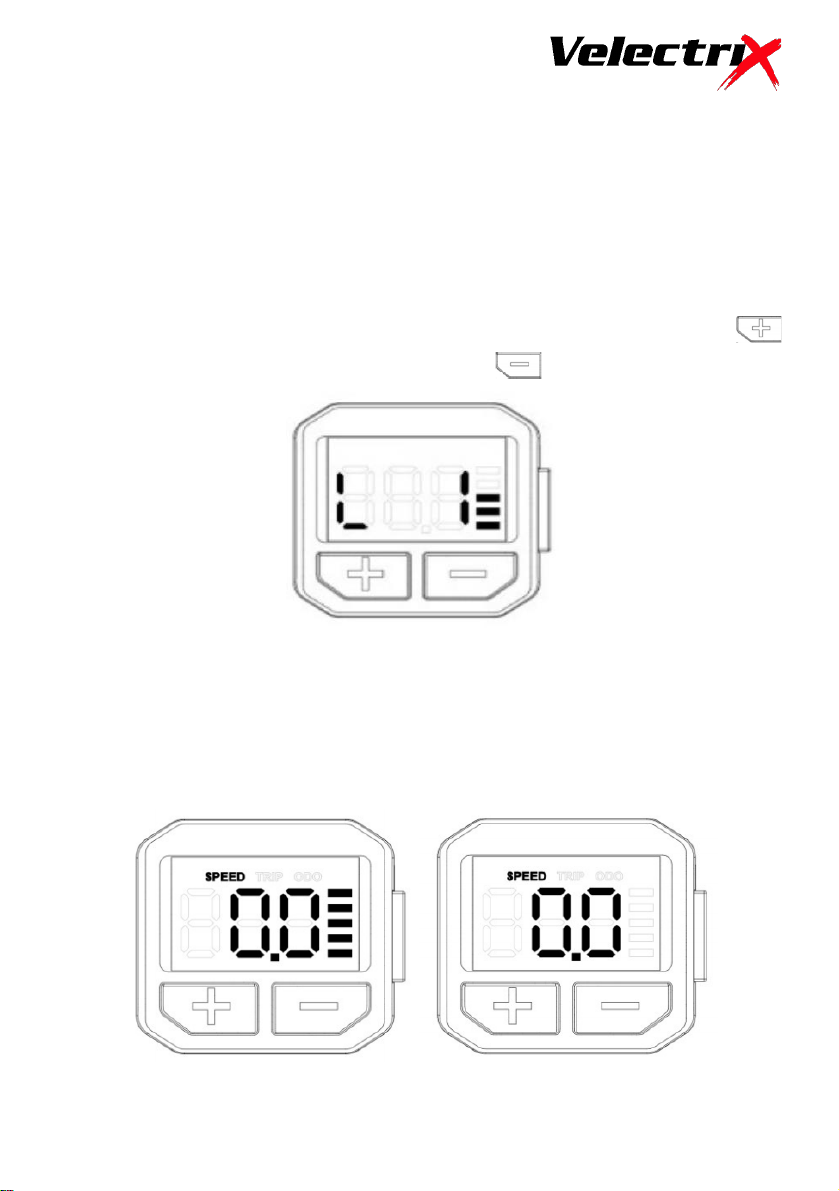

Press and hold the Button for 2 seconds to enable the walk assist
function. Releasing the button will disable the walk assist.
The walk assist feature is not a riding mode. It is designed to assist
with walking the bike up an incline to a maximum of 6 kph.
Light Operation (for models equipped with lights as standard)
Press and hold the button for over 2 seconds, to turn the lights on.
Repeat, to turn the lights off.
Page 7
Power Assist Adjustment
There are 5 levels of Power Assist. Level 1 is the slowest setting, and level
5 is the fastest. For example, level 1 will power to an approximate speed of
13-14 kph, level 2 to approximately 18 kph, and so on with a maximum
assist speed in level 5 at 25 kph. Level ”0” offers no Power Assist. Level 1
is the default setting when the display is first turned on. Press the
button to increase your speed and press the button to decrease your
speed.
Battery Indicator
The battery charge level is indicated by 5 bars. When the battery is low on
charge, the last bar will flash. The battery needs charging as soon as
possible.
Page 8
Battery Instructions

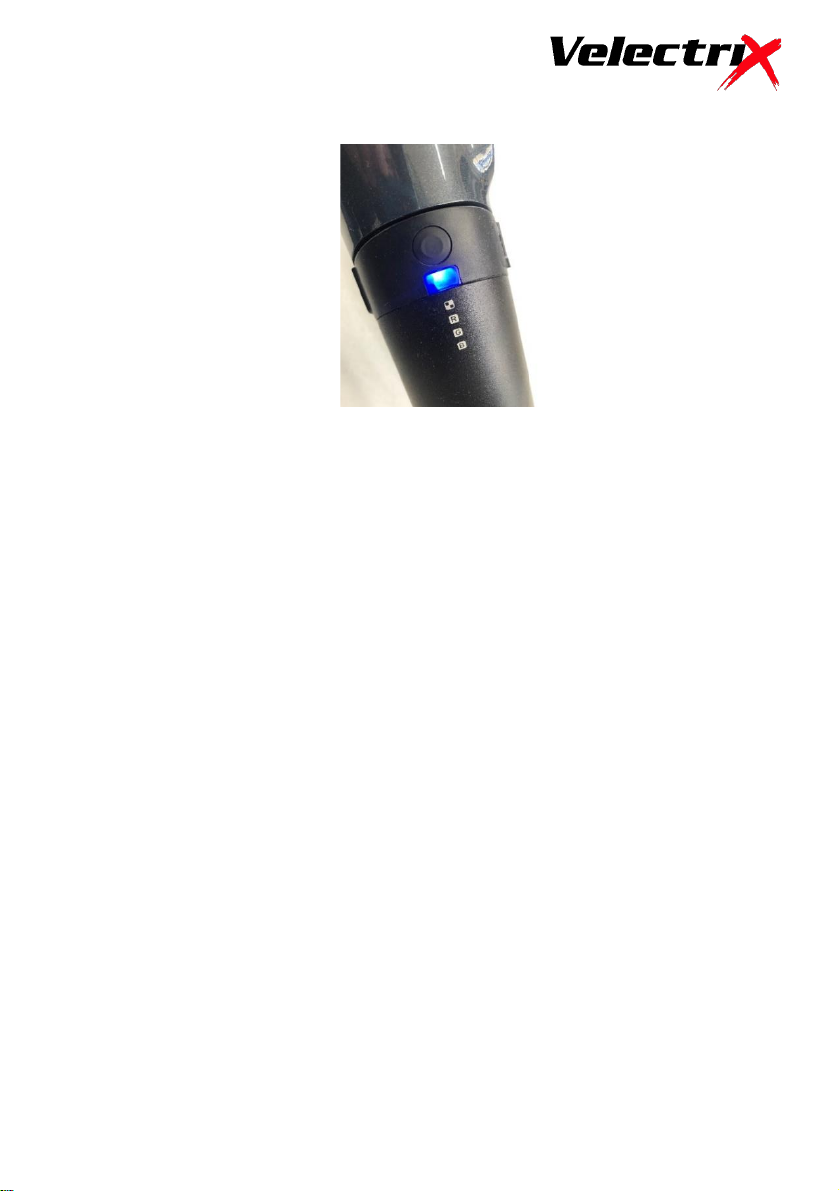

To check how much charge the battery has, press the button on the battery
top. The battery charge light will illuminate. The colour of the LED indicates
the level of battery charge:
oBlue = More than 90% charge
oGreen = 40 –90% charge
oRed = 20 –40% charge
oFlashing Red = Less than 20% charge
Locking & Unlocking the Battery
The bike is supplied with a set of keys, that are required to remove the
battery from the bike. The lock is located at the top of the battery, in the
frame of the bike.
Removing the Battery from the Bike
To remove the battery, insert the key and turn fully clockwise. Pull the
battery straight up & out from the bike. When reinserting the battery,
place the base in first and push down gently on the top to engage the
lock. You will hear the lock “click” into place.
Always make sure the battery is securely locked in place before riding
Page 9
Battery Care
Rechargeable Lithium-Ion batteries have a limited life and will gradually
lose their capacity to hold a charge. This loss of capacity (ageing) is
irreversible. As the battery loses capacity, the length of time it will power
the bike (ride time) decreases. The typical estimated “healthy life” of a
Lithium-Ion battery is about three years or 500 charge cycles, whichever
occurs first. One charge cycle is a period of use from fully charged, to fully
discharged, and fully recharged again.
Battery Charging
Simply charge your battery any time you feel you need to use it.
The batteries should be charged at room temperature in a dry location
where a smoke detector is installed. Batteries must not be charged in the
vicinity of heat sources or flammable materials. After charging, batteries
and chargers should be disconnected from the power supply.
Factors That Shorten Battery Life
Factors That Lengthen Battery Life
•Heavy-load use
•Low-load use
•Storage at over 30°C temperature
•Storage at a temperature between
10° and 20°
•Parking the ebike in direct sunlight
•Parking the ebike in the shade or
a cool location
•Prolonged storage (more than 30
days without use) in a fully
charged or discharged state
•Storage (more than 30 days
without use) at approx. 30-60%
battery capacity
