Vello BG-C6 Manuale utente

BG-C6

BATTERY GRIP

Designed For The Canon

EOS 60D SLR Camera

USER

’

S MANUAL

Introduction

Thank you for choosing Vello and congratulations on

your new BG-C6 battery grip purchase. Enjoy the many

benefits that a battery grip offers, such as extended

shooting time and more control and comfort when

shooting in a vertical (portrait) orientation.

The Vello BG-C6 is compatible with the Canon EOS

60D SLR camera. The BG-C6 accepts two Canon

LP-E6 rechargeable batteries, or six AA batteries

(alkaline, Ni-MH, lithium, or nickel-manganese) can

be used instead for added convenience. The BG-C6 is

equipped with an alternate shutter-release button, AF

point selection, AE lock/FE lock button, AF Start, and

main dial for shooting in a vertical position.

Please read through this entire manual

before using the BG-C6 battery grip.

Precautions

1. The BG-C6 should only be used with compatible

devices specified in this manual.

2. Only use with batteries and battery holders

recommended in this manual.

3. Cover the power terminals with the contact cap

when the BG-C6 is not in use. This prevents

electrical shorts caused by metal objects touching

the power terminals.

4. When the battery holder is removed from the

grip, remove the batteries or place the holder in

a container to prevent electrical shorts caused by

contact with other metal objects.

5. If you notice smoke, an unusual smell or noise from

the battery pack, discontinue use immediately.

Remove the batteries and take the device to a

Vello authorized reseller.

6. Turn the grip power off when not shooting

vertically.

7. The battery level may not display properly if

batteries are inserted before mounting the grip.

8. Remove batteries from the grip when not in use.

9. Do not attempt to disassemble.

10. Avoid water or extreme humidity and keep in a

dry and cool place.

11. Keep out of reach of children.

OVERVIEW INTRODUCTION

ASSEMBLY

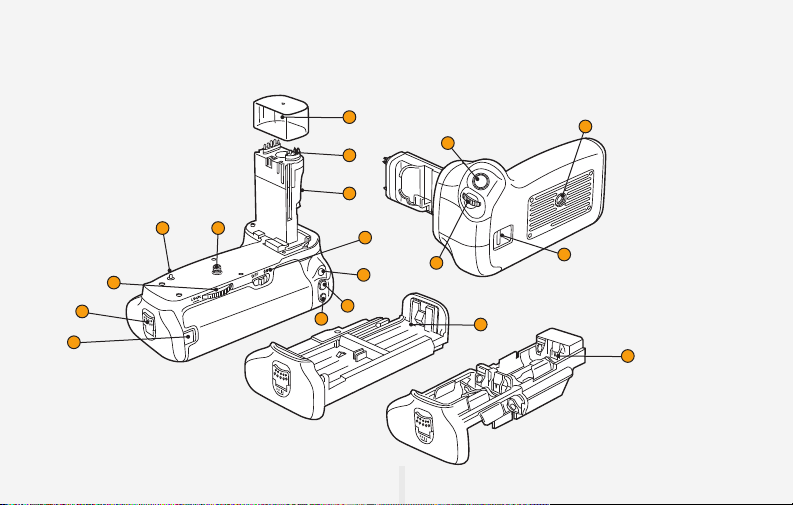

Overview

1Mounting Screw

Aligns with the camera’s tripod

socket.

2Guide Pin

Helps align the camera to the grip.

3Attachment Wheel

Secures the grip to the camera.

4Battery Compartment Cover

5DC Coupler Cord Mount

Groove for use with the Canon AC

Power Adapter (ACK-E6).

6AF Point Selection/Magnify Button*

AE Lock/FE Lock/Index/Reduce

Button*

AF Start Button

BG-C6 Grip Power ON/OFF

Camera Battery Chamber Cover

Holder

Stores the cover when the grip is

mounted.

11 Electrical Contacts

Communicates with the camera’s

electronics.

Contact Cap

Protects grip contacts. Keep covered

when the grip is not in use.

13 Battery Holder

Holds up to two Canon LP-E6

batteries.

14 AA Battery Holder

Holder for six AA batteries.

15 Main Dial*

16 Shutter-Release Button*

17 Tripod Socket

For mounting on a tripod.

18 Hand Strap Mount

Optional hand strap may be mounted

for a secure hold while shooting.

* Performs the same function as on the

camera.

OVERVIEW INTRODUCTION

ASSEMBLY

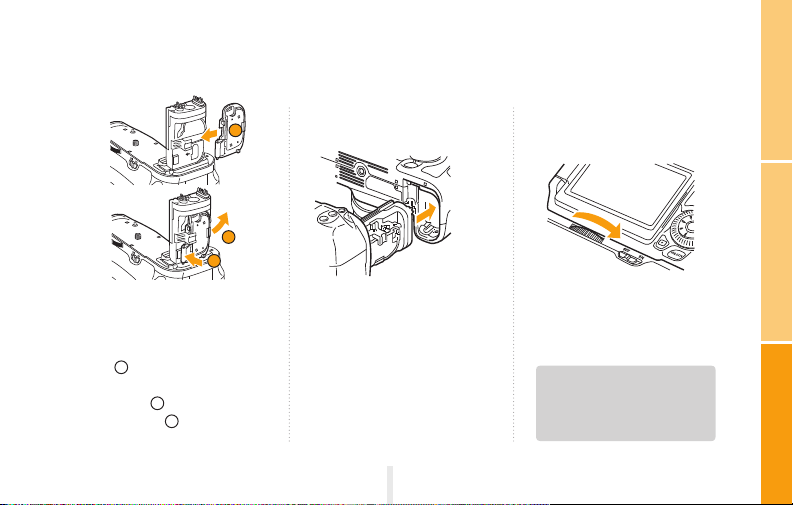

Attaching The Grip

1. Ensure that the power is

turned off on the camera

and that the power switch

is set to OFF on the

battery grip.

2. Remove the battery

from the camera battery

compartment.

3. Open the camera battery

chamber cover at a 35º

angle and gently pull

the cover to remove it.

4. To prevent loss, slide the

camera battery chamber

cover into the BG-C6

battery chamber holder

A. To remove the cover,

press lightly on the cover

hinge Band pull it up at

an angle C.

5. Remove the protective

cap and connect the BG-

C6 grip to the camera,

while aligning the grip’s

mounting screw with the

camera’s tripod socket.

6. Rotate the attachment

wheel in the direction

shown by the arrow until

it is firmly tightened.

When removing the grip,

turn the camera power off,

remove batteries, and replace

protective contact cap.

OVERVIEW INTRODUCTION

ASSEMBLY

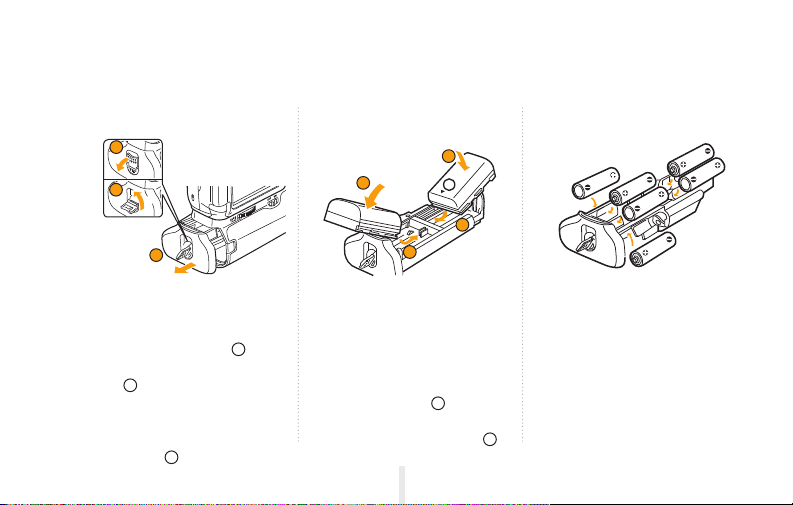

Inserting Batteries

1. Ensure that the power

is turned off on the

camera and grip. Pull

the lever down Aand

twist counter-clockwise

Bto open the battery

chamber door. Press both

release levers outward

and remove the battery

holder C.

2. Canon LP-E6 Batteries:

Insert up to two batteries

by orienting the arrow

on the battery toward

the interior of the holder.

Press the front of the

battery down Aand slide

forward while pressing on

the back of the battery B.

3. AA Batteries: Place six

new AA batteries of the

same type into the AA

battery holder as shown,

while ensuring that they are

in the correct orientation.

4. Slide the battery holder

into the grip, twist the

lever clockwise to lock,

and ﬂip it up to secure it.

5. Switch the grip power

to ON and then turn

on the camera’s power.

Check the battery level

in the control panel or

viewﬁnder.

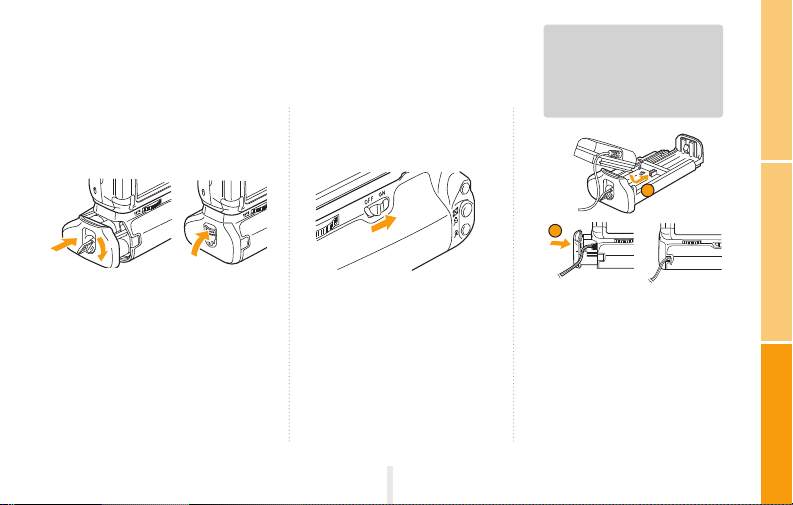

6. Household Power Outlet:

To mount the Canon

ACK-E6 AC Power

Adapter Kit (sold

separately), insert the

DC coupler into the side

of the handler with the

release lever just like a

battery. Pass the cord

through the groove on the

back of the grip.

Ensure that camera power is

turned off before mounting DC

coupler. Ensure that the DC

cord doesn’t get pinched by the

battery holder.

OVERVIEW INTRODUCTION

ASSEMBLY

Specifications

Power Source 1. One or two Canon LP-E6 rechargeable Li-ion batteries

2. Six AA/LR6 Alkaline batteries

3. Works with the Canon AC Adapter Kit (ACK-E6)

Operating Temperature 32º – 104° F (0 – 40° C)

Dimensions Approximately 145.6 x 111.3 x 85.3 mm/5.7 x 4.4 x 3.4 in.

Weight Approximately 295 g (10.4 oz) (excluding holder and batteries)

Speciﬁcations and design are subject to change without notice.

AA batteries do not provide as much shooting time as LP-E6 rechargeable batteries. Performance of AA batteries may also be dependent

on brand and storage conditions. AA batteries may not function under 68º F (20º C).
