Vello BG-S5 Manuale utente

USER’S MANUAL

BG-S5

BAT TERY GRIP

Designed for the

Sony A6500

Mirrorless Camera

Introduction

Thank you for choosing Vello, and congratulations on your

new BG-S5 battery grip purchase. Enjoy the many benefits

that a battery grip offers, such as extended shooting time

and more control and comfort when shooting in a vertical

(portrait) orientation. The Vello BG-S5 is compatible with

the Sony A6500 mirrorless camera, and it accepts up to

two Sony NP-FW50 rechargeable batteries. It offers an

alternate shutter-release button and has a control lock to

prevent accidental triggering.

Please read through

this entire manual before

using the BG-S5 battery grip.

2

Precautions

1.

The BG-S5 should be used only with compatible devices

specified in this manual.

2.

Use only with the batteries and battery holders

recommended in this manual.

3. If you notice smoke, an unusual smell, or noise from the

battery pack, discontinue use immediately. Remove the

batteries, and contact Vello Customer Service.

4.

The battery level may not display properly if batteries

are installed before mounting the grip.

5. Remove batteries from the grip when not in use.

6. Do not attempt to disassemble.

7.

Avoid exposing this product to water or extreme

humidity, and keep it in a dry, cool place.

8. Keep out of reach of children.

9. All images are for illustrative purposes only.

3

OVERVIEW INTRODUCTION

ASSEMBLY

Overview

2

5

17 16 1415

12

116

9

21

19

20

10

13

13

4

7

8

18

4

1Shutter release button

2Hand-strap mount

3Locking wheel

4Anti-slip grip

5Tripod socket

6Battery tray compartment

7Cable-release socket

8Mounting screw

9Connection plate cover recess

10 Control lock switch

11 Battery tray

12 Battery tray lock

13 Battery springs

14 Battery slot 1

15 Slot 1 contacts

16 Slot 2 contacts

17 Battery slot 2

18 Battery 2 latch

19 Battery pack adapter

20 Battery pack adapter contacts

21 Multi-Terminal Shutter Release Cable

5

ASSEMBLY OVERVIEW INTRODUCTION

Attaching the Grip

1.

Ensure that the camera

power is turned off, and the

Control Lock on the BG-S5

is in the Off position.

2.

Open the camera’s battery

chamber door, and remove

the battery. Then insert the

battery pack adapter.

3.

Open the camera’s

connection plate cover, and

close the battery chamber

door. This will leave the

battery pack adapter’s

contacts exposed.

6

4.

Align the camera’s tripod

socket with the BG-S5’s

mounting screw, and insert

the camera’s connection

plate cover into the recess.

5.

Rotate the locking wheel

counterclockwise until it’s

firmly tightened.

6.

Connect the shutter release

cable from the cable release

socket on the battery grip

to the Multi Terminal on the

A6500 body.

7

OVERVIEW

ASSEMBLY INTRODUCTION

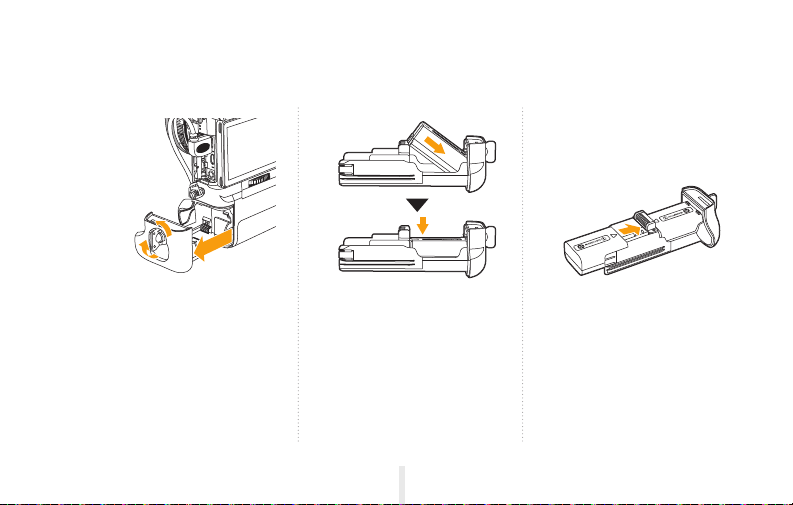

Inserting the Batteries

1.

Lift and rotate the battery

tray’s lock counterclockwise,

and remove the battery tray

from the grip.

2.

Align the contacts of the

first battery and slot 1.

Insert the battery toward

the springs, and push down

to lock the battery in place.

3.

Align the contacts of the

second battery and slot 2,

and slide the battery into

place until it clicks.

8

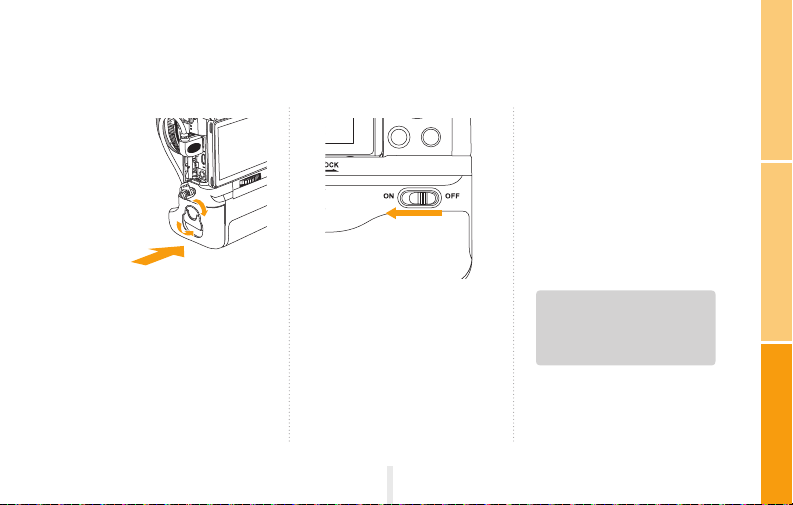

4.

Insert and lock the battery

tray inside the battery grip.

5.

Turn on the camera, and

switch the battery grip’s

control lock to the On

position.

Note: When removing the grip,

turn off the camera’s power and

the grip’s control lock switch, then

remove the batteries.

9

OVERVIEW

ASSEMBLY INTRODUCTION

Removing the Batteries

1.

Turn the camera and

battery grip power off. Lift

and rotate the battery tray

lock counterclockwise, and

remove the battery tray

from the grip.

2.

Remove battery 1 by pulling

back against the springs and

lifting the battery out of

the tray.

3.

Remove battery 2 by

moving the latch outward

and sliding the battery out

of the battery tray.

10
