Vello BG-S3 Manuale utente

BG-S3

BAT TERY GRIP

Designed for the

Sony Alpha A7 II, A7R II, and A7S II

Mirrorless Cameras

USER’S MANUAL

Introduction

The Vello BG-S3 accepts two Sony NP-FW50

rechargeable batteries to effectively double the runtime

of your Sony Alpha A7II, A7R II, and A7S II mirrorless

cameras, making it easier to shoot for longer durations

without replacing your camera’s batteries.

The BG-S3 attaches securely to your camera’s 1/4

-20

tripod socket, and the nonslip rubber on the grip offers

enhanced handling when shooting in vertical position.

Alternate shutter-release, AF/MF/AEL, and three custom

buttons, plus front and rear command dials, make it

comfortable to shoot in portrait orientation, so you won’t

have to twist your arm to get the right shot.

Please read through this entire manual before

using the BG-S3 battery grip.

Precautions

The BG-S3 should be used only with the compatible

devices specified in this manual.

When the battery tray is removed from the grip, remove

the batteries or place the tray in a container to prevent

electrical shorts caused by contact with other metal

objects.

3. If you notice smoke, an unusual smell or noise from the

battery pack, discontinue use immediately. Remove

the batteries and contact the Vello Customer Service

Department.

4. Keep this product away from water and any flammable

gases or liquids.

5. Set the grip’s on/off switch to Off position to disable its

controls when not shooting vertically.

The battery level may not display properly if batteries

are inserted before mounting the grip.

7. Remove batteries from the grip when not in use.

8. Do not attempt to disassemble or repair this product.

Install batteries in the proper orientation. Installing

batteries in the reverse orientation can cause them to

leak, overheat, or explode.

10. Avoid water or extreme humidity and keep in a dry and

cool place.

11. Keep out of reach of children.

12 .

Make sure that this product is intact and that there are

no missing parts.

13.

To avoid damage to this product, be careful not to

overtighten or improperly thread any of the threaded

fittings.

14 . All photos are for illustrative purposes only.

OVERVIEW INTRODUCTION

ASSEMBLY

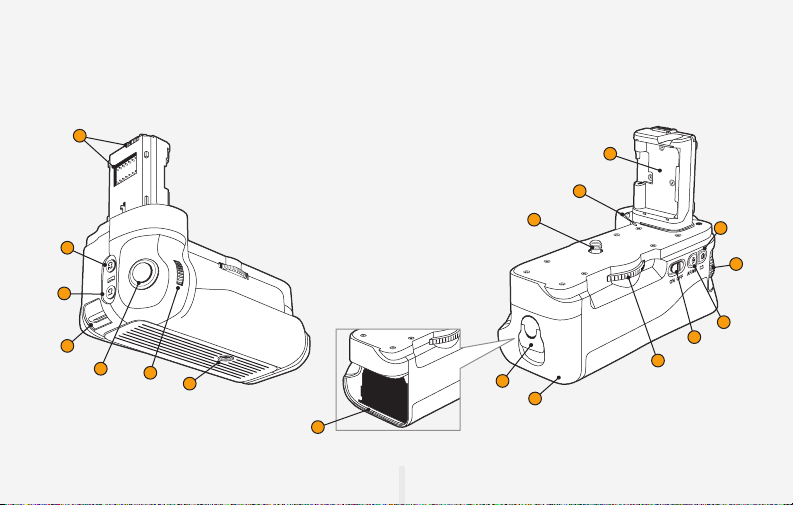

Overview

1Electrical Contacts

Communicates with the camera

electronics.

2Custom Button (C2)*

3Custom Button (C1)*

4Hand Strap Mount

5Shutter-release Button*

6Front Command Dial*

7Tripod Socket

8Battery Tray Compartment

Houses the battery tray.

9Battery Tray Latch

10 Battery Tray

Holds up to two Sony NP-FW50

batteries.

11 Attachment Wheel

Secures the grip to the camera.

12 Grip On/O Switch

Activates or disables the BG-S3’s

controls. Your camera will continue

to draw power from the BG-S3 when

the switch is in the Off position. The

on/off switch is not a power switch.

13 AF/MF/AEL Button*

14 Rear Command Dial*

15 Custom Button (C3)*

16 Camera Battery Chamber Cover

Compartment

17 Guide Pin

Helps align the camera to the grip.

18 Mounting Screw

Attaches the grip through the

camera’s tripod socket.

*Performs the same function as on the

camera.

ASSEMBLY OVERVIEW INTRODUCTION

Attaching the Grip

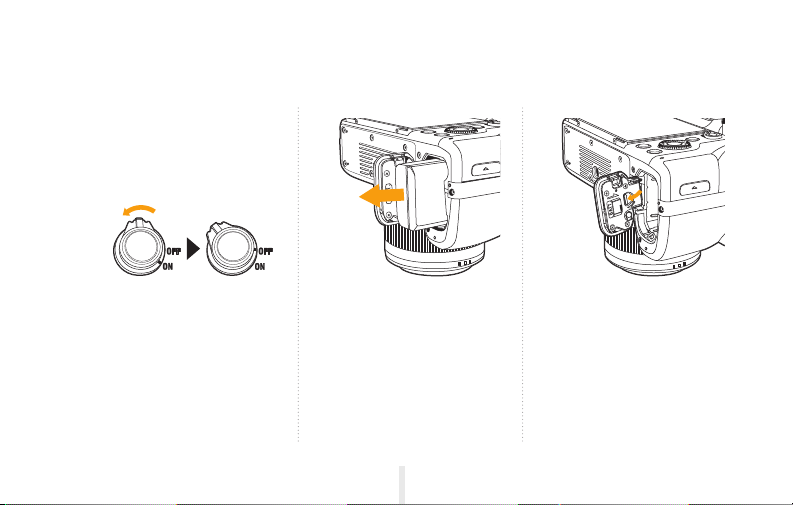

Ensure that the power is

turned off on the camera

and that the on/off switch

is set to Off on the battery

grip.

Remove the battery from

your camera’s battery

chamber.

Remove your camera’s

battery chamber door by

pulling the release latch on

the inside of the door as

indicated above.

To prevent loss, place the battery chamber door

into the BG-S3 battery door compartment.

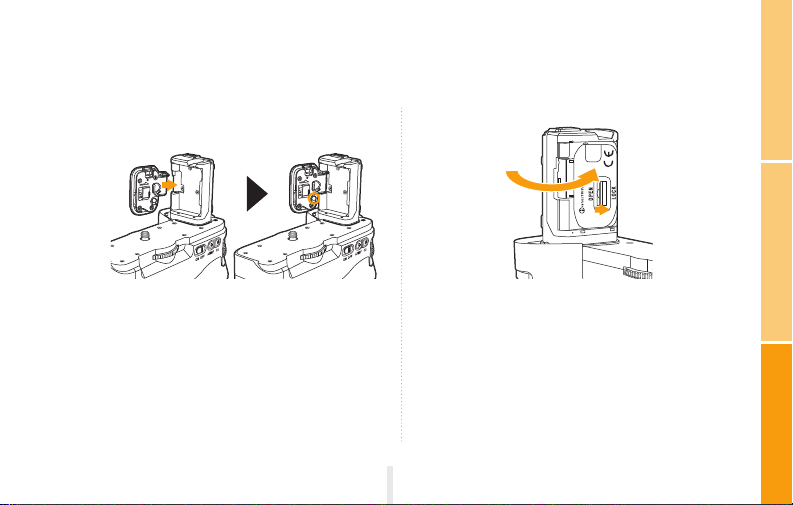

Align the door with the BG-S3’s battery door

compartment, and then insert the door. Press

the door’s release button to lock the door in

place.

Swing the door shut and slide the switch to the

LOCK position.

OVERVIEW

ASSEMBLY INTRODUCTION

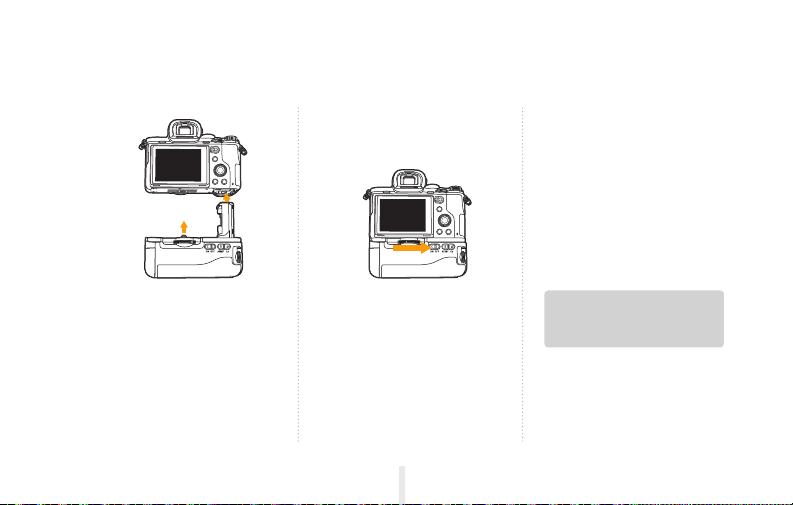

Connect the BG-S3 grip to

the camera, while aligning

the grip’s mounting screw

with the camera’s tripod

socket.

Rotate the attachment

wheel in the direction

shown by the arrow until it

is firmly tightened.

When removing the grip, turn the

camera power off and remove

the batteries.

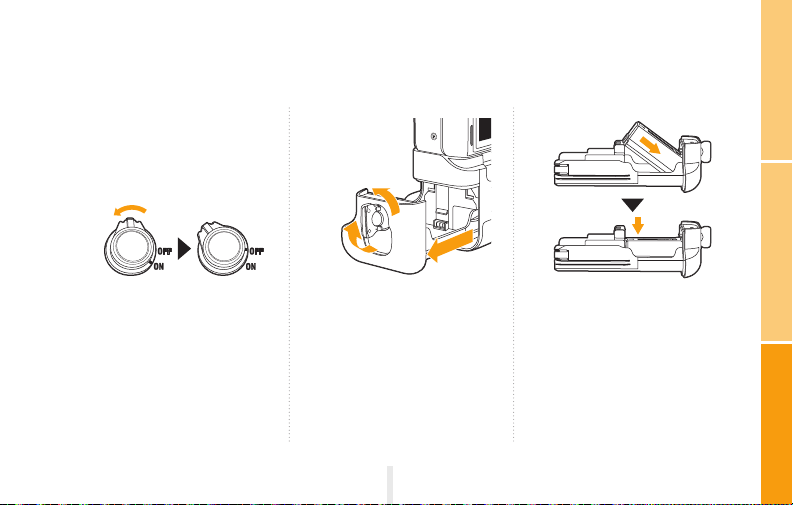

Ensure that the power is

turned off on the camera

and that the grip’s on/off

switch is set to Off.

Flip the battery tray

latch so you can rotate it

counterclockwise and pull

the battery tray out of the

grip.

In the battery tray are

compartments for batteries

1 and 2. Align battery 1 as

indicated by the diagram,

noting the springs inside

the compartment. Insert

battery 1 spring-side first,

and push down so it snaps

into place.

Inserting Batteries

OVERVIEW

ASSEMBLY INTRODUCTION

4. Align battery 2 as indicated

by the diagram in the

compartment, and slide it

in until it snaps into place.

Make sure the battery

tray latch is rotated

counterclockwise and

slide the battery tray into

the grip. Rotate the latch

clockwise and reposition it

so it’s flush with the side of

the grip, then turn on the

camera and grip.

To remove battery 1, pull the

battery toward the springs and

lift the battery up and out of the

compartment.
