Vello LA-C-NAF Manuale utente
LENS
ADAPTER
MANUAL
LA-C-NAF
LA-C-NAFII
LA-C-CEF
2
Thank you for choosing a Vello Lens Adapter. The Vello C mount adapter allows you to mount
photo lenses to your camera. Vello Lens Adapters fit securely to the lens, but not so tightly that
they are dicult to remove. Please follow these instructions to mount and remove your Vello
Lens Adapter.
Although the lens will t physically, automatic diaphragm (AE metering) and other functions dependent
on communication between the camera body and lens will be disrupted by a lens adapter. You will
need to set exposures manually or meter in aperture priority (stop-down) mode. Focusing to innity is
retained.
INTRODUCTION
All images are for illustrative purposes only.
3

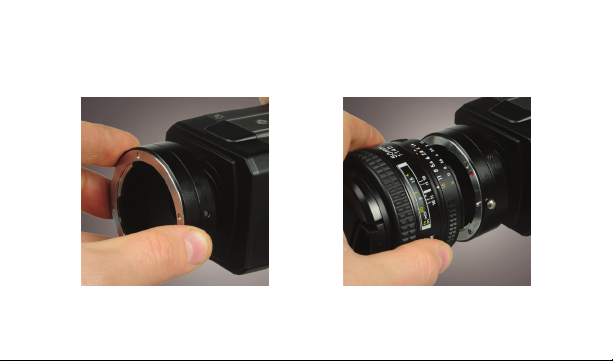

1. Rotate the lens adapter clockwise onto
the camera until it is secure.
2.Line up the alignment dots on the lens and
the lens adapter.
TO MOUNT THE LENS ADAPTER
4
3. Rotate the lens until it locks into place. 4. If desired, you can re-align the lens to a
specific position. To re-align the lens, use a
2 mm flat-head screwdriver to loosen the
three screws on the lens mount. Rotate
the lens to the desired position, and
tighten the three screws.
5
2. Rotate the lens to release.
TO REMOVE THE LENS ADAPTER
1. Pull and hold the release pin on the lens
adapter.
6
3. Rotate the lens adapter to remove.
Notes:
_____________________________________
_____________________________________
_____________________________________
_____________________________________
_____________________________________
______________________________________
______________________________________
_____________________________________
ONE-YEAR LIMITED WARRANTY
Vello provides a limited warranty to the original purchaser that this product is free from defects in
materials and workmanship under normal consumer use for a period of one (1) year from the original
purchase date or thirty (30) days after replacement, whichever occurs later. Vello’s responsibility with
respect to this limited warranty shall be limited solely to repair or replacement, at Vello’s discretion,
of any product that fails during normal consumer use. Inoperability of the product or part(s) shall be
determined by Vello. If the product has been discontinued, we reserve the right to replace it with a
model of equivalent quality and function.
To obtain warranty coverage, contact Vello to obtain a return merchandise authorization (“RMA”)
number, and return the defective product to Vello, along with the RMA number and proof of
purchase. Shipment of the defective product is at the purchaser’s own risk.
This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration,
abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, VELLO MAKES
NEITHER ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT
NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE. This warranty provides you with specific legal rights, and you may also have
additional rights that vary from state to state.
© Copyright 2013 Gradus Group
www.vellogear.com
Vello and other names of Vello products are trademarks of Gradus Group. Other product and corporate names mentioned
herein are trademarks of their respective holders.
