Vello AF EXTENSION TUBE SET Manuale utente

AF EXTENSION

TUBE SET

USER MANUAL

For Mirrorless Cameras

2

Thank you for purchasing the Vello Extension Tube Kit for Mirrorless Cameras.

Extension tubes provide a practical way of adding macro performance to your

camera set-ups. The Vello Extension tubes can be attached to a variety of lenses

for mirrorless cameras and are less expensive than dedicated macro lenses. The

extension tubes can be used individually or stacked together for greater control

over the level of magniﬁcation. Additional tubes (available separately) can be added

for closer focusing distances.

INTRODUCTION

3

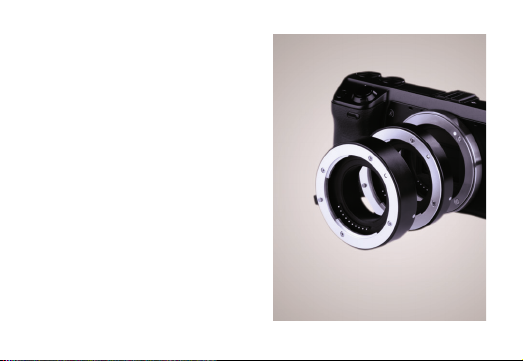

CONTENTS

(1) 10mm Extension Tube

(1) 16mm Extension Tube

4

MOUNTING THE EXTENSION TUBES

In order to ensure that all the internal

electronic contacts are connected,

and full communication is established

between the camera and the extension

tubes/lens, it is important that the

steps listed below are followed.

1. Remove the lens from the camera.

5

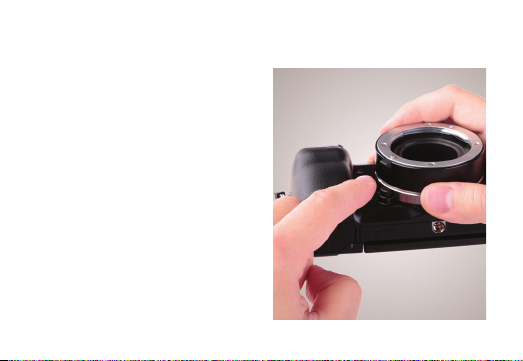

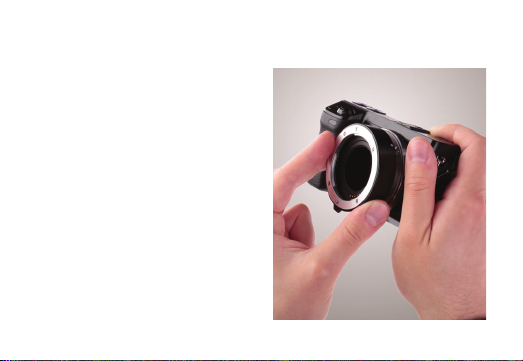

2.

Align the Vello extension tube

to the camera’s lens mount. The

extension tube will mount in exactly

the same manner as a standard lens.

Make sure to align the alignment

dot on the tube with the circular

alignment mark on your camera.

6

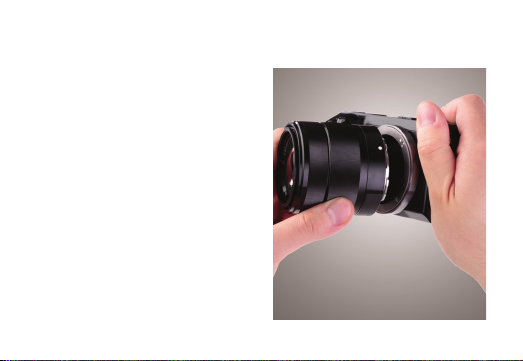

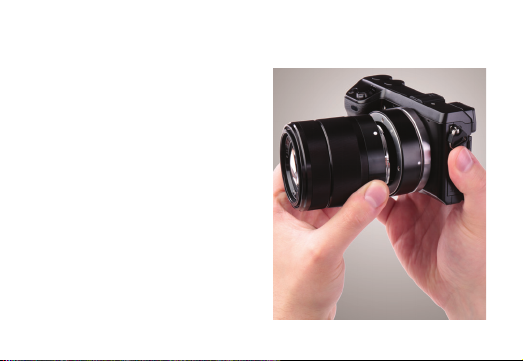

3.

Mount your lens onto the extension

tube in exactly the same manner as

you would mount it on the camera.

7

REMOVING THE EXTENSION TUBES

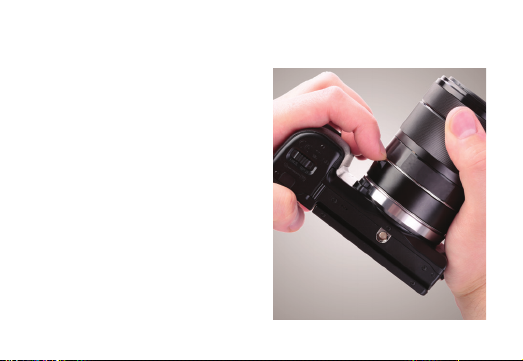

1.

Press the tab on the extension

tube towards the camera; this will

unlock the lens. The lens can now

be removed as normal.

8

2.

Press the camera’s lens release

button and remove the tube as you

would a normal lens.

Note: When the extension tubes are

not attached to a lens, be sure to store

them in a plastic bag or other dust-free

environment to protect the electronic

contacts inside the tubes.

9

TIPS FOR USING THE VELLO EXTENSION TUBES

• As with all macro photography, images will have a very shallow depth of ﬁeld.

To increase the depth of ﬁeld, select a smaller aperture.

•

Due to increased exposure times, a tripod and cable release or remote is always

recommended for macro photography.

•

Closer focusing can be achieved through using the larger extension tubes or

by stacking the tubes.

• Due to the increased distance between the lens and the sensor, the camera’s

TTL system may not always be accurate. Use a manual exposure mode if this

happens.

10

• At extremely close distances, focus may be dicult to achieve, whether using

auto or manual-focus. If this is the case use a macro focusing rail or set the lens

manually to the desired focal point. Then, move the lens forward or backward

to achieve the sharpest focus.

•

When using extension tubes, an on-camera ﬂash may result in unsightly

shadows, so it is not recommended. For best results, use an o-camera ﬂash,

dedicated macro light, or another light source.
