Vello BG-N22 Manuale utente

USER’S MANUAL

BG-N22

BAT TERY GRIP

Designed for the

Nikon Z 6II and Z 7II

Mirrorless Cameras

Thank you

for choosing Vello

The Vello BG-N22 battery grip offers extended shooting

time and comfort when shooting in a vertical (portrait)

orientation. The grip is compatible with the Nikon Z 6II

and Z 7II mirrorless cameras, and it accepts up to two

Nikon EN-EL15c/EN-EL15b rechargeable batteries.

You can charge the batteries inside the grip without

removing them, and hot swap a battery while shooting

video. The BG-N22 offers an alternate shutter release,

multi-selector, and additional buttons, making the grip

ideal for shooting in portrait mode. The convenient

control lock switch disables all the controls, preventing

unwanted exposures.

Please read through this entire manual

before using the BG-N22 battery grip.

2

Precautions

1.

The BG-N22 should be used only with the compatible

devices specified in this manual.

2.

Use only with the batteries and battery holders

recommended in this manual.

3.

If you notice smoke, noise, or an unusual smell from

the battery pack, discontinue use immediately. Remove

the batteries, and take the device to a Vello authorized

reseller.

4.

The battery level may not display properly if batteries

are installed before mounting the grip.

5. Remove batteries from the grip when not in use.

6. Do not attempt to disassemble.

7.

Avoid exposing this product to water or extreme

humidity, and keep it in a cool, dry place.

8. Keep out of reach of children.

9. All images are for illustrative purposes only.

3

OVERVIEW INTRODUCTION

ASSEMBLY

Overview

3

4

11

12

18

19

21

17

20

5

9

67

16

15

14

13

8

123

10

222

4

1Nonslip grip

2Mounting screw

3Camera battery door holder

4Fn button

5Shutter release button

6Control lock

7Sub-command dial

8Tripod socket

9Battery tray release

10 USB-C™ port (charging only)

11 Door release button

12 Battery compartment door

13 Battery status LEDs

14 Rear thumbwheel

15 Multi selector

16 Main command dial

17 AF-ON

18 Power contacts

19 Contact cover

20 Battery tray

21 Battery A release

22 Battery A compartment

23 Battery B compartment

5

ASSEMBLY OVERVIEW INTRODUCTION

Attaching the Battery Grip

1.

Ensure that the camera

power is turned off, and

the grip’s control lock is in

the locked position.

2.

Remove the camera’s

battery chamber door. Pull

gently at a 45° angle until the

door detaches.

3.

Slide the chamber door

into the BG-N22’s camera

battery door holder for

safekeeping.

6

4.

Insert the battery grip’s power contacts into the

camera’s battery chamber.

5.

Rotate the rear thumbwheel counterclockwise

until the grip is secured to the camera.

7

OVERVIEW

ASSEMBLY INTRODUCTION

Inserting the Batteries

1.

Turn off the camera’s

power, and make sure the

grip’s control lock switch is

in the locked position.

2.

Press the battery door

release button and slide

the battery compartment

door open.

3.

Press the battery tray

release, and slide out the

battery tray.

2

11

2

8

4.

Insert a battery into compartment A until it clicks

in place. Insert a battery into compartment B,

pushing inward and down into the compartment.

5.

Insert the battery tray with compartment B first.

12

A

BB

9

OVERVIEW

ASSEMBLY INTRODUCTION

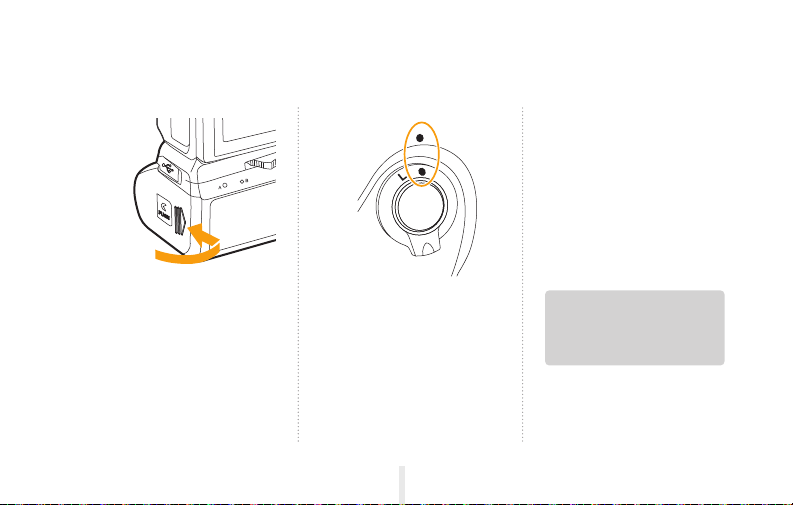

6.

Close the compartment

door, and slide it to the front

of the grip until it clicks.

7. Turn on the camera power,

and make sure the grip’s

control lock switch is in the

unlocked position.

Note: When removing the grip,

turn off the camera’s power, lock

the grip’s control lock switch, and

then remove the batteries.

2

1

10
