Vent-Axia Lo-Carbon Tempra P Istruzioni per il montaggio

Stock Ref. N°

443312 Pullcord. (P)

403832 Pullcord Long cell (LP)

443310 Timer. (T)

403834 Timer Long cell (LT)

443311 Humidistat Timer

Pullcord. (HTP)

403836 Humidistat Timer

Pullcord Lon

cell

(

LHTP

)

PLEASE READ INSTRUCTIONS IN CONJUNCTION WITH ILLUSTRATIONS.

PLEASE SAVE THESE INSTRUCTIONS.

Lo-Carbon

Tempra

IPX4

THROUGH THE WALL

HEAT RECOVERY FAN

Installation and Wiring Instructions

220-240V~50Hz

Installation and Wiring Instructions for the Tempra Range of Heat Recovery Fans.

IMPORTANT:

READ THESE INSTRUCTIONS

BEFORE COMMENCING THE

INSTALLATION

DO NOT install this product in areas where the following may be present or occur:

•Excessive oil or a grease laden atmosphere.

•Corrosive or flammable gases, liquids or vapours.

• Ambient temperatures higher than 40°C or less than – 5°C.

• Possible obstructions which would hinder the access or removal of the Fan.

SAFETY AND GUIDANCE NOTES

A. All wiring to be in accordance with the current I.E.E. Regulations, or the

appropriate standards of your country and MUST be installed by a suitably

qualified person.

B. The Fan should be provided with a local isolator switch capable of

disconnecting all poles, having a contact separation of at least 3mm.

C. Ensure that the mains supply (Voltage, Frequency, and Phase) complies with

the rating label.

D. The Fan should only be used in conjunction with the appropriate Vent-Axia

products.

E. The fan should only be used in conjunction with fixed wiring.

F. When the Fan is used to remove air from a room containing a fuel-burning

appliance, precautions must be taken to avoid back-flow of gases into the

room from the open flue of gas or other appliance. Ensure that the air

replacement is adequate for both the fan and the fuel-burning appliance.

G. The Fan should not be used where it is liable to be subject to direct water

spray for prolonged periods of time.

H. The horizontal duct should be arranged to slope slightly downwards to the

exterior away from the Fan.

I. This appliance is not intended for use by young children or infirm persons

without supervision.

J. Young children should be supervised to ensure that they do not play with the

appliance.

Disposal

This product should not be disposed of with household waste.

Please recycle where facilities exist.

Check with your local authority for recycling advice.

DESCRIPTION

Through the wall Heat Recovery Fan

The Vent-Axia Lo-Carbon Tempra is suitable for refurbishment or new build, kitchen, bathroom, toilet

or utility applications. The unit meets the performance requirements for intermittent extract fans under

the Building Regulations Part F 2010 (table 5.1a) and also for continuous running products.

Tempra is available in 6 models

443312 – Tempra P

403832 - Tempra LP (long) Constant trickle speed with pull cord or switch live to

boost airflow.

443310 – Tempra T

403834 – Tempra LT (long) Constant trickle speed with switch live to boost airflow with

adjustable 5-50 min overrun timer and optional 3 minute delay

on timer.

443311 - Tempra HTP

403836 –Tempra LHTP (long) Constant trickle speed with pull cord or switch live to boost airflow

with adjustable 5-50 min overrun timer and optional 3 minute delay

on timer and internal humidistat adjustable 60- 90% RH.

A. INSTALLATION

WALL MOUNTING

Models P,T& HTP are designed for use in a wall with a maximum thickness of 318mm fitted with a

110mm Soil Pipe or Wall Sleeve (Stock Ref No 445529).

Models LP,LT & LHTP are designed for use in a wall with a maximum thickness of 460mm fitted with

a 110mm Soil pipe.

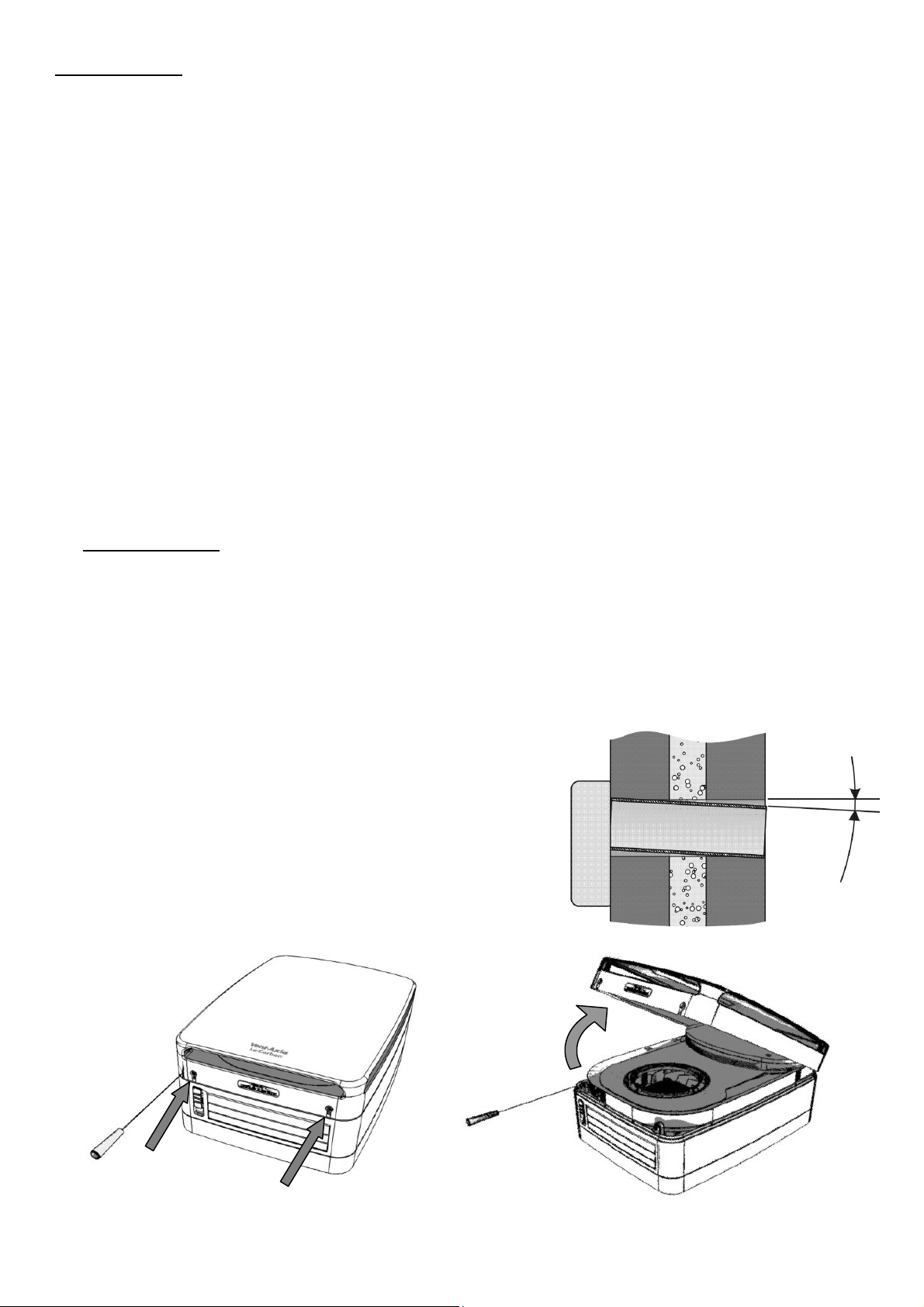

1 Using the template provided mark the 4 wall fixing positions, the hole for the wall pipe and

mains cable entry point.

2) Cut a hole through the wall and insert the soil pipe

or wall sleeve.

Slope the sleeve slightly downwards away from the

fan and cement both ends into position flush with the

wall Fig 1.

3) Undo 2 fixing screws and lift off Cover Plate Fig 2 & 3

Fig.1

Fig.2 Fig.3

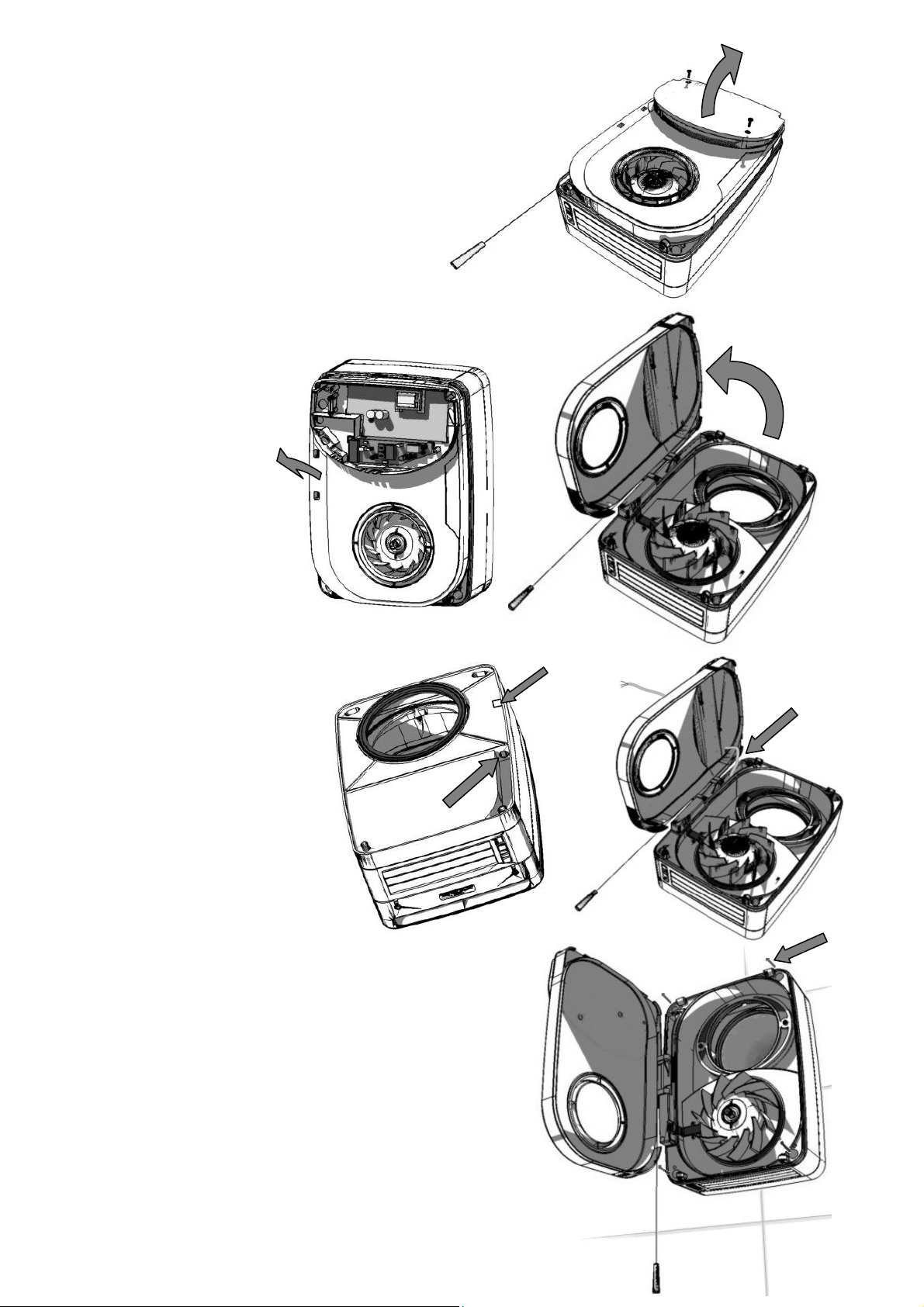

4) Remove 2 screws and detach

Electrical Cover Fig 4

5) Lift where

indicated to engage

hinges Fig 5

and open Door Fig 6.

6) Feed flexible Mains cable

through one of the rear

entry points or the side entry

point as required. And then

the door Fig 7 & Fig 8

7) Fit Chassis to wall with 4 fixing screws carefully

aligning the hole in the back of the Tempra with

the Wall Pipe Fig 9.

Fig.6

Fig.4

Fig.7 Fig.8

X 4

Fig.9

Fig.5

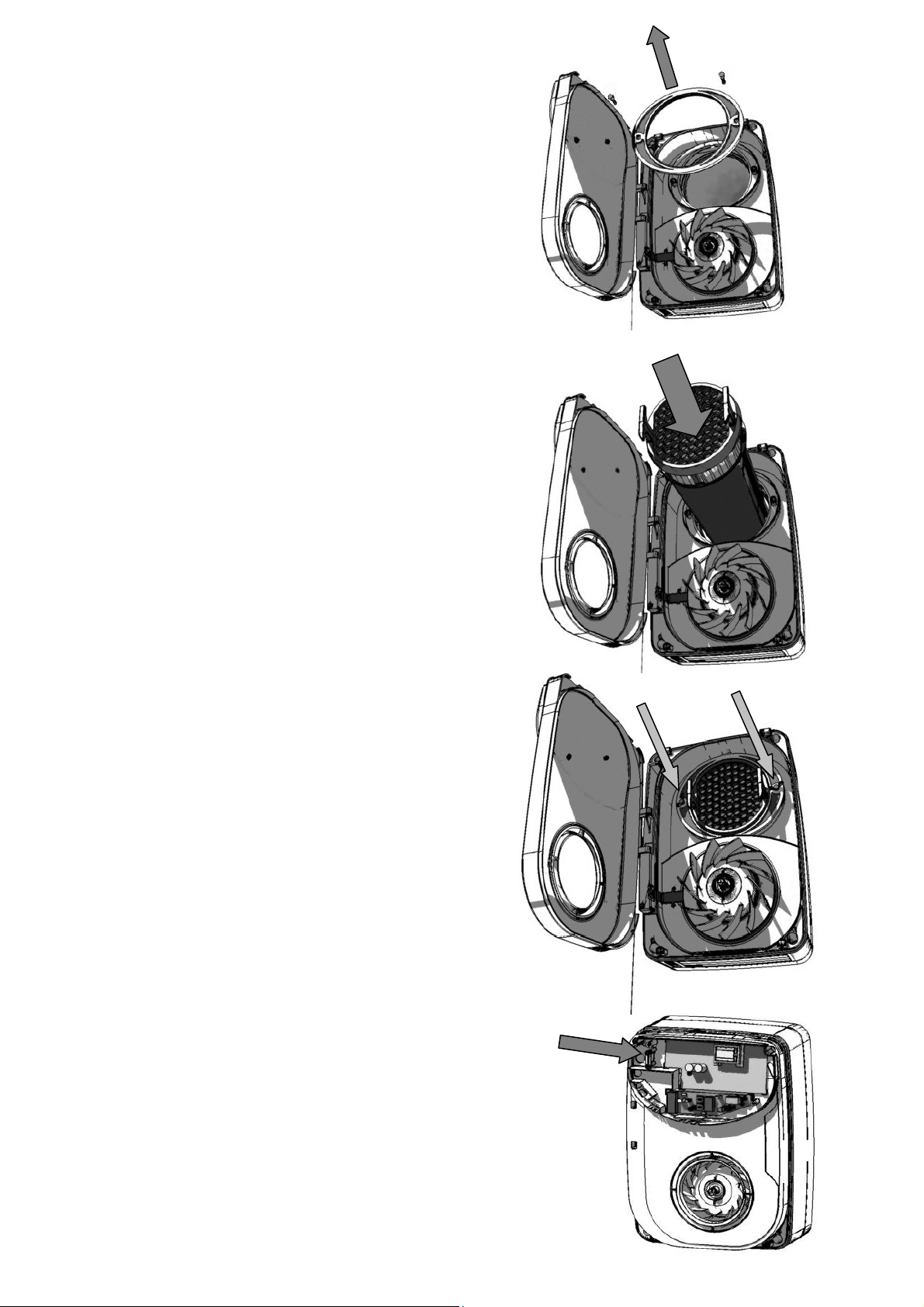

8) Remove screws and Heat

Exchanger Retaining Clamp kit Fig 10.

(Discard polybag)

9) Insert Heat Exchanger through

Chassis and into Wall pipe Fig 11.

Note: Line up key on top of Heat Exchanger

with slot in Chassis

10) Fit Heat Exchanger Retaining

Clamp with screws provided Fig 12.

11) Close Door and Connect flexible mains cable as

described in section B – Wiring, ensure cable

clamp is used adjust any settings as required

see section C – Setup. Fig 13

Fig.10

Fig.11

Fig.12

Fig.13

12) Re fit Electrical Cover with 2 screws indicated

In Fig 14

13) Re fit Cover Plate and tighten 2 screws Fig 15 &16.

Ensure Pull cord is engaged in Lower Slot

14) The Tempra unit is also fitted with a “manual summer setting” which allows the unit to be set to

extract only, helping to prevent a dwelling becoming too warm in hot summer conditions.

When first installed this shutter/vent should be open. Fig.16

To activate the summer setting it should be shut.

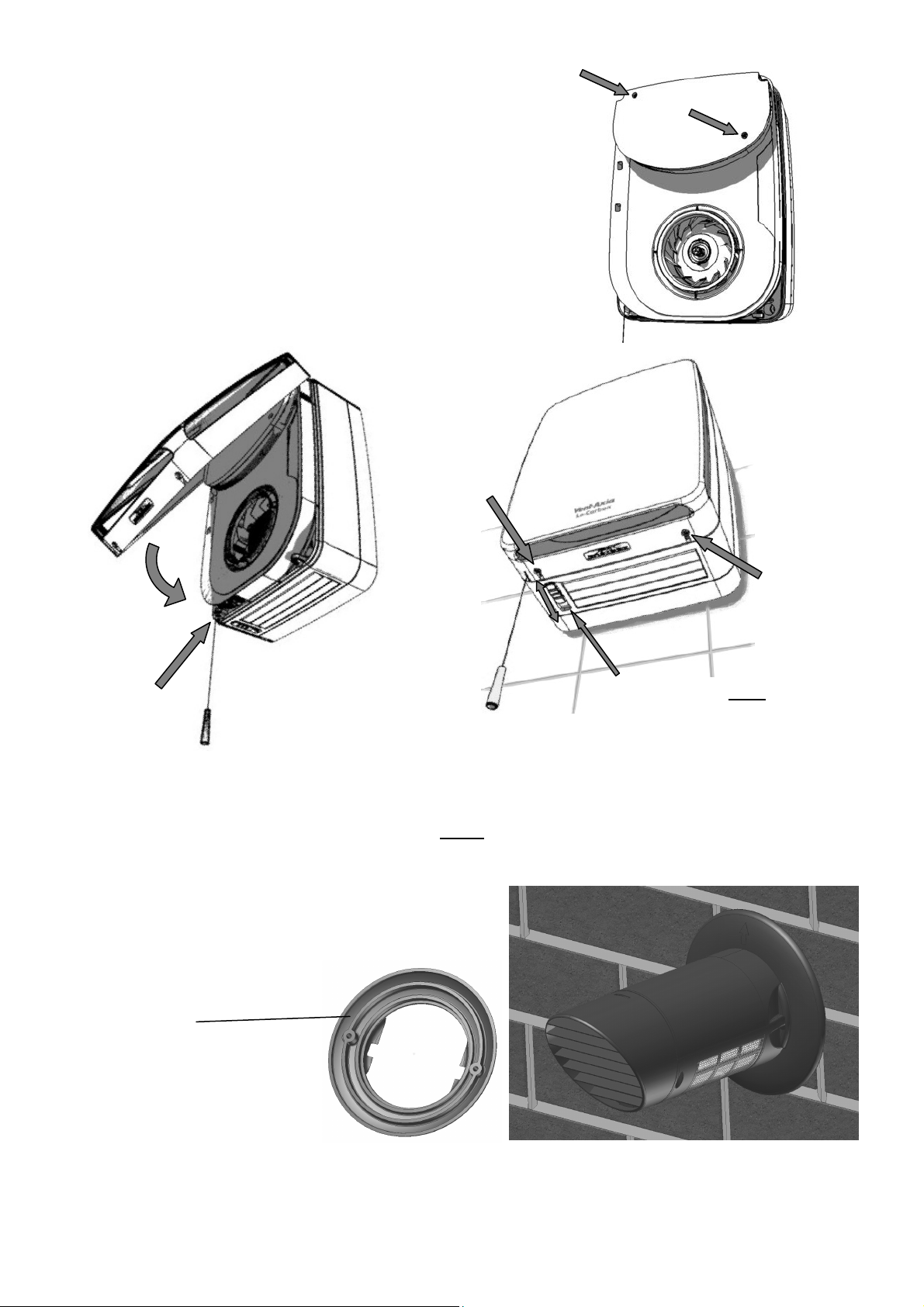

15) Make good on outside wall with the wall

Cover bezel provided, ensure the arrow on

the bezel is at the top.

Fix/seal to the wall with a suitable sealant.

Apply sealant in outer groove

on rear of bezel.

Important:- Please ensure that

you apply sufficient sealant to

hold the bezel to the wall. (If the

wall surface is not suitable for

using sealant 2 screws can be

located through the 2 bosses provided).

Note:- Do not seal the bezel to the heat exchanger, this needs to be removed for cleaning at regular

intervals.

Engage

Pullcord in

slot

Fig.14

Fig.15 Fig.16

Fig.17

Ensure this vent is open

when installed to activate

the heat recovery function

B. WIRING.

WARNING: THE FAN AND ANCILLARY CONTROL EQUIPMENT MUST BE ISOLATED

FROM THE POWER SUPPLY DURING THE INSTALLATION / OR MAINTENANCE.

IMPORTANT

The fan should only be used in conjunction with fixed wiring.

The cross - sectional area of supply cord used should range from 1 -1.5mm2.

Cable entry can only be made from the rear of the fan.

Allow sufficient flexible mains cable when connecting fan, to ensure hinged door opens freely.

The fan is suitable for connection to 220-240V 50Hz supply.

The fan is a class ll double insulated product and MUST NOT be earthed.

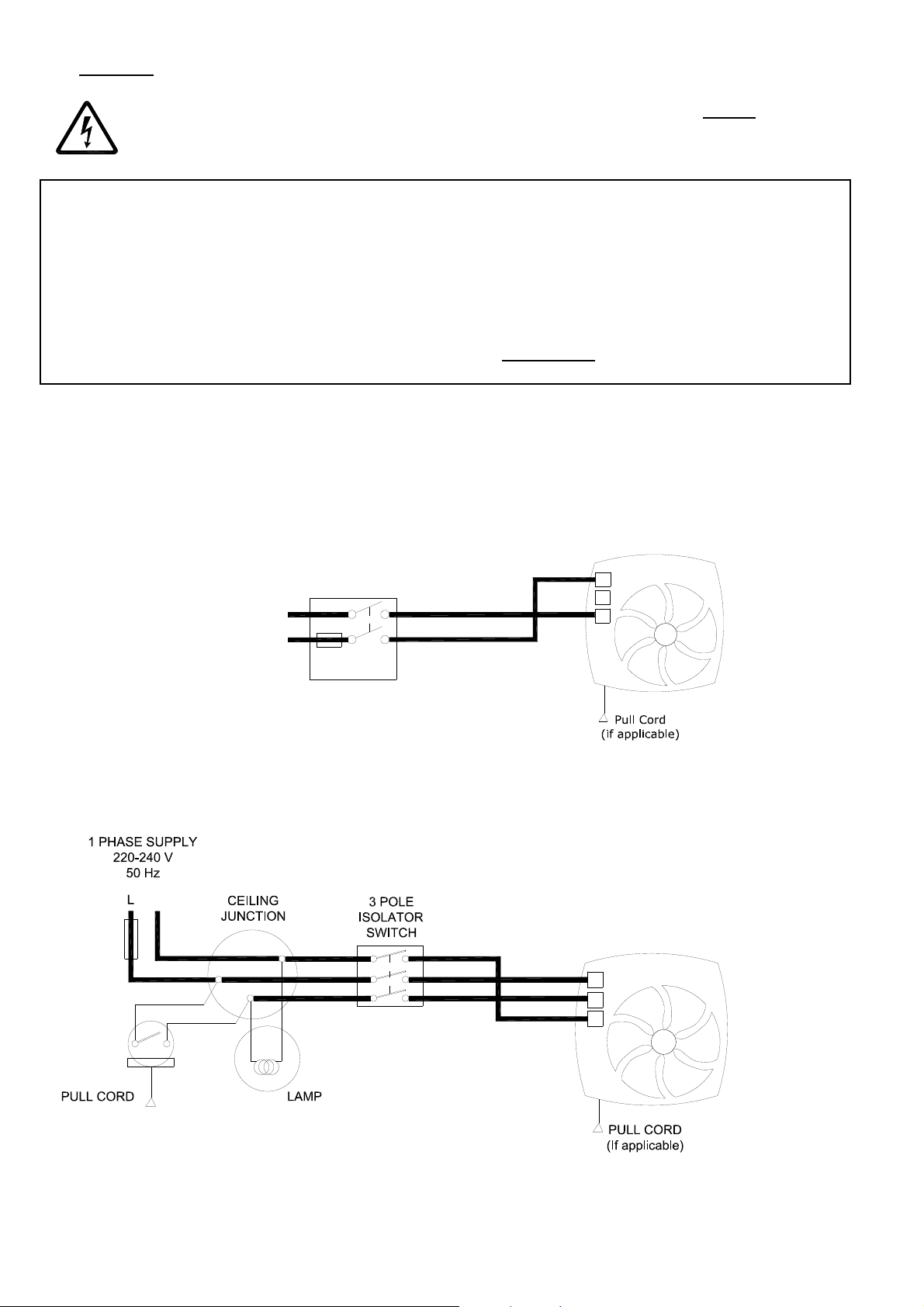

1. Select and follow the appropriate wiring diagram. (Fig. 18 or 19)

2. Check all connections have been made correctly and ensure all terminal connections and

cable clamps are securely fastened.

Fig 18

Continuous trickle (6l/s or 9l/s) with pull cord boost facility P,LP and HTP,LHTP models

Tempra

Switched

Fused Spur

1 Phase Supply

(220-240V 50Hz).

FUSE

Fig 19

Continuous trickle (6l/s or 9l/s) with switch live boost facility.

LTempra

C. SETUP

WARNING: THE FAN AND ANCILLARY CONTROL EQUIPMENT MUST BE ISOLATED

FROM THE POWER SUPPLY DURING THE INSTALLATION / OR MAINTENANCE.

Fig. 20

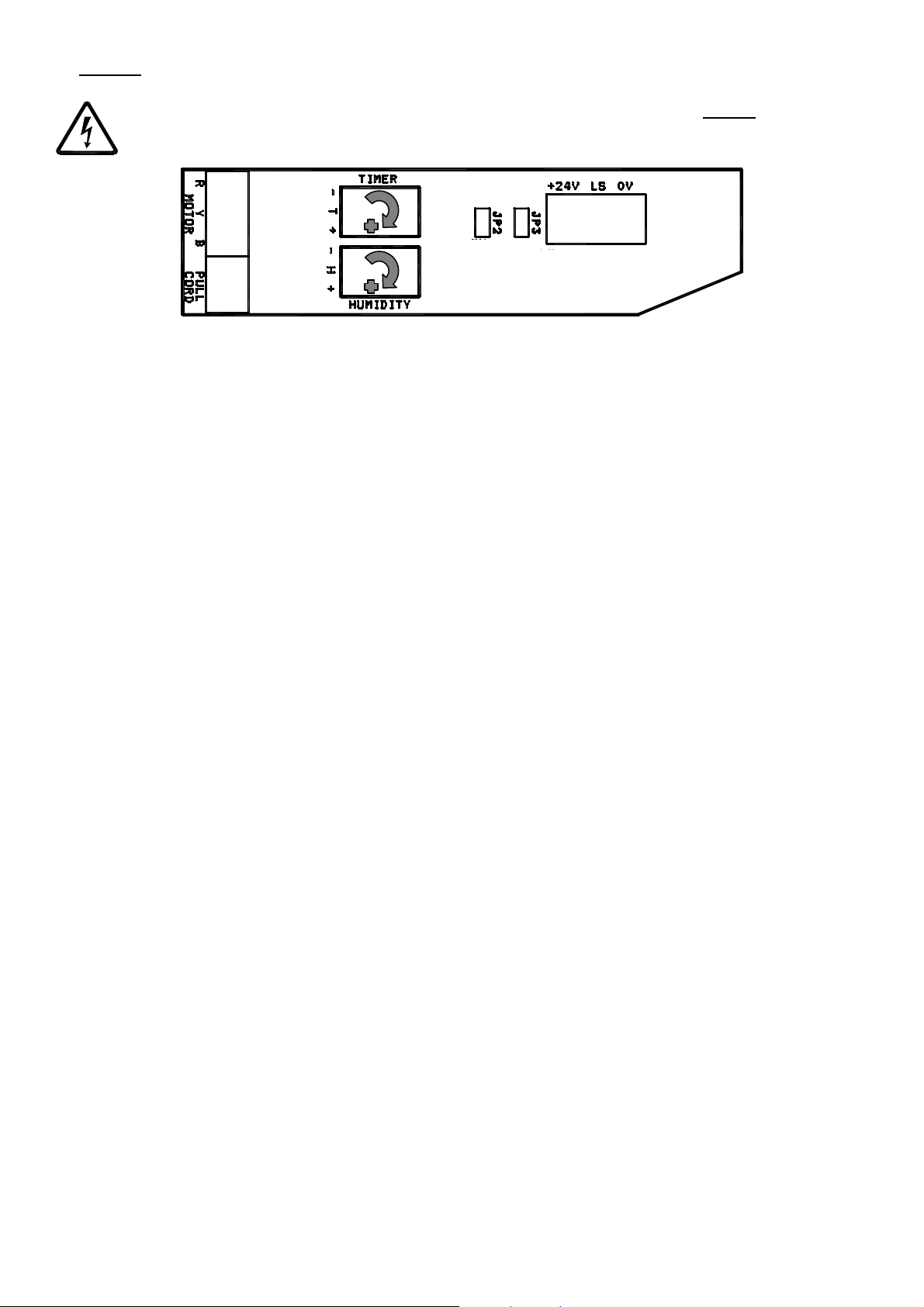

TRICKLE SPEED SELECTION (6l/s or 9l/s) – (Fig. 20)

In Trickle running mode the fan can extract at either 6l/s (22m3/h) or 9l/s (32m3/h) flow rate. The fan will boost

to 15l/s (54m3/h) when the LS / Humidity / Pull cord connection is switched.

Factory set at 6l/s (22m3/h).

Remove jumper connector (JP2) if 9l/s (32m3/h) extract flow rate is required.

PULLCORD OPERATION (P,LP AND HTP,LHTP MODELS)

THE PULLCORD ACTIVATES THE BOOST TO ON OR OFF.

TIMER ADJUSTMENT (T,LT AND HTP,LHTP MODELS) (FIG. 20)

THE TIMER IS ONLY ACTIVATED VIA THE LS CONNECTION.

1. The controller is factory set at 15 minutes approx. The overrun time period can be adjusted from

5-50 minutes by altering the adjuster on the control PCB.

2. To REDUCE the operating time, use a small screwdriver to turn the TIMER adjuster

ANTI-CLOCKWISE.

3. To INCREASE the operating time, use a small screwdriver to turn the TIMER adjuster

CLOCKWISE.

4. In addition A 3 minute delay on timer is included this can be de-activated by removing (JP3).

HUMIDITY SET- POINT ADJUSTMENT HTP MODEL (FIG. 20)

NOTE:- ON INSTALLATION IT IS POSSIBLE THAT THE HUMIDITY CONTROLLER WILL RUN CONTINUOUSLY UNTIL IT HAS ACCLIMATIZED

TO THE ENVIRONMENT.

1. The controller is factory set to switch on at about 70% RH. The humidity set point can be

adjusted from 60-90%RH by altering the adjuster on the control PCB.

2. To LOWER the set-point use a small screwdriver to turn the HUMIDITY adjuster.

ANTI-CLOCKWISE. This makes the controller MORE sensitive.

3. To RAISE the set-point use a small screwdriver to turn the HUMIDITY adjuster

CLOCKWISE. This makes the controller LESS sensitive.

FAST ON

TRICKLE DELAY

D. MAINTENANCE.

WARNING: THE FAN AND ANCILLARY CONTROL EQUIPMENT MUST BE

ISOLATED FROM THE POWER SUPPLY DURING MAINTENANCE.

The fan should be cleaned to ensure there is no build up of dirt or other deposits.

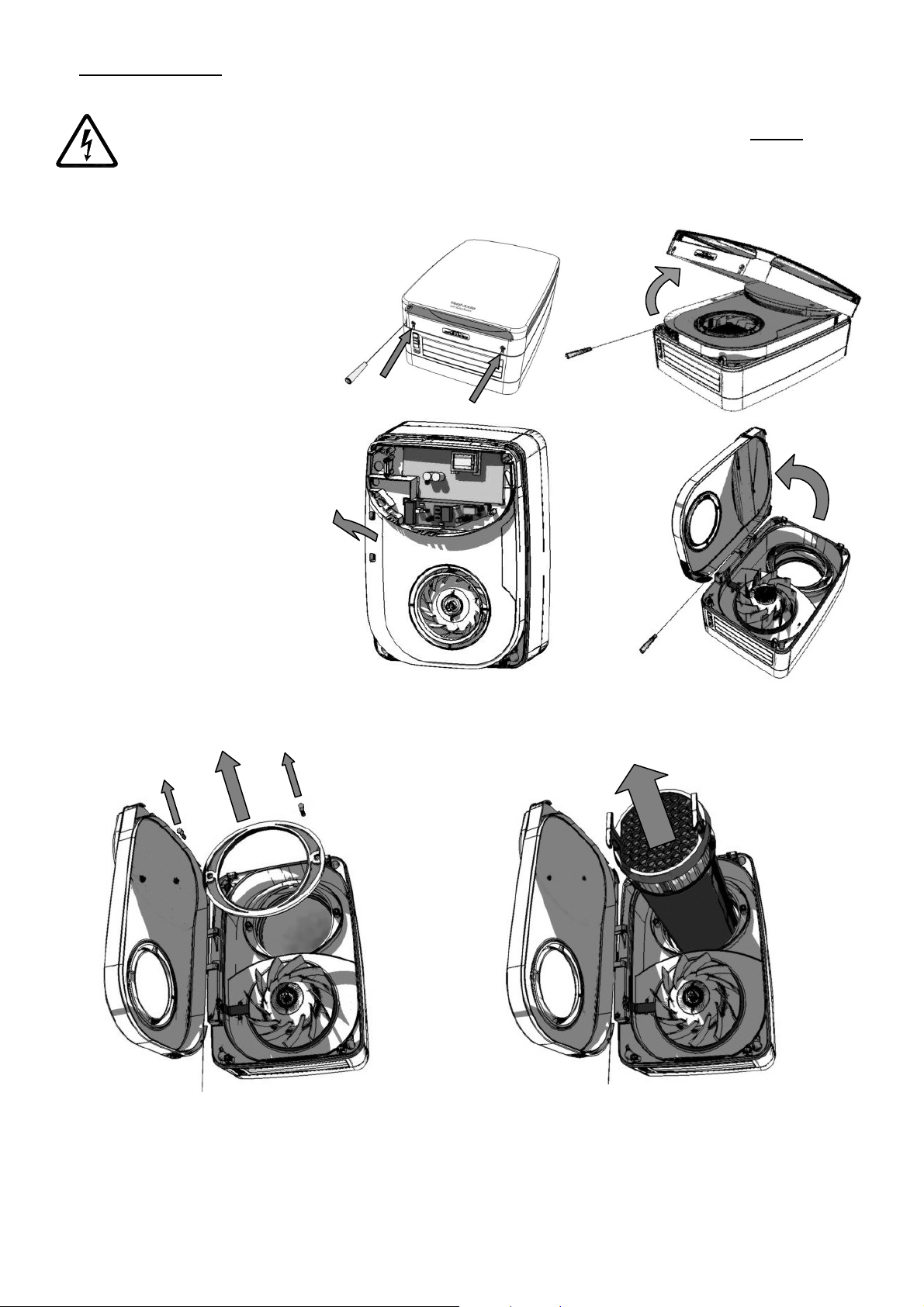

1. Remove 2 screws and lift off

Cover Plate assembly Fig 21 & 22.

3. Lift where indicated

to engage hinges Fig 23

and open Door Fig 24.

3. Remove Retaining Plate, Carefully slide out the Heat Exchanger Fig 25 & 26 and wash in warm

water using a mild detergent, dry thoroughly and re assemble in reverse order to above.

.21 Fi

.22

.24

.25 Fi

.26

.23

E. Spares

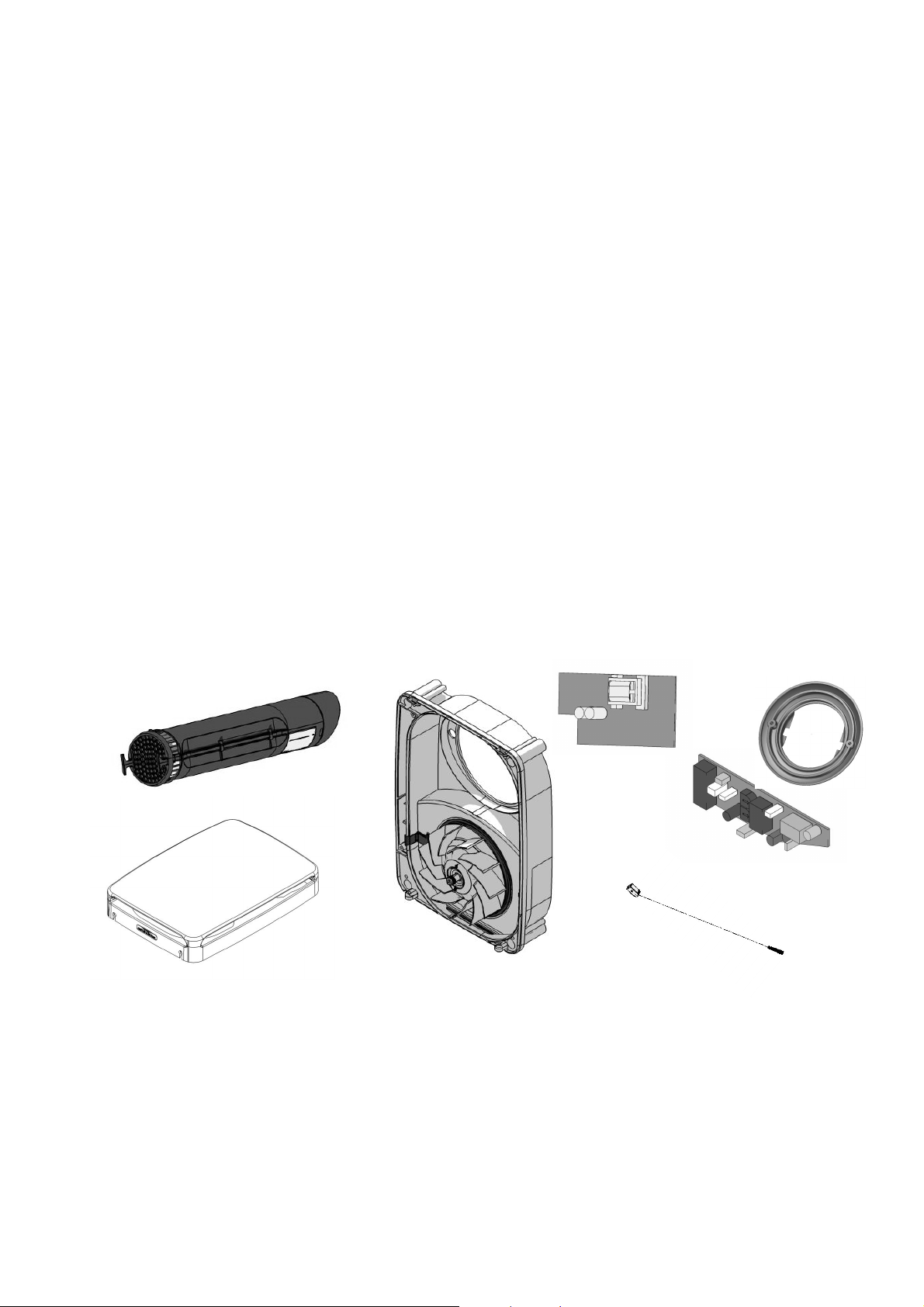

The following spares may be ordered from Vent-Axia

Item Part No Description Models used

1. 445885 Heat exchanger (Short) P,T & HTP

2. 445886 Motor chassis assembly P,LP,T,LT,HTP & LHTP

3. 445887 Cover assembly P,LP,T,LT,HTP & LHTP

4. 445888 Power supply PCB P,LP,T,LT,HTP & LHTP

5. 445889 Pullcord PCB P & LP (only)

6. 445890 Timer PCB T & LT (only)

7. 445891 HTP PCB HTP & LHTP(only)

8. 455630 Pullcord Assembly P,LP,HTP & LHTP

9. 447838 Wall cover bezel P,LP,T,LT,HTP & LHTP

10. 403878 Heat exchanger (Long) LP,LT & LHTP

1. & 10. 2.

5. (P,LP)

6. (T,LT)

7. (HTP,LHTP)

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Vent-Axia Fan

Vent-Axia

Vent-Axia 45 40 55B Istruzioni per il montaggio

Vent-Axia

Vent-Axia Centrif Duo Istruzioni per il montaggio

Vent-Axia

Vent-Axia Silhouette 100B Istruzioni per il montaggio

Vent-Axia

Vent-Axia Solo Plus P Istruzioni per il montaggio

Vent-Axia

Vent-Axia Silhouette SELV 12 Series Manuale utente

Vent-Axia

Vent-Axia Lo-Carbon iQ Manuale utente

Vent-Axia

Vent-Axia Azur 100B Istruzioni per il montaggio

Vent-Axia

Vent-Axia VA150A Istruzioni per il montaggio

Vent-Axia

Vent-Axia Lo-Carbon iQ Manuale utente

Vent-Axia

Vent-Axia VA140/150KP Istruzioni per il montaggio

Vent-Axia

Vent-Axia Slimpak EC Series Istruzioni per il montaggio

Vent-Axia

Vent-Axia MULTIVENT MV250H Istruzioni per il montaggio

Vent-Axia

Vent-Axia Lo-Carbon Scala Plus Series Istruzioni per il montaggio

Vent-Axia

Vent-Axia sentinel Kinetic MVHR series Guida

Vent-Axia

Vent-Axia VA100SVL12 Istruzioni per il montaggio

Vent-Axia

Vent-Axia Lo-Carbon Silhouette SELV Series Istruzioni per il montaggio

Vent-Axia

Vent-Axia HR100R Guida utente

Vent-Axia

Vent-Axia ATQ10012D Istruzioni per il montaggio

Vent-Axia

Vent-Axia GALAXY GDB Series Istruzioni per il montaggio

Vent-Axia

Vent-Axia PUREAIR SENSE Manuale di istruzioni e di sicurezza

Vent-Axia

Vent-Axia LoWatt Series Istruzioni per il montaggio

Vent-Axia

Vent-Axia MULTIVENT MVDCH Manuale di istruzioni

Vent-Axia

Vent-Axia GALAXY GDD Series Guida alla risoluzione dei problemi

Vent-Axia

Vent-Axia Lo-Carbon Sylph 100CV Istruzioni per il montaggio

Manuali Fan popolari di altre marche

ELTA FANS

ELTA FANS H03VV-F Manuale utente

Hunter

Hunter 20714 Manuale di istruzioni

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuale utente

Hunter

Hunter Caraway Manuale di istruzioni

Panasonic

Panasonic FV-15NLFS1 Manuale utente

Kompernass

Kompernass KH 1150 Manuale utente

VES

VES FALA100/12V/TR Manuale utente

Vertiv

Vertiv Liebert DCD Manuale utente

Westinghouse

Westinghouse GFP Series Manuale utente

Venmar

Venmar KUBIX HRV PLUS Series Manuale utente

Maico

Maico ECR 31 Manuale utente

Sonnenkonig

Sonnenkonig Dinky Manuale utente

S&P

S&P ECOWATT HXBR Manuale utente

Wider

Wider IMP03369BH Manuale utente

Panasonic

Panasonic F-60DHN Manuale utente

Hinkley

Hinkley HIGHLAND Manuale utente

Broan

Broan 766BN Manuale utente

Premium

Premium PFS16022 Istruzioni per il montaggio
