Vent-Axia LoWatt T Series Istruzioni operative

(Community Design Nos. 000112507-0001-0004 & 000112065-0001)

READ INSTRUCTIONS IN CONJUNCTION WITH ILLUSTRATIONS

READ AND SAVE THESE INSTRUCTIONS

230V/1/50Hz

Stock Ref. Nos.

WIRED WIRELESS

456166A (9" WL) 456170A (9" WL)

456167A (9" PL) 456171A (9" PL)

456174A (12" WL) 456178A (12" WL)

456175A (12" PL) 456179A (12" PL)

Installation, Set-up and Operating Instructions

T-SERIES

Wall & Panel Models

READ INSTRUCTIONS IN CONJUNCTION WITH THE ILLUSTRATIONS

IMPORTANT

1. THE FAN MUST BE SITED AND CONNECTED IN ACCORDANCE WITH CURRENT IEE REGULATIONS

(UK) OR THE APPROPRIATE STANDARDS IN YOUR COUNTRY.

2. THIS APPLIANCE IS NOT SUITABLE FOR INSTALLATION IN A SHOWER CUBICLE OR ENCLOSURE

AND MUST BE SITED AWAY FROM ANY SOURCE OF WATER SPRAY, AND MUST BE OUT OF

REACH OF A PERSON USING A FIXED BATH OR SHOWER.

3. SITE AWAY FROM DIRECT SOURCES OF HEAT IN EXCESS OF 50ºC OR LESS THAN –10ºC.

4. WHEN THE FAN IS INSTALLED IN A ROOM CONTAINING A FUEL BURNING APPLIANCE, THE

INSTALLER MUST ENSURE THAT AIR REPLACEMENT IS ADEQUATE FOR BOTH THE FAN AND THE

FUEL BURNING APPLIANCE.

5. IF THE FAN CAN BE USED TO SUPPLY AIR INTO THE ROOM THE INSTALLER MUST ENSURE THAT

THE FAN INTAKE IS LOCATED AT LEAST 600mm AWAY FROM ANY FLUE OUTLET.

6. IT IS RECOMMENDED THAT THE CONNECTION TO THE CONNECTOR SOCKET BE MADE WITH

FLEXIBLE CABLE FOR EASY MAINTENANCE.

7. WIRING SHOULD BE VIA A SWITCHED SPUR WITH A 3 AMP FUSE (UK ONLY).

8. DOUBLE POLE SWITCH WITH A MINIMUM CONTACT SEPARATION OF 3MM OR PLUG AND SOCKET

SHOULD BE LOCATED OUTSIDE THE ROOM CONTAINING A FIXED BATH OR SHOWER.

9. THIS APPLIANCE MUST BE EARTHED.

10. READ THESE INSTRUCTIONS FULLY BEFORE COMMENCING INSTALLATION.

11. THE APPLIANCE IS NOT INTENDED FOR USE BY YOUNG CHILDREN OR INFIRM PERSONS

WITHOUT SUPERVISION.

12. YOUNG CHILDREN SHOULD BE SUPERVISED TO ENSURE THAT THEY DO NOT PLAY WITH THE

APPLIANCE.

INDOOR FRAME

SHUTTERS

INDOOR GRILLE

HOUSING

CONNECTOR SOCKET

SHUTTER

CTUATOR

IMPELLER

BASE

MOTOR BODY

HOUSING

POWER SUPPLY/

RECEIVER UNIT

SPEED CONTROLLER

CONNECTION SOCKET

(WIRED VERSION ONLY)

WALL LINERS

OUTDOOR GRILLE

OUTDOOR FRAME

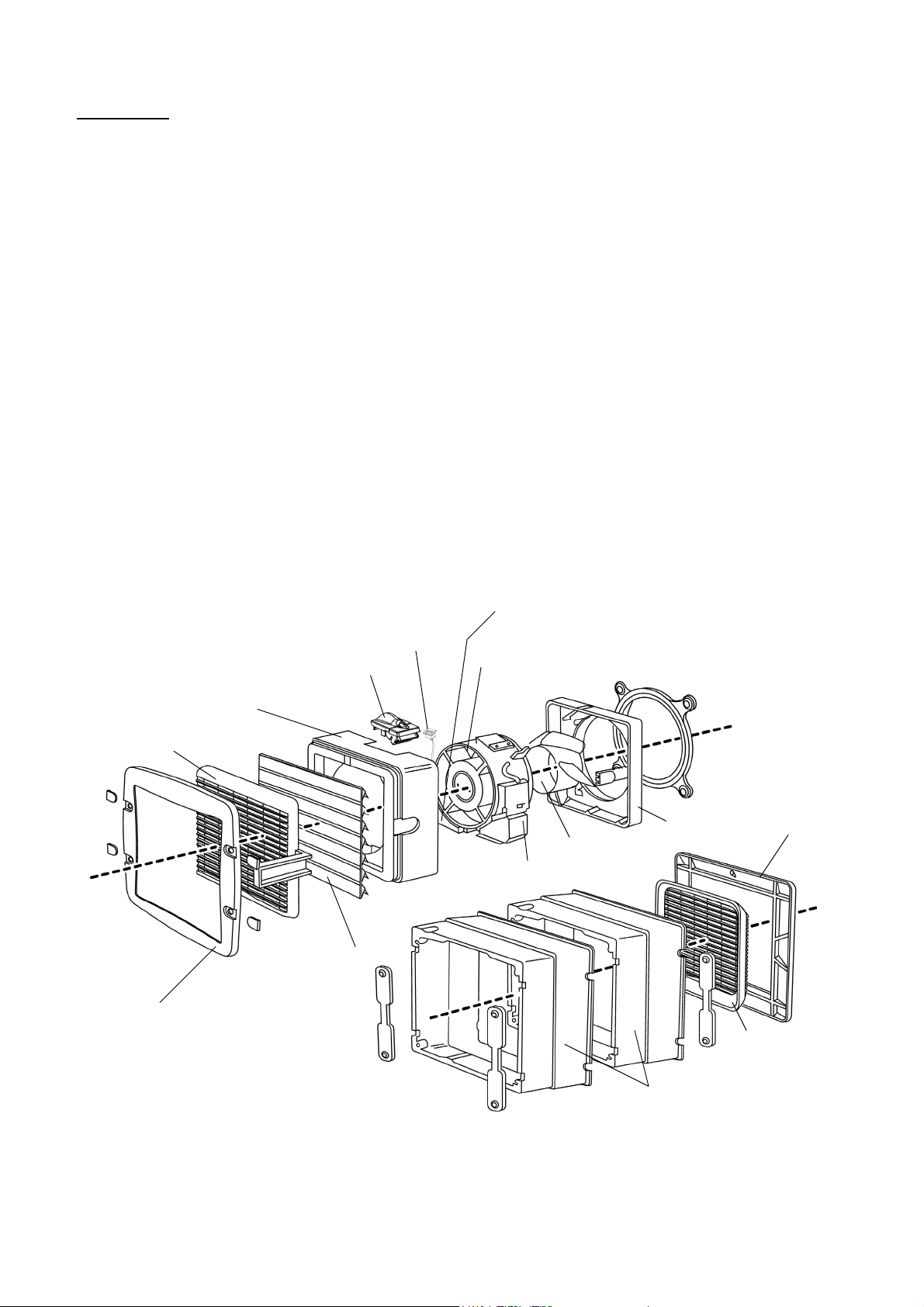

Fig. 1.

FAN DIMENSIONS

Before commencing work, study the tables shown in figures C1/ C2 – WALL INSTALLATION and

C3/ 4 – PANEL INSTALLATION to ensure fan will fit in position proposed.

• The Wall Fan is suitable for installation in walls between 240mm to 315mm thick, using the two wall

liner sections provided. Further wall liner sections are available as an accessory in 150mm modules.

WALL LINER INSTALLATION

Notes to be read in conjunction with the corresponding diagram number.

D1 (From Outside) - Position the liner with external flange flush with the outside face of the wall, with the two

stiffening ribs at the bottom.

D2 Cut out the cable/conduit entry on the remaining liner, feed the supply and controller cable (wired version

only) through the liner cut out, ensuring sufficient cable is available to allow for the removal of the fan.

(From Inside) - Position the liner with the internal flange flush with the inside face of the wall, with the two

stiffening ribs at the bottom.

D3 Cement the liners into position. Do not distort the sides of the liners.

D4 Align the frame and outdoor grille. Lock the grille into position. Remove the fixing screw covers from the

grille frame.

Note: The frame recesses are marked A & B and correspond with the covers.

Fix the grille to the outside liner with the louvres slanting downwards using the fixing screws. Replace the

screw covers. * Note: The A’s and B’s must match.

SIZE 9 12

A 391mm 470mm

B 388mm 467mm

C 365mm 442mm

D 375mm 450mm

E 143mm 182mm

SIZE 9 12

A 391mm 470mm

B 180mm 180mm

C 129mm 152mm

D 38mm 41mm

E 302mm 378mm

F 304mm 381mm

G 255mm 334mm

H 247mm 325mm

J 345mm 422mm

K 391mm 470mm

C1 C2

C3 C2

(mm) (mm)

PREPARATION FOR INSTALLATION

Note: A controller connection socket is only supplied with the wired version of the fan.

E1 Place fan unit, impeller downwards, on a flat surface. Unscrew the grille-securing screw located at the top

of the grille.

E2 Remove grille. Partially unscrew the two safety catch screws on the face of the housing

E3 Depress the side catches.

E4 Lift off the housing.

E5 Lift the black rubber gasket on the Power Supply/Receiver Unit and switch the three-position switch to the

required running option, then replace the gasket seal.

E6 If a Lowatt Speed Controller is being used refer to the relevant Lowatt Speed Controller Fitting and Wiring

Instructions.

E7 Refit the housing ensuring that no internal wires are trapped between the housing and base.

E8 Engage the two side catches. Tighten the two side catch screws.

E9 Replace the grille with the louvres slanting upwards and the Vent-Axia logo at the bottom, then secure with

the retaining screw.

E10i/ ii Position the fan on the inside frame ensuring that the socket connector cutout is aligned. Loosen the

clamping screws and attach the clamps. Ensure that the tongues under the clamp heads engage in the slot

of the housing and tighten the clamping screws.

WIRING THE CONNECTOR SOCKET

WARNING THIS APPLIANCE MUST BE EARTHED

F1 Remove the top cover from the connector socket by undoing the 2 retaining screws.

F2 Lift up lever and slide out top cover.

F3 Loosen cable clamp screws and pass the cable through the clamp. (It may be necessary when using some

3-core cables to reverse the cable clamp to ensure that the cable is securely retained. For ease of wiring,

the terminal block may be removed from the connector housing.

F4 Tighten cable clamp screws evenly, ensuring a secure grip on the outer sheath of the cable.

F5 Slide the top cover back on and secure with the 2 retaining screws.

FOR SPEED CONTROL

REFER TO THE RELEVANT FITTING

AND WIRING INSTRUCTIONS

SUPPLIED WITH THE WIRED/

WIRELESS CONTROLLER.

E8 E9

E10i

E10ii

Fig 2 Using an On/Off switch: Connect the mains supply to the fan connector socket.

Fig 3 Auxiliary sensor switching: Connect the mains supply to the fan connector socket.

F6a Place the fan partially into the wall liner and replace the connector socket by pushing positively into

position. Finally, press the black locking peg down flush with the top of the connector socket. Plug the

controller wire into the controller socket (wired version only).

F6b Remove the fixing screw covers. Fix the fan on to the inside liner with the louvres slanting upwards using

the fixing screws. Replace the screw covers.

Note: The A’s and B’s must match.

Fig. 2

F3 F4

WIRED VERSION ONLY

ISOLATE FROM THE POWER SUPPLY PRIOR TO ANY MAINTENANCE AND CLEANING

USER INSTRUCTIONS

• At intervals appropriate to the installation, inspect and clean the fan to ensure there is no build up of grease

or dirt on the impeller or the motor.

• The motor is fitted with sealed for life bearings and does not require lubrication.

DISMANTLING

G1 Remove the four fixing screw covers on the indoor grille frame and unscrew. Note: In the frame recesses

are marked A & B and these correspond with the covers.

G2 Partially remove the fan and remove the connector socket by lifting up the lever gently with a finger. Unplug

the controller cable (wired version only) and remove fan.

G3 Remove the outdoor grille from inside ready for cleaning.

G4a/b Loosen the clamping screws and remove the clamps. Remove the fan from the frame.

G5 Remove the grille.

G6 Partially unscrew the two safety catch screws on the face housing. Depress the two side catches.

G7 Lift off the housing.

G8 Release the Power Supply/Receiver Unit catch located at the bottom left of the motor body housing

assembly

G9 Lift the Power Supply/Receiver Unit until the second catch engages. Slide the controller connection socket

from the housing (wired version only).

G10 Release the motor body housing assembly locking catch located to the left of the socket connector cutout

and rotate the motor body housing assembly anti-clockwise until the bayonet catches disengage.

G11 Withdraw the motor body housing assembly.

G12 Remove the impeller with a sharp pull, away from the motor.

CLEANING

IMPORTANT: Keep all electrical components away from water.

G13 Wipe the wall liner with a damp cloth.

G14 Wipe the motor housing assembly with a damp cloth.

G15 Wash all non-electrical components in hot water and detergent.

Fig. 3

F6a

WIRED VERSION ONLY

F6b

REASSEMBLY - ALLOW THE COMPONENTS TO DRY BEFORE REASSEMBLY

G16 Replace the outdoor grille with the louvres slanting downwards and the Vent-Axia logo at the top grille.

G17 Align the impeller with the locating pins on the motor shaft. With a sharp push, replace the impeller back

onto the motor shaft. Ensure that the impeller snaps into position.

G18 Refit the motor body housing assembly and turn clockwise until the locking catch is engaged. Take care

not to trap the speed controller connection socket cable (wired version only).

G19 Release the Power Supply/ Receiver Unit locking catch and lower until the catch engages in the lower

position. Fix the controller connection socket into position (wired version only).

G20 Refit the housing ensuring that no internal wires are trapped between the housing and base.

G21 Engage the two side catches. Tighten the two side catch screws.

G22 Replace the indoor grille and secure with the retaining screw at the top of the grille.

G23 Position the fan on the indoor frame ensuring the socket connector cutout is aligned. Attach the clamps.

Ensure that the tongues under the clamp heads engage in the slot of the housing.

G24 (Tighten the clamping screws) G24.

G25 Place the fan partially into the wall liner and replace the connector socket by pushing positively into

position. Plug the controller wire into the controller (wired version only). Fix the fan onto the inside liner with

the louvres slanting upwards using the fixing screws and replace the screw covers. Note: The A’s and B’s

must match.

RECONNECT THE MAINS SUPPLY AND SWITCH THE UNIT ON.

G4a

G1 G2

G3 G4b

G6 G7

G8 G10

G25

G11

G12

G13

G14

G15

G16

G17

G18

G19 G20

G21 G22

G23

G24

Head Office: Fleming Way, Crawley, West Sussex RH10 9YX

Tel: 01293 526062 Fax: 01293 551188

Internet site at: www.vent-axia.com

VENT-AXIA SALES CENTRES

ENGLAND & WALES NATIONAL CALL CENTRE SCOTLAND

Newton Road, Crawley

West Sussex Telephone: 0141 429 1166

RH10 9JA Fax: 01293 565169

Telephone: 01293 530202 REPUBLIC OF IRELAND

Fax: 01293 565169 Vent-Axia Ventilation Ltd.

921 Western Road Industrial Estate

NORTHERN IRELAND Naas Road, Dublin 12.

Telephone: 02890 402220 Telephone: (01) 450 4133

Fax: 01293 565169 Fax: (01) 450 4570

Did you find these instructions easy to use?

We value your comments, contact us via :

Email: [email protected]

The Vent-Axia Guarantee

Applicable only to products installed and used in the United Kingdom. For details of the

Guarantee outside of the United Kingdom contact your local supplier.

Vent-Axia guarantees this product for two years from the date of purchase against faulty

material or workmanship. In the event of any part being found to be defective, the product will

be repaired, or at the Company’s discretion the product will be replaced without charge,

provided that the product:

1). Has been installed and used in accordance with the instruction given with each unit.

2). The electricity supply complies with the rating label.

3). Has not been misused, neglected or damaged.

4). Has not been modified or repaired by any person not authorised to do so by Vent-

Axia.

IF CLAIMING UNDER THE TERMS OF THE GUARANTEE

Please return the complete product, carriage paid to your original supplier by post or in

person. Please ensure that it is adequately packed and accompanied by a letter clearly

marked ‘Guarantee Claim’ stating the nature of the fault and providing proof of the date and

source of purchase.

As part of the policy of continuous product improvement Vent-Axia reserve the right to alter specifications

without notice

428209C 0205

Altri manuali per LoWatt T Series

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Vent-Axia Fan

Vent-Axia

Vent-Axia MX 10/10 Manuale utente

Vent-Axia

Vent-Axia GALAXY GDD Series Guida alla risoluzione dei problemi

Vent-Axia

Vent-Axia Response Series Istruzioni per il montaggio

Vent-Axia

Vent-Axia Lo-Carbon iQ Manuale utente

Vent-Axia

Vent-Axia Centrif Duo Istruzioni per il montaggio

Vent-Axia

Vent-Axia VSC Series Istruzioni per il montaggio

Vent-Axia

Vent-Axia SVARA Manuale utente

Vent-Axia

Vent-Axia Svensa Manuale utente

Vent-Axia

Vent-Axia SVARA Manuale utente

Vent-Axia

Vent-Axia Lo-Carbon Minivent B Istruzioni per il montaggio

Vent-Axia

Vent-Axia Lo-Carbon SOLO Plus SELV Istruzioni per il montaggio

Vent-Axia

Vent-Axia SOLO Plus Istruzioni per il montaggio

Vent-Axia

Vent-Axia ATQ10012D Istruzioni per il montaggio

Vent-Axia

Vent-Axia Silhouette 100B Istruzioni per il montaggio

Vent-Axia

Vent-Axia Centrif Duo Series Istruzioni per il montaggio

Vent-Axia

Vent-Axia T-Series Istruzioni di montaggio

Vent-Axia

Vent-Axia 405215 Advance S Guida

Vent-Axia

Vent-Axia HR400 Guida utente

Vent-Axia

Vent-Axia 45 40 55B Istruzioni per il montaggio

Vent-Axia

Vent-Axia HR100W Guida utente

Vent-Axia

Vent-Axia VA 150 A Istruzioni per il montaggio

Vent-Axia

Vent-Axia Lo-Carbon VA100 SELV Series Istruzioni per il montaggio

Vent-Axia

Vent-Axia QPTW Series Istruzioni per il montaggio

Vent-Axia

Vent-Axia Lo-Carbon Svelte Series Istruzioni per il montaggio

Manuali Fan popolari di altre marche

ELTA FANS

ELTA FANS H03VV-F Manuale utente

Hunter

Hunter 20714 Manuale di istruzioni

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuale utente

Hunter

Hunter Caraway Manuale di istruzioni

Panasonic

Panasonic FV-15NLFS1 Manuale utente

Kompernass

Kompernass KH 1150 Manuale utente

VES

VES FALA100/12V/TR Manuale utente

Vertiv

Vertiv Liebert DCD Manuale utente

Westinghouse

Westinghouse GFP Series Manuale utente

Venmar

Venmar KUBIX HRV PLUS Series Manuale utente

Maico

Maico ECR 31 Manuale utente

Sonnenkonig

Sonnenkonig Dinky Manuale utente

S&P

S&P ECOWATT HXBR Manuale utente

Wider

Wider IMP03369BH Manuale utente

Panasonic

Panasonic F-60DHN Manuale utente

Hinkley

Hinkley HIGHLAND Manuale utente

Broan

Broan 766BN Manuale utente

Premium

Premium PFS16022 Istruzioni per il montaggio
