INSTRUCTION MANUAL Seite 1

INSTRUCTION MANUAL

MODEL NO: VENTON SV-130 AC220-240V 50Hz-60Hz 50W

BEFORE OPERATING THIS PRODUCT, READ, UNDERSTAND, AND FOLLOW THESE INSTRUCTIONS.

BEFORE FIRST USE

Read and follow all the instructions in this “Use And Care” manual even if you feel you are familiar with the products, and find a place to keep

it handy for future reference.

Your attention is drawn particularly to the sections concerning “IMPORTANT SAFEGUARDS”

IMPORTANT SAFEGUARDS

PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THE PRODUCT.

When using the electrical appliance, the following basic safety precautions should always be

followed.

WARNING- to reduce the risk of fire, electric shock or injury to persons or property:

 Always operate the product from a power source of the same voltage, frequency and rating as

indicated on the product identification plate.

 Do not use this fan with any solid state speed control device to reduce the risk of electric

shock.

 The appliance is not intended for use by persons (including children) with reduced physical,

sensory, mental capabilities or lack of experience and knowledge, unless they have been

given supervision or instructions concerning use of the appliance by a person responsible by

their safety.

 Children should be supervised to ensure that they do not play with the appliance.

 Do not leave the fan running unattended.

 Do not operate the product if it is dropped, damaged or showing signs of product malfunction.

Do not operate the product with a damaged plug or cord. Return the complete product to the

place of purchase for inspection, refund or replacement.

 If it is not working properly, contact a qualified electrician or service centre for examination and

repair, never try to dismantle it by yourself.

 Do not immerse or expose the product or flexible cord to rain, moisture or any other liquid.

 This product should not be used in the immediate vicinity of water, such as bathtubs,

washbowls, swimming pools etc. where the likelihood of immersion or splashing could occur.

 Never install the unit where it could be subject to:

 Heat sources such as radiators, heat registers, stoves or other products that produce heat

 Direct sunlight

 Mechanical vibration or shock

 Excessive dust

 Lack of ventilation, such as a cabinet or bookcase

 Uneven surface

 Switch off and unplug from outlet when the product is not in use, before assembling or

disassembling parts and before cleaning. Fully assemble the fan before switching on.

 Avoid contact with moving parts. Do not insert any body parts (e.g. finger) or objects through

the grill when the fan is operating.

 Do not cover the grille, or operate in close proximity to curtains, etc.

 This product is intended for normal domestic/household use only.

 Always disconnect the fan when moving it from one location to another.

 The use of attachments or accessories not recommended or sold by the product distributor may cause personal or property hazards or

injuries.

 Be sure fan is on a stable surface when operating to avoid overturning.

 Do not immerse in water.

 If the supply cord is damaged, it must be replaced by the manufacturer or its service agent, or similarly qualified person, in order to avoid a

hazard. I

READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

www.venton.de

INSTRUCTION MANUAL Seite 2

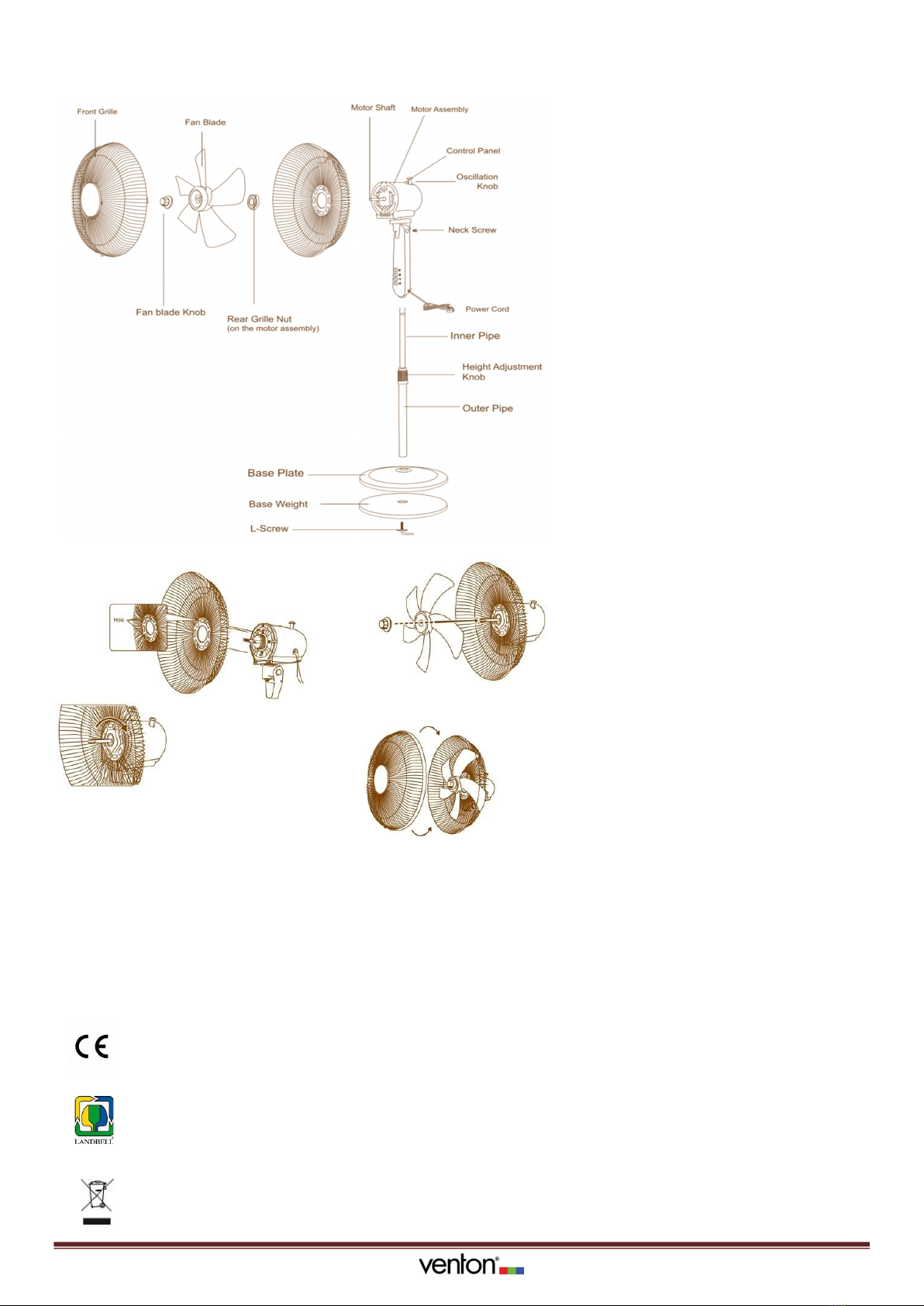

FEATURES OF THIS PRODUCT

PRODUCT ASSEMBLY

ASSEMBLE OF BASE

 Set the column in place on the base and secure it

using the "L" screw with washer while also

engaging the counterweight.

 Make sure column and base and counterweight are

firmly coupled.

 Loosen the Height Adjustment Collar on top of the

Inner Tube. Pull the Inner Tube out from the Outer

Tube to adjust the tube to the desired height and

tighten the collar.

 If necessary, slightly loosen the Set Screw by turning

it anticlockwise. Slide the Switch Box down over the

Inner Tube and tighten the Set Screw. Make sure the

Set Screw is tightly secured.

ASSEMBLE OF BLADE AND GRILLE

 Unscr0ew the plastic mounting nut from the front of

the motor housing by rotating it anticlockwise.

 Position the rear grille against the front of the motor

housing with the handle uppermost, ensuing that the

locating pegs on the motor housing are engaged

correctly in the holes of the rear grille.

 Tighten the Rear Grille Mounting Nut clockwise. DO

NOT OVERTIGHTEN IT.

 Push the fan blade onto the motor shaft, locating the

slot at the back of the blade on the drive pin that

passes through the motor shaft.

 Tighten the blade cap by turning it anticlockwise.

 Position the front grille against the rear grille so that

the holes in the rims that accept the small nut and bolt

are in line. Insert the bolt through the holes and screw

on the nut. Do not fully tighten at the stage.

 Push the grille retaining clips into position ensuring

that they engage correctly on the rim of the grille.

 Fully tighten the small nut and bolt that passes

through the rim of the grille.

OPERATION OF THE PRODUCT

Control Panel ，SPEED SETTING

Button 0-1-2-3

1. To change speed, press button “1” – “2” – “3”.

Speed will

change with each button stroke.

2. For oscillation, press the oscillation knob which

located in the motor housing, the fan starts oscillating.

To stop oscillation, pull up the oscillation knob.

3. To switch the fan off, press the button “0”.

4. Always unplug the appliance when it is not used.

CLEANING

 Switch off and unplug from the power supply before assembling or disassembling and cleaning.

 Keep the air vents at the rear of the main body free from dust or fluff– use a vacuum cleaner to remove these when necessary. Do not probe

any opening to remove fluff.

 Fan component parts should be cleaned using mild soap and a damp cloth or sponge. Do not allow any water or other liquid to enter the

motor housing.

 Thoroughly remove soap film with clean water.

CAUTION: Do not use harsh detergents, chemical cleaners or solvents as they may damage the surface finish of the fan

components.

The CE marking confirms the conformity and compliance with all relevant EU directives and regulations (EMV / EMC, ErP, EuP, RoHS, REACH, BauPVO), in particular the

requirements according to the EU product standards, low voltage directive and safety requirements according to EN 50083 -2, 2014/30/EU (EMV), 2014/35/EU (LVD), 2011/65/EU

(RoHS), good class All test reports and certificates are available.

Notice of participation in the Landbell AG exemption system

"With regard to the sales packaging filled by us for the first time and given to private end consumers, our company has joined the nationwide take-back system of Landbell AG,

Mainz, (customer number: 4104375) to ensure the fulfillment of our legal obligations in accordance with Section 6 of the Packaging Ordinance You can find information on the

website of Landbell AG. "

WEEE Waste of Electrical and Electronic Equipment - Disposal of old devices Electronic devices do not belong in the household waste, but must - in accordance with the directive

DIN EN 50419 (corresponds to Article 11 (2) of the directive 2002/96 / EG - 2012/19 / EU of the European Parliament and of the Council of January 27, 2003 on electrical and

electronic equipment - WEEE Reg.No. 76454326. Please return this device for disposal at the end of its use for disposal

This product complies with the European Directive 2012/19 / EU on waste electrical and electronic equipment (WEEE), which defines the legal framework applicable in the

European Union for the disposal and recycling of electrical and electronic equipment. Do not throw this product in the trash. Take it to the nearest electrical and electronic waste

treatment facility.
