Vertex Standard VX-2100 Series Manuale utente

VX-2100

VX-2200

Operating Manual

Vertex Standard LMR, Inc.

VX-2100

VX-2200

Congratulations!

You now have at your ngertips a valuable communications tool: a Vertex Standard two-way

radio! Rugged, reliable and easy to use, your Vertex Standard radio will keep you in constant

touch with your colleagues for years to come, with negligible maintenance downtime.

Please take a few minutes to read this manual carefully. The information presented here will

allow you to derive maximum performance from your radio, in case questions arise later on.

We’re glad you joined the Vertex Standard team. Call on us anytime, because communica-

tions is our business. Let us help you get your message across.

Safety/Warning information

WARNING - DO NOT operate the VX-2100/-2200 radio when any person(s) (by-

standers) outside the vehicle are within the distances shown in the chart at the bot-

tom of this section.

Safety Training information:

Antennas used for this transmitter must not exceed an antenna gain of 0 dBd. The

radio must be used in vehicle-mount congurations with a maximum operating

duty factor not exceeding 50 %, in typical Push-to-Talk congurations.

This radio is restricted to occupational use, work related operations only where the

radio operator must have the knowledge to control the exposure conditions of its

passengers and bystanders by maintaining the minimum separation distance shown

below.

Antenna Installation:

For rear deck trunk installation, the antenna must be located at least the following

distance away from rear-seat passengers.

For roof top installations, the antenna must be placed in the center of the roof.

Unsafe Radiation Distance

VHF Model UHF Model

25 W 3.3 Feet (1 m) 2.6 Feet (0.8 m)

45/50 W 4.6 Feet (1.4 m) 3.9 Feet (1.2 m)

Warning!

The 70.7 V RF voltage (@45/50 W/50 W) or 50.0 V RF voltage (@25 W/50 W) is

applied to the antenna terminal of the transceiver while transmitting.

Do not touch the TX RF section absolutely while transmitting.

Caution: The radio can become hot.

 Do not operate this radio continuously in transmission mode for longer than 7

minutes. Ensure enough standby/reception time for cool-down between trans-

mission periods. Be sure that TOT timer is correctly installed and properly

working. Avoid touching the rear bottom of the transceiver’s body while trans-

mission.

 Do not install this radio in a conned space such as a book case or similar unit.

 Provide a few centimeters of space on either side of the radio.

VX-2100/-2200 SerieS Operating Manual 1

intrOductiOn

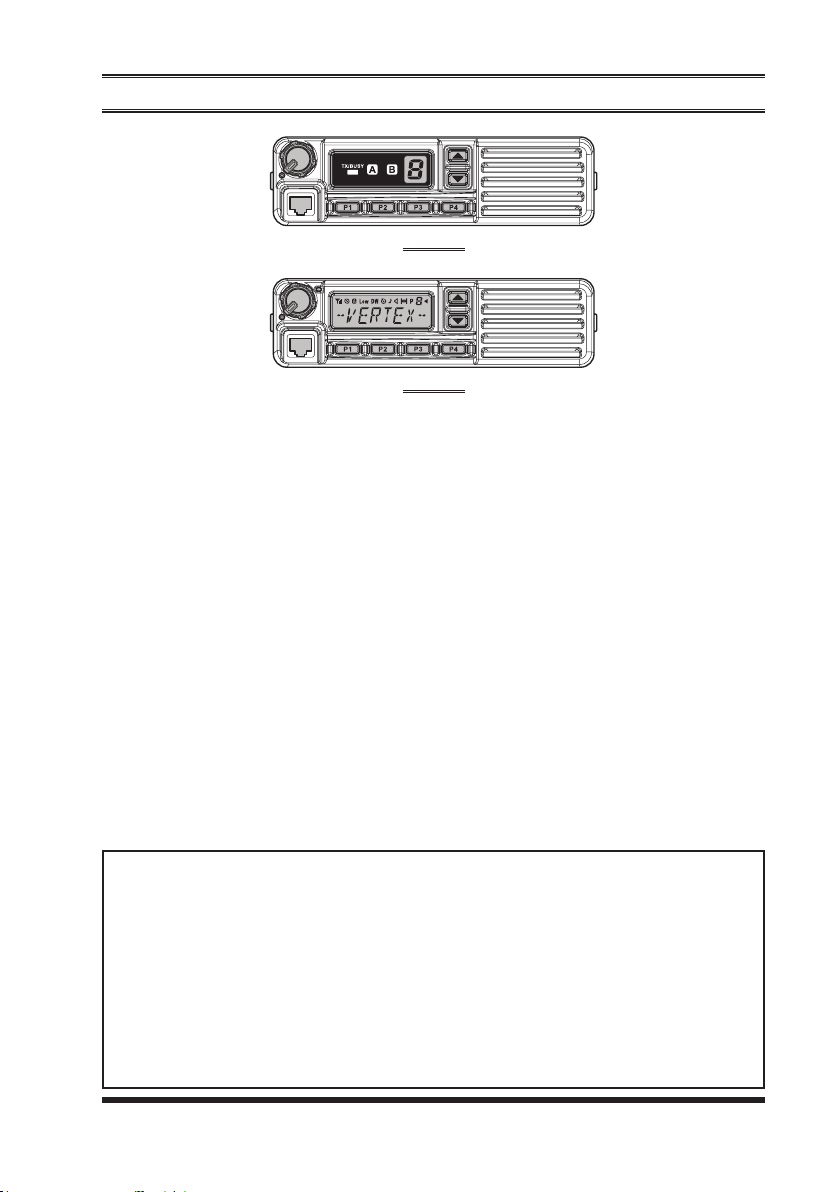

The VX-2100/-2200 Series are full-featured FM transceivers designed for exible

mobile and base station business communications in the VHF or UHF Land Mo-

bile bands. These transceiver are designed for reliable business communications in

a wide variety of applications with a wide range of operating capability provided

by their leading-edge design.

The VX-2100 allows up to 8-channel memories. The VX-2200 allows up to

128-channel memories which can each be programmed with an 8-character chan-

nel name. Important channel frequency data is stored in EEPROM and ash mem-

ory on the CPU, and is easily programmable by dealers using a personal computer

and the Vertex Standard FIF-12 Programming Interface and CE82 Software.

The pages which follow will detail the many advanced features provided on the

VX-2100/-2200 Series transceiver. After reading this manual, you may wish to

consult with your Network Administrator regarding precise details of the congu-

ration of this equipment for use in your application.

for north american USerS regarding 406 mhz gUard Band

The U.S. Coast Guard and National Oceanographic and Atmospheric Ad-

ministration have requested the cooperation of the U.S. Federal Communi-

cations Commission in preserving the integrity of the protected frequency

range 406.0 to 406.1 MHz, which is reserved for use by distress beacons.

Do not attempt to program this apparatus, under any circumstances, for op-

eration in the frequency range 406.0 - 406.1 MHz if the apparatus is to be

used in or near North America.

VX-2100

VX-2200

VX-2100/-2200 SerieS Operating Manual

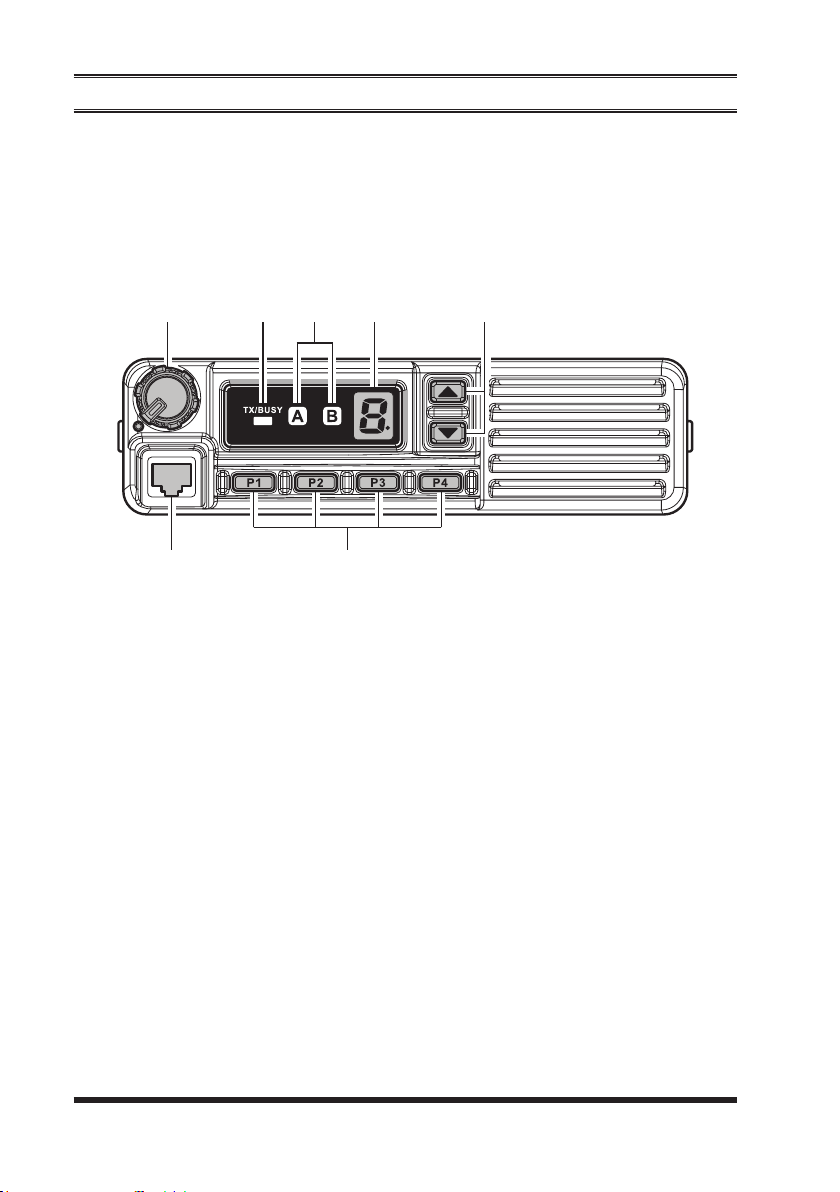

cOntrOls & cOnnectOrs (VX-2100)

Front Panel

Important! - All buttons located on the Front Panel are Programmable Function

(PF) Buttons, congured according to your network requirements and programmed

by your Vertex Standard dealer. The instructions below describe a typically-cong-

ured radio.

 VOL/PWR Knob

Turn this control clockwise to turn the radio on and to increase the volume.

Turn it counterclockwise into the click-stop to turn the radio off.

 Microphone Jack

Connect the microphone plug to this jack.

 [P1] - [P4] Buttons (Programmable Function Buttons)

These buttons can be set up for special applications, such as High/Low power

selection, Monitor, Talk-Around, etc., as determined by your network require-

ments and programmed by your Vertex Standard dealer.

 []/[] Buttons (Programmable Function Buttons)

In the factory default, pressing either button changes the current channel (and

displayed channel number or name). Holding in either button for more than 1.5

second causes the radio to begin stepping (repeatedly) upward or downward

through the channels.







 

VX-2100/-2200 SerieS Operating Manual

cOntrOls & cOnnectOrs (VX-2100)

 Channel Number Indicator

Indicates the operating channel.

Blinks the squelch setting level (0-9, A, b, and C) while adjusting the squelch

threshold level. Appear the decimal point “.” when selecting the Scan enabel

channel.

 Transceiver Status Indicator

The “A” and “B” indicators show current transceiver status, which can be cus-

tomized via programming by your Vertex Standard dealer to meet your com-

munications/network requirements. The possible “A” and “B” displays are

explained below.

 TX/BUSY Indicator

Indicates transceiver’s Transmit/Receive Status

Steady Red: Transmitting in progress

Steady Green: Signaling Off

Blinking Green: Busy Channel/Squelch Off

transceiVer status indicatOr

Status indicatOr descriptiOn

A B

MONI This indicator is Illuminated constantly when CTCSS- or

DCS-controlled squelch is disabled. The indicator blinks

while the audio is passing normally.

LOW Illuminates the indicator when the radio’s transmitter is

set to the “Low Power” mode.

TA (Talk Around)Illuminates the indicator when the “Talk Around” function

is activated.

Encryption

(Requires Optional Unit)

Illuminates the indicator when the “Voice Scrambler”

function is enabled.

Emergency Illuminates the indicator when the “Emergency” feature is

activated.

Horn Alert Illuminates the indicator when the “Horn Alert” feature is

activated.

Public Address Illuminates the indicator when the radio is turned to a PA

amplier.

Key Lock Illuminates the indicator when the front panel’s keys are

locked.

EXT ACC Illuminates the indicator when the output port on the

Accessory Connector is turned to “ON.”

RFC Illuminates the indicator when the radio is the “Ready

for Communication” condition while operating with the

2-Tone or 5-Tone signaling.

VX-2100/-2200 SerieS Operating Manual

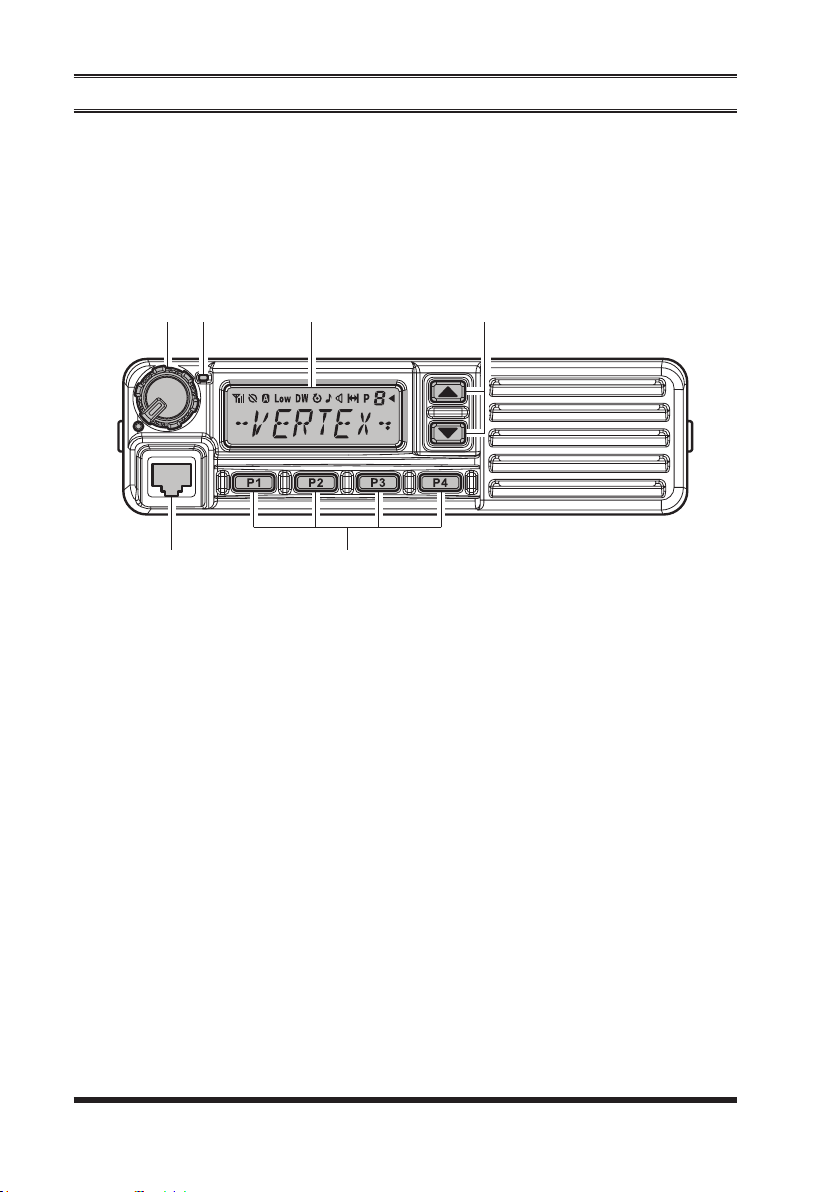

cOntrOls & cOnnectOrs (VX-2200)

Front Panel

Important! - All buttons located on the Front Panel are Programmable Function

(PF) Buttons, congured according to your network requirements and programmed

by your Vertex Standard dealer. The instructions below describe a typically-cong-

ured radio.

 VOL/PWR Knob

Turn this control clockwise to turn the radio on and to increase the volume.

Turn it counterclockwise into the click-stop to turn the radio off.

 Microphone Jack

Connect the microphone plug to this jack.

 [P1] - [P4] Buttons (Programmable Function Buttons)

These buttons can be set up for special applications, such as High/Low power

selection, Monitor, Talk-Around, etc., as determined by your network require-

ments and programmed by your Vertex Standard dealer.

 []/[] Buttons (Programmable Function Buttons)

In the factory default, pressing either button changes the current channel (and

displayed channel number or name). Holding in either button for more than 1.5

second causes the radio to begin stepping (repeatedly) upward or downward

through the channels.







 

VX-2100/-2200 SerieS Operating Manual

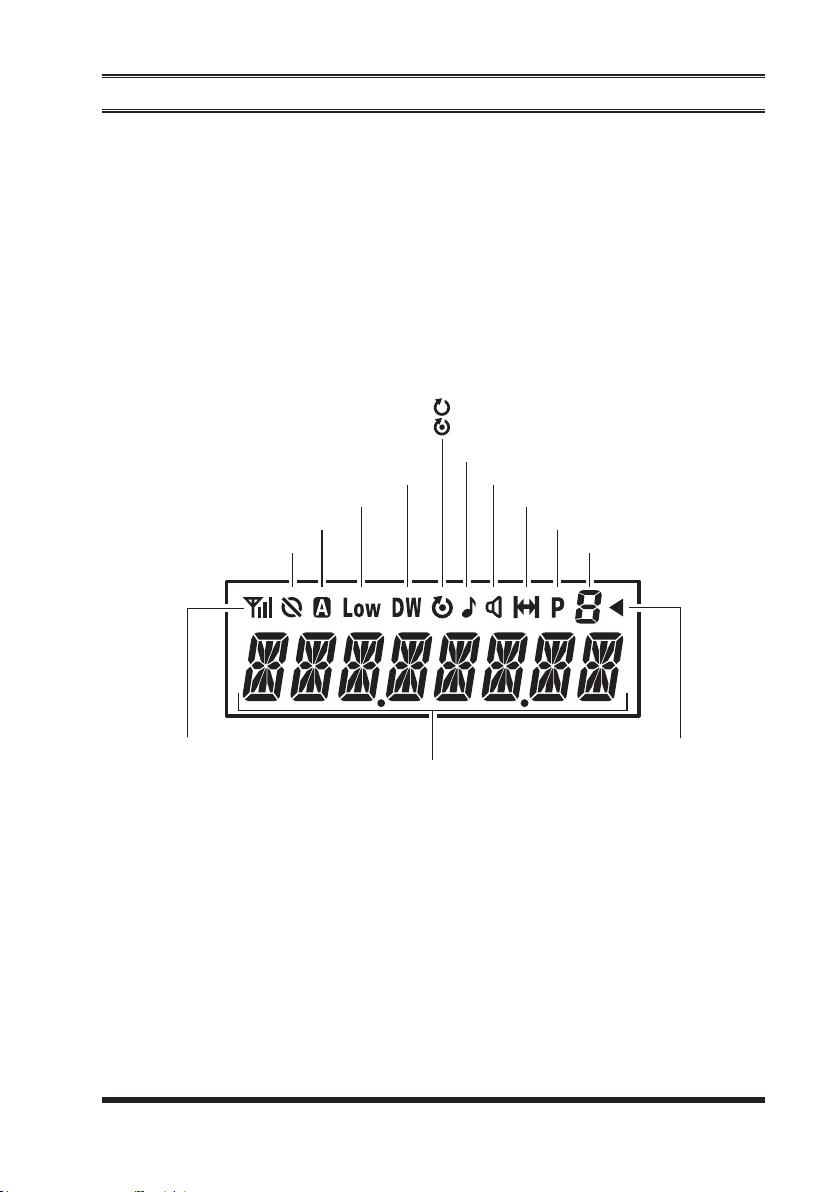

 LCD (Liquid Crystal Display)

The display includes a 8-character alpha-numeric section showing Channel

name tags/identity information and error messages, and an upper icon row dis-

playing feature status (see below).

 TX/BUSY Indicator

Indicates transceiver’s Transmit/Receive Status

Steady Red: Transmitting in progress

Steady Green: Signaling Off

Blinking Green: Busy Channel/Squelch Off

cOntrOls & cOnnectOrs (VX-2200)

“Call” indicator

“Dual Watch” is activated

Low Transmt Power Mode “ON”

: “Scan” is activated

: “Priority Scan” is activated

“Talk-Around” is enabled

Receiver Monitor

“Group Scan” is enabled

“AUX A” Port is activated

8 Character Alpha-numeric Display

“Encryption” is enabled Channel Group Number

Priority Channel

RSSI Indicator (four steps)

VX-2100/-2200 SerieS Operating Manual

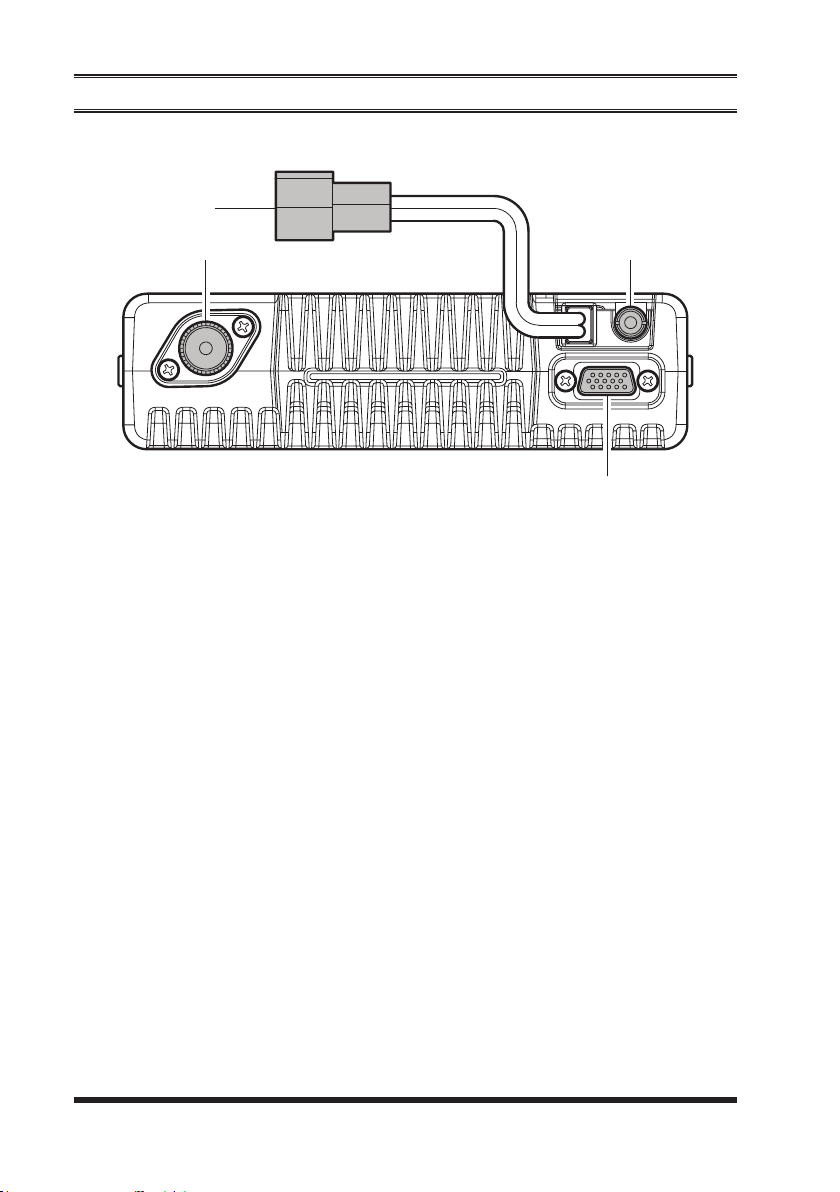

Rear Panel

cOntrOls & cOnnectOrs

 13.6V DC Cable Pigtail with Connector

The supplied DC power cable must be connected to this 2-pin connector. Use

only the supplied fused cable, extended if necessary, for power connection.

 Antenna Socket

The 50-Ohm coaxial feedline to the antenna must be connected here, using a

type-M (PL-259) plug.

 D-Sub 15-Pin Accessory Connector

External TX audio line input, PTT (Push To Talk), Squelch, and external RX

audio line output signals may be obtained from this connector for use with ac-

cessories such as data transmission/reception modems, and external Channel

control input etc.

 External Speaker Jack

An external loudspeaker may be connected to this 2-contact, 3.5-mm mini-

phone jack.

Caution: Do not connect either wire of this line to ground, and be certain that

the speaker has adequate capability to handle the audio output (12 W) from

the radio.









VX-2100/-2200 SerieS Operating Manual

Basic OperatiOn Of the transceiVer

Important! - Before turning on the radio the rst time, conrm that the power con-

nections have been made correctly and that a proper antenna is connected to the

antenna jack.

Switching Power ON/OFF

 Turn the VOL/PWR knob turn on the radio. The display will become illumi-

nated.

 Press the []/[] button to choose the desired operating channel. A channel

name will appear on the display in the VX-2200.

 In the VX-2200, if you want to select an operating channel from a different

group, press the PF (Programmable Function) button which is programmed

to the Group Up/Down feature to select the group you want before selecting

the operating channel. See page 8 for more information on the Programmable

Function keys.

Setting the Volume

 Turn the VOL/PWR knob clockwise to increase the volume, and counter-

clockwise to decrease it.

Transmitting

 To transmit, monitor the channel and make sure it is clear.

 Press the PF button which is programmed to the Monitor feature to listen for

channel activity.

 When receiving a call, transmit only after the incoming call ends. The radio

cannot receive a call and transmit simultaneously.

 Press the PTT switch.

 If the channel is clear, the TX/BUSY indicator will glow red. The radio is

now transmitting. While holding in the PTT switch, speak across the face of

the microphone in a clear and normal voice. For best transmission, hold the

microphone about 1-1/2 to 2 inches away from your mouth. Release the PTT

switch to receive.

 If the Busy Channel Lockout feature has been programmed on a channel, the

radio will not transmit when a carrier is present. Instead, the radio will gener-

ate a short beep three times and the VX-2200 indicates “* ERROR *” on the

display. Release the PTT switch and wait for the channel to be clear of activity.

 If CTCSS or Digital Coded Squelch (DCS) Lockout has been programmed on

a channel, the radio can transmit only when there is no carrier being received or

when the carrier being received includes the correct CTCSS tone or DCS code.

VX-2100/-2200 SerieS Operating Manual

Automatic Time-Out Timer

If the selected channel has been programmed for automatic time-out, you must

limit the length of each transmission. While transmitting, a beep will sound 10 sec-

onds before time-out. Another beep will sound just before the deadline; the red “TX”

indicator will disappear and transmission will cease soon thereafter. To resume

transmitting, you must release the PTT switch and wait for the “penalty timer” to

expire (if you press the PTT switch before this timer expires, the timer restarts,

and you will have to wait another “penalty” period).

Key Lock

In order to prevent accidental frequency change or inadvertent transmission, vari-

ous aspects of the transceiver’s keys may be locked out.

To activate the Locking feature, press and hold in the [P1] key while turning the

radio on. To disable the Locking feature, repeat this power-on procedure.

adVanced OperatiOn

Programmable Function (PF) Buttons

The VX-2100/-2200 Series includes six Programmable Function (PF) Buttons.

The PF button functions can be customized, via programming by your Vertex Stan-

dard dealer, to meet your communications/network requirements. Some features

may require the purchase and installation of optional internal accessories. The pos-

sible PF button programming features are illustrated below, and these functions

are explained on the pages to follow. For further details, contact your Vertex Stan-

dard dealer. For future reference, check the box next to the function that has been

assigned to each PF button on your particular radio, and keep it handy.

Basic OperatiOn Of the transceiVer

Altri manuali per VX-2100 Series

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Vertex Standard Ricetrasmettitore

Vertex Standard

Vertex Standard VX-450 series Manuale utente

Vertex Standard

Vertex Standard VX-2100 Series Manuale utente

Vertex Standard

Vertex Standard HX300 Manuale utente

Vertex Standard

Vertex Standard VX-351PMR446 Manuale utente

Vertex Standard

Vertex Standard FT-857 Manuale utente

Vertex Standard

Vertex Standard VX-160U Manuale utente

Vertex Standard

Vertex Standard FT-200 Manuale utente

Vertex Standard

Vertex Standard VX-900 Series Manuale utente

Vertex Standard

Vertex Standard GX1500S Manuale utente

Vertex Standard

Vertex Standard VX-5500L Manuale utente

Vertex Standard

Vertex Standard VXA-710 SPIRIT Manuale utente

Vertex Standard

Vertex Standard GX1255S Manuale utente

Vertex Standard

Vertex Standard VX-800 Manuale utente

Vertex Standard

Vertex Standard GX1100S Manuale utente

Vertex Standard

Vertex Standard VX-6R/E Manuale

Vertex Standard

Vertex Standard VX-2200 Series Manuale utente

Vertex Standard

Vertex Standard GX2000 Manuale utente

Vertex Standard

Vertex Standard VX-450 series Manuale utente

Vertex Standard

Vertex Standard VXA-150 Manuale utente

Vertex Standard

Vertex Standard HX100 Manuale utente

Vertex Standard

Vertex Standard FT-7800R Manuale utente

Vertex Standard

Vertex Standard VX-160U Manuale utente

Vertex Standard

Vertex Standard VX-2100 Series Manuale utente

Vertex Standard

Vertex Standard VX-7R Manuale utente

Manuali Ricetrasmettitore popolari di altre marche

Yaesu

Yaesu FT-7B Manuale utente

Kenwood

Kenwood ProTalk TK-3201 Manuale utente

Texas Instruments

Texas Instruments TLK10232 Manuale utente

Mizuho

Mizuho MX-2 Guida del prodotto

Kenwood

Kenwood TK-3180 Manuale operativo e di manutenzione

Blitz

Blitz MJ-398U Manuale utente

Utilicom

Utilicom LongRanger 2050 Manuale utente

Standart

Standart HX290UKA Manuale utente

Altronix

Altronix Pace1PTM Manuale utente

Kirisun

Kirisun PT2208 Manuale utente

ELECRAFT

ELECRAFT KX2 Manuale utente

Zodiac

Zodiac K3 Manuale utente

Assa Abloy

Assa Abloy SecureComm HKC GSM-WIFI U Manuale utente

Kenwood

Kenwood TK-2217 Manuale utente

Siemens

Siemens PSO 4000 Manuale utente

Kenwood

Kenwood TS-590SG Manuale utente

Midland

Midland G8E-BT Manuale

ComNav

ComNav Mariner X2 Manuale utente
