OPERATING MANUAL
PROGRAMMABLE FUNCTIONS/FEATURES
IP57 Submersible (1 m/30 min.)
Programmable Function Keys
2-tone Encode/Decode
5-tone Encode/Decode
MDC-1200®Encode/Decode
Scan
Group Scan
Dual Watch
FM-Scan (Follow-Me Scan)
TA Scan
Encryption
Clear Voice
VOX
REC & PLAY (Requires DVS-8 or DVS-9)
AF Min Volume
Talk Around
Man Down (Requires DVS-9)
Emergency
Lone Worker
Direct Channel Entry1
Code Up/Down1
Code Set1
Speed Dial1
DTMF Code Set2
ID Check1
TX Save Disable
ARTS (Auto Range Transpond System)
1: VX-454 & VX-459 ONLY
2: VX-459 ONLY
Introduction .................................................................... 1
Warning! FCC RF Exposure Requirements ................ 2
Controls & Connectors (VX-459) ................................. 4
Controls & Connectors (VX-454) ................................. 5
Controls & Connectors (VX-451) ................................. 6
LCD Icons & Indicators (VX-454 & VX-459) ............. 7
Before You Begin ............................................................ 8
Battery Pack Installation and Removal ....................... 8
Low Battery Indication ............................................... 8
Battery Charging ......................................................... 8
Belt Clip Installation and Removal ........................... 10
Operation ...................................................................... 12
Preliminary Steps ...................................................... 12
Operation Quick Start ...............................................12
Advanced Operation .................................................... 15
Programmable Key Functions .................................. 15
Description of Operating Functions ......................... 18
LOCK ............................................................................ 30
Man Down Function ..................................................... 31
ARTS (Auto Range Transpond System) .................... 31
User Set Mode ............................................................... 32
Optional Accessories..................................................... 33
Warranty Policy ............................................................ 34
CONTENTS
CONGRATULATIONS!
You now have at your fingertips a valuable communications tool-a Vertex Standard two-way radio! Rug-
ged, reliable and easy to use, your Vertex Standard radio will keep you in constant touch with your
colleagues for years to come, with negligible maintenance down-time. Please take a few minutes to read
this manual carefully. The information presented here will allow you to derive maximum performance
from your radio, in case questions arise later on.
We’re glad you joined the Vertex Standard team. Call on us anytime, because communications is our
business. Let us help you get your message across.
Notice!: There are no owner-serviceable parts inside the radio. All service jobs must be referred to an
authorized Vertex Standard Service Representative. Consult your Authorized Vertex Standard Dealer for
installation of optional accessories.
VX-450 SERIES OPERATING MANUAL
1
IMPORTANT NOTICE FOR NORTH AMERICAN USERS REGARDING 406 MHZGUARD BAND
The U.S. Coast Guard and National Oceanographic and Atmospheric Administration have requested the
cooperation of the U.S. Federal Communications Commission in preserving the integrity of the protected
frequency range 406.0 to 406.1 MHz, which is reserved for use by distress beacons. Do not attempt to
program this apparatus, under any circumstances, for operation in the frequency range 406.0 - 406.1
MHz if the apparatus is to be used in or near North America.
Warning - Frequency band 406 - 406.1 MHz is reserved for use ONLY as a distress beacon by the
US Coast Guard and NOAA. Under no circumstance should this frequency band be part of the
preprogrammed operating frequencies of this radio.
INTRODUCTION
The VX-450 Series are full-featured hand-held FM transceivers designed for business communications in the
VHF or UHF Land Mobile bands. These transceivers are designed for reliable business communications in a
wide variety of applications with a wide range of operating capability provided by their leading-edge design.
The VX-451 allows to 32-channel capacity and 2 groups. The VX-454/-459 allows to 512-channel capacity
and 32 groups which can each be programmed with an 8-character Alpha-Numeric Tag.
Important channel frequency data is stored in EEPROM and flash memory on the CPU, and is easily program-
mable by Vertex Standard dealers using a personal computer and the Vertex Standard Programming Cable and
CE115 Software.
The pages which follow will detail the many advanced features provided in the VX-450 Series transceiver.
After reading this manual, you may wish to consult with your Network Administrator regarding precise details
of the configuration of this equipment for use in your application.
VX-450 SERIES OPERATING MANUAL
2
WARNING! FCC RF EXPOSURE REQUIREMENTS
This Radio has been tested and complies with the Federal Communications Commission (FCC) RF exposure
limits for Occupational Use/Controlled exposure environment. In addition, it complies with the following Stan-
dards and Guidelines:
FCC 96-326, Guidelines for Evaluating the Environmental Effects of Radio-Frequency Radiation.
FCC OET Bulletin 65 Edition 97-01 (2001) Supplement C, Evaluating Compliance with FCC Guidelines for
Human Exposure to Radio Frequency Electromagnetic Fields.
ANSI/IEEE C95.1-1992, IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Fre-
quency Electromagnetic Fields, 3 kHz to 300 GHz.
ANSI/IEEE C95.3-1992, IEEE Recommended Practice for the Measurement of Potentially Hazardous Elec-
tromagnetic Fields - RF and Microwave.
WARNING:
This radio generates RF electromagnetic energy during transmit mode. This radio is designed for and
classified as Occupational Use Only, meaning it must be used only during the course of employment by
individuals aware of the hazards, and the ways to minimize such hazards. This radio is not intended for
use by the General Population in an uncontrolled environment.
CAUTION:
To ensure that your expose to RF electromagnetic energy is within the FCC allowable limits for occupa-
tional use, always adhere to the following guidelines:
This radio is NOT approved for use by the general population in an uncontrolled exposure environ-
ment. This radio is restricted to occupational use, work related operations only where the radio opera-
tor must have the knowledge to control his or her RF exposure conditions.
When transmitting, hold the radio in a vertical position with its microphone 2 inches (5 cm) away from
your mouth and keep the antenna at least 2 inches (5 cm) away from your head and body.
VX-450 SERIES OPERATING MANUAL
3
The radio must be used with a maximum operating duty cycle not exceeding 50%, in typical Push-to-
Talk configurations.
DO NOT transmit for more than 50% of total radio use time (50% duty cycle). Transmitting more
than 50% of the time can cause FCC RF exposure compliance requirements to be exceeded.
The radio is transmitting when the red LED on the top of the radio is illuminated. You can cause the
radio to transmit by pressing the P-T-T button.
SAR compliance for body-worn use was only demonstrated for the specific belt-clip (CLIP-20). Other
body-worn accessories or configurations may NOT comply with the FCC RF exposure requirements
and should be avoided.
DO NOT transmit when the radio is used in Body Worn configuration with the following accessory:
belt-clip.
It must be used ONLY for (1) there is 4 cm distance from the body during transmitting, (2) monitoring
purposes, using the speaker only and (3) for carrying purposes.
Always use Vertex Standard authorized accessories.
The information listed above provides the user with the information needed to make him or her aware
of RF exposure, and what to do to assure that this radio operates with the FCC RF exposure limits of
this radio.
Electromagnetic Interference/Compatibility
During transmissions, this radio generates RF energy that can possibly cause interference with other
devices or systems. To avoid such interference, turn off the radio in areas where signs are posted to do so.
Do not operate the transmitter in areas that are sensitive to electromagnetic radiation such as hospi-
tals, health care facilities, aircraft, and blasting sites.
WARNING! FCC RF EXPOSURE REQUIREMENTS
VX-450 SERIES OPERATING MANUAL
4

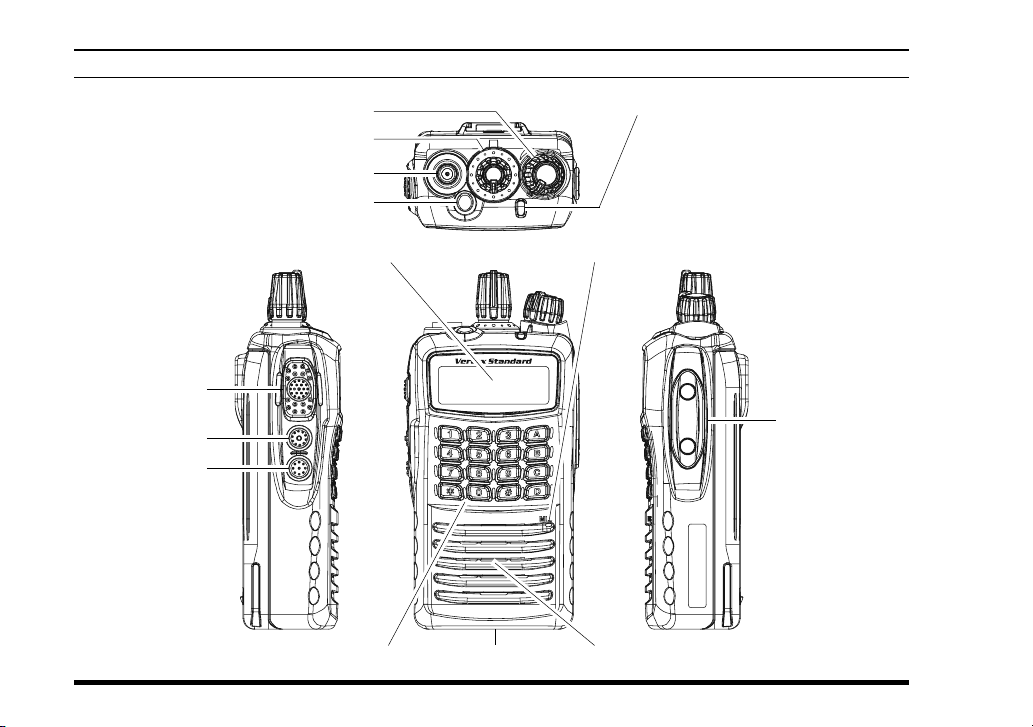

CONTROLS & CONNECTORS (VX-459)
PTT Switch
SIDE-1 Button
SIDE-2 Button
MIC/SP Jack
(External MIC/SP)
Battery Pack Latch16-Button DTMF Keypad
LCD (Liquid Crystal Display)Microphone
LED Indicator (Programmable)
Default settings are:
Steady Red:
Transmitting in progress
Blinking Green:
Busy Channel
Steady Green:
Tone Squelch in defeated condition
Speaker
Antenna Jack
TOP SEL Key
CH (Channel)Selector
VOL/PWR Knob
VX-450 SERIES OPERATING MANUAL
5

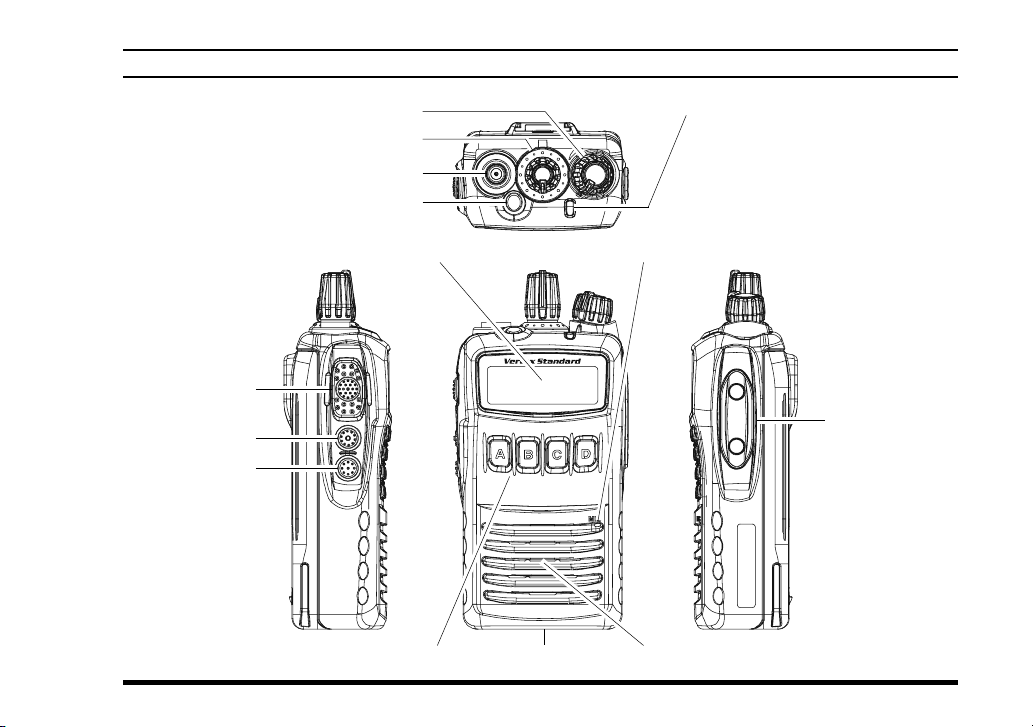

CONTROLS & CONNECTORS (VX-454)
Battery Pack Latch4-Button Programmable Key
LCD (Liquid Crystal Display)Microphone
LED Indicator (Programmable)
Default settings are:
Steady Red:
Transmitting in progress
Blinking Green:
Busy Channel
Steady Green:
Tone Squelch in defeated condition
Speaker
Antenna Jack
TOP SEL Key
CH (Channel)Selector
VOL/PWR Knob
PTT Switch
SIDE-1 Button
SIDE-2 Button
MIC/SP Jack
(External MIC/SP)
VX-450 SERIES OPERATING MANUAL
6

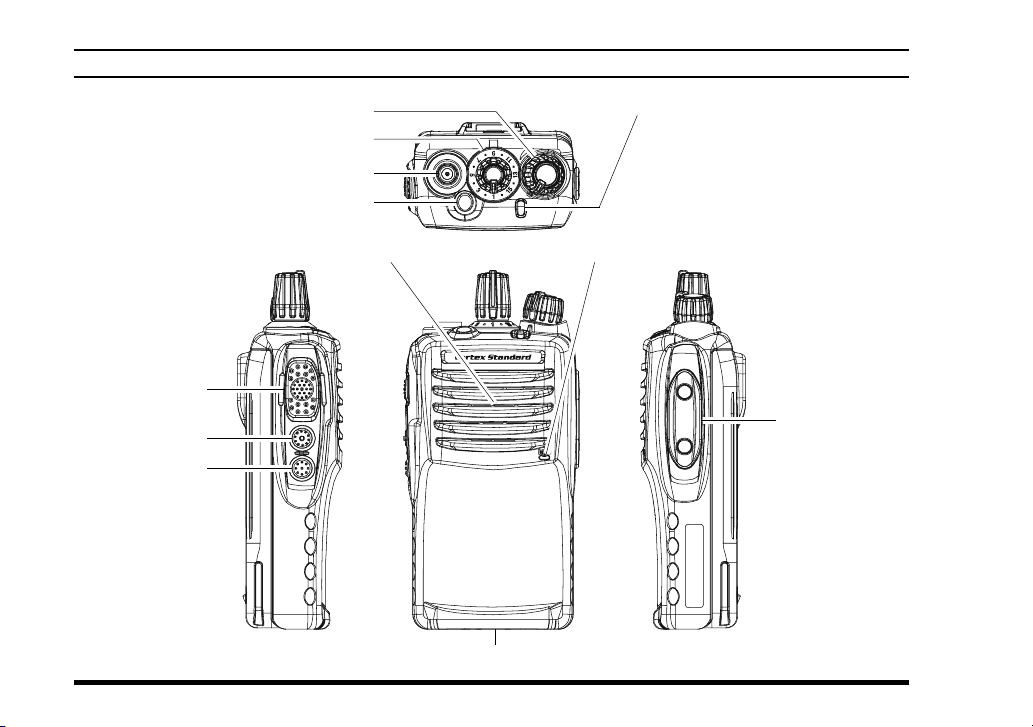

CONTROLS & CONNECTORS (VX-451)
Battery Pack Latch
Speaker Microphone
LED Indicator (Programmable)
Default settings are:
Steady Red:
Transmitting in progress
Blinking Green:
Busy Channel
Steady Green:
Tone Squelch in defeated condition
Antenna Jack
TOP SEL Key
CH (Channel)Selector
VOL/PWR Knob
MIC/SP Jack
(External MIC/SP)
PTT Switch
SIDE-2 Button
SIDE-1 Button
VX-450 SERIES OPERATING MANUAL
7

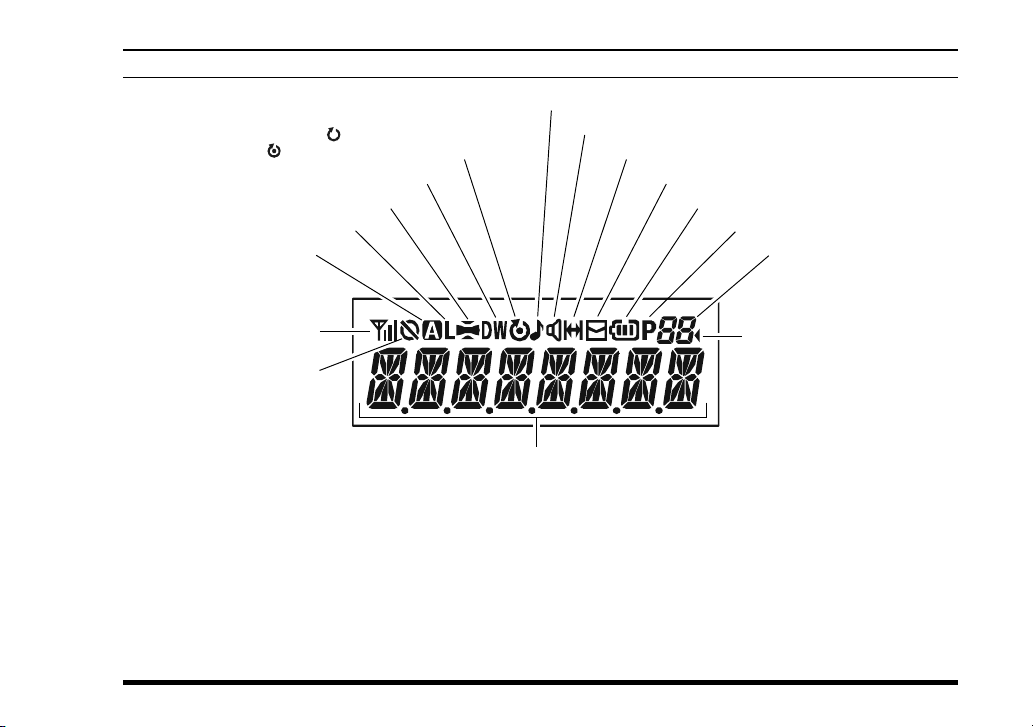

LCD ICONS & INDICATORS (VX-454 & VX-459)
8 Character Alpha-numeric Display
Group Number
RSSI Indicator (four steps)
Encryption is activated
Option SW (Key Function)
is activated
Low Transmit Power Mode On
“Audio Compander” is activated
“CALL” Indicator
Receiver Monitor
“Talk-Around” is enabled
“Voice Message” is received
Battery Indicator
“Group Scan” is enabled
Priority 2 Channel
“DUAL WATCH” is activated
: “Scan” is enabled
: “Priority Scan” is activated
VX-450 SERIES OPERATING MANUAL
8
BEFORE YOU BEGIN
Battery Pack Installation and Removal
To install the battery pack, align the battery pack
to the radio with an offset about 1/2 inch from the
top edge of battery compartment, then slide the
battery pack upward until it locks in place with a
“Click.”
Low Battery Indication
As the battery discharges during use, the voltage
gradually becomes lower. When the battery voltage
becomes to low, substitute a freshly charged battery
and recharge the depleted pack. The LED indicator
on the top of the radio will blink red when the bat-
tery voltage is low.
Caution
Danger of explosion if battery is replaced with
an incorrect battery. Replace only with the same
or equivalent type.
Battery Charging

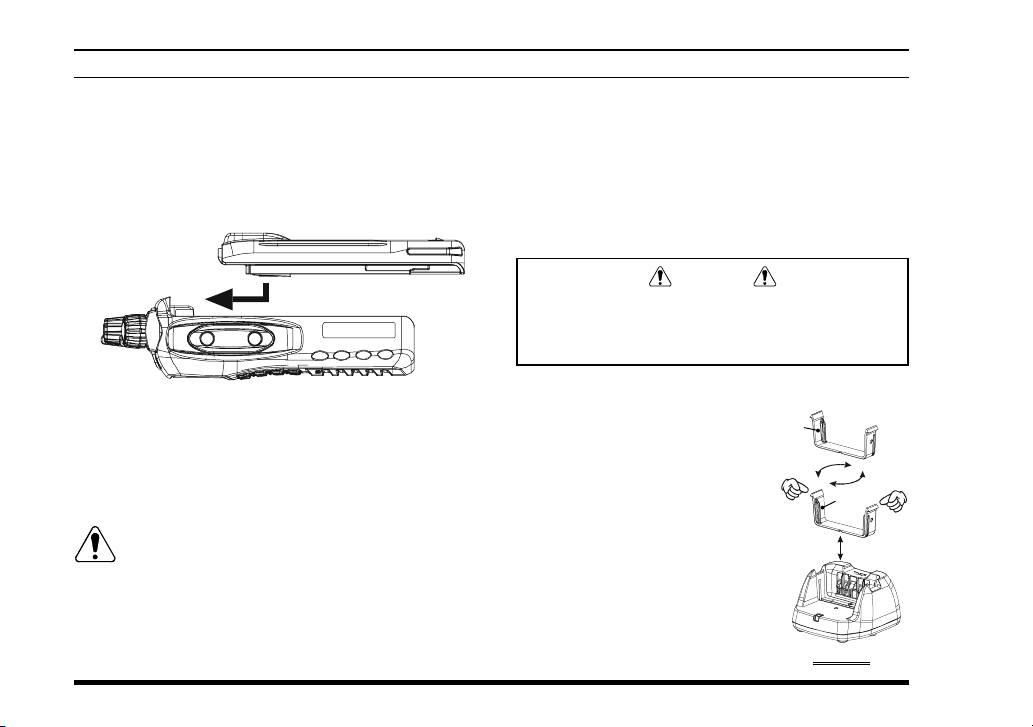

Referring to Figure 1, adjust
the direction of the Battery
Holder of the CD-49 Desktop
Charger in accordance with
the battery pack being
charged; Push in both sides of
the Battery Holder while pull-
ing up on the Battery Holder
to remove it from the charger
base, select the correct direc-
tion of the Battery Holder for
the battery being charged, then
To remove the battery, turn the radio off and re-
move any protective cases. Slide the Battery Pack
Latch on the bottom of the radio toward the front
panel while sliding the battery down about 1/2
inch. Then lift the battery out from the radio.
Do not attempt to open any of the recharge-
able Lithium-Ion packs, as they could ex-
plode if accidentally short-circuited.
Wide
Wide
FIGURE 1
Altri manuali per VX-450 series
4
Questo manuale è adatto per i seguenti modelli
3
Indice
Altri manuali Vertex Standard Ricetrasmettitore
Vertex Standard
Vertex Standard VX-8R Manuale utente
Vertex Standard
Vertex Standard VX-4000U Manuale utente
Vertex Standard
Vertex Standard VX-230 Series Manuale utente
Vertex Standard
Vertex Standard FT-817 Manuale utente
Vertex Standard
Vertex Standard VX-820ATEX Manuale utente
Vertex Standard
Vertex Standard VX-2200 Series Manuale utente
Vertex Standard
Vertex Standard Spirit VXA-700 Manuale utente
Vertex Standard
Vertex Standard VX-2100 Series Manuale utente
Vertex Standard
Vertex Standard VX-6000V Manuale utente
Vertex Standard
Vertex Standard DMU-2000 Istruzioni generali
Vertex Standard
Vertex Standard VXR-9000U-A Manuale utente
Vertex Standard
Vertex Standard VX-2000U Manuale utente
Vertex Standard
Vertex Standard VX-127 Manuale utente
Vertex Standard
Vertex Standard VXA-710 SPIRIT Manuale utente
Vertex Standard
Vertex Standard VX-920ATEX Series Manuale utente
Vertex Standard
Vertex Standard GX1500S Manuale utente
Vertex Standard
Vertex Standard VXR-9000U Manuale utente
Vertex Standard
Vertex Standard VX-5500L Manuale utente
Vertex Standard
Vertex Standard VX-160EU Manuale utente
Vertex Standard
Vertex Standard EVX-S24 Manuale utente
