VRS Switch
Art.-no.:
01820000 / 01820001 Installation and Operating Instructions
VRS Switch 1 Art.-no.: 01820000
VRS Switch 2 Art.-no.: 01820001
VRS Wall Transmitter – 1 Channel or 2 Channel.
Short description Safety precautions
–Check the VRS Wall Transmitter for signs of mechanical damage
after unpacking. If you notice any shipping damage, do not
start up the transmitter and notify your supplier immediately.
–The VRS Wall Transmitter should only be used for the purpose
specified by the manufacturer (refer to the operating instruc-
tions). Any changes or modifications thereof are not permissi-
ble and will result in loss of all warranty claims.
–This device contains a pollutant battery. The end user must
recycle all used batteries in accordance with regulation
91/157/EWG. Disposing of the batteries in household waste is
strictly forbidden.
Ä

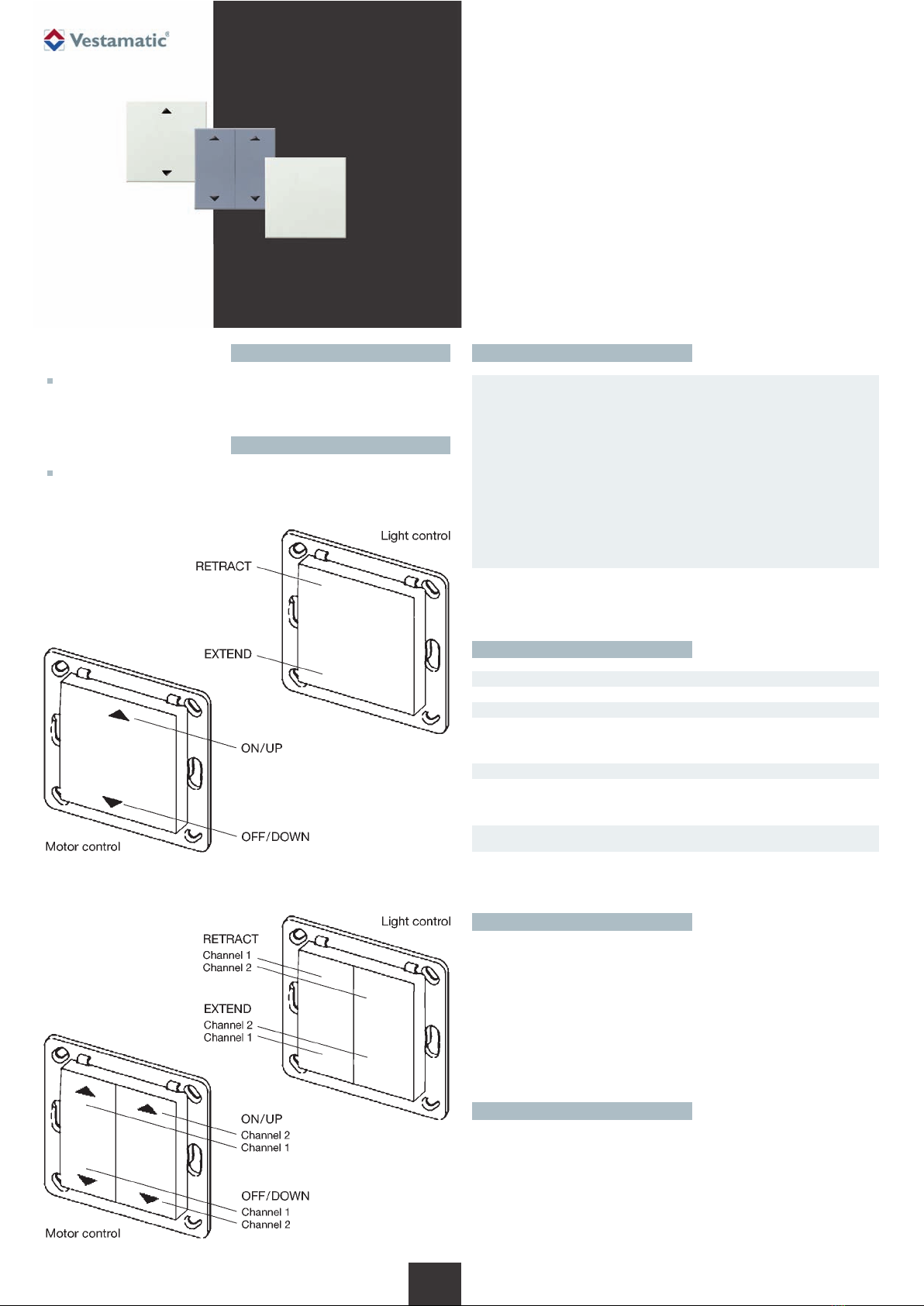

Universal 1- or 2-channel wall-mounted transmitter for control of
VRS receivers
Functional description
The VRS Wall Transmitter is a wireless switch transmitter for surface mounting
in dry indoor rooms.It fits into the most of switch frames with the dimensions
of 55 × 55 mm.
By pushing the button the VRS Code is transmitted and the connected
VRS radio receivers are switched in their selected operating mode.
1/ 2
G
Technical data
Transmitter frequency: 868 MHz
Operating temperature: 0 °C (32 °F) to +40 °C (104 °F)
IP class: IP 30
Dimensions (L × W × H):
VRS Wall Transmitter:55 × 55 × 10 mm
Mounting plate : 71 × 71 × 1.5 mm
Power supply: Battery 1 × 3 V, type CR2032
Colour information Signal white: similar RAL 9003
Nero: similar RAL 7016 (not included)
Silver:similar RAL 9006 (not included)
Conformity: p
Scope of delivery
Transmitter incl. mounting plate; printed cover frame – color:signal white;
unprinted cover frame – color:signal white; mounting accessories;
manual; battery CR 2032
The disposal of electrical equipment and batteries in household
waste is strictly forbidden.
The symbol (dustbin crossed out, in line with WEEE Appendix IV)
indi-
cates separate collection of electrical and electronic products in EU
countries.Do not dispose of the device or battery in your household
waste.Ask your town or local council about the return and collec-
tion systems available in your area to dispose of this product.
É
Disposal of waste
VRS Switch 1
VRS Switch 2
Subject to modifications.
© Vestamatic GmbH
Art.-Nr.: 85500102 E2 • Vestamatic GmbH • Dohrweg 27 • D-41066 Mönchengladbach • www.vestamatic.com
2/ 2
G
Instructions for radio receivers
ATTENTION!
Radio transmission is not suitable for safety operations, such
as emergency-stop, emergency call or warning signals.
Ä
Signals are transmitted across the Europe-wide approved 868 MHz fre-
quency band. The radio transmission range largely depends on the con-
structional circumstances of the building. If other adjacent radio devices are
simultaneously sending signals, mutual interferences cannot be debared.
Such interferences can also affect individual units of a group of receivers.
Observing the following instructions will minimize these interferences:
Avoid to mount radio receivers onto or adjacent to metal surfaces.
Maintain minimum 50 cm clearance to consumer loads, such as micro-
wave ovens or TV sets.
Keep a minimum clearance of 50 cm between each mounted radio
receiver.
Keep a minimum clearance of 50 cm between a radio receiver and a
radio transmitter.
If a radio-transmitted command cannot be clearly detected, the command
execution will be suppressed by means of an integrated automatic safety
function. The command must then be issued again.
Replacing the Battery
1. Lever off the transmission group.
2. Replace the battery. Only use batteries of the type CR2032. Make sure
you insert the new battery correctly, the positive pole has to be
visible.
3. Replace the transmission group back onto the catches.
Trouble Shooting
If the radio control does not react to the radio wall switch:
Exchange the battery.
Check that the wireless connection at the installation site is not impaired between
the radio wall switch and the receiver.
Memorize the transmission code in the receiver.
Other wireless devices using the same frequency or working in direct proximity
may interfere with the device.
VRS Switch
Note:
The coding of the transmiter is preserved even if there is no power
supply. You do not need to memorize the code in the receivers
again after a battery change.
i

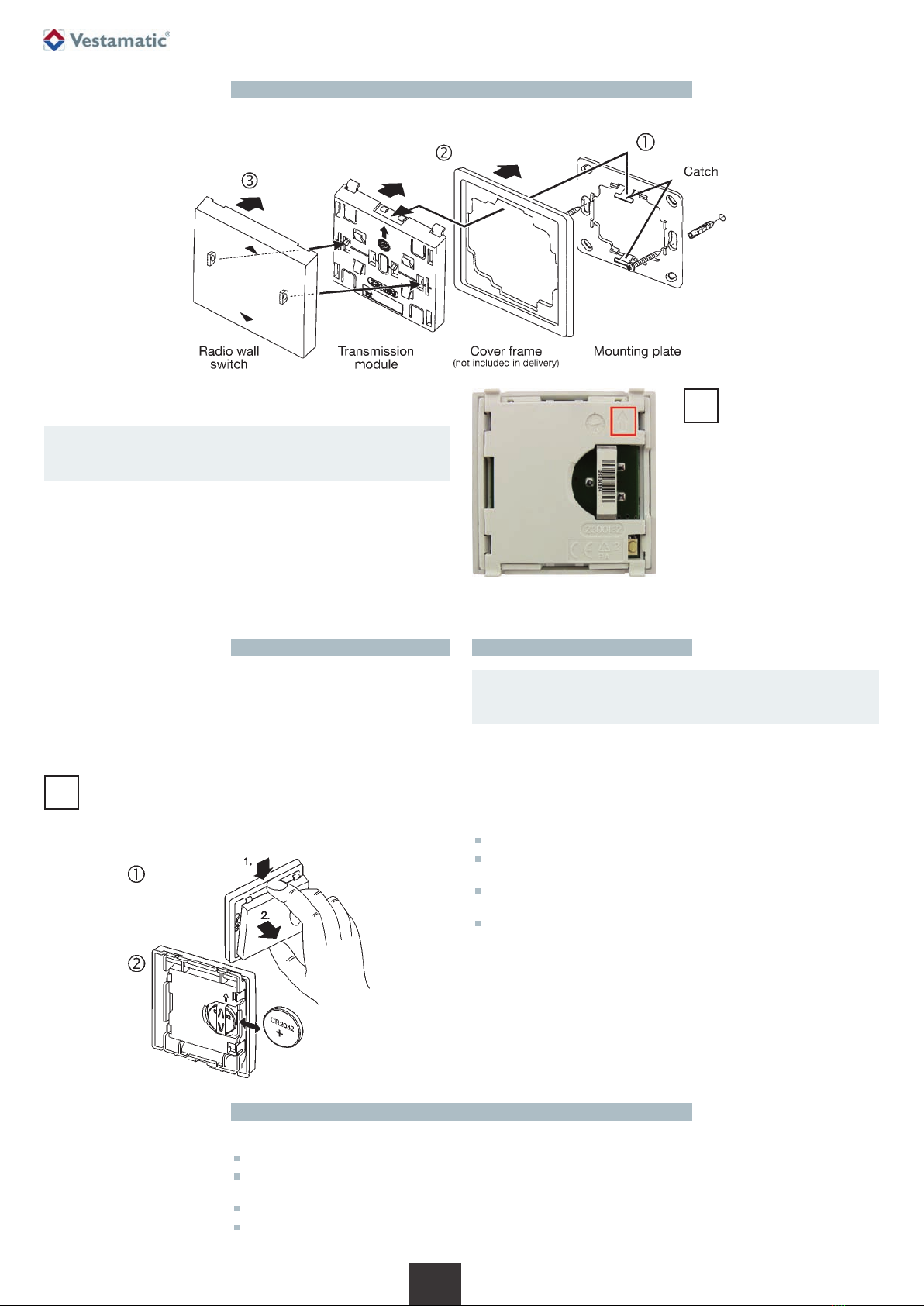

Installation / Start-up
The wall transmitter exists of the following components (incl. battery + attachment set):
1. Screw or stick the mounting plate to the installation site with the screws
and dowels or the adhesive pads.
2. Place the cover frame onto the mounting plate and snap the transmis-
sion module to the catches on top and bottom. The arrow on the trans-
mission module has to point upwards.
3. Snap the radio wall switch onto the transmission module.
4. Snap the radio wall switchonto the transmission module.Please
read the operating instructions supplied with the receivers.
CAUTION!
Please note the chapter “Instructions for radio receivers” on
the next page.
ÄInstallation note:
While installing the wall remote,
please ensure that the arrow on the
back is facing the ceiling.
i
